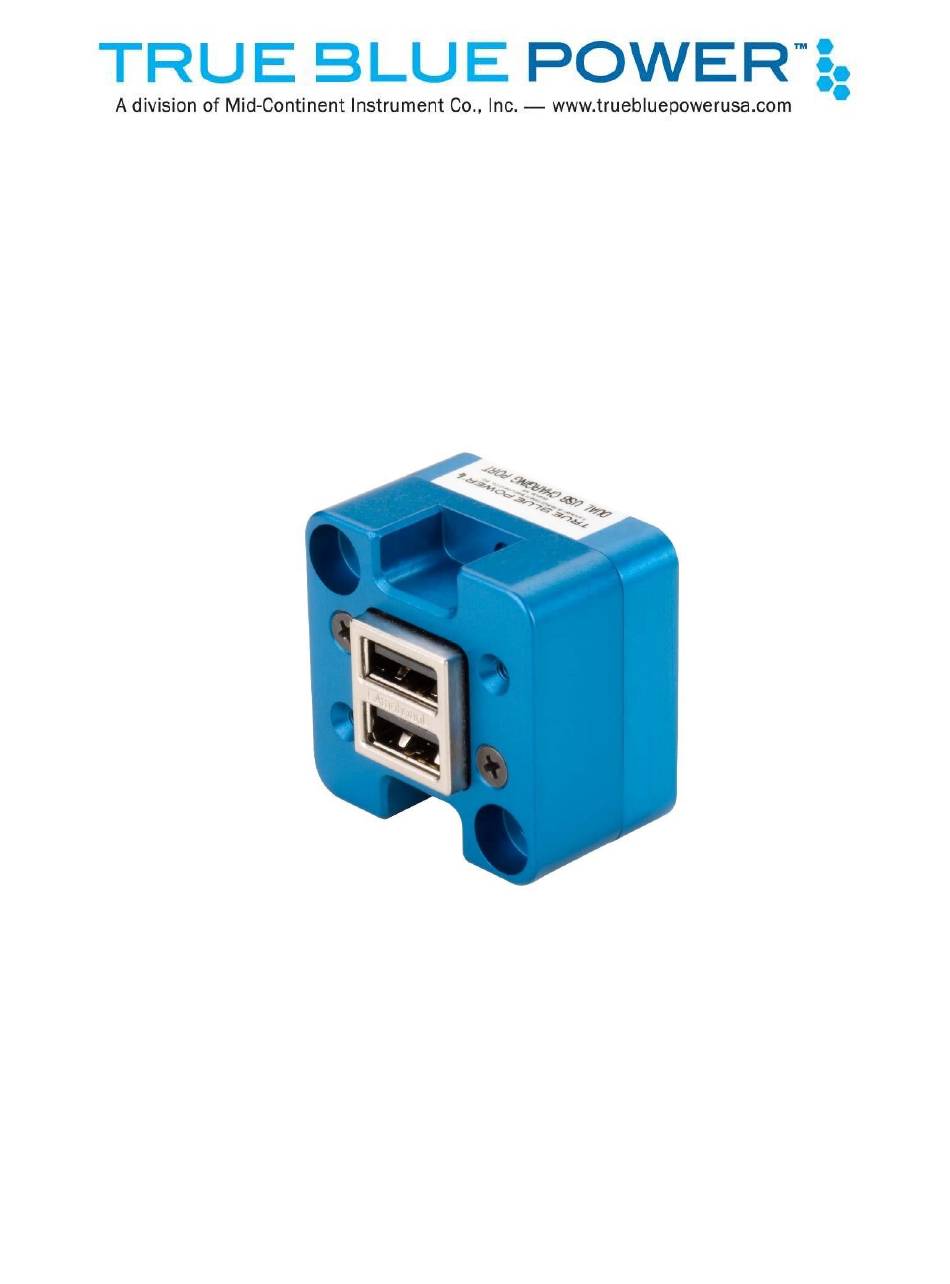

Installation Manual and Operating Instructions
USBT102 Series
Dual USB Charging Port
True Blue Power® a division of
Mid-Continent Instrument Co., Inc.
Mid-Continent Instrument Co., Inc.
dba Mid-Continent Instruments and Avionics
th
9400 E. 34
Street N.
Wichita, KS 67226
PH (800) 821-1212
Revision 1, June 15, 2018
FX (316) 630-0723
© Copyright 2018 Mid-Continent
Instrument Co., Inc.
Advertisement
Table of Contents
Summary of Contents for True blue power USBT102 Series
- Page 1 Installation Manual and Operating Instructions USBT102 Series Dual USB Charging Port True Blue Power® a division of Mid-Continent Instrument Co., Inc. Mid-Continent Instrument Co., Inc. dba Mid-Continent Instruments and Avionics 9400 E. 34 Street N. Wichita, KS 67226 PH (800) 821-1212...
-
Page 2: Section 1 General Description
SECTION 1 GENERAL DESCRIPTION INTRODUCTION The USBT102 Series Dual USB Charging Port is a power accessory that converts 10 to 32 volts of DC electrical input from a power supply to standard 5V power for any electronic product that charges using a USB connector. -
Page 3: Section 2 Pre-Installation Considerations
Each model USBT102 (part number M6430102-( )) has a nameplate that identifies the manufacturer, part number, description, and technical specifications of the unit. It also includes the “MOD” or modification number representing notable changes in the hardware design of the unit. True Blue Power Revision 1, June 15, 2018... -
Page 4: Section 3 Installation Procedures
The wire harness should utilize 20-24 AWG stranded wire. Refer to table 3.1 below. Wire Gauge Wire Length 20 AWG stranded wire 35 ft 22 AWG stranded wire 22 ft 24 AWG stranded wire 14 ft Table 3.1 Wire Gauge and Length True Blue Power Revision 1, June 15, 2018... - Page 5 For Front Mount Installation: Maximum panel thickness is 0.25”. • For Rear Mount Installation with Decorative Bezel: Panel thickness greater than 0.065 will cause the USB connector to be below the surface of the bezel (below flush). True Blue Power Revision 1, June 15, 2018...
-
Page 6: Installation Completion
Verify the output of the unit at the terminating end of the cable with a multimeter to ensure proper voltage and polarity. Once verified, installation can be completed and functionality should be checked. Figure 3.3 Rear Mount Installation True Blue Power Revision 1, June 15, 2018... - Page 7 Figure 3.4 Circular Rear Mount Installation Figure 3.5 Instrument Mount Installation True Blue Power Revision 1, June 15, 2018...
- Page 8 Step 4: place unit through panel cutout. Tighten pawl screws (x2) Step 5: Peel adhesive backing, align pins on rear of cover plate into holes on mounting plate and press firmly Figure 3.6 True Blue Power Revision 1, June 15, 2018...
-
Page 9: Section 4 Operation
SECTION 4 OPERATION ELECTRICAL PERFORMANCE The USBT102 Series Dual USB Charging Port converts a system’s (DC) input voltage within the range specified to a 5V (DC) output. This output power is applied to a dual USB-A connector in accordance with the USB Implementers Forum.
