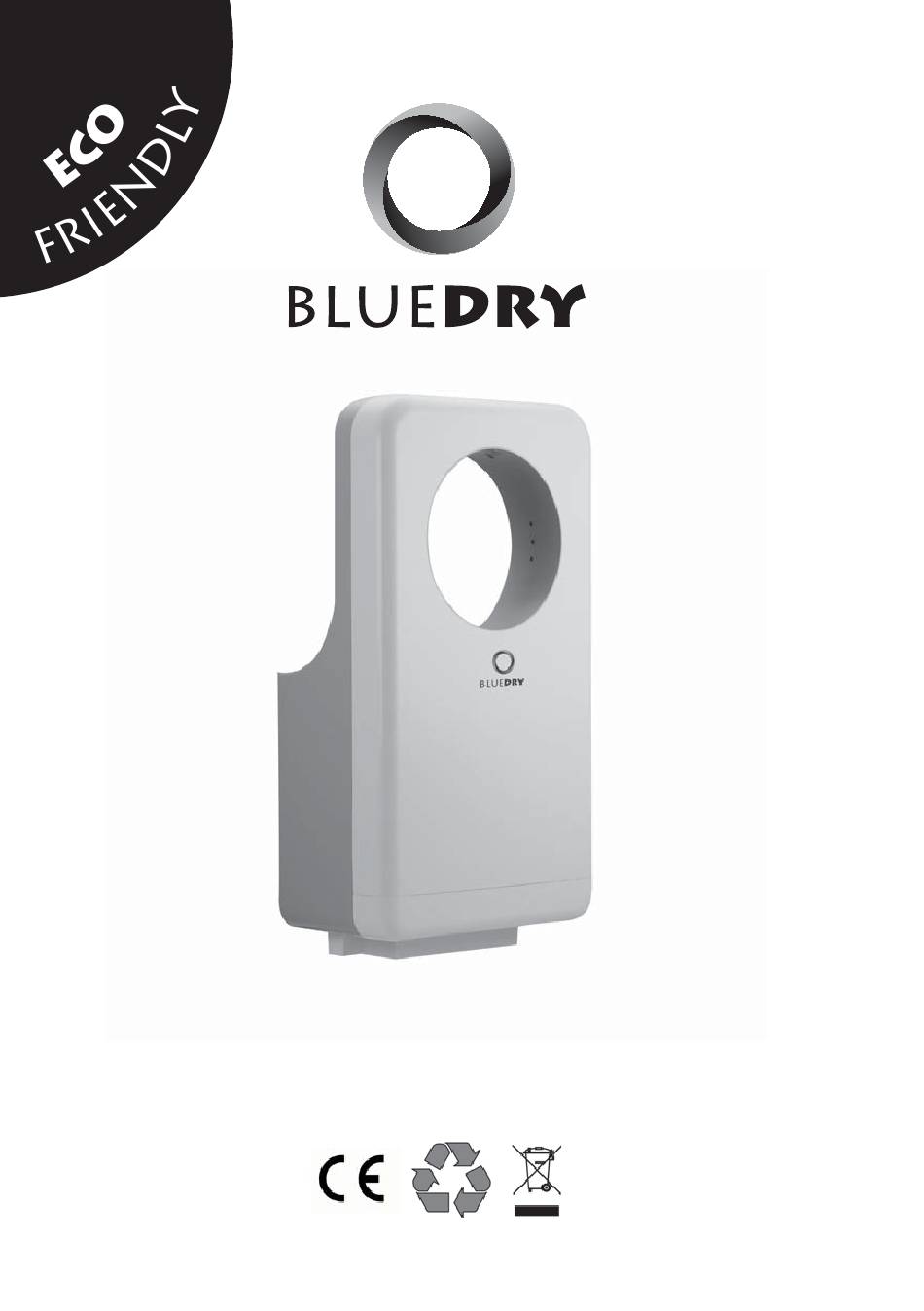

- Page 1 BLUEDRY USER MANUAL Model HD-BD988...
- Page 2 BLUEDRY - HIGH SPEED HAND DRYER...
-
Page 3: Technical Specifications
BLUEDRY - HIGH SPEED HAND DRYER PLEASE CAREFULLY READ THROUGH THIS MANUAL BEFORE USING THE PRODUCT. OBSERVING ALL SAFETY INFORMATION, WARNINGS AND CAUTIONS WILL PROTECT YOURSELF AND OTHERS. PLEASE KEEP INSTRUCTIONS FOR FUTURE REFERENCE. 1. TECHNICAL SPECIFICATIONS ITEM CATEGORY PERFORMANCE DATA Operating Voltage 220-240Vac,50/60Hz,5.0-8.0A, 500-1450W... -
Page 4: Recommended Mounting Heights
BLUEDRY - HIGH SPEED HAND DRYER 2. RECOMMENDED MOUNTING HEIGHTS From main air From datum point From bottom edge outlet above above (AFF) of dryer Above finished floor (AFF) (AFF) 1150mm (45-1/2”) 710mm (27-61/64”) 622mm (24-31/64”) Women 1080mm (42-1/2”) 640mm (25-13/64”) 552mm (21-47/64”) Children 4-7 years 780mm (30-1/2”) -
Page 5: General Safety Information
BLUEDRY - HIGH SPEED HAND DRYER 4. GENERAL SAFETY INFORMATION WARNING - This product is intended for installation by a qualified service person. Use eligible solid conductor for wiring (1.5mm² for 220-240V). WARNING - Disconnect power at the service breaker before installing or servicing. WARNING - All units must be supplied with a 3-wire service. -
Page 6: Cleaning And Maintenance
BLUEDRY - HIGH SPEED HAND DRYER 5. CLEANING AND MAINTENANCE Periodic cleaning of the unit is recommended to ensure optimum performance. • Wipe the cover with a damp cloth and mild cleaning solution. • Do not Soak. • Never use abrasives to clean the cover. 6. - Page 7 BLUEDRY - HIGH SPEED HAND DRYER 7. AIR SPEED ADJUSTMENT The dryer noise level can be varied by adjusting the motor speed. However, when lowering the motor speed, the drying time will increase also. The ability of this function will be dependent on the needs of the user. The factory setting for dryer’s motor speed will be set at its highest speed.
- Page 8 BLUEDRY - HIGH SPEED HAND DRYER 9. HOW TO CHANGE THE SUPER FILTER & GEL BLOCKS Use key (supplied) to unlock and withdraw drawer (fig.1 ). Change the SUPER filter (fig.2). Insert the drawer back and lock with the security screw. Gel Blocks Gel Blocks 10.
- Page 9 BLUEDRY - HIGH SPEED HAND DRYER 12. INSTRUCTIONS FOR USE, MAINTENANCE AND CHANGING THE ABSORBENT CERAMIC PLATE Under normal conditions the ceramic plate absorbs excess water blown from the hands, which then evaporates, in a continuous cycle. The ceramic plate can absorb 7Og of water, and has the capacity to take a full load approximately 280 times per day.
-
Page 10: Repair Parts List
BLUEDRY - HIGH SPEED HAND DRYER 14. REPAIR PARTS LIST PART NO. DESCRIPTION BD001P Ceramic absorber BD002P Wall bracket BD003P Backplate BD004P Back cover BD005P Cable gland BD006P Terminal block BD007P Switch cover BD008P Water reservoir BD009P BD0010P Switch cover BD0011P Motor BD0012P... - Page 11 BLUEDRY - HIGH SPEED HAND DRYER 15. DIAGRAM...
- Page 12 | Blue Dry is a part of FW3 Group LTD FW3 Group, West Hill, Nr Exeter, Devon, UK, EX11 1LQ Tel: 0800 328 5708 | Email: sales@fw3group.com...
