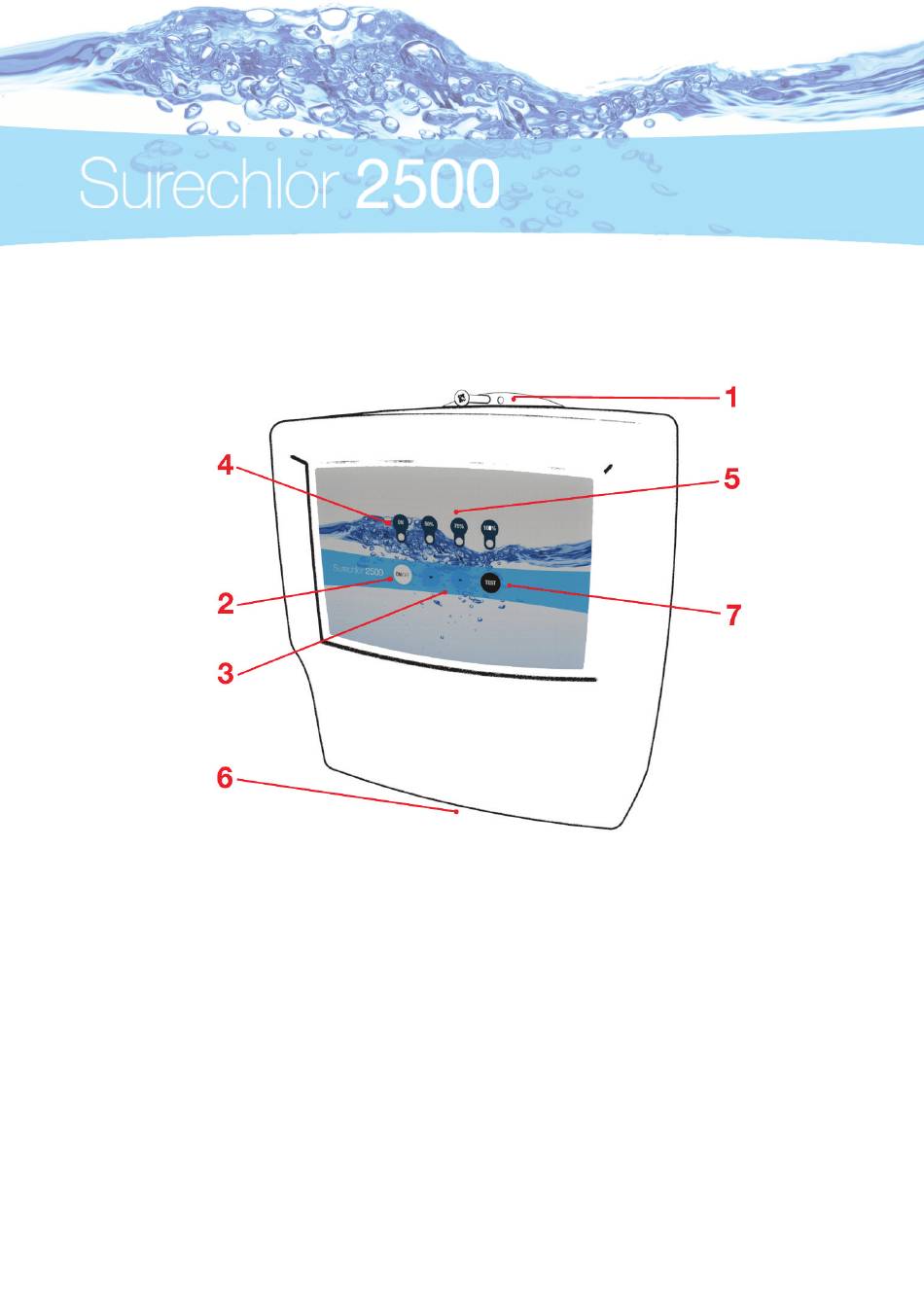

Quick Start Guide
1. Mounting Hole
Unit must be fi xed securely to the wall.
2. ON/OFF Button
Press to turn the unit 'ON' or 'OFF'.
3. UP / Down Arrows
Press 'UP' arrow to increase output.
Press 'DOWN' arrow to reduce output.
4. Power LED
Indicates if the unit is ON.
5. Production LED's
Displays output of unit.
50%, 75% or 100%
6. Pump outlet and Fuse holder
3 pin pump outlet to supply power to
the pump and the fuse holder are
located under the unit.
7. TEST button
Used to check if 100% is obtainable
with age of cell and salinity level.
Advertisement
Table of Contents
Summary of Contents for APS Chlorinators Surechlor 2500
- Page 1 Quick Start Guide 1. Mounting Hole 5. Production LED’s Unit must be fi xed securely to the wall. Displays output of unit. 50%, 75% or 100% 2. ON/OFF Button 6. Pump outlet and Fuse holder Press to turn the unit ‘ON’ or ‘OFF’. 3 pin pump outlet to supply power to 3.
-
Page 2: Installation
Installation Installing the Surechlor S2500 Salt Water Chlorinator Cell Salt Water Chlorinator cell must be installed horizontally (level) within 5 Surechlor S2500 degrees, in the return to pool line. The two plumbing inlets must point down. Heaters and other equipment in the return to pool line must be installed after the cell (i.e. between the cell and fi... - Page 3 Chlorine Control Your Salt Water Chlorinator has been designed to operate over a range of salt Surechlor S2500 levels, water temperatures and running times. Variable chlorine control has been provided to compensate for these variations. When fi rst starting the unit, and where maximum chlorine production is needed, your Salt Water Chlorinator should be set at 100% so Surechlor S2500...
- Page 4 Maintainance Chemical Balance Guide Your Salt Water Chlorinator is designed to be used for swimming pool Surechlor S2500 water, which needs to be balanced in accordance with Langlier Saturation Index, with a pH level of 7.2 to 7.6 and maintains the recommended levels of sanitizer. (i.e 2 - 3 ppm of free chlorine).
-
Page 5: General Warnings
General Warnings The Warranty will be void if the Power Pack is installed or operated: • On, or less than 1 metre from the ground. • Placed in a location that can be fl ooded by storm water or by accidental immersion. •... -
Page 6: Warranty Terms And Conditions
Unless with the express prior authority of APS Chlorinators P/L, any repair or replacement shall be provided only by APS Chlorinators P/L or its authorised distributors and this warranty shall not extend to any expenditure... - Page 7 (the Warranty). 3. If APS Chlorinators P/L accepts a claim under the Warranty, the liability of APS Chlorinators P/L is limited to the replacement or resupply of the goods in the absolute discretion of APS Chlorinators P/L. The customer cannot claim from APS Chlorinators P/L, compensation for any defect in the goods (including for consequential loss).
- Page 8 Manufactured by APS Chlorinator Systems P/L, 2/629 Toohey Rd, SALISBURY, QLD, 4107 e - sales@poolritesystems.com ph - +61 7 3277 2554 Cut along dotted line...
