Navigating the entire menu structure is done with 2 or 3 buttons on the control panel.

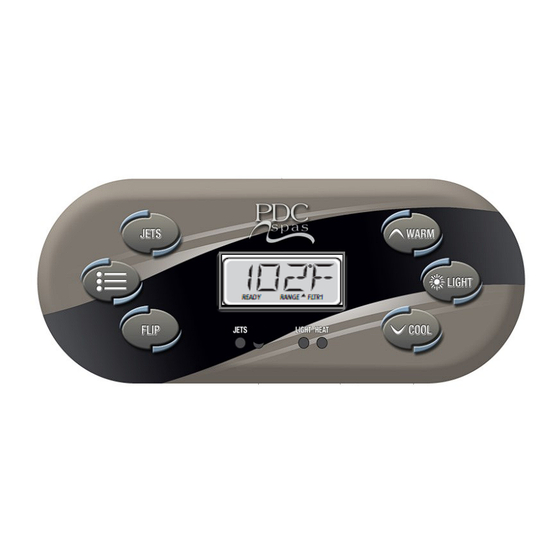

The Accent control panel has separate WARM (Up) and COOL (Down) temperature buttons.
The MENU Button is used to choose the various menus and navigate each section.
The two Temperature buttons (Warm and Cool) are used to select and change the parameter.
Typical use of the Temperature buttons allows changing the Set Temperature while the numbers are flashing in the LCD.
The menus can be exited by pressing the Menu key repeatedly to return to main screen.
Waiting a few seconds in the Main Menu will allow the display to revert to the Main Screen. Most changes are not saved
unless Menu/Select is pressed.

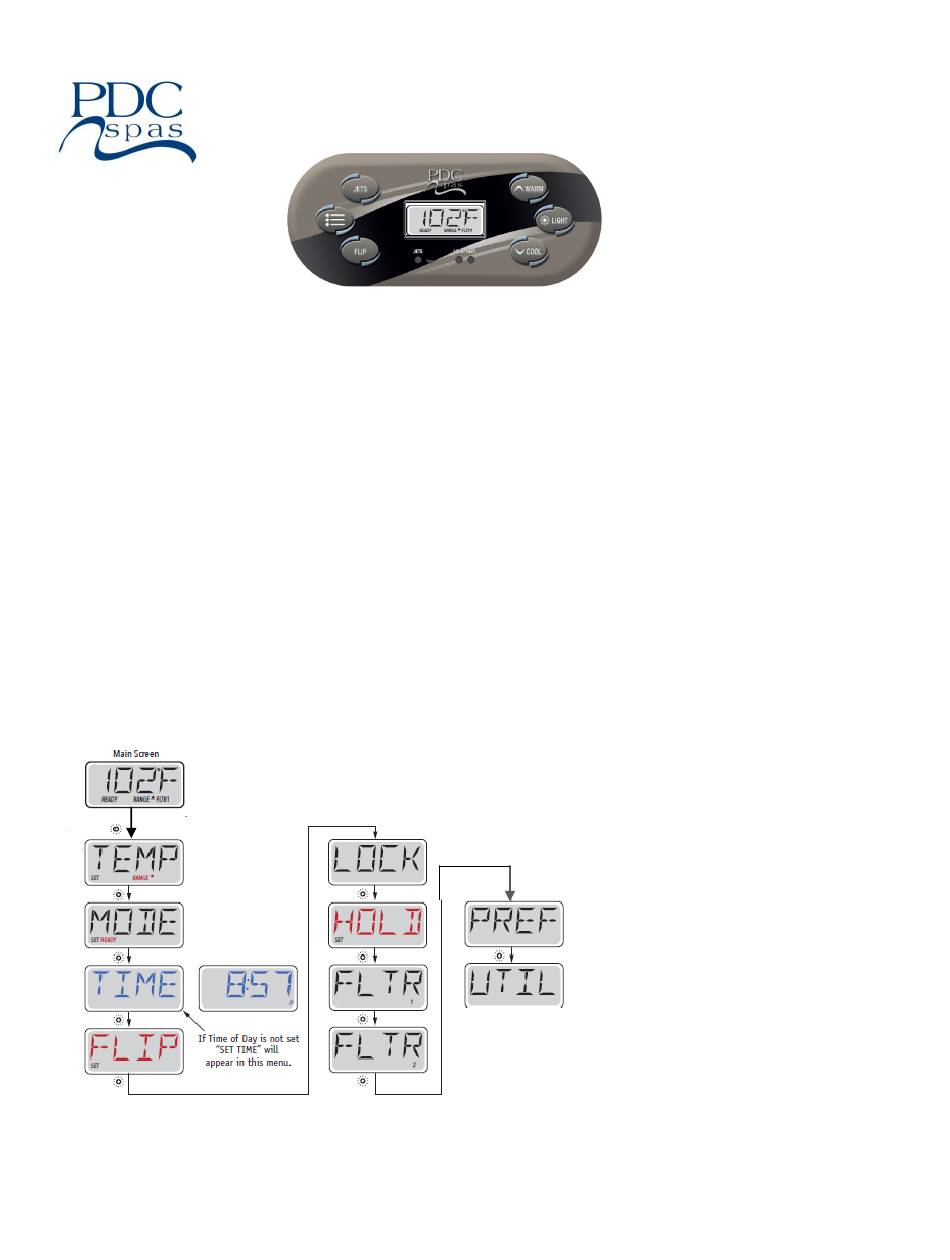

Sample Navigation Flow
Power-up Screens
Each time the System powers up, a series of numbers is displayed.
After the startup sequence of numbers, the system will enter Priming Mode.
Accent™ Control Operation Guide
Effect. 6/2019
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for PDC spas Accent
- Page 1 Navigating the entire menu structure is done with 2 or 3 buttons on the control panel. The Accent control panel has separate WARM (Up) and COOL (Down) temperature buttons. The MENU Button is used to choose the various menus and navigate each section.
- Page 2 Preparation and Filling Fill the spa to its correct operating level. Be sure to open all valves and jets in the plumbing system before filling to allow as much air as possible to escape from the plumbing and the control system during the filling process. After turning the power on at the main power panel, the top-side panel will go through specific sequences.
- Page 3 If unable to turn off low speed, note the pump will continue to operate on low speed until set temp is reached. It will automatical- ly turn off when temp is reached. Freeze Protection If the temperature sensors within the heater detect a low enough temperature, then the pump will automatically activate to provide freeze protection.
- Page 4 Show and Set Time of Day Setting the time-of-day can be important for determining filtration times and other background features. When in the TIME menu, SET TIME will flash on the display if no time-of-day is set in the memory. Setting Time: 1) Repeatedly press menu key until set time or time appears on screen.
- Page 5 the display. Duration has no “A” or “P” indication. Each setting can be adjusted in 15-minute increments. The panel calculates the end time and displays it automatically. Set Filter Cycle 1: 1) Repeatedly press menu key until FLTR appears. 2) Press up arrow and BEGN will be displayed. 3) Press up arrow again and then use up or down arrow to select filter cycle start time.
- Page 6 General Priming Mode—M019 Each time the spa is powered up, it will enter Priming Mode. The purpose of Priming Mode is to allow the user to run each pump and manually verify that the pump is primed (air is purged) and water is flowing. This typically requires observing the output of the pump and is generally not possible in normal operation.
-
Page 7: Miscellaneous Messages
Heater is Dry* – M027 There is not enough water in the heater to start it. The spa is shut down. After the problem has been resolved, you must press any button to reset and restart heater start up. See “Flow Related Checks” below. Heater is too Hot (OHH)* –... - Page 8 System-Related Memory Failure—Checksum Error* – M022 At Power-Up, the system has failed the Program Checksum Test. This indicates a problem with the firmware (operation program) and requires a service call. Memory Warning—Persistent Memory Reset (Persistent Memory Error)* – M021 Contact your dealer or service organization if this message appears on more than one power-up. Memory Failure—Clock Error* –...
- Page 9 Test the GFCI (or RCD) May appear on a regular schedule, i.e. every 65 days. The GFCI or RCD is an important safety device and must be tested on a regular basis to verify its reliability. Every user should be trained to safely test the GFCI or RCD associated with the hot tub installation.
