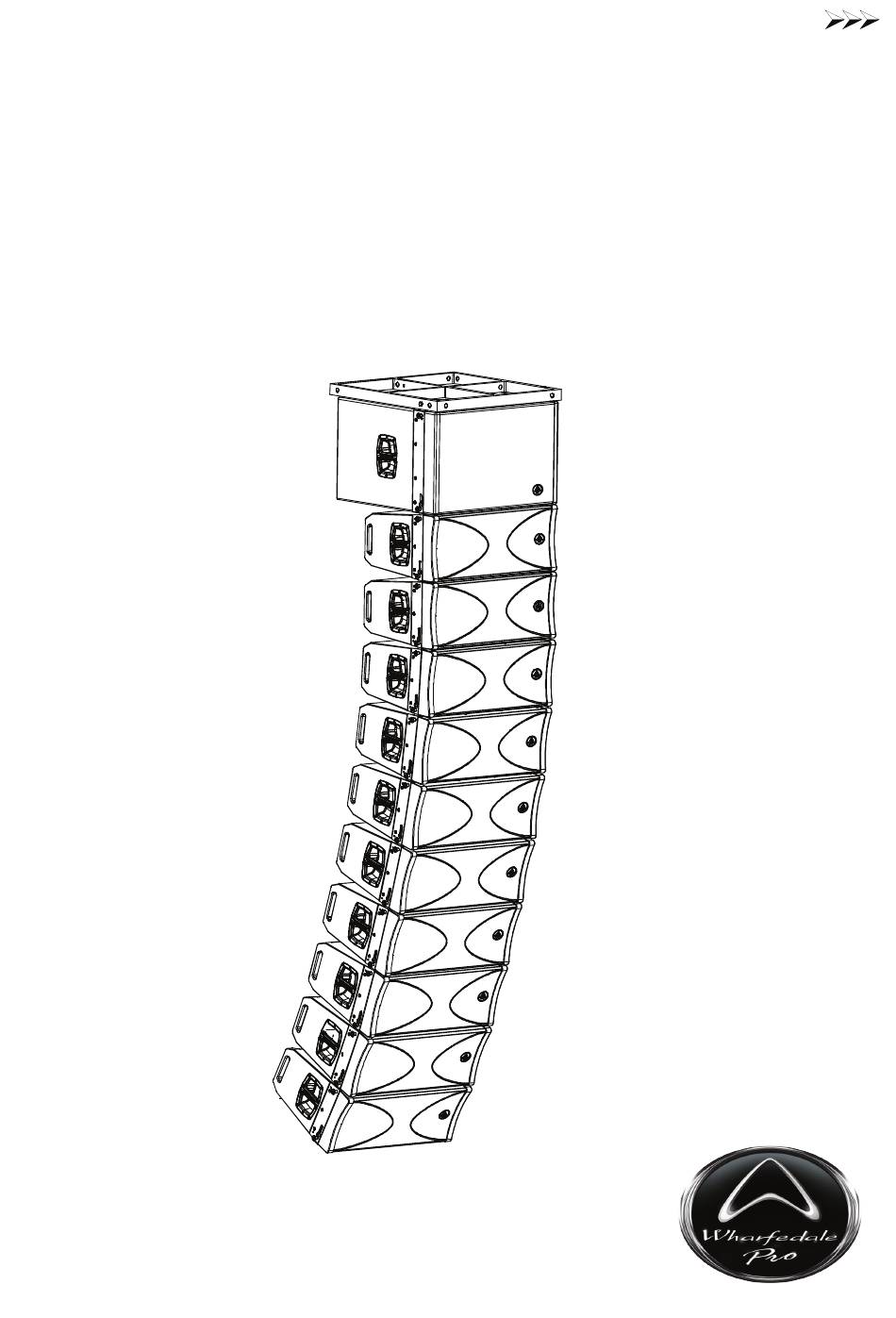

- Page 1 Wharfedale Pro WLA Series User Manual WLA-210X WLA-210XSUB WLA-210X Common Fly frame WWW.WHARFEDALEPRO.COM...
-
Page 2: Table Of Contents
CONTENTS ........................... Warnings ..........................Introduction ........................... Features ..................WLA-210X Passive & Bi-amp modes ................WLA-210X Parallel wiring configuration .................... System fly frame configurations ..................Dimensional drawings WLA-210X ................. Dimensional drawings WLA-210XSUB ............Dimensional drawings WLA-210X Common Fly frame .......................... Specifications... -
Page 3: Warnings
Inspect all mounting hardware before your line array is flown. If there is any damage or distortionto any mounting hardware do not fly the array until any damaged hardware is repaired or replaced. Only use Wharfedale Pro supplied Quick release Pins, contact your Wharfedale Pro Distributor if any quick release pins are lost or damaged. -
Page 4: Introduction
WLA-28 systems from Wharfedale Pro. Portable, powerful and versatile line array solutions which are ideal for both touring and fixed installation applications. Each WLA-210X element uses a pair of custom 10” Wharfedale Pro high-power lowfre- quency drivers, while the high frequencies are handled by a premium 3.0”... -
Page 5: Features
FEATURES WLA-210X 2 x 10” LF drivers with 2.5” voice coils 1 x Neodymium HF compression driver with 3” voice coil 16Ω Impedance Passive and Bi-amp operation modes 100° x 10° dispersion HF : 90w Continuous / 180w Programme / 360w Peak LF : 800w Continuous / 1600w Programme / 3200w Peak Internal rigging system 15mm / 18mm plywood construction... -
Page 6: Wla-210X Passive & Bi-Amp Modes
(discrete) amplifiers are used to power the low frequency and high frequency drivers. The Wharfedale Pro Versadrive series of signal processors are ideal for passive and bi-amp mode operation and control. Note - The WLA-210X subwoofer does not have an internal crossover. This function must be supplied by external electronic devices such as a Wharfedale Pro Versadrive. -
Page 7: Wla-210X Parallel Wiring Configuration
WLA-210X - PARALLEL WIRING Enclosure#1 Enclosure#2 LINE ARRAY WLA-210X LINE ARRAY WLA-210X 800 WATTS CONTINUOUS 800 WATTS CONTINUOUS 1600 WATTS PROGRAM 1600 WATTS PROGRAM 3200 WATTS PEAK 3200 WATTS PEAK... -
Page 8: System Fly Frame Configurations
FLEXIBLE ARRAYS Arrays can be assembled using only WLA-210X line array elements or with WLA-210XSUB Subwoofers at the top of the array. The WLA-210X Common Fly frame supports up to 10 x WLA-210X elements and 1 x WLA-210XSUB OR up to 12 x WLA-210X elements with a safety factor of 12. - Page 9 450kg. Up to 10 x WLA-210X and 1 x WLA-210XSUB elements can be flown with a safety factor of 12. Only use Wharfedale Pro fly frames. Ensure that only rated, certified hardware such as tumbuckles, shackles and chains are used.
-
Page 10: Dimensional Drawings Wla-210X
DIMENSIONAL DRAWINGS WLA-210X 314.0 503.5... -
Page 11: Dimensional Drawings Wla-210Xsub
DIMENSIONAL DRAWINGS WLA-210X SUB 485.0 716.0... -
Page 12: Dimensional Drawings Wla-210X Common Fly Frame
DIMENSIONAL DRAWINGS WLA-210X Common Fly frame 766.0 50.0 741.0... -
Page 13: Specifications
SPECIFICATIONS Model Name WLA-210X WLA-210XSUB WLA-210X Common Fly frame System Type Passive Passive Configuration Two-way Subwoofer Frequency Response (+/-3dB) 65-20kHz 39-900Hz Frequency Range (-10dB) 60-20kHz 35-1.5KHz (Passive) Sensitivity 2.83v/1m 102dB 108dB (Passive) Calculated Maximum SPL @1m 138dB 145dB (Bi-Amp) Sensitivity 2.83v/1m HF:112dB/LF:100dB (Bi-Amp) Calculated Maximum SPL @1m HF:138dB/LF:135dB... - Page 16 2019...
