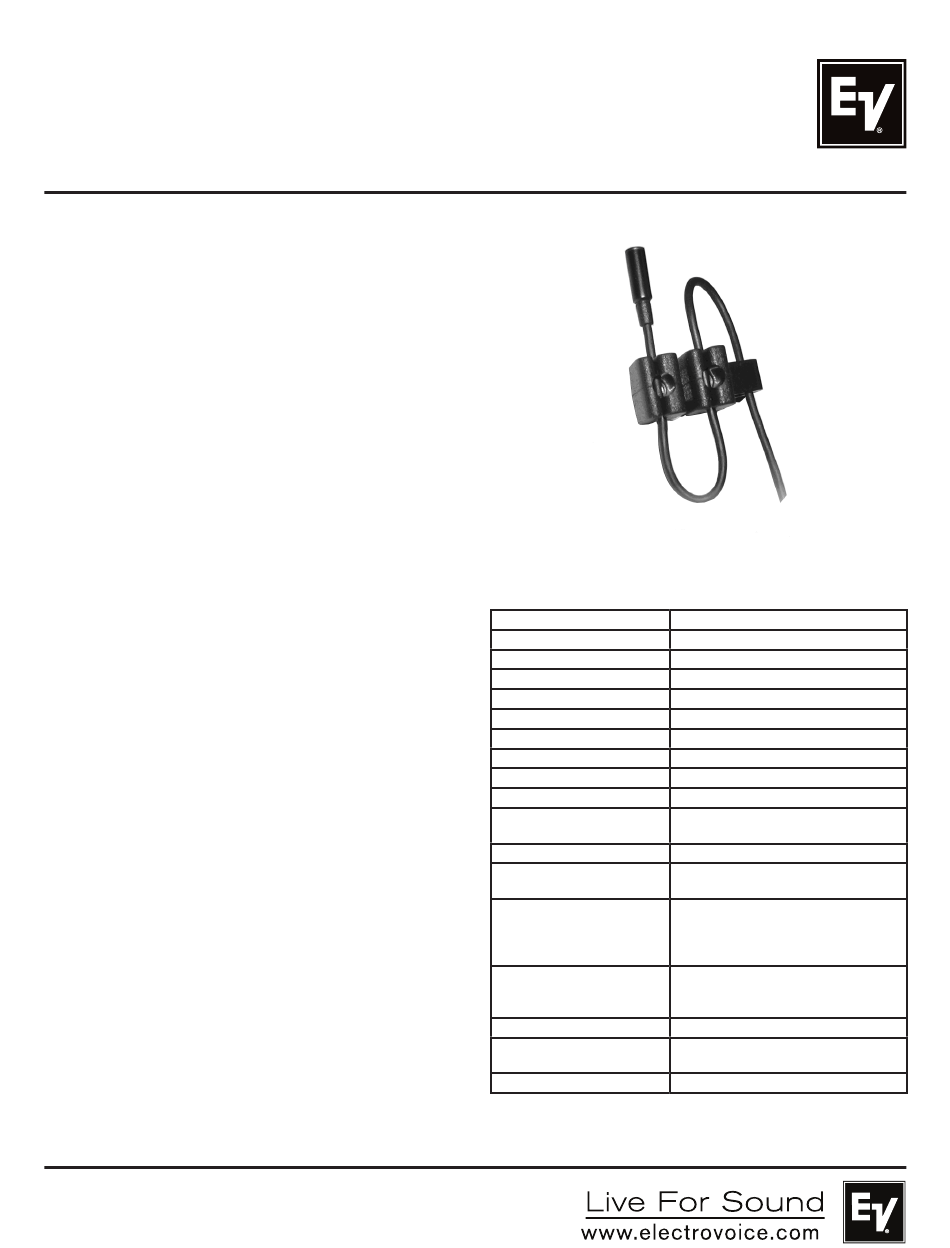

Electro-Voice RE97LTx Quick Start Manual
Electro-Voice RE97LTx Quick Start Manual

Electro-Voice RE97LTx Quick Start Manual

Ultra-miniature condenser lapel microphone ta4f connector

Advertisement

Quick Links

Key Features:

Ultra-Miniature Size for Inconspicuous Use
Omnidirectional Polar Pattern to Provide Clean
Sound and Uniform Response
Lightweight, Low Profile, Rugged Construction
Superior Sound Quality
Terminated with Female TA4F Connector for
use with any EV Wireless Bodypack Transmitter
Available in Black or Beige Finish

General Description:

The Electro-Voice® RE97LTx is an ultra-miniature,
omnidirectional, condenser microphone designed for
applications that demand a high quality microphone
element that is practically invisible when worn by
the speaker or performer. The RE97LTx is intended
for spoken-word use in theatrical performance, fixed
installations, corporate AV presentations, houses of
worship, or any venue where a full-range, natural, and
well-balanced sound is required from an inconspicu-
ous, lightweight microphone.
The output of the RE97LTx is clean and accurate, while
the omni-directional polar pattern ensures uniform
output regardless of the microphone's angle relative
to the sound source. The provided clip is a convenient
anchor for the microphone on a lapel, tie, or shirt col-
lar.
The supplied windscreens can be utilized in windy
environments and to reduce breath noise. The RE97LTx
has a shielded 4ft cable terminated in a genuine
Switchcraft® TA4F connector and is ready for use
with standard EV and Telex body-pack transmitters
including the EV REV-BP, BPU-2/CSB-1000 and Telex
WT-500/WT-1000. The wire to the body-pack is ultra-
flexible, and may be easily concealed.
RE97LTx
Ultra-Miniature Condenser

Lapel Microphone

TA4F Connector

Technical Specifications:

Transducer: Condenser, Back-Electret
Freq. Response: 50 Hz - 15 kHz
Polar Pattern: Omnidirectional
Sensitivity, 1 kHz: -48 dBV, 4.0 mV/Pascal
Maximum SPL: >120 dB SPL
Equivalent Noise: 32 dBA
Dynamic Range: 88 dB
Output Impedance, 1 kHz: 3000 Ohms
Power Requirements: +5 VDC
Current Consumption: 310 μA
Polarity: Positive Pressure on Diaphragm
Dimensions: See Diagram
Cable: 4 ft (1.22 m) Long
TA4F Connector Wiring: Pin 1 - Ground
Accessories Furnished: Long and Short Windscreens
Colors Available: Black, Beige
Net Microphone Weight: 10.5 g (0.4 oz)
Optional Accessories: TXA Phantom Power Adapter
Produces a Positive Voltage on Pin 2
0.052 in (1.30 mm) Diameter
Pin 2 - Audio
Pin 3 - Bias Voltage
Pin 4 - Unused
Dual Clothing Clip
Gig Bag
Clip Only - 2.1 g (0.08 oz)
