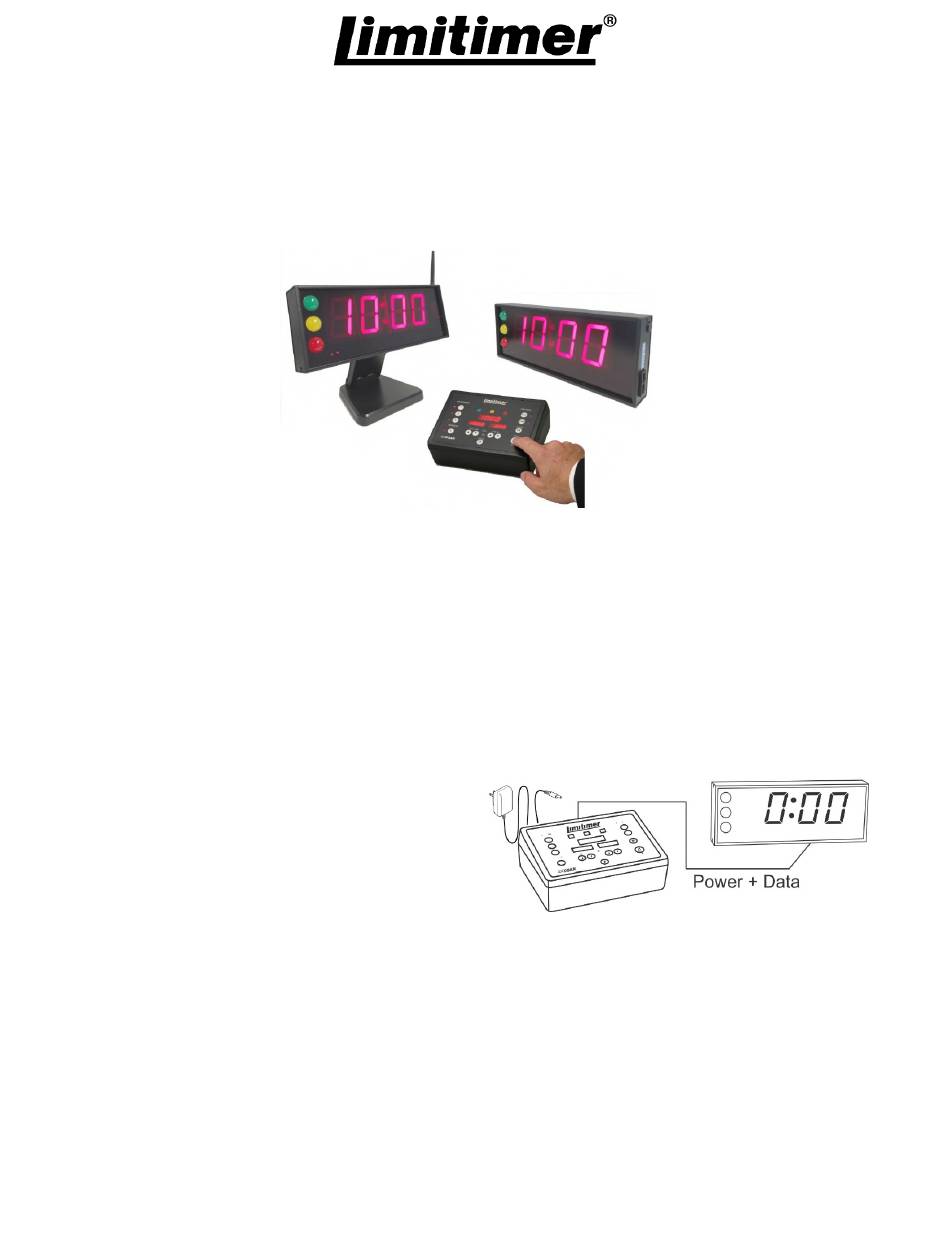

Desktop time display for conference rooms and legislative chambers
Two-inch solid LED digits viewable to 50-feet
Green-yellow-red phase lights activated by pre-set programs
Beeper
Wired or wireless connection to Limitimer timer console
Foldable desktop stand that is wall-mountable
75mm VESA threaded attachment holes
Connections to timer
Wired
Connect to a Limitimer PRO-2000 timer console
with ordinary Cat-5 cable through either of two
RJ45 input jacks. 12V power flows through the
cable so that only the timer or the signal light need
be externally powered. Optionally, connect an
additional signal light through the output port.
For cable runs greater than 100-feet, always provide local power to the signal light using the included 1-
Amp power supply (center pin +).
Wireless
Model ASL2-ND3BT has an integrated Bluetooth receiver module that is enabled when DIP switch #10 is
in the ON position. For wireless operation, use the external power supply.
Pair with a Bluetooth enabled Limitimer that is configured with the same RF channel (DIP switches 11
and 12). Up to 7 signal lights can be paired to one timer. Up to 4 signal light ― timer networks can
operate in proximity on unique RF channels.
Wireless range is about 250-feet.
Audience Signal Light
ASL2-ND3, ASL2-ND3BT
Advertisement
Table of Contents
Summary of Contents for Limitimer ASL2-ND3
- Page 1 ON position. For wireless operation, use the external power supply. Pair with a Bluetooth enabled Limitimer that is configured with the same RF channel (DIP switches 11 and 12). Up to 7 signal lights can be paired to one timer. Up to 4 signal light ― timer networks can operate in proximity on unique RF channels.
-
Page 2: Switch Settings
Connections to other signal lights Connect any Limitimer signal light to the output port of the ASL2-ND3. Data and power from a Limitimer connected to the input port will flow to the connected signal light along with power. -
Page 3: Power Requirements
100-feet, the signal light should be locally powered. Installations ASL2-ND3 and ASL2-ND3BT have 4 M7-.07 threaded bushings spaced to accept standard 75MM VESA hardware. Caution when attaching VESA hardware. The total screw length from the outside of the case should be no more than 0.5”. -
Page 4: Service And Support
Dimensions 11.4” (W) x 4.2” (H) x 1.5” (D). See separate ASL2-ND3-Dimensions.pdf. Warranty Instruments made by DSan Corp are warranted against defects in materials and workmanship one year from date of shipment. Any instrument which fails will be restored free of charge.
