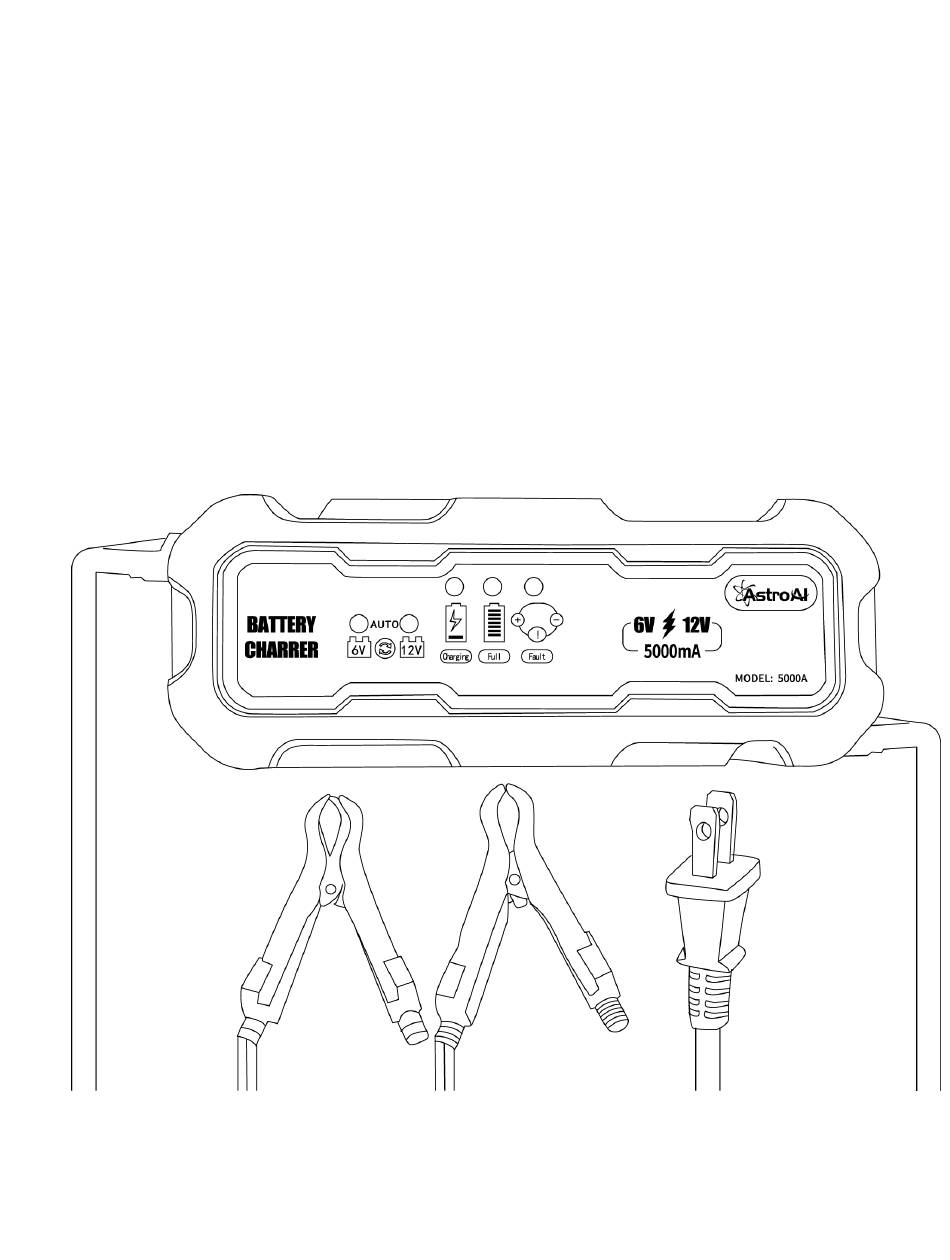

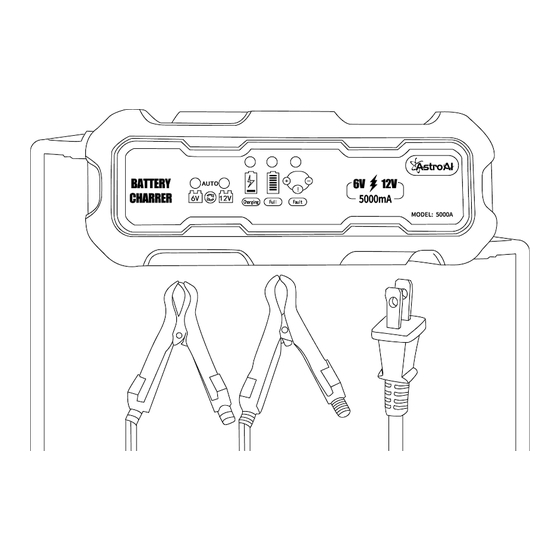

- Page 1 AstroAI 5000mA Battery Charger...
- Page 2 AstroAI 5000mA Battery Charger Thank you for purchasing the AstroAI 5000mA Battery Charger. This is a fully Automatic 4-stage Battery Charger, allowing you to charge 6V and 12V lead-acid batteries in your vehicles. Recommended battery capacities: 10Ah-120Ah, up to 200Ah for maintenance. Just select the charging voltage (6V or 12V) and the microprocessor-controlled charger will do the rest until the charging cycle has completed.
- Page 3 Connection Protection: This function will protect the battery charger and your vehicle’s battery from being damaged if connected incorrectly. stage charging process: Stage 1:initialization, when the charger power on then it start self-check and detect the battery correct connect. Stage 2:Bulk charge, using the charger highest rated current for the type of battery in use until it reaches 80% capacity.
- Page 4 Specifications: Designed Voltage and Amperage 6V, 5A / 12V, 5A Charging Current 5A Max charging programs: DC2 (6V / 12V) 6V Mode: 7.2V Charging Voltage 12V Mode: 14.4V Minimum Operating Voltage 2.5V Ripple Wave <4% Working Temperature -40°F~104°F (-40°C~40°C) AC Input Voltage AC 100-120V, 60Hz AC Input Current Maximum 1.8A / 130V...
- Page 5 5 Year Warranty From AstroAI Each AstroAI 5000mA Battery Charger /Maintainer will be free from defects in material and workmanship. This warranty does not cover fuses, disposable batteries and damages from neglect, misusage, contamination, alteration, accident, or abnormal conditions of operation or handling such as overvoltage failures caused by using outside the Battery Charger/Maintainer’s...
