Fig. 1
BEFORE
(CLOSED)
Fig. 3

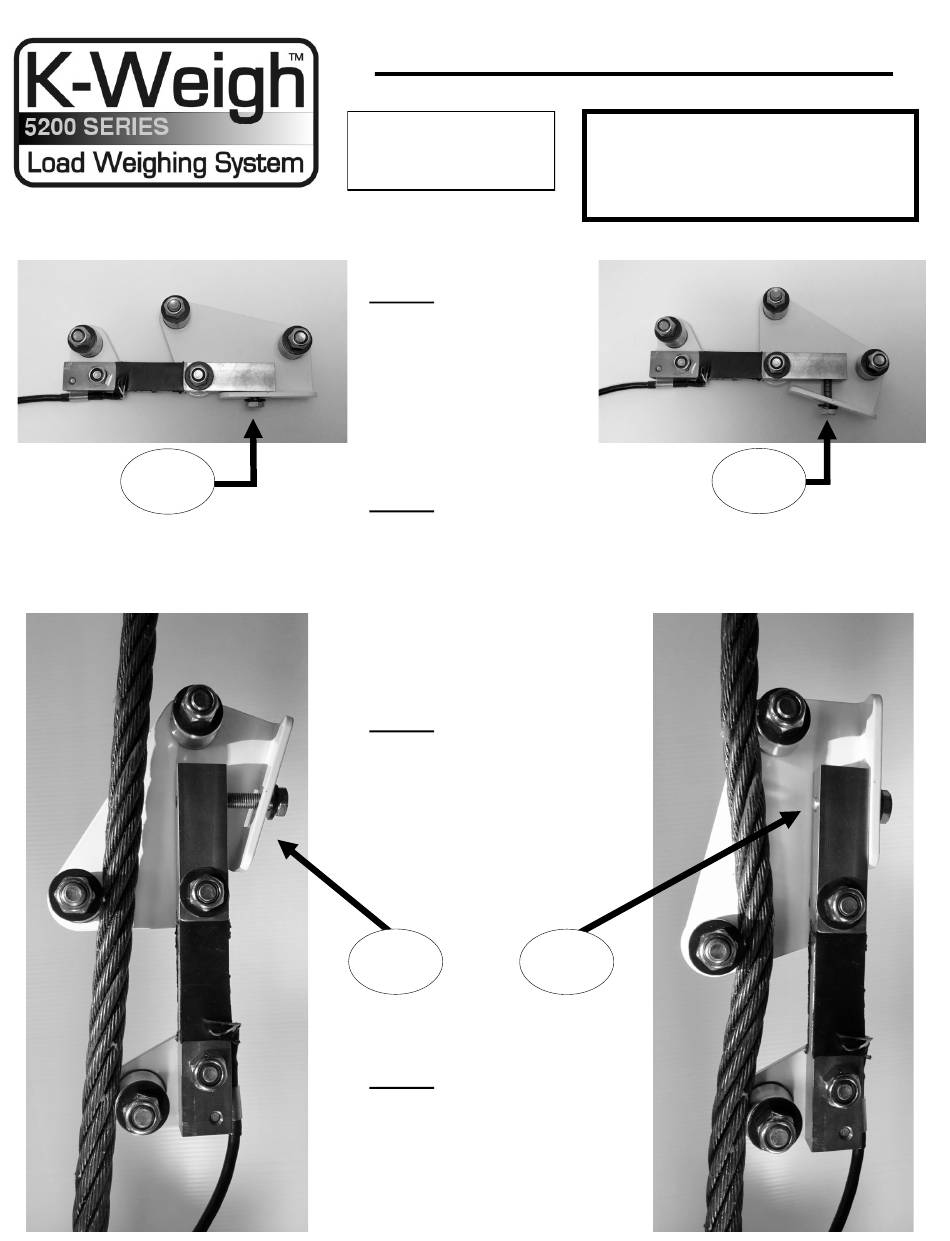

Rope Sensor Installation Guide
Familiarize yourself
with the sensor and how
it assembles before use.
Step 1:
Using a 7/16 wrench,
unscrew the tension bolt
and pivot the bar away
from the yellow metal.
Step 2:
Mount the sensor on the
rope as shown in Fig. 3:
between the center and
outer bobbins, inside the
groves.
Step 3:
Using a 7/16 wrench, fully
hand tighten the tension
bolt until the bar sits flush
against the yellow metal.
BEFORE
(CLOSED)
(OPEN)
Step 4:
Repeat steps 1-3 for all
rope sensors.
If you have any questions, please contact our
Customer Service Department at
1-800-993-9399 or go to
www.KTechOnline.com
AFTER
Fig. 2
AFTER
(OPEN)
Fig. 4
Advertisement
Table of Contents
Summary of Contents for K-Weigh 5200 Series
- Page 1 Rope Sensor Installation Guide Familiarize yourself If you have any questions, please contact our with the sensor and how Customer Service Department at it assembles before use. 1-800-993-9399 or go to www.KTechOnline.com Fig. 1 Fig. 2 Step 1: Using a 7/16 wrench, unscrew the tension bolt and pivot the bar away from the yellow metal.

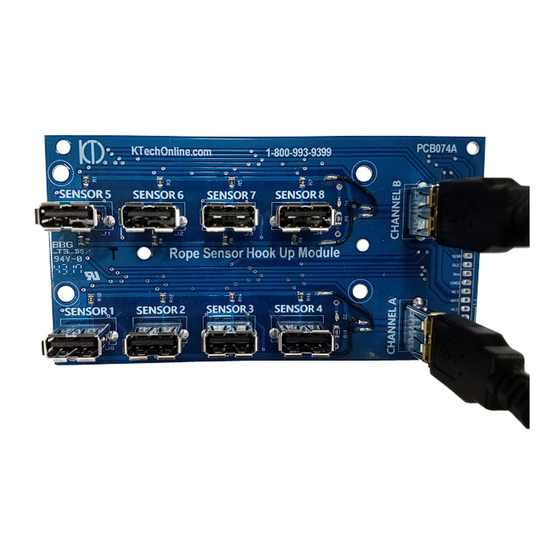

- Page 2 4 Rope Sensors Hook up sensors to CHANNEL A only (SENSOR 1-4) (see Fig. 5) • SEN 2 on K-Weigh should be turned OFF (see Fig. 6) • 5 or more Rope Sensors Distribute sensor hook ups between CHANNEL A and CHANNEL B (SENSOR 1-8) (see Fig. 5) •...
