Summary of Contents for Haus DW9-AFM Series

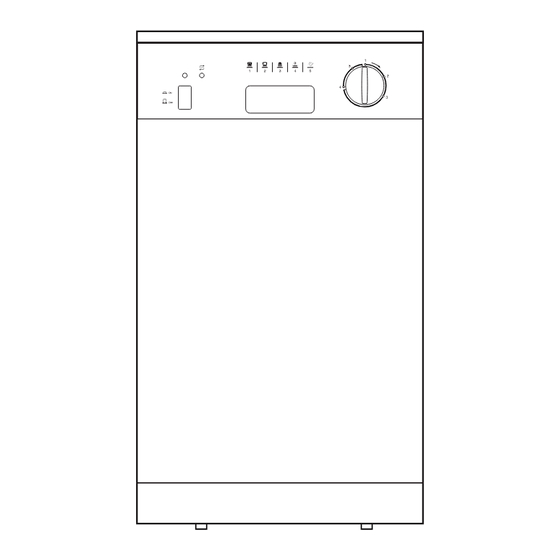

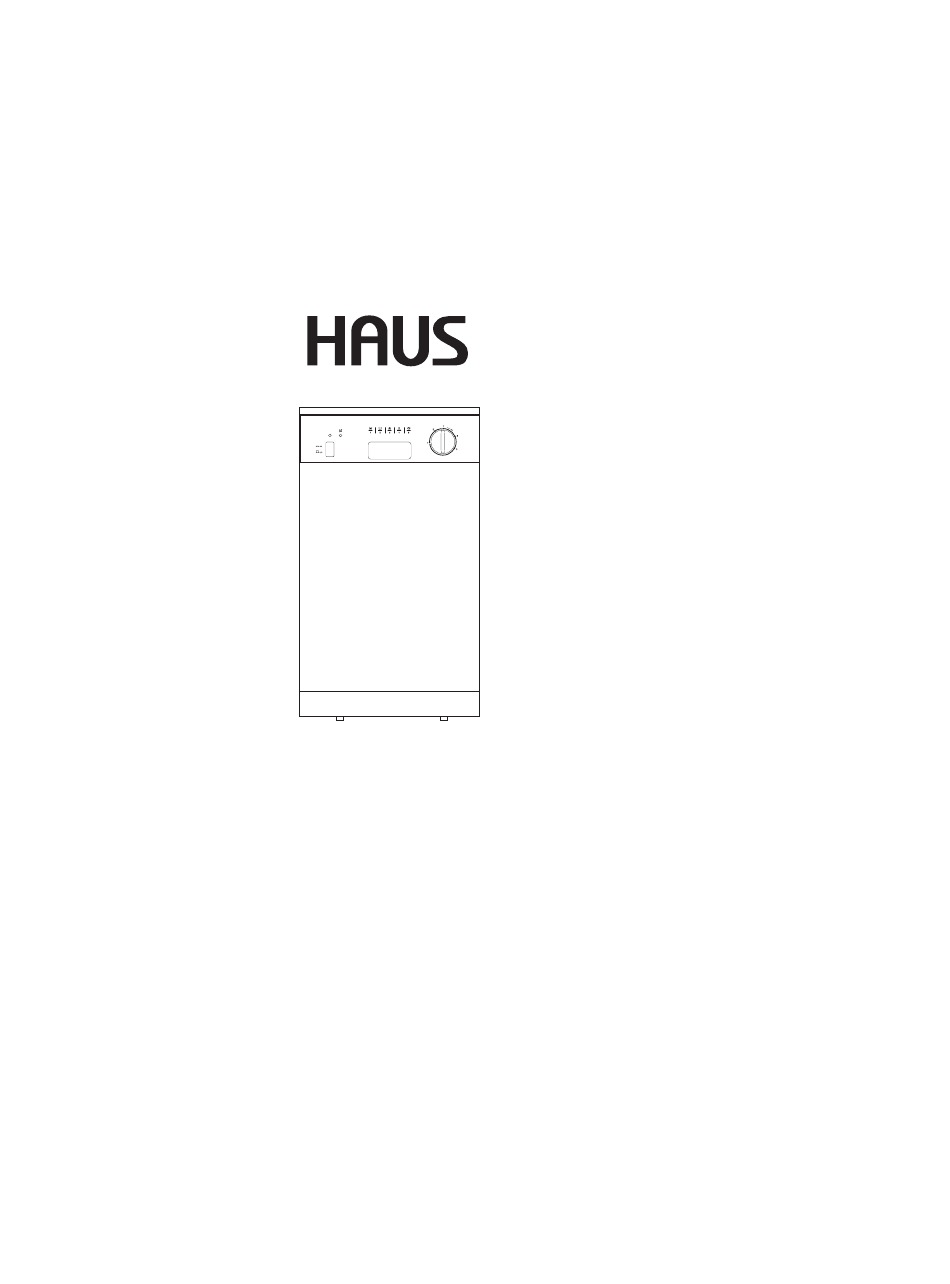

- Page 1 Freestanding dishwasher Instructions manual DW9-AFM Series Customer helpline: 0845 600 4632 0120505913A...
-
Page 3: Table Of Contents
Not suitable for the dishwasher Dishes arrangement in dishwasher Programme overview Using the appliance How to keep your dishwasher in shape Care and maintenance Trouble shooting Technical data Important information Disposal information Product guarantee HAUS Dishwasher User Manual Customer Helpline 0845 600 4632... -
Page 4: Safety Information
- Never touch the dishwasher when barefoot or with wet hands or feet. - Do not use extension cords and multiple socket. - If the appliance is not operating properly or maintenance must be performed, disconnect the appliance from the power supply. HAUS Dishwasher User Manual Customer Helpline 0845 600 4632... - Page 5 Children could get locked or stuck in the appliance (risk of suffocation). Therefore: Remove the mains plug and cut the mains wire. Damage the door lock so that the door can no longer be closed. HAUS Dishwasher User Manual Customer Helpline 0845 600 4632...
-
Page 6: Installation
"A" with the water supply hose must be attached to the water supply tap as shown in Fig. B. If the length of the hose is not adequate to make a proper connection, the hose must be replaced with one which is long enough. This hose is available from specialised retailers and approved service centres. HAUS Dishwasher User Manual... - Page 7 Caution: The dishwasher's mains plug must be accessible even when the appliance is installed as a built-in unit so that maintenance can be carried out safely. HAUS Dishwasher User Manual Customer Helpline 0845 600 4632...
-
Page 8: Electrical Connection
Electrical Connection Before connecting, check that the voltage indicated on the rating plate corresponds with the main voltage in your home. If this is not the case, consult your dealer and do not use. This appliance may be fitted with a non-rewirable plug. If you need to change the fuse in a non-rewirable plug, the fuse cover must be refitted. -
Page 9: Getting To Know Your Dishwasher
Programme selection dial. Low Salt Indicator Light Dishwasher interior Bottom Spray Arm Upper Rack Washing Filter Rack Height Adjustor Detergent and Rinse Aid Dispenser Top Spray Arm Salt Container Cap Lower Rack HAUS Dishwasher User Manual Customer Helpline 0845 600 4632... -
Page 10: How To Fill The Salt Container
Carefully screw the cap back on. Important To prevent the formation of rust, fill with salt just before beginning a wash cycle. HAUS Dishwasher User Manual Customer Helpline 0845 600 4632... - Page 11 It is recommended that adjustments be made in accordance with the following table: Water Hardness Salt Clarke Autonomy Selector consumption ºdH Level mmol/l (cycles/2kg) degrees position (Grams/cycle) 0-14 0-17 0-1,7 14-36 18-44 1,8-4,4 "-" 36-71 45-89 4,5-8,9 Middle >71 >89 >8,9 "+" HAUS Dishwasher User Manual Customer Helpline 0845 600 4632...
-
Page 12: How To Fill Rinse Aid Container
If drops of water remain on the dishes or spotting occurs, the dosage adjustor should be turned to a higher setting. If the dishes have white streaks, turn the dosage adjustor to a lower setting. HAUS Dishwasher User Manual Customer Helpline 0845 600 4632... -
Page 13: How To Fill The Detergent Dispenser
To facilitate closing the cover, remove any excess detergent on the edges of the dispenser. Notice: 3 in 1 or similar tablets should not be used when Rinse, Rapid wash or Soak programmes are selected. HAUS Dishwasher User Manual Customer Helpline 0845 600 4632... -
Page 14: Not Suitable For The Dishwasher
Select a programme with a low temperature and as short a duration as possible. To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the programme has ended. HAUS Dishwasher User Manual Customer Helpline 0845 600 4632... -
Page 15: Dishes Arrangement In Dishwasher
The cutlery basket cannot be separated (see Fig. E). fig.E Warning Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position. HAUS Dishwasher User Manual Customer Helpline 0845 600 4632... - Page 16 Knife rack The knife rack clips onto the side of the top basket, giving you the freedom to wash large sharp knives separately and out of harm’s way (see Fig. H). fig.H HAUS Dishwasher User Manual Customer Helpline 0845 600 4632...
-
Page 17: Programme Overview
Short cold wash to prevent Pre-wash of dishes, pots and food residue from drying on pans while waiting for the the dishes . load to be complete after the Soak subsequent meal. HAUS Dishwasher User Manual Customer Helpline 0845 600 4632... -
Page 18: Using The Appliance
Cancelling or modifying a wash cycle setting... Press the ON-OFF button and the ON Light will turn off. Rotate the dial clockwise to the desired cycle setting. Then, turn the dishwasher back on using the ON-OFF button. HAUS Dishwasher User Manual... -
Page 19: How To Keep Your Dishwasher In Shape
This will help the seals last longer and prevent odours from forming within the appliance. HAUS Dishwasher User Manual... -
Page 20: Care And Maintenance
Unscrew the upper spray arm "9". Clean both spray arms under running water. Refit the spray arms. Ensure that the lower arm has locked into place and the upper one is screwed in tight. HAUS Dishwasher User Manual Customer Helpline 0845 600 4632... -
Page 21: Trouble Shooting
Caution Do not forget that repairs should only be carried out by a qualified specialist. Improper repairs can lead to considerable equipment dam- age as well as danger to the user. HAUS Dishwasher User Manual Customer Helpline 0845 600 4632... - Page 22 Water remains inside appliance after programme has ended. Blockage or kink in drainage hose. Pump is jammed. Filters are blocked. The programme is still running. Wait for the programme to end. HAUS Dishwasher User Manual Customer Helpline 0845 600 4632...
- Page 23 Selected wash programme was not intensive enough. Rotation of spray arm was obstructed by dishes, etc. Nozzles in spray arm are blocked by food residue. Filters are blocked. Filters have been incorrectly fitted. Waste-water pump is jammed. HAUS Dishwasher User Manual Customer Helpline 0845 600 4632...
- Page 24 Glasses become clouded and discoloured; coating cannot be wiped off Unsuitable detergent was used. Glasses are not dishwasher-proof. Smears left behind on glasses and cutlery; glasses have acquired a metallic appearance Amount of rinse-aid set too high. HAUS Dishwasher User Manual Customer Helpline 0845 600 4632...
-
Page 25: Technical Data
Do not allow children to play with any parts of the packaging. There is a risk of suffocation from the cardboard boxes and the plastic wrapping. Up-to -date information concerning options for disposal can obtained from your retailer or local council. HAUS Dishwasher User Manual... - Page 26 Example of loaded dishwasher: See Fig. 1 and 2 Capacity: 9 place settings Programme: Normal Wash Rinse-aid setting: 5 Detergent: 27g Fig.1 Fig.2 Height-adjustable top-basket must be inserted in the uppermost position. HAUS Dishwasher User Manual Customer Helpline 0845 600 4632...
-
Page 27: Disposal Information
For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product. HAUS Dishwasher User Manual Customer Helpline 0845 600 4632...
