Dyn'Aéro MCR ULC ECOLIGHT HB-WAZ Aircraft Flight Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
19,
'A
RUE DE L
VIATION
F21121 D
AROIS
FRANCE
T
: +33 (0)3 80 35 60 62
EL
F
: +33 (0)3 80 35 60 63
AX
contact@dynaero.fr

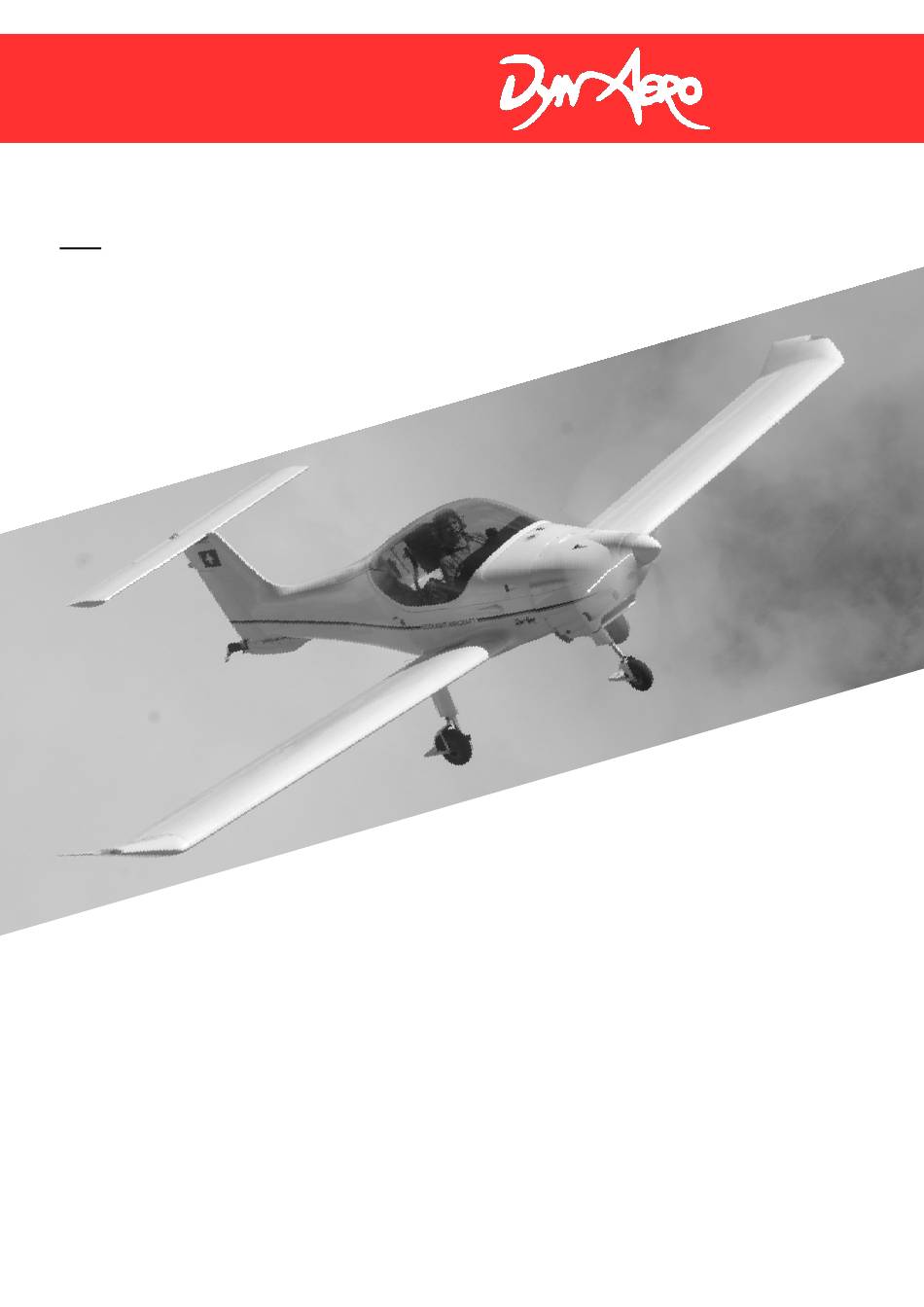

Ref : N EX NO 09 01
MCR ULC ECOLIGHT
Aircraft Flight Manual
rd
3
Edition – 2009/08/20
+

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCR ULC ECOLIGHT HB-WAZ and is the answer not in the manual?

Questions and answers

Summary of Contents for Dyn'Aéro MCR ULC ECOLIGHT HB-WAZ

  • Page 1 ’A RUE DE L VIATION F21121 D AROIS FRANCE : +33 (0)3 80 35 60 62 : +33 (0)3 80 35 60 63 contact@dynaero.fr Ref : N EX NO 09 01 MCR ULC ECOLIGHT Aircraft Flight Manual Edition – 2009/08/20...
  • Page 2 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 AGE INTENTIONNALLY LEFT BLANK NEXNO0901 MCR ULC Ecolight - Flight Manual Page 2/67...
  • Page 3 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 HIS PLANE MUST ALWAYS BE USED IN ACCORDANCE WITH THE INFORMATION AND LIMITATIONS CONTAINED IN THIS DOCUMENT HE USER IS RESPONSIBLE FOR THE USE OF THE AIRCRAFT ENSURING THAT IT COMPLIES WITH REGULATIONS AND INFORMING ANY PASSENGER OF THE LIMITATIONS OF THE AIRCRAFT WITH RESPECT TO ITS AIRWORTHINESS LIMITATIONS ’A...
  • Page 4 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 AGE INTENTIONNALLY LEFT BLANK NEXNO0901 MCR ULC Ecolight - Flight Manual Page 4/67...

  • Page 5: Egistration Of The Revisions

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 : HB-WAZ S/N: 363 HIS MANUAL BELONGS TO THE AIRCRAFT 0.1. R EGISTRATION OF THE REVISIONS All amendments to this document must be entered in the table below, except weighing data, and all cases of approved sections, aimed and approved by the Authority responsible for Airworthiness.

  • Page 6: Table Of Contents

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 0.2. ABLE OF CONTENTS 0.1. EGISTRATION OF THE REVISIONS 0.2. ABLE OF CONTENTS ENERAL 1.1. NTRODUCTION 1.2. ERTIFICATION BASIS 1.3. ARNINGS CAUTIONS AND NOTES 1.4. ESCRIPTIVE DATA 1.5. HREE VIEW DRAWING IMITATIONS 2.1.
  • Page 7 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 ERFORMANCES 5.1. NTRODUCTION 5.2. PPROVED DATA 5.3. DDITIONAL INFORMATION & B EIGHT ALANCE 6.1. NTRODUCTION 6.2. & B EIGHT ALANCE REGISTRATION AND LOADING ENVELOPE 6.1. QUIPEMENT LIST IRCRAFT AND SYSTEMS DESCRIPTION 7.1.
  • Page 8 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 10.8. ARE AND AINTENANCE 10.9. LACARDS 11. S EDIAT FLARM ECW 100 UPPLEMENT 12. S TOST UPPLEMENT ABLE ETRACTOR INCH NEXNO0901 MCR ULC Ecolight - Flight Manual Page 8/67...

  • Page 9: General

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 1. G ENERAL 1.1. I NTRODUCTION The flight manual for the aircraft was designed to provide pilots and instructors with the information necessary to efficiently and safely fly this very light aircraft. This manual contains information's that are imperative to be given to the MCR ULC ECOLIGHT pilot.

  • Page 10: Descriptive Data

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 1.4. D ESCRIPTIVE DATA Kit aircraft of the type : Dyn'Aéro MCR ULC Cantilever low-mounted wing, fixed gear. Flying tail. 2 seats. Carbon structure. Engine: From Rotax 912 to 914 (Only 914 will be described here, each other engine (912 and 912S) will be added as soon as it equips an aircraft.) Propeller: Dyn’Aero-Prop two/three-blades, fix or variable pitch.

  • Page 11: Limitations

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 2. L IMITATIONS 2.1. I NTRODUCTION This section includes operating limitations, reference marks of instruments and placards necessary for the safe use of the aircraft, its engine, standard systems and equipment. The limitations included in this section are approved by ______________________.

  • Page 12: Power Plant

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 2.4. P OWER PLANT 2.4.1. Rotax 914 Engine manufacturer Rotax Engine model 914 UL4 Power Maximum: Take-off, max. 5 minutes 115 HP Continuous: 100 HP Manifold pressure Maximum: Take-off, max. 5 minutes 39.9”...

  • Page 13: Ower Plant Instrument Markings

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 2.4.2. Propellers x : possible combination r : optimized for towing O-C : optimized for cruise O-STOL: optimized for STOL performances 2.5. P OWER PLANT INSTRUMENT MARKINGS 2.5.1. Rotax 914 UL Instrumentation markings and their significance ROTAX 914 Red line...

  • Page 14: Centre Of Gravity

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 2.8. C ENTRE OF GRAVITY Centre of Gravity range 22 / 40% M.A.C. Datum M.A.C. Centre of Gravity range with parachute without parachute % of MAC M.A.C. = 960 mm ; reference datum : 13.5 mm ahead of left wing leading-edge. 2.9.

  • Page 15: Flight Crew

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 2.11. F LIGHT CREW Minimum flight crew is one pilot. Two people onboard maximum. 2.12. K INDS OF OPERATION VFR / DAY. 2.13. F For S/N 326, 328, For S/N 349, 351, 362, 363 Total fuel: 73 L...

  • Page 16: Other Limitations

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 2.15. O THER LIMITATIONS 2.15.1. Tire pressure Nose landing gear: 260 mm diameter wheel 2.5 bar Main landing gear: 280 mm diameter wheel (11X4.00) 2.2 bar 2.16. PLACARDS Minimum 3 cm high placard "ECOLIGHT AIRCRAFT" must be placed next to each cabin opening. 2.16.1.
  • Page 17 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 2.16.3. Engine installation instruments See paragraph 2.5.1. 2.16.4. Control system markings Each control system other than main flight control systems is marked in order to explain its function and operation mode. This is an overview of the markings you should have on your aircraft if it is equipped with the corresponding device.
  • Page 18 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 2.16.5. Fuel See paragraph 2.13 2.16.6. Miscellaneous placards and markings In luggage compartment : MTOW 472.5 kg or 450 kg w/o parachute. Fuel tank filler : To be stuck around the fuel hole filler. Either with 72 or 80 L depending on the aircraft S/N. Inside diameter: 80 mm Oil tank filler: To be stuck on the hidden side of the oil filler door.

  • Page 19: Emergency Procedures

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 3. E MERGENCY PROCEDURES 3.1. I NTRODUCTION This section provides a list of appropriate actions in the event of certain emergencies. Providing that the aircraft is well maintained and proper pre-flight inspections are made, emergencies due to failure of the aircraft, aircraft engine or other systems is very rare.

  • Page 20: Air Start

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 3.3. A IR START 3.3.1. Starter motor restart If the altitude is sufficient to attempt to restart the engine : Airspeed ................134 km/h Fuel valve ..................open Electric fuel pump ..................on Throttle setting ..................

  • Page 21: Glide

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 3.4.2. Airborne engine fire Fuel valve ..................closed Full throttle until the engine stops Electric fuel pump ..................off Cabin heating and ventilation ............closed Airspeed ................134 km/h Prepare for a forced landing with an engine inoperative. 3.4.3.

  • Page 22: Recovery From Unintentional Spin

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 3.6.2. Planned forced landing with engine running Proceed as for a normal landing Best glide ratio speed ..............134 km/h On final approach, unlock the canopy Approach speed on final ..............85 km/h Prior to touchdown: Magnetos ...................
  • Page 23 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 3.9.2. Oil feed malfunction If the oil pressure is low, look at the oil temperature If the oil temperature rises (into the red), reduce engine power to setting to the minimum necessary and carry out precautionary landing.
  • Page 24 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 3.9.6. Periodical rise and drop of boost pressure and speed (boost pressure control is surging) Orange caution lamp of TCU is not blinking. Switch off servo motor for a moment (max. 5 sec.). After a short regulating time operation should stabilize.
  • Page 25 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 3.9.9. Orange caution lamp of TCU blinking Indicates a failure of a sensor, sensor wiring, TCU, or leakage in the airbox. Reduce speed and boost pressure manually the be within the operating limits. Limited flying operation,as this may indicate that boost pressure control is no more or insufficiently possible and may affect engine performance.

  • Page 26: Normal Procedures

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 4. N ORMAL PROCEDURES 4.1. I NTRODUCTION This section provides with a list of standard checks and procedures to be used in normal flight conditions. Procedures applicable to the use and check of optional equipment should be found in the "Supplementary systems and equipment"...
  • Page 27 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 3 TAIL Smooth, non-blemished surfaces ............checked Rudder ....... mounting / fixing / movement / cables / absence of play Tail plane ........ mounting / fixing / movement / absence of play Control rod ...............

  • Page 28: Pre - Flight Inspection

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 4.3. P FLIGHT INSPECTION Repeat the daily inspection 4.4. N ORMAL PROCEDURES AND CHECK LIST 4.4.1. Cabin check prior to engine start Parking brake ....................on Flaps ....................retracted Seats ................adjusted and locked Rudder pedals ...............
  • Page 29 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 4.4.4. Before Taxi and Taxiing Strobe ................on request Parking brake ................... off Brakes ................. checked 4.4.5. Engine ground run Parking brake ................... on Oil temperature and pressure .......... within green sector RPM set to ................
  • Page 30 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 4.4.8. Climb MP 35.4” , prop max.5500 rpm, maintain 165 km/h 4.4.9. Cruise See paragraph 5.3.1 4.4.10. Descent Engine minimum rpm ..............2 400 rpm 4.4.11. Approach Cabin (harness) ..................tight Electric fuel pump ..................

  • Page 31: Performances

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 5. P ERFORMANCES 5.1. I NTRODUCTION This section provides approved information relating to standardised air speeds, stall speeds, take-off performance and supplementary non approved information. The information given in the diagrams was obtained from flight tests with an aircraft and an engine in good condition and in the hands of an average pilot.
  • Page 32 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 5.2.2. Stall speeds (km/h) 472.5 Flaps 0° 17° 30° Bank angle 0 ° 30 ° 60 ° 5.2.3. Take-off performances (ROTAX 914) TAKEOFF PERFORMANCE ROTATION SPEED IAS: 85 km/h WEIGHT: 472.5 kg CLIMB SPEED IAS: 100 km/h Apply full power then release brakes Hard runway surface...
  • Page 33 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 5.2.4. Landing distances LANDING PERFORMANCE TOUCHDOWN SPEED: 75 km/h WEIGHT: 472.5 kg APPROACH SPEED: 90 km/h Hard runway surface 0°C 10°C 20°C 30°C 40°C Distance Distance Distance Distance Distance Pressure Ground over Ground over...

  • Page 34: Additional Information

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 5.3. A DDITIONAL INFORMATION 5.3.1. Cruise and endurance Power setting Altitude Power Fuel flow Endurance (ft) (km/h) (km/h) without res. 3000 5000 3h 10’ 6000 5000 3h 10’ 9000 5000 3h 10’ Power setting Altitude...

  • Page 35: Weight & Balance

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 6. W & B EIGHT ALANCE 6.1. I NTRODUCTION This part presents loading cases where the aircraft can be safely operated. Weight and balance calculation procedures and a complete list of the equipment available on the aircraft are included in last section of this Chapter.
  • Page 36 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 6.2.2. Weight & balance procedure Weight Moment arm Moment m.Kg Empty weight 0.200 58.4 Pilot 0.700 Co-pilot 0.700 Luggage 1.150 Front fuel tank 0.002 Total Weight Moment sum Note : The above chart shows MCR mean moment arms. It must be completed with the actual empty weight and moment arm of the Aircraft.
  • Page 37 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 6.2.3. Weight & balance record & examples Weight and Balance Record Weight change Running Running basic Item in basic empty empty Date (+) out Description weight Moment Weight Moment (kg) (mkg) (kg) (kg) Initial basic empty weight record...
  • Page 38 page 1/4 Fiche de pesée MCR R100 Ecolight R914 MCR type / n° série / propriétaire : HB WAZ immatriculation / Call sign type / S/N / owner HB WAZ code identification (ULM Français) Date : 09/07/2008 HB WAZ Voie du train 2010 L/G track Sieges en position basses, verrière fermée...
  • Page 39 Exemple Devis centrage Pesee_363.xls annexe à la fiche de pesée N° de série date 09/07/2008 Masse Bras de levier Moment m.Kg Masse a vide 302,5 0,227 68,7 Plomb quille 3,25 Pilote 0,700 49,0 Copilote 0,700 47,6 Bagage 1,150 Essence avant 0,020 Masse totale 472,5 kg...

  • Page 40: Equipement List

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 6.3. E QUIPEMENT LIST Item Description Manufacturer Type Powerplant & Accessories Engine Rotax 914 UL Drive gear Rotax 887'708 Starter Rotax 293’152 Alternator Rotax 887’254 Propeller Dyn Aéro MKIHE10/11/12/13 Oil Thermostat Dyn Aéro ZMAIN6P00 Spinner Installation...
  • Page 41 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 Cabin heat assembly Dyn Aéro Fresh air vents Dyn Aéro Dual control, dual brake Dyn Aéro Placards, Warnings and Manuals Pilot Operation Handbook V1.0 Auxiliary Equipment Tow winch Dyn Aéro ZMAEQWA00 Avionics &...

  • Page 42: Ircraft And Systems Description

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 7. A IRCRAFT AND SYSTEMS DESCRIPTION 7.1. I NTRODUCTION This Chapter provides description and operation of the airplane and it’s systems. 7.2. A IRFRAME 7.2.1. Fuselage The carbon fibre fuselage is composed out of two halves, upper and lower body. The fire protection on the fire wall is made from special fire retarding fleece, that is covered by a stainless steel plate on the engine side.

  • Page 43: Instrument Panel

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 7.3.2. Flaps The flaps are driven by an electric motor. There are now three positions (up 0°, 17°,30°). Please note that the 45° flaps position is not available yet: the lever range had been limited to 30°. 7.3.3.

  • Page 44: Landing Gear System

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 7.5. L ANDING GEAR SYSTEM 7.5.1. Landing gear Hydro pneumatic main gear. 7.5.2. Brakes Hydraulic disk brakes, hand operated 7.5.3. Parking brake The parking brake can be locked by locking the brake system. 7.6.

  • Page 45: Fuel System

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 7.9.2. Propeller Refer to the Propeller Operating Manual 7.10. F UEL SYSTEM Location: The Fuel Tank is located between the firewall and the instrument panel. System: From the tank to the carburetors, the fuel takes the following way: (see next picture) Tank - Shut off Valve –...

  • Page 46: Electrical System

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 7.10.3. Fuel quantity Measured by a vertically installed float sensor in the fuel tank and shown on the fuel gauge in the cockpit. 7.10.4. Fuel pressure A fuel pressure probe is installed forward the carburetors. 7.11.
  • Page 47 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 7.11.1.2. ctrical components diagram Flight Time Counter 7.11.1.3. U electric diagram NEXNO0901 MCR ULC Ecolight - Flight Manual Page 45/67...

  • Page 48: Itot And Static Pressure Systems

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 For more information, see “ Installation Manual for Rotax Engine Type 914 F”. 7.11.1.4. M and FLAPS electric diagram BUS +14V Relays 2x Down Flaps switch limit switch DOW N Flaps TRIM limit switch UP left...
  • Page 49 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 Manual EDIATec ECW100 and FOCA approved AFM Supplement (included) Manual of the Tow Cable Retractable Winch TOST (included) NEXNO0901 MCR ULC Ecolight - Flight Manual Page 47/67...

  • Page 50: Aeroplane Handling , Servicing And Maintenance

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 8. A EROPLANE HANDLING SERVICING AND MAINTENANCE 8.1. I NTRODUCTION This section provides the procedures required by the manufacturer for the handling and the maintenance of the aircraft. It also shows a few maintenance and inspection requirements which must be fulfilled in order to ensure performance and reliability of a new aircraft.

  • Page 51: Aircraft Maintenance Schedule

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 8.3. A IRCRAFT MAINTENANCE SCHEDULE Advised inspections: 50 hours 100 hours / 1 year 1 000 hours 2 000 hours 5 years M EX NO 03 02 ESPECT THE MAINTENANCE MANUAL SCHEDULE 8.4.

  • Page 52: Supplementary Systems And Equipments

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 9. S UPPLEMENTARY SYSTEMS AND EQUIPMENTS 9.1. I NTRODUCTION This section presents the appropriate supplementary elements to safely and properly use the aircraft with the following optional systems and equipment that are not delivered with the standard aircraft (list to be completed by the assembler).

  • Page 53: Supplement Aerotow

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 10. S UPPLEMENT EROTOW 10.1. P RELIMINARY IMITATIONS Aerotow is allowed under the following conditions no visible moisture Outside these limits the operation of the aircraft is allowed within the limits of the AFM without aerotow.

  • Page 54: Performances

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 In case a towed glider is not able to release the rope repeatedly the towpilot can cut the rope, preferable towing the glider above an airfield before. With experienced pilots both aircrafts may land still connected with the towcable. Tow rope cannot be retracted If repeated attempts to retract the rope are not successful the pilot has to perform a landing with the rope.

  • Page 55: A S D

    19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 Mass of Glider 820 kg Density Altitude 0ft / 1013 hPa 1000ft / 977 hPa 2000ft / 941 hPa 3000ft / 906 hPa Head wind 0 °C 0 kts 15 °C 30 °C 0 °C 5 kts...
  • Page 56 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 10.8. C ARE AND AINTENANCE For a detailed description see the Operating Manual for the TOST Cable Retractor Winch in the annex of this manual. 10.9. P LACARDS Sized 100*40mm and in sight of crew: Winch command: 13*18mm &...
  • Page 57 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 11. S EDIAT FLARM ECW 100 UPPLEMENT This document is up to date on November 2008. Nonetheless, it is provided for information only and any new amendment should be considered. NEXNO0901 MCR ULC Ecolight - Flight Manual Page 55/67...
  • Page 58 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 NEXNO0901 MCR ULC Ecolight - Flight Manual Page 56/67...
  • Page 59 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 NEXNO0901 MCR ULC Ecolight - Flight Manual Page 57/67...
  • Page 60 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 NEXNO0901 MCR ULC Ecolight - Flight Manual Page 58/67...
  • Page 61 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 NEXNO0901 MCR ULC Ecolight - Flight Manual Page 59/67...
  • Page 62 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 NEXNO0901 MCR ULC Ecolight - Flight Manual Page 60/67...
  • Page 63 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 NEXNO0901 MCR ULC Ecolight - Flight Manual Page 61/67...
  • Page 64 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 12. S TOST UPPLEMENT ABLE ETRACTOR INCH This document is up to date on November 2008. Nonetheless, it is provided for information only and any new amendment should be considered. MCR ULC Ecolight NEXNO0901 MCR ULC Ecolight - Flight Manual...
  • Page 65 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 NEXNO0901 MCR ULC Ecolight - Flight Manual Page 63/67...
  • Page 66 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 NEXNO0901 MCR ULC Ecolight - Flight Manual Page 64/67...
  • Page 67 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 NEXNO0901 MCR ULC Ecolight - Flight Manual Page 65/67...
  • Page 68 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 NEXNO0901 MCR ULC Ecolight - Flight Manual Page 66/67...
  • Page 69 19, rue de l’Aviation, F21121 Darois, FRANCE Ed.2 2009/06/2 NEXNO0901 MCR ULC Ecolight - Flight Manual Page 67/67...
