Hoffman CONCEPT CDSC24268LG Instruction Manual

For variable depth disconnect devices and for flexible cable disconnect devices, bulletin cwy painted steel, bulletin cwsd stainless steel, wall mounted disconnect enclosures
Hide thumbs

Advertisement

Quick Links

Download this manual
®
For Variable Depth Disconnect Devices
And For Flexible Cable Disconnect Devices
In Hoffman Bulletin CWY (painted steel)
Or Hoffman Bulletin CWSD (stainless steel)
®
CONCEPT
Wall Mounted Disconnect Enclosures
Rev. B 113357
E 2005 Hoffman Enclosures Inc.
P/N 64323101
87568832
RSPSupply - 1-888-532-2706 - www.RSPSupply.com
http://www.RSPSupply.com/p-16178-Hoffman-CDSC24268LG-CONCEPT-Steel-Disconnect-Enclosure.aspx

Advertisement

loading
Need help?

Need help?

Do you have a question about the CONCEPT CDSC24268LG and is the answer not in the manual?

Questions and answers

Related Manuals for Hoffman CONCEPT CDSC24268LG

Summary of Contents for Hoffman CONCEPT CDSC24268LG

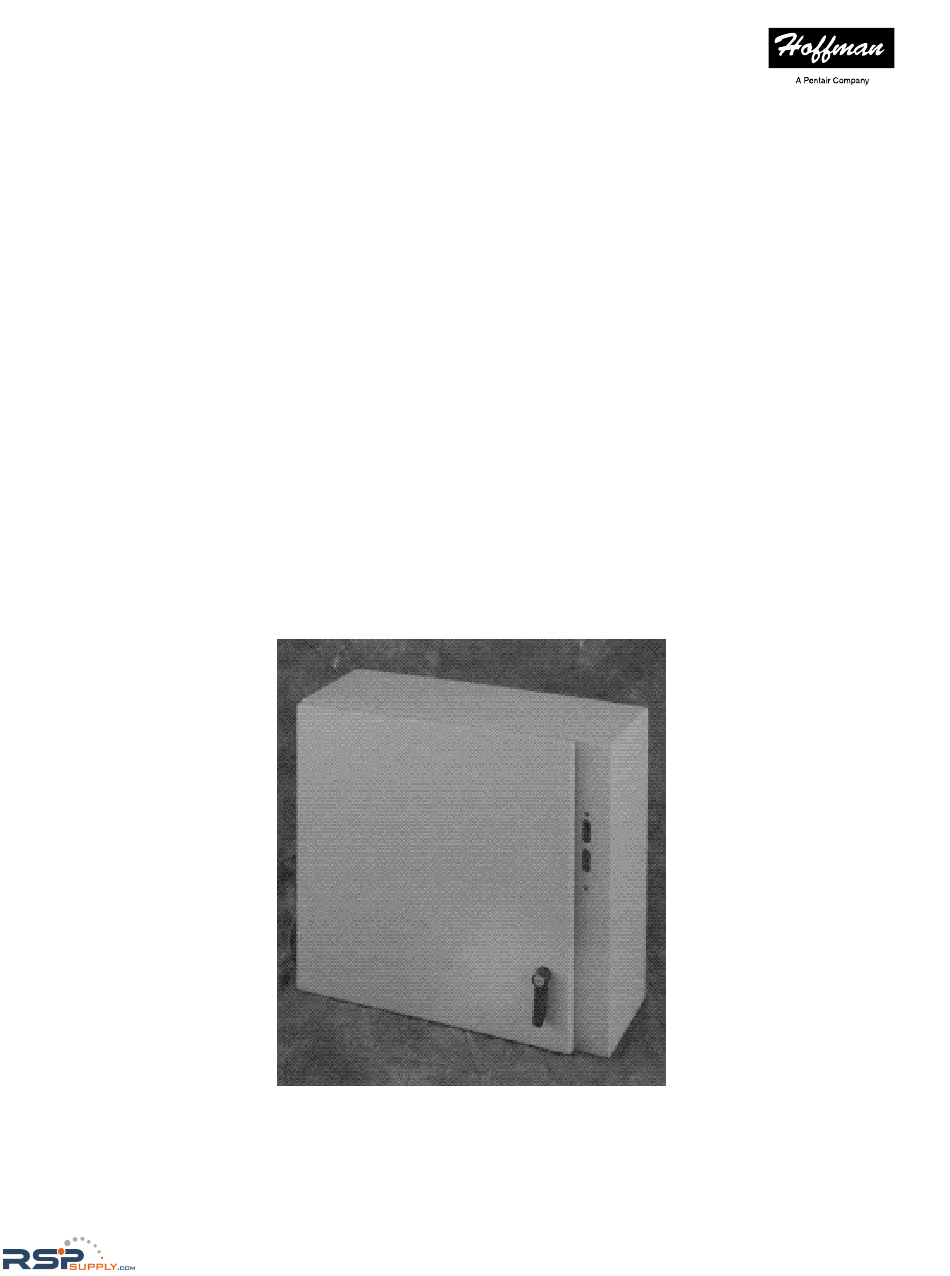

  • Page 1 ® For Variable Depth Disconnect Devices And For Flexible Cable Disconnect Devices In Hoffman Bulletin CWY (painted steel) Or Hoffman Bulletin CWSD (stainless steel) ® CONCEPT Wall Mounted Disconnect Enclosures Rev. B 113357 E 2005 Hoffman Enclosures Inc. P/N 64323101 87568832 RSPSupply - 1-888-532-2706 - www.RSPSupply.com...

  • Page 2: Installation Steps

    Step 3 − Install disconnect device on panel. Follow disconnect manufacturers instructions for installation and ad- justment. ® Step 4 − Hoffman CONCEPT disconnect enclosures have door hardware already installed on inside of the enclo- ® sure door. See figure 2 to install CONCEPT padlocking door handle on the outside of the door.
  • Page 3 S Installation of a padlock will prevent the screwdriver slot from turning, therefore preventing entry to the enclosure. S To install padlock, push button upward on bottom of handle to allow the padlock shaft to pass through the handle as shown in figure 2. E 2005 Hoffman Enclosures Inc. 87568832 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-16178-Hoffman-CDSC24268LG-CONCEPT-Steel-Disconnect-Enclosure.aspx...
  • Page 4 ® CONCEPT Wall−Mounted Disconnect Enclosures Installation Instructions for Allen−Bradley 1494V (variable depth) Disconnects * E=4.75 for 8.00” Deep E=11.62 for 12.00” Deep Figure 3 E 2005 Hoffman Enclosures Inc. 87568832 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-16178-Hoffman-CDSC24268LG-CONCEPT-Steel-Disconnect-Enclosure.aspx...
  • Page 5 CONCEPT ® Wall Mounted Disconnect CONCEPT Wall Mounted Disconnect CWSD Enclosure 12.00 10.88 1) This enclosure depth dimension is used to calculate the length of Allen−Bradley connecting rod(s). E 2005 Hoffman Enclosures Inc. 87568832 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-16178-Hoffman-CDSC24268LG-CONCEPT-Steel-Disconnect-Enclosure.aspx...
  • Page 6 HMCP, FS, FH, EHD FDB, FD, HFD 150 AMP HMCP, JS, JH, JL, JD, JDB, HJD, JDC 250 AMP HMCP, HK, KS, KD, DK, KDB, HKD 400 AMP LH, LS, LC 600 AMP E 2005 Hoffman Enclosures Inc. 87568832 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-16178-Hoffman-CDSC24268LG-CONCEPT-Steel-Disconnect-Enclosure.aspx...
  • Page 7 CONCEPT ® Wall Mounted Disconnect CONCEPT Wall Mounted Disconnect CWSD Enclosure 12.00 10.88 1) This dimension is used to determine length to cut Cutler−Hammer connecting rods. See Cutler−Hammer instruc- tions. E 2005 Hoffman Enclosures Inc. 87568832 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-16178-Hoffman-CDSC24268LG-CONCEPT-Steel-Disconnect-Enclosure.aspx...
  • Page 8 ® CONCEPT Wall−Mounted Disconnect Enclosures Installation Instructions for General Electric Type STDA Variable Depth Operating Mechanisms * E=4.75 for 8.00” Deep E=11.62 for 12.00” Deep Figure 3 E 2005 Hoffman Enclosures Inc. 87568832 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-16178-Hoffman-CDSC24268LG-CONCEPT-Steel-Disconnect-Enclosure.aspx...
  • Page 9 Wall Mounted Disconnect CWSD Enclosure 12.00 10.88 1) This dimension is used to determine length to cut General Electric drive rod and stiffener rod (if used). See G.E. instructions. E 2005 Hoffman Enclosures Inc. 87568832 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-16178-Hoffman-CDSC24268LG-CONCEPT-Steel-Disconnect-Enclosure.aspx...
  • Page 10 ® CONCEPT Wall−Mounted Disconnect Enclosures Installation Instructions for Square D 9422 Variable Depth Operating Mechanisms * E=4.75 for 8.00” Deep E=11.62 for 12.00” Deep Figure 3 E 2005 Hoffman Enclosures Inc. 87568832 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-16178-Hoffman-CDSC24268LG-CONCEPT-Steel-Disconnect-Enclosure.aspx...
  • Page 11 CONCEPT ® Wall Mounted Disconnect CONCEPT Wall Mounted Disconnect CWSD Enclosure 12.00 10.88 1) This dimension is used to determine length to cut Square D operating rods. Use .070 for “T” dimension. E 2005 Hoffman Enclosures Inc. 87568832 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-16178-Hoffman-CDSC24268LG-CONCEPT-Steel-Disconnect-Enclosure.aspx...
  • Page 12 ® CONCEPT Wall−Mounted Disconnect Enclosures Installation Instructions for Cutler−Hammer C371 Flex Shaftt Flexible Cable Operating Mechanisms Figure 3 CH E 2005 Hoffman Enclosures Inc. 87568832 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-16178-Hoffman-CDSC24268LG-CONCEPT-Steel-Disconnect-Enclosure.aspx...
  • Page 13 NOTE − Locate disconnect so appropriate wire bend space is provided for the line side wire size being used. Refer to National Electrical Code Article 430−10b for wire bend space required. E 2005 Hoffman Enclosures Inc. 87568832 RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
  • Page 14 ® CONCEPT Wall−Mounted Disconnect Enclosures Installation Instructions for General Electric SCH Flexible Cable Operating Mechanisms Figure 3 GE E 2005 Hoffman Enclosures Inc. 87568832 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-16178-Hoffman-CDSC24268LG-CONCEPT-Steel-Disconnect-Enclosure.aspx...
  • Page 15 NOTE − Locate disconnect so appropriate wire bend space is provided for the line side wire size being used. Refer to National Electrical Code Article 430−10b for wire bend space required. E 2005 Hoffman Enclosures Inc. 87568832 RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
  • Page 16 ® CONCEPT Wall−Mounted Disconnect Enclosures Installation Instructions for Siemens (I−T−E) Max Flext Flexible Cable Operating Mechanisms Figure 3 ITE E 2005 Hoffman Enclosures Inc. 87568832 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-16178-Hoffman-CDSC24268LG-CONCEPT-Steel-Disconnect-Enclosure.aspx...
  • Page 17 NOTE − Locate disconnect so appropriate wire bend space is provided for the line side wire size being used. Refer to National Electrical Code Article 430−10b for wire bend space required. E 2005 Hoffman Enclosures Inc. 87568832 RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
  • Page 18 ® CONCEPT Wall−Mounted Disconnect Enclosures Installation Instructions for Square D 9422 Flexible Cable Operating Mechanisms Figure 3 SQ D E 2005 Hoffman Enclosures Inc. 87568832 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-16178-Hoffman-CDSC24268LG-CONCEPT-Steel-Disconnect-Enclosure.aspx...
  • Page 19 NOTE − Locate disconnect so appropriate wire bend space is provided for the line side wire size being used. Refer to National Electrical Code Article 430−10b for wire bend space required. E NIL Hoffman Enclosures Inc. 87568832 RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
  • Page 20 81 (045) 476−02 81 Finland Schroff Scandinavia AB Peräsimentie 8 03100 Nummela 358 09 222 68 00 Norway Schroff Scandinavia AB Bjoernerudveien 24 1266 Oslo 47 022 76 33 60 E 2005 Hoffman Enclosures Inc. 87568832 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-16178-Hoffman-CDSC24268LG-CONCEPT-Steel-Disconnect-Enclosure.aspx...
