HSM-300Z Z-Wave Curtain Control Adapter
1. Introduction
The HSM-300Z is a multi function IO module of Z-Wave. The HSM-300Z provides digital outputs to
enable up/down/stop control over projector screen or window shades. It can be connected to relay
board to control up to four channels.
In addition, it can connect to up to four digital input channels as well.
2. Specifications
Power
Signal
Range
Program button

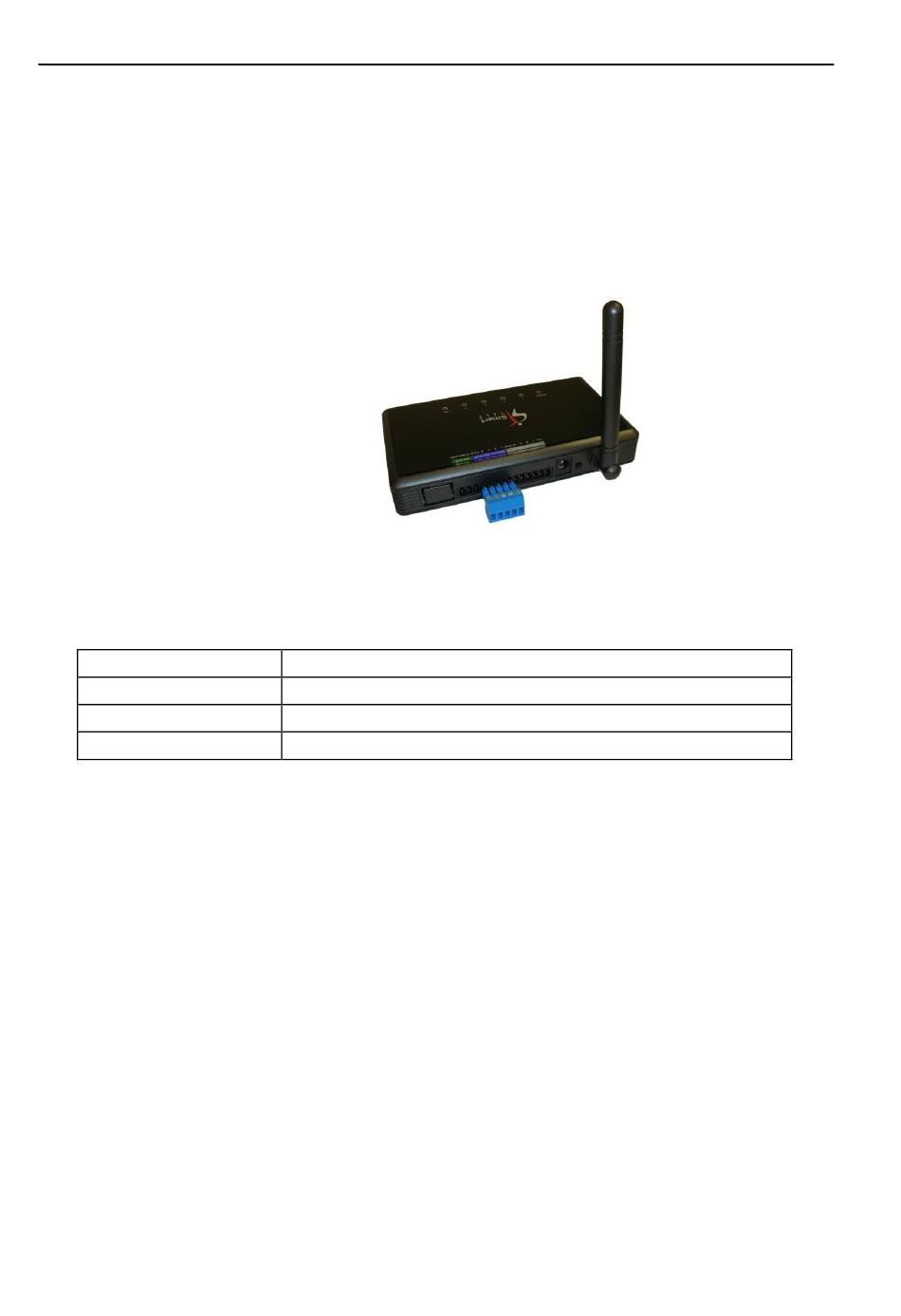

Figure 1 Outlook of the HSM-300Z
5V-24V 1A
908.42Mhz(US), 868Mhz(EU)
Up to 100 feet line of sight between the wireless controller
To include/exclude the HSM-300Z.
1
Advertisement
Table of Contents
Summary of Contents for SmartTalk HSM-300Z
-
Page 1: Specifications
HSM-300Z Z-Wave Curtain Control Adapter 1. Introduction The HSM-300Z is a multi function IO module of Z-Wave. The HSM-300Z provides digital outputs to enable up/down/stop control over projector screen or window shades. It can be connected to relay board to control up to four channels. - Page 2 Please enter to the learning mode of HSK-100Z, and Press & hold the program button of HSM-300Z for 3 seconds and release it to complete the setting. Please following the steps: 1. Please open the cover located in the back of HSK-100Z to the back panel. You will see...
- Page 3 Please enter to the excluding mode of HSK-100Z, and press & hold the program button of HSM-300Z for 3 seconds and release it to complete the setting. Please following the steps: 1. Please open the cover located in the back of HSK-100Z to the back panel.
- Page 4 Associate with SD-400Z The SD-400Z can connect with HSM-300Z through Z-Wave controller. The SD-400Z has 4 groups, and we can use group 1 & 3 to associate the HSM-300Z. Please following the steps to associate: 1. Please reversed HSK-100Z to the back panel, and open the case.
- Page 5 When it go back to the high level or high impedance, the (BASIC_SET,0) will be sent. In addition, the nodes in group #2 will receive the current state of the HSM-300Z according to the following table.
-
Page 6: Certification Notice
HSM-300Z Z-Wave Curtain Control Adapter The same value will be used to be the return value of the BASIC_GET command. Get the individual channel The multi channel command is implemented to get the individual channel. 6. WARRANTY Limited One (1) Year Warranty...
