PROGRAMMING INSTRUCTIONS
"ASSISTANCE" Menu,
"MANUFACTURER" Menu
STARTEC s.r.l. 33078 SAN VITO AL TAGLIAMENTO (PN) Italy – via Buia, 7
tel. ++39 0434 85001
fax ++39 0434 85002
PARAMETERS
"USER" Menu,
m/h 25.0
ON/OFF
STARTEC s.r.l.
San Vito al Tagl.to (PN) ITALY
Internet :Web
M
tel.+39 0434 85001
e-mail: info@startecitaly.com
http://www.startecitaly.com/
e-mail:
sales@startecitaly.com
cod.1163XXXX
rev.01
(software VER. 1.35)
GB
2006-06-28
Advertisement
Table of Contents
Subscribe to Our Youtube Channel

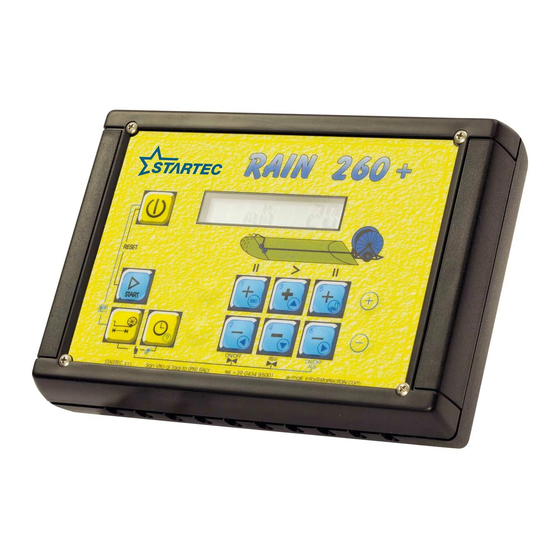

Summary of Contents for Startec S.R.L. Rain Star 260

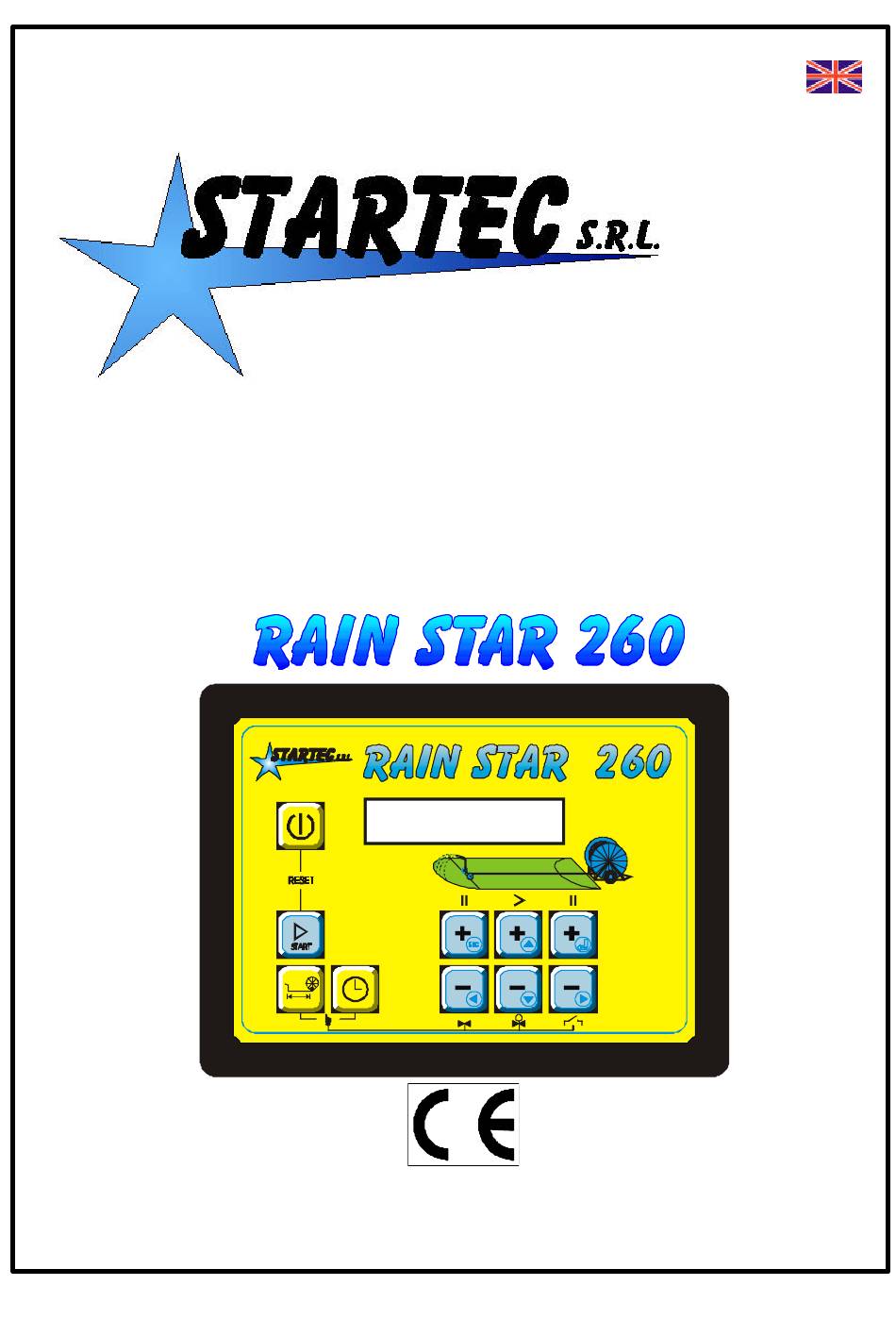

- Page 1 cod.1163XXXX rev.01 (software VER. 1.35) 2006-06-28 PROGRAMMING INSTRUCTIONS PARAMETERS “USER” Menu, “ASSISTANCE” Menu, “MANUFACTURER” Menu m/h 25.0 ON/OFF STARTEC s.r.l. San Vito al Tagl.to (PN) ITALY tel.+39 0434 85001 e-mail: info@startecitaly.com STARTEC s.r.l. 33078 SAN VITO AL TAGLIAMENTO (PN) Italy – via Buia, 7 tel.
-
Page 2: Table Of Contents
Table of contents TABLE OF CONTENTS: TABLE OF CONTENTS:................................1 GENERAL..................................2 Dual functionality of the keys – Use........................2 USER MENU..................................3 Accessing the “USER” Menu..............................3 List of messages in the USER menu............................ 3 Changing the language ................................3 Adjusting the contrast................................ -
Page 3: General
General 1. GENERAL in this manual it is referred to by using the symbol _m_ m/h 25.0 in this manual it is referred to by using the symbol _h_ ON/OFF STARTEC s.r.l. San Vito al Tagl.to (PN) ITALY tel.+39 0434 85001 e-mail: info@startecitaly.com Dual functionality of the keys –... -
Page 4: User Menu
USER menu 2. USER MENU Accessing the “USER” Menu To access the USER menu, go through the following stages: Note: some messages may not appear because the functions are not enabled, and some messages which are not described may appear, if enabled. Stage action display... -
Page 5: Saving The Changes
SAVES the CHanges [SAVES CH] START _ Once this operation is completed, the Rain Star 260 exits from the Menu and goes to the stage of Cancelling changes To cancel the changes which you have made: DISPLAY NOTE... -
Page 6: Assistance Menu
ASSISTANCE menu 3. ASSISTANCE MENU Accessing the “ASSISTANCE” Menu To access the ASSISTANCE Menu, follow the same procedure as for the MANUFACTURER Menu, keying "111" or other preset password. This gives access to the entire User menu and some functions which have been enabled on the Manufacturer menu. Access the ASSISTANCE menu as follows: Note: some options will not be displayed if they are not enabled. -
Page 7: Saving Changes
Pressing the up arrow _^_ again displays the last messages in reverse order. Saving changes Save changes in the Rain Star 260 memory as follows: - see “saving changes” at the end of chapter 2 Once complete, the unit reboots and displays the message [RE-START] . -
Page 8: Manufacturer Menu
MANUFACTURER menu 4. MANUFACTURER MENU Accessing the “MANUFACTURER” Menu To access the MANUFACTURER Menu, follow the procedure described in the following stages: Note: some messages may not appear because the functions are not enabled. DISPLAY NOTE TAGE ACTION Switch off the control unit Switch on the control unit, keeping [STARTEC] - Manufacturer’s name... -
Page 9: Saving Changes
MANUFACTURER menu Saving changes Save changes in the Rain Star 260 memory as follows: - see “saving changes” at the end of chapter 2 Once complete, the unit reboots and displays the message [RE-START] . Cancelling changes To cancel one or more changes, proceed as follows: - see “cancelling changes”... -
Page 10: Saving Changes
Pressing the up arrow _^_ again displays the last messages in reverse order. Saving changes Save changes in the Rain Star 260 memory as follows: - see “saving changes” at the end of chapter 2 Once complete, the unit reboots and displays the message [RE-START] . - Page 11 MANUFACTURER menu this parameter for the inlet valve sets the delay time for [DPO O“ ] the pressure test at the start of the irrigation cycle in order to fill the tube (maximum time settable 999 seconds) Waiting start Irrigation. The waiting time, in hours and minutes, can be set by using the second function of the H key. O:OO] Maximum waiting time settable is 99 hours 59 minutes.
- Page 12 MANUFACTURER menu [ALRM mhO] o ALarM in the case of lack of speed during rewinding (m/h = 0). The alarm consists in the stopping of irrigation. Or, "No Alarm at m/h = 0". In this case, in the event of zero speed, irrigation is not stopped but the machine remains on [NoAL mhO] standby, indicating [m/h ZERO].
- Page 13 MANUFACTURER menu [IN2 => This function has to be implemented WIND] => Auxiliary inlet 2 => Enabled to receive a signal from the outside to give a command STOP [IN2 STOP] irrigation (to be implemented). => Auxiliary inlet 2 => Enabled to receive a signal from the outside to give a command PAUSE [IN2 SUSP] irrigation (to be implemented).
- Page 14 MANUFACTURER menu [SPD SENS] Pressing _>_ takes you to a sub-menu with the following options relating to the SPEED SEnsor attached to the irrigator: ROLLEr or PINIon. [SS ROLLE] Pressing _>_ takes you to a sub-menu with the following option: PINI] [SSR 1OO.O] this parameter lets you input the diameter of the...
- Page 15 MANUFACTURER menu [PRS ENAB] [PRS Opportunity to disable input of pressure sensor in case of failure. (always enabled) Pressing _>_ takes you to a sub-menu with the following options DIS] [DSRA PRS] =>it DiSables the Reading by the Assistance. (does not appear on assistance menu) =>ENables Read by the Assistance [ENRA PRS]...
-
Page 16: Saving Changes
Adjustment for brightness of the display back-lighting: already described in the USER MENU Saving changes Save changes in the Rain Star 260 memory as follows: - see “saving changes” at the end of chapter 2 Once complete, the unit reboots and displays the message [RE-START] .
