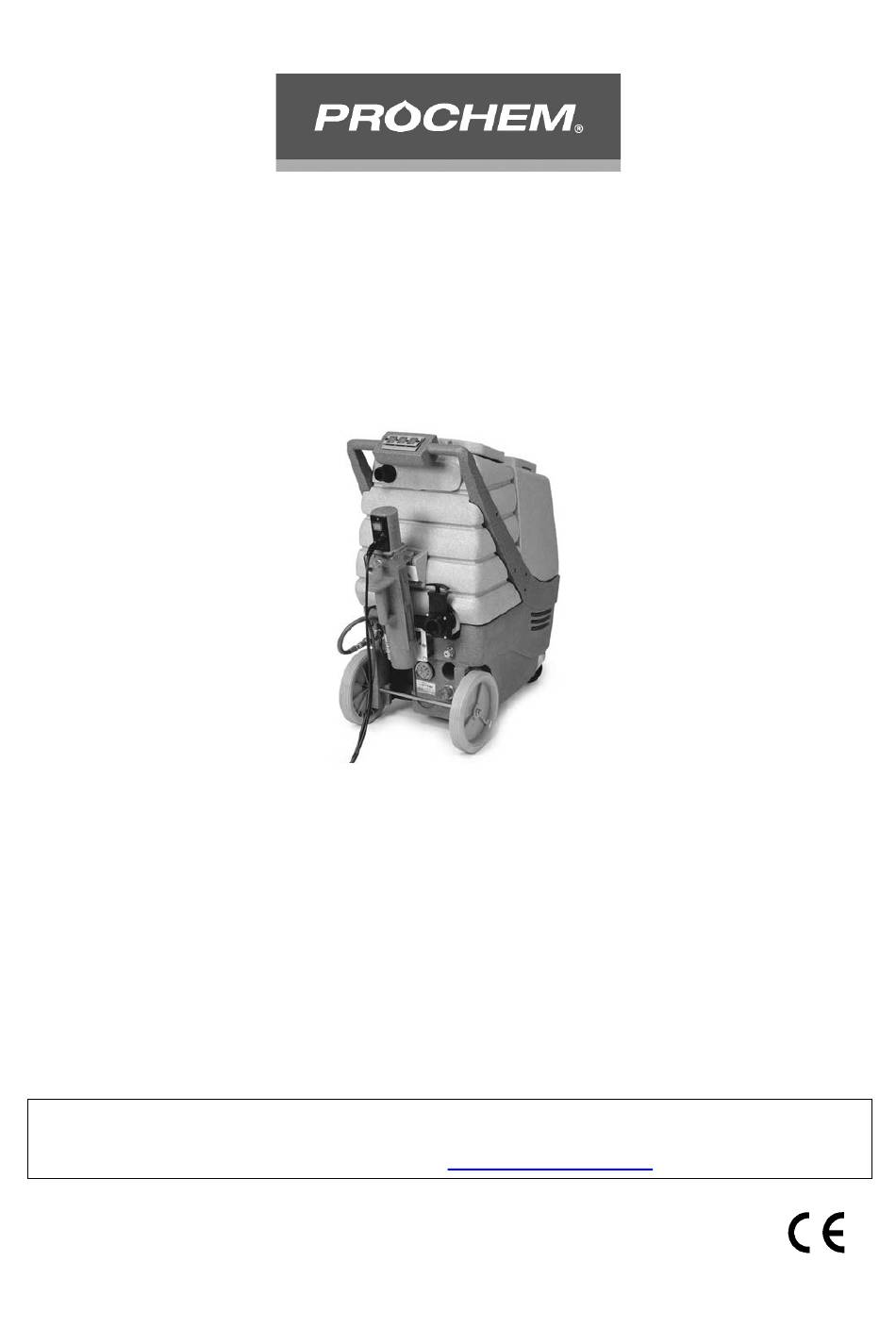

EXTERNAL IN-LINE HEATER for
STEEMPRO CARPET SOIL EXTRACTORS
SAFETY, OPERATION & MAINTENANCE
•
CAUTION – READ THE INSTRUCTION MANUAL BEFORE USING THE APPLIANCE
•
ORIGINAL INSTRUCTIONS
•
MANUAL ALSO AVAILABLE ON LINE AT
Heat 'N' Run Manual 1.12.17
Heat 'N' Run
INSTRUCTIONS
MODEL:
AC3001 (UK / EC)
WWW.PROCHEM.CO.UK
Page 1 of 15
Advertisement
Table of Contents
Summary of Contents for Prochem Heat 'N' Run
- Page 1 SAFETY, OPERATION & MAINTENANCE INSTRUCTIONS MODEL: AC3001 (UK / EC) • CAUTION – READ THE INSTRUCTION MANUAL BEFORE USING THE APPLIANCE • ORIGINAL INSTRUCTIONS • MANUAL ALSO AVAILABLE ON LINE AT WWW.PROCHEM.CO.UK Heat ‘N’ Run Manual 1.12.17 Page 1 of 15...
- Page 2 All information and specifications in this manual are current at the date of issue. However, because of Prochem Europe policy of continual product improvement, we reserve the right to make changes at any time without notice. Please note that this manual applies to all models and explains variations including accessories used.
-
Page 3: Table Of Contents
CONTENTS PAGE NO. WARRANTY WARNING SECTION IMPORTANT SAFETY INSTRUCTIONS GENERAL DESCRIPTION OF APPLIANCE & IMPORTANT OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS GENERAL MAINTENANCE PARTS DIAGRAM PARTS LIST WIRING DIAGRAM CE DECLARATION OF CONFORMITY Heat ‘N’ Run Manual 1.12.17 Page 3 of 15... - Page 4 Prochem Europe Sales Department Telephone: +44 (0)20 8974 1515 Prochem Europe Ltd. EEE Producer Registration Number: WEE / AJ0044SY European Directive (2002/95/EC) Restriction of use of certain Hazardous Substances in Electrical and Electronic Equipment (RoHS). This equipment does not contain more than the maximum permitted levels by...
-
Page 5: Warranty
Your Prochem unit is designed to give you many years of reliable service. If a problem should arise during or after the warranty period, contact the Prochem Authorised Distributor or the Prochem Service Department, for details of the services available. Only the original purchaser of the new equipment may seek performance of this warranty –... -
Page 6: Warning Section
WARNING! • Warning! Machines shall not be used by children. Children should be supervised to ensure that they do not play with the appliance. This machine can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the machine in a safe way and understand the hazards involved. -
Page 7: Important Safety Instructions
The Heat N Run unit has been designed for sole Use only three wire CE approved extension cable use with the Prochem Steempro 2000 carpet soil with CE approved three-prong earthed plugs and extraction machine fitted with pressure relief valve three pole receptacles that accept the unit’s 13 amp... -
Page 8: General Description Of Appliance
Prochem Europe. ! USE ONLY genuine replacement parts for this unit, supplied by an authorised Prochem Distributor. ! DO NOT operate the unit with a damaged power cord or plug, or after the unit malfunctions, or has ! DO NOT use this unit for any purpose other than been damaged in any manner. -
Page 9: Operating Instructions
THE PERFORMANCE OF THE UNIT AND INVALIDATE THE WARRANTY IMPORTANT The Prochem Heat N Run unit is designed only for use with the Steempro carpet soil extractor and 300psi high pressure solution hose. During use the unit will generate high temperatures and high pressure that will require the operation of the internal pressure relief valve system that is fitted as standard to all Steempro machines. - Page 10 STORAGE AND TRANSPORTATION The heat and run unit is very light (4.7 kg) and can easily be carried by one person, the unit can also be transported on the rear of any Steempro machine, but care must be taken when loading a Steempro into a vehicle with the unit fitted, best practice dictates that the unit be removed to prevent damage.
-
Page 11: General Maintenance
GENERAL MAINTENANCE All Prochem equipment is engineered and built to Unscrew the outer cable gland and cord anchor require a minimum of maintenance. But like any screw to release the cable which can then be equipment, it does require some care to keep it in pulled out of the cable gland assembly. -
Page 12: Parts Diagram
PARTS DIAGRAM Heat ‘N’ Run Manual 1.12.17 Page 12 of 15... -
Page 13: Parts List
HEAT ‘N’ RUN PARTS LIST REF. STOCK CODE PART NO. DESCRIPTION F11796 HEATER HOUSING F11795 HEATER CAP D11227 SWITCH PLATE E00214-2 B00214-2 SWITCH COVER E02211-1 B02211-1 ROCKER SWITCH H00565-5 SERIAL NUMBER PLATE D11254 THERMOSTAT COVER E5004 G10964 THERMOSTAT 150F / 65C E10961-1 G10961-1 THERMOSTAT 145F / 62.7C NEW TYPE (MODEL 701) -
Page 14: Wiring Diagram
WIRING DIAGRAM MODEL AC3001 HEAT ’N’ RUN 2800W 220/240V AC 50Hz Heat ‘N’ Run Manual 1.12.17 Page 14 of 15... -
Page 15: Ce Declaration Of Conformity
2006/95/EC Low Voltage (LVD) Directive 2004/108/EC Electromagnetic Compatibility (EMC) Directive A Technical file is held by Prochem Europe Ltd. Certificate of compliance and test reports have been issued by: SGS United Kingdom Ltd. Unit 10, Bowburn South Industrial Estate Bowburn, Durham DH6 5AD Ref: DUR41944-2 &...
