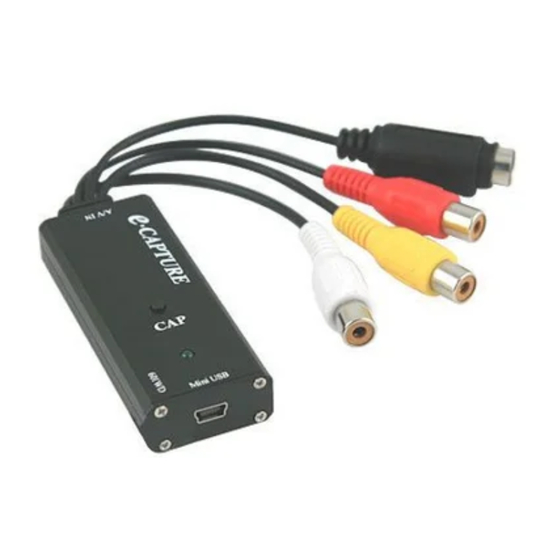

e-Capture 601WD Getting Started

1. Features

- USB 2.0 interface, transmission rate up to 480Mpit/s, 48 times
faster than USB 1.1 interface.
- Fluency video display, 720×576 image up to 30 frames/s
- Moving image display up to 1440×1152
- Sharp and nature image with true color
- Auto brightness, white balance, color saturation, contrast, Gamma
and so on advanced digital video control function
- Built-in sensitive microphone for voice communication through
Internet
- Illuminating LED' s auto turn on in dark

2. Specification

Image sensor 1/4" COMS
Image element 720H x 576V element
Display size 176×144, 320×240，352×288，720×576,1440×1152
Color format RGB24,I420
Interface USB2.0
Frame rate 30pfs in 720×576
Signal-to-Noise >48dB
Lens F1.8/f7.85
Focalize spectrum 80mm to limitless
View angle ~50°
Camera control Saturation, contrast, sharp level, etc
White balance Auto, manual
Exposure Auto, manual
Working current < 200 mA
Illumination Auto
Microphone Built-in, <-60dB
Storage temperature -20°C to +60°C
Working temperature 0°C to +40°C
Weight 180g

3. System Requirement

- CPU speed: 1.8GHZ or higher
- RAM: 256 EMS memory or more
- Hard disk space 10GB
- Operating system: win2000,winXP
- USB2.0 port
- 64bit color display card
