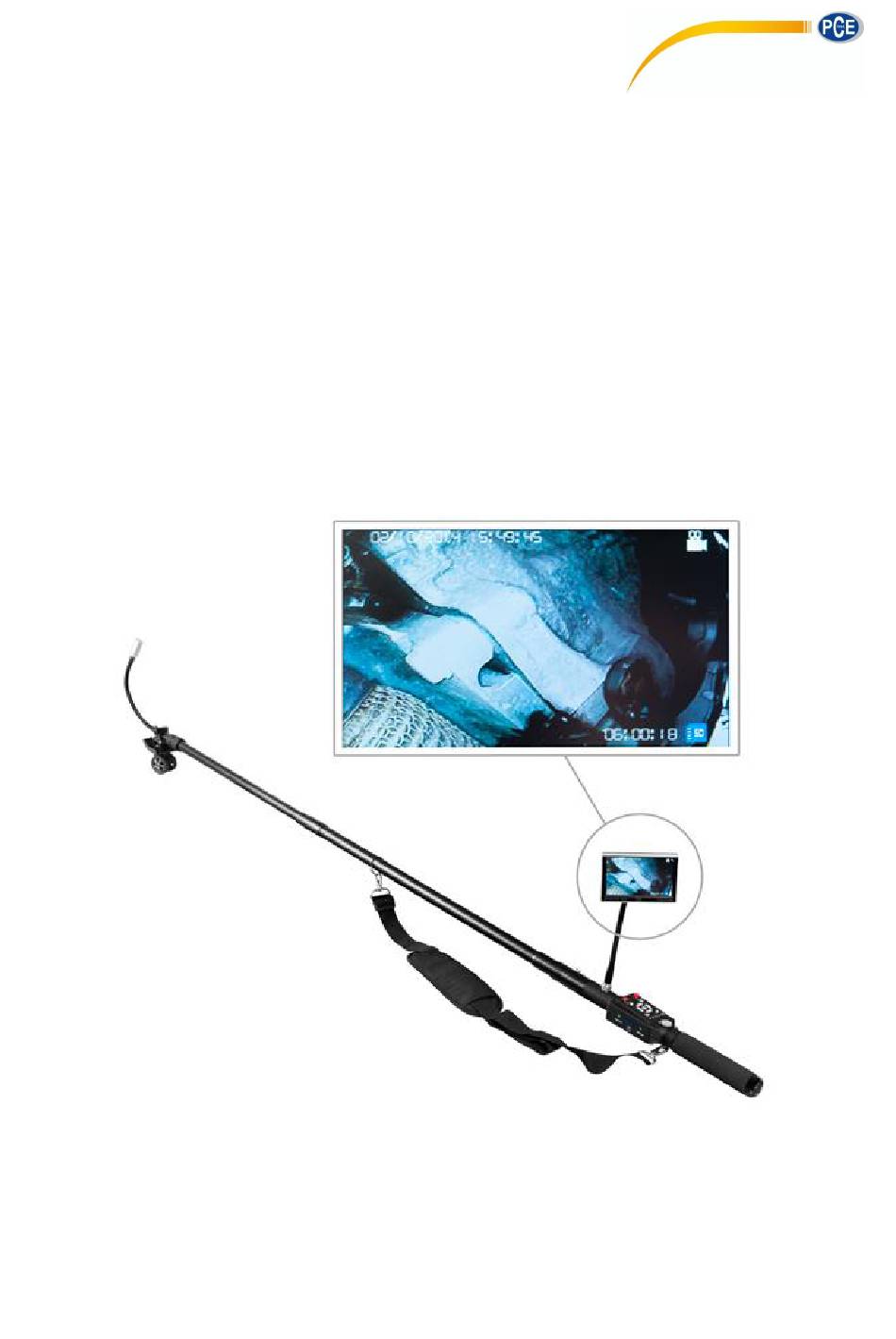

Inspection Camera PCE-IVE 320 / PCE-IVE 330
Manual
Version 1.1
Date of creation: 06.09.2016
Date of last change: 25.10.2017
PCE Americas Inc.
711 Commerce Way
Suite 8
Jupiter
FL-33458
USA
From outside US: +1
Tel: (561) 320-9162
Fax: (561) 320-9176
info@pce-americas.com
www.pce-instruments.com/english
www.pce-instruments.com
PCE Instruments UK Ltd.
Units 12/13
Southpoint Business Park
Ensign way
Hampshire / Southampton
United Kingdom, SO31 4RF
From outside UK: +44
Tel: (0) 2380 98703 0
Fax: (0) 2380 98703 9
info@pce-instruments.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCE-IVE 320 and is the answer not in the manual?

Questions and answers

Summary of Contents for PCE Americas PCE-IVE 320

  • Page 1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0 Fax: (561) 320-9176 Fax: (0) 2380 98703 9 info@pce-americas.com info@pce-instruments.com www.pce-instruments.com/english www.pce-instruments.com Manual Inspection Camera PCE-IVE 320 / PCE-IVE 330 Version 1.1 Date of creation: 06.09.2016 Date of last change: 25.10.2017...

  • Page 2: Table Of Contents

    7.4.4 SD card capacity check ....................... 14 7.4.5 Date format ..........................14 7.4.6 Time display on the screen ......................15 FAQ......................... 15 Disposal ......................... 16 10 Contact ........................16 10.1 PCE Instruments UK ........................ 16 10.2 PCE Americas .......................... 16...

  • Page 3: Introduction

    Manual Introduction Thank you for purchasing a telescopic camera PCE-IVE 320 / PCE-IVE 330 from PCE Instruments. The telescopic camera allows the user to get new insights of the places that are difficult to access or are located high. Due to the telescopic stick of up to 2.3 m, the camera is ideal for maintenance and inspections.

  • Page 4: System Description

    Manual System Description Camera Head 1. Camera head 2. Flexible connection 3. Connection with gilded pins Telescopic stick 1. Connection to the camera 2. Telescopic shaft 3. Telescopic shaft 4. Telescopic shaft 5. Telescopic shaft 6. Control connection Rotary Coupling 1.

  • Page 5: Digital Monitor

    Manual Digital monitor 1. TFT screen 2. Monitor connection with knurled nut 3. Buttons 4. Inclinable monitor bracket 5. Gooseneck Operating Element...

  • Page 6: Handle

    Manual Button / designation Function Connector Connection to the camera Connector Connection to the handle / battery Plug Connection to the monitor Rotating knob On / Off / dim LEDs DVR button Digital video recorder on / off MIC button Microphone on / off Microphone Microphone connection...

  • Page 7: Guide Roller With Mounting Fixture

    Manual Guide roller with mounting fixture The guide roller allows to move the device in areas which are hard to access and avoids damage like scratches. Mounting 1. Take off the protecting cases of the components. 2. Attach the guide roller to the telescopic stick. 3.

  • Page 8: Instructions

    Manual Instructions 1. Turn the knob clockwise to turn on the device, to activate the LEDs and to adjust the brightness. 2. Align the screen. 3. Extend the second and third telescopic shaft. Do not forget to screw the connecting parts firmly, otherwise the shaft retracts.

  • Page 9: Dvr Setting

    Manual DVR setting Image setting 7.1.1 Image quality adjustment Press the “Menu” button to enter the main menu. H = high quality M= medium quality L = low quality...

  • Page 10: Frame Rate Setting

    Manual 7.1.2 Frame rate setting 30 fps: liquid image 15 fps: non-liquid image 5 fps: irregular image 7.1.3 Resolution setting D1: 704 x 576 VGA: 640 x 576 QVGA: 320 x 288 REC setting Press the “Menu” button to enter the main menu.

  • Page 11: Overwrite

    Manual 7.2.1 Overwrite Note: if the SD card is full, the video recorder deletes the last 300 MB and then starts recording new files. 7.2.2 Rec. duration Playback and deletion of a video file Press the “OK” button to open the list of video files.

  • Page 12: System Settings

    Manual Deletion: 1. Press ▲ / ▼ to select a file. 2. Press the P/P button to delete a file. Playback: 1. Press ▲ / ▼to select a file and then press the OK button. 2. Press the P/P button to play the file. Video fast forward / rewind: (2, 4, 6, 16 x playback to select) When you play the video, press the ►...

  • Page 13: Time And Date Setting

    Manual 7.4.2 Time and date setting Press the ◄ / ► keys to move the cursor. Press the ▲ / ▼ keys to set the time. Press the OK button to save the setting. 7.4.3 Formatting Select “Yes” to format the SD card. Note: “Formatting”...

  • Page 14: Sd Card Capacity Check

    Manual 7.4.4 SD card capacity check Card info 7.4.5 Date format...

  • Page 15: Time Display On The Screen

    Manual 7.4.6 Time display on the screen All the parts have been fastened, but nothing is Check carefully whether all the parts have been displayed after turning on the device. assembled correctly and whether the battery is sufficiently charged. The menu does not open. Check if the status light for the DVR is on.

  • Page 16: Disposal

    PCE Instruments UK Ltd. Units 12/13 Southpoint Business Park Ensign Way, Southampton Hampshire United Kingdom, SO31 4RF By phone: 02380 987 035 10.2 PCE Americas By post: PCE Americas Inc. 711 Commerce Way Suite 8 Jupiter 33458 FL By phone:...

This manual is also suitable for:

Pce-ive 330
