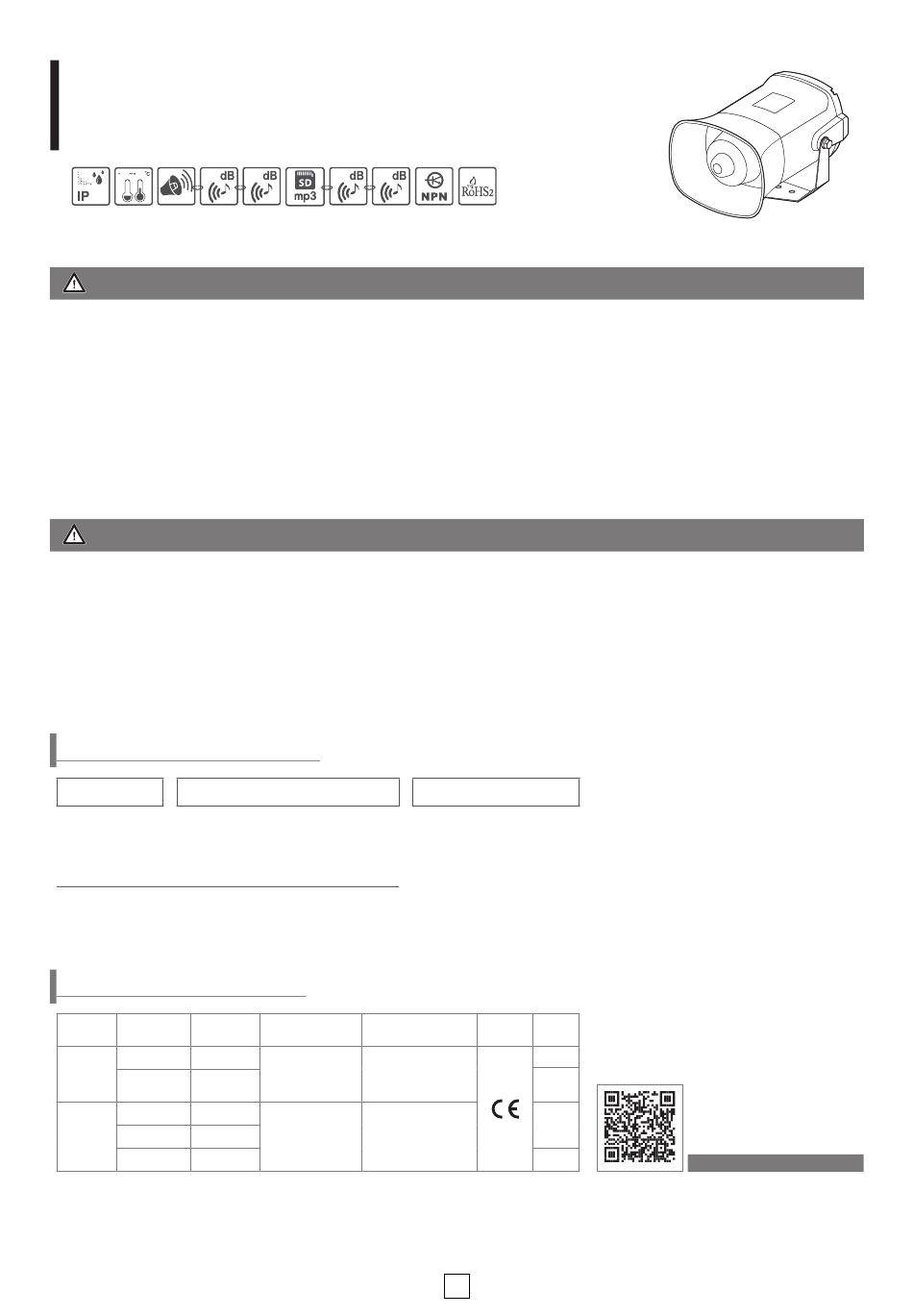

Self-Standing Multifunctional Electric Sounder
SMP35/ SMP50
115
25
50
65
HORN
Thank you for purchasing Qlight's products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. During wiring or maintenance, please completely turn off the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a fire to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
follow these instructions may lead to fire, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to fire, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
follow this may cause damage to property, fire, electric shock and loss of life.)
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the
product that would void the warranty.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn off the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product's specification.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
6. Failure to follow any of the instructions above may cause malfunction or damage to the product, fire, and electric shock.
Ordering Specifications
SMP50
-
[Model number]
|
• SMP35
• 12/24-DC12V-24V
• 110/220- AC110V-220V
• SMP50
• 12-DC12V
• 24-DC24V
• 110/220- AC110V-220V
Product Specifications
Model
Voltage
Current
number
DC12-24V
MAX.0.800A • Warning sound :
SMP35
AC110V-220V MAX.0.290A
DC12V
1.800A
SMP50
DC24V
MAX.1.000A
AC110V-220V MAX.0.600A
※ CE Compliant : AC110V/ 220V
• Protection rating : IP65
• Ambient operating temperature : -25°C to +50°C
123
113
118
110/220
-
[Voltage]
|
Input type/
Volume
No. of channel
Bit input : 5Ch
Max. 115dB
Binary input : 30Ch
• MP3 : Max. 113dB
• Warning sound :
Bit input : 5Ch
Max. 123dB
Binary input : 30Ch
• MP3 : Max. 118dB
LC
[Sound selection]
|
• (Blank)-Built-in switch
• LC-External contact
Certificate Weight
0.76kg
1.03kg
0.95kg
1.23kg
1
Please scan the QR code for more
detailed product information.
www.qlight.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Qlight SMP50
Summary of Contents for Qlight SMP50
- Page 1 3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to follow these instructions may lead to fire, electric shock, or product damage.) 4.
-
Page 2: Wiring Instructions
Dimensions (Units : mm) SMP35/ SMP50 Ø16 CABLE ENTRY 99.5 82.3 219.3 3-Ø9 FITTING HOLES Wiring Instructions SMP35/ SMP50-DC/AC EXTERNAL CONTACT EXTERNAL TRANSISTOR-NPN Ch 1 Ch 1 Amber Amber Ch 2 Ch 2 Green Green Ch 3 Ch 3 Blue... -
Page 3: Mounting Hole Specifications
• In case of outdoor applications, install the product in the upright position. Do not install the product horizontal or upside-down positions where water can potentially penetrate into the product and impact it’s operation. • For further information, please visit our website (www.qlight.com). -
Page 4: Sound Setting
Rear Control Configuration Rear Cover Removal Instructions SOUND SET SD CARD Sound switch Play mode 1 2 3 4 ② switch Volume switch SD card slot ① ① Please loosen and remove the bolts(M4) fixed to the rear cover of the product. ②... -
Page 5: Volume Adjustment
Rear Control Configuration Volume Adjustment • The volume output of this product is adjustable. • Turn the volume dial clockwise to increase the volume, and turn counter clockwise to decrease the volume. • There will be no sound when the dial is put at MIN. ①... - Page 6 Sound Type and Combination Manual ■ Bit Input - Playing Built-in Sound ■ Binary Input - Playing Built-in Sound • In bit input mode, you can chooses one sound from 30 • In binary input mode, you can chooses one sound from 30 sounds by configuring the 5 channels.
- Page 7 Sound Type and Combination ■ Bit Input - Playing External Sound (SD Card) ■ Binary Input - Playing External Sound (SD Card) • User can save sounds(MP3) to the SD card and able to select • Binary input mode chooses one of the 30 sounds by combining 1 sounds from 5 saved sounds.
- Page 8 Operation Method and Setting When using a built-in sound When using an external sound (SD card) Bit input Binary input Bit input Binary input Organized into 6 groups of 5 sound tones for a total of 30 sound Play one of the 5 user-recorded Play one of the 5 user-recorded Play one of 30 built-in sounds tone options.
- Page 9 Technical Certification • Qlight products are designed to meet strict quality and technical standards. Thus, the Qlight brand is widely recognized for its high quality and technical innovations from leading institutions around the world.
- Page 10 MEMO...
- Page 11 MEMO...
- Page 12 Factory | 185-25, Mukbang-Ro, Sangdong-Myeon, Gimhae-si, Gyeongsangnamdo, Korea Tel. +82-80-328-1111 Qlight Overseas Sales Dept | 185-25, Mukbang-Ro, Sangdong-Myeon, Gimhae-Si, Gyeongsangnam-Do, Korea Tel : +82-55-328-4082 Qlight Public Relations & Marketing Team Office | Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel : +82-51-245-0017 Qlight USA, Inc. www.qlight.com www.qlightusa.com | sales@qlightusa.com 3003 North First Street, Suite #341, San Jose, CA 95134 USA Tel.
