Summary of Contents for RAD Torque Systems Smart Socket

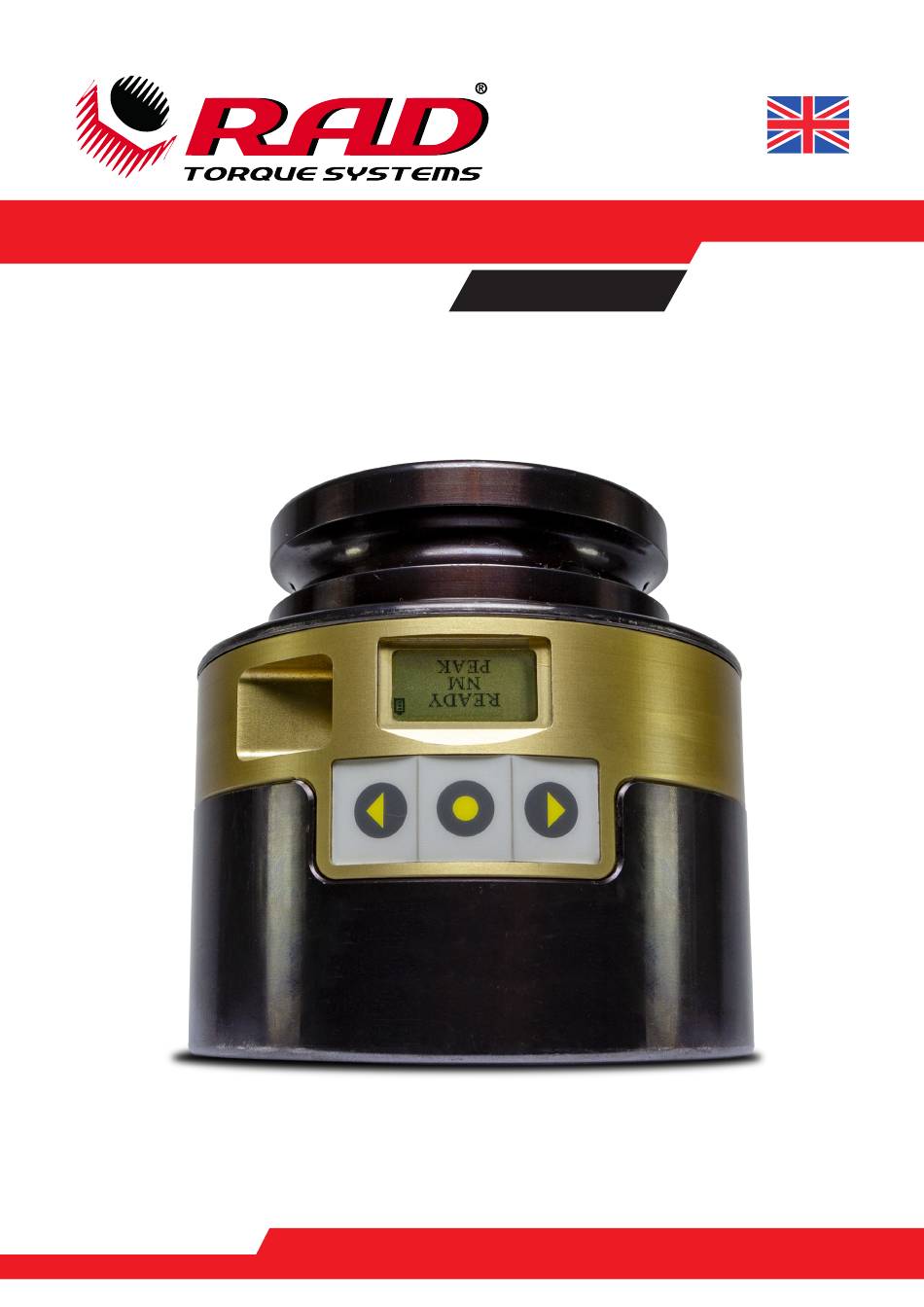

- Page 1 Smart Socket™ User manual TURK...
-
Page 2: Table Of Contents
User manual Smart Socket™ 1. Table of contents 1. General instructions 2. Battery usage and charging 2.1 General safety and guidelines 2.2 Battery charging 2.3 Battery removal and replacement 3. Assembly 4. User interface 4.1 Main screen 5. General operation 5.1 Prepare for bolting 5.2 Sleep/Wake 5.3 Measurement method... -
Page 3: General Instructions
If breakdown, malfunction or damage occurs, do not attempt to repair; contact RAD Torque Systems B.V. or your local distributor immediately. Ensure that the square drive size of the tool matches the Smart Socket™ model and check the fit is snug. •... -
Page 4: Assembly
The Smart Socket™ is a battery powered, strain gauged socket for precision torque monitoring of fastening operations. The Smart Socket™ must be properly selected to fit both the mating tools square drive and the application fastener, without exceeding the maximum torque rating of the model. -
Page 5: User Interface
User manual Smart Socket™ 4. User interface The Smart Socket™ offers a user friendly LCD interface with push button navigation. NOTE: Be sure to hold the push button press down for a duration of 1 second. This will ensure that the button was properly registered. -
Page 6: General Operation
If Target Pass/Fail Enable mode is selected during pre-deployment setup and measurement mode is set to Peak, a Pass or Fail will be displayed on the Smart Socket™ after a peak torque. The Pass/Fail is based on the target tolerance parameter defined during the pre- deployment setup. -
Page 7: Connecting Smart Socket™ To Pc
Bluetooth for Smart Socket™ configuration and data log downloads. a. Turn on Bluetooth on the Smart Socket™. To do this, press one of the arrow keys until the screen reads BT Off. This is the current state of the Bluetooth. Press the centre button. When Bluetooth is turned on, the screen will read BT On. -
Page 8: Pre-Deployment Configuration
User manual Smart Socket™ 8. Pre-Deployment configuration Prior to each deployment, the user should verify the Smart Socket™ is configured as desired. Access to a PC or Laptop running the RT Data Logger software is required. Configuration includes date/time clock, measurement units, operating modes, and if enabled, targets and Pass/Fail indication tolerance. -
Page 9: Operating Modes
When real time graphs is enabled, the user can view a live graph of the torque cycle on the RT Data Logger software. To view the live graph, go to the Tool tab and press Graph Torque. When a pull is done with the Smart Socket™, a live graph will be created on the torque vs time screen. 9. Safety RAD tools are developed for tightening and loosening threaded fasteners using very large forces. -
Page 10: Warrenty
(15) months after the original calibration date. The electronic control module is covered for a period of six (6) months from the date of calibration. Under the terms of this warranty, RAD Torque Systems B.V., at its option and F.O.B. -
Page 11: Repaired Tool Warranty
To qualify for the above mentioned warranties, written notice to RAD Torque Systems B.V. must be given immediately upon discovery of such defect, at which time RAD Torque Systems. will issue an authorization to return the tool. Freight costs must be paid in advance. When returning a tool, the reaction arm/s being used with the tool must also be returned. -
Page 12: Contact
MASTER DISTRIBUTOR FOR EUROPE, MIDDLE EAST AND NORTH AFRICA: RAD TORQUE SYSTEMS B.V. ZUIDERGRACHT 19 3763 LS SOEST THE NETHERLANDS PHONE.: +31 (0)35 - 5882450 E-MAIL: INFO@RADTORQUE.NL SALES@RADTORQUE.NL TECHSUPPORT@RADTORQUE.NL www.radtorque.eu...
