- Page 1 ELECTRIC BIKE INSTRUCTION MANUAL 99% mounted electric bike E-Folding E-Mountain E-City Notice updated on September 14, 2018 BEFORE FIRST USE, READ THE SAFETY INSTRUCTIONS CAREFULLY www.mobi-cycle.com - 1 -...
-
Page 2: Introduction
We invite you to read this instructions manual to get the most out of your Mobicycle bike. This User Manual provides details on the product, its equipment and gives information on how to operate it and maintenance. -
Page 3: Table Of Contents
SOMMAIRE Introduction Page 2 Summary Page 3 Recommendations for use Page 4 Getting Started with the eBike Page 5 Handlebar control switch Page 8 Tips for Driving an eBike Page 10 Battery Page 11 Troubleshooting Page 15 Care instructions Page 16 Data Sheets Page 17 Waranty and standards... -
Page 4: Recommendations For Use
RECOMMENDATIONS OF USE The electric bike (eBike) allows daily use on urban and peri-urban roads by limiting the effort thanks to the electric motor. The bike and the braking system are designed for a maximum total weight of 120kg, cyclist, equip- ment and luggage included. -
Page 5: Getting Started With The Ebike
GETTING STARTED WITH YOUR E-BIKE 1. Tighten the handlebar. To do this, use the provided tool and turn to the right. E-Folding E-Mountain E-City - 5 -... - Page 6 2. Turn on the battery. E-Folding E-Mountain E-City 3. Turn on the power on the control system. 4. Choose the assistance mode. (1st level is recommended for first use.) - 6 -...
- Page 7 5. Take charge of the handlebar and start the assistance by pedaling. - 7 -...
-
Page 8: Handlebar Control Switch
CONTROL SYSTEM On / Off Front lighting Battery level Selecting the level of assistance Assistance Display Level : 0,1,2,3,4 - 8 -... - Page 9 Operating the Control System 1. On / Off : • Press the button to activate the system. • Press the button to deactivate the system. 2. Lighting : • Press the button to activate the front light. • Press the button to deactivate the front light.
-
Page 10: Tips For Driving An Ebike
TIPS FOR DRIVING AN E-BIKE Cycling with electric bike requires a little practice : In the beginning, practice in a place with enough space around you and if possible without traffic or pedestrians. You will be able to familiarise yourself with driving with assistance, control the braking behavior and know how to change gears. -
Page 11: Battery
Always keep the bike out of the rain to remove the battery. If necessary, dry the electrical contacts before refitting the battery. Remove the E-Folding battery • Tilt the saddle via the gray pull tab •... - Page 12 Remove the E-Mountain battery • Turn the key and lift the battery • Pull the battery towards you Remove the E-City battery • Turn the key • Pull the battery towards you - 12 -...
- Page 13 Battery charge Use only the specific charger provided with the purchase of the bike. Fully charge the battery before the first trip and after each use, even after a short trip. Charge the battery in a temperature controlled environment (15 - 25 ° C) •...
- Page 14 Respect the environment Do not dispose of the battery or charger in the wild or with your household waste. Take it back to a recycling center ! With this responsible action, you will contribute to the pro- tection of your environment. - 14 -...
-
Page 15: Troubleshooting
TROUBLESHOOTING Symptoms of failure Cause of the problem Solution Battery voltage is too low Immediate charge The battery does not provide Replace the battery The indicator light enough energy is off and the engine The battery lock does not work, Replace the battery safety does not start preventing the battery from... -
Page 16: Care Instructions
MAINTENANCE TIPS The pressure of your tires decreases with time which is perfectly normal. A bicycle’s inner tube is slightly porous. Remember to check and regularly control the pressure of your tires. Driving deflated reduces the battery life, increases pedaling effort and promotes punctures. We advise you to select a pressure of 3.5 bar for a soft use and of 4 bar for a more sporting use. -
Page 17: Data Sheets

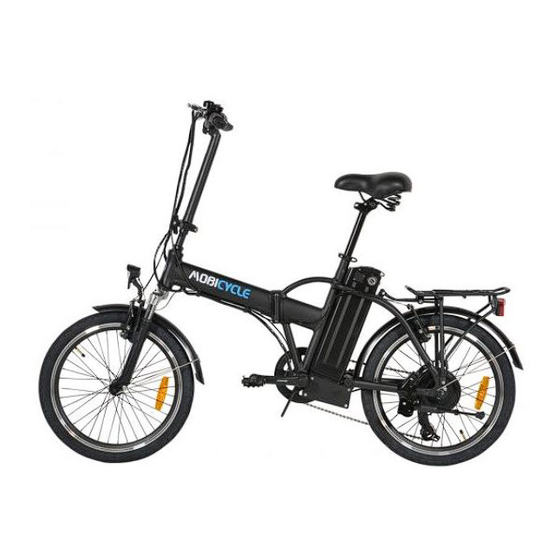

DATA SHEET TECHNICAL CHARACTERISTICS OF YOUR ELECTRIC BIKE - E-FOLDING DIMENSIONS Height: 72 cm / Width: 60 cm / Len- gth: 85 cm Aluminum XCX 20 inch / Lifetime FRAME frame warranty RIMS Double wall rims TYRES ZW 20*1,75 FRONT BRAKE... - Page 18 TECHNICAL CHARACTERISTICS OF YOUR ELECTRIC BIKE - E-MOUTAIN FRAME Aluminum XCX 26 inch / Lifetime frame warranty RIMS Double wall rims TYRES ZW 26*1,75 FRONT BRAKE V Type HY REAR BRAKE V Type HY CASSETTE 7-speed Shimano derailleur MECHANICAL PARTS BOTTOM BRACKET Prowheel FORK...
- Page 19 TECHNICAL CHARACTERISTICS OF YOUR ELECTRIC BIKE - E-CITY FRAME Aluminum XCX 26 inch / Lifetime frame warranty RIMS Double wall rims TYRES ZW 26*1,75 FRONT BRAKE V Type HY REAR BRAKE V Type HY CASSETTE 7-speed Shimano derailleur MECHANICAL PARTS BOTTOM BRACKET Prowheel FORK...
-
Page 20: Waranty And Standards
In this context, Mobicycle offers its customers a lifetime warranty applicable exclusively to the frame that equips our bikes. This warranty begins to run from the date of purchase of a Mobicycle bike. It is specified that, in order for the lifetime warranty to be valid, the buyer must complete the form within one month after the purchase of the bike. - Page 21 The guarantee is part of a legal framework that differs between countries and customs areas. It is always the legal framework that applies to the minimum, the Mobicycle warranty contract applies when it is more favorable. To clarify and to give you an idea, the following table summarizes the main elements of a bicycle, the phenomena of wear not guaranted and the associated waranty period within the European Community.
- Page 22 • Battery wear Assistance to • Wear bearing Necessary 2 years pedaling motor and compo- nents Wear of cables, Brake sheaths, pads or Necessary 2 years plates Headset Wear on bearings Necessary 2 years Saddle Coating wear Necessary 2 years Pedaling Wear on bearings Necessary...
-
Page 23: After Sales Service
AFTER-SALES SERVICE Our team of advisors and after-sales service experts are there to answer your questions and ad- vise you on the choice of spare parts and accessories for your electrical bike thanks to their tech- nical knowledge of each model. Do not hesitate to contact us, from Monday to Friday, from 8am to 6pm: Phone : +33 (0)9.74.59.41.75 E-mail : contact@mobi-cycle.com...
