Damocles2 – User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Damocles2 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for HW Group Damocles2 Series

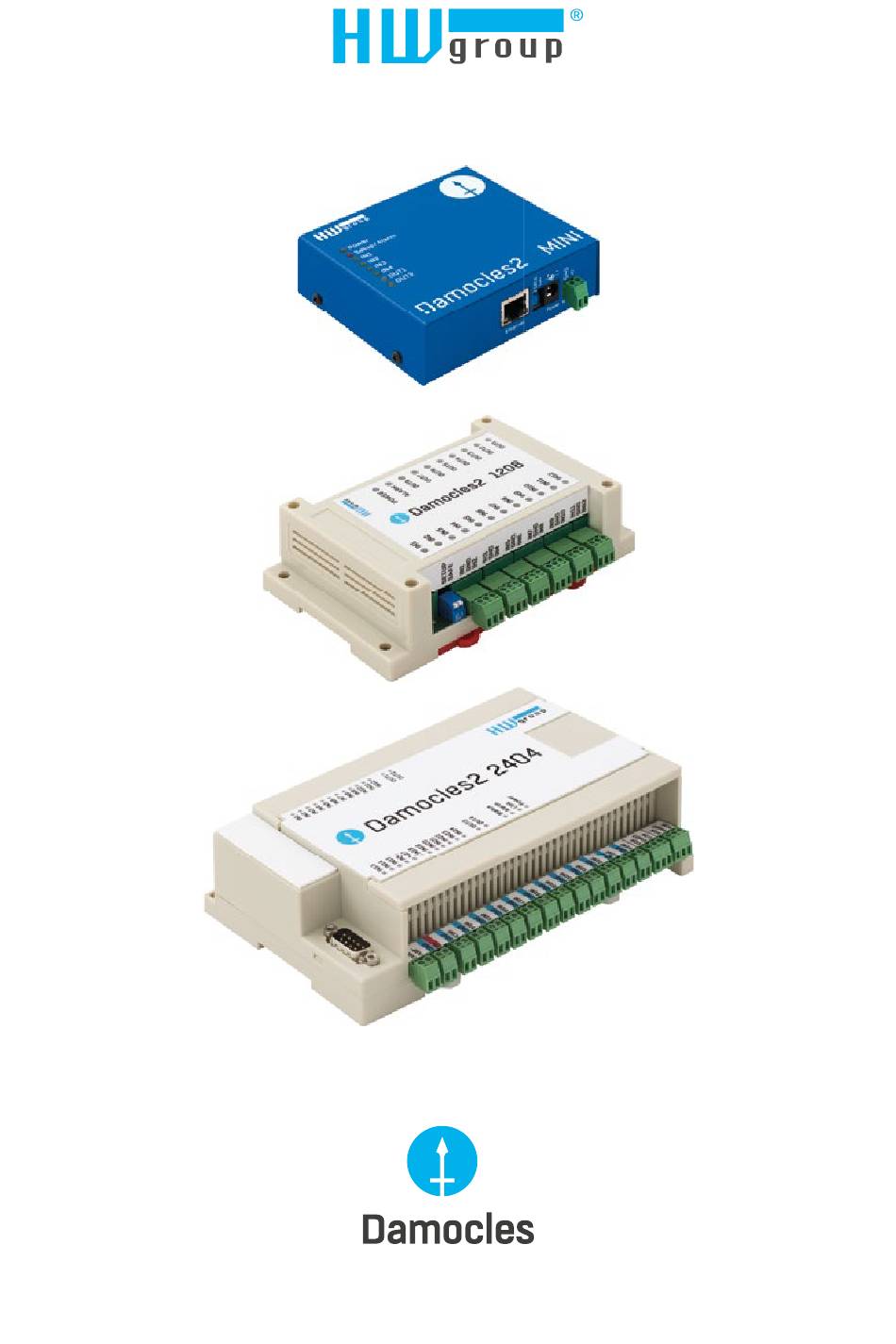

  • Page 1 Damocles2 – User manual...

  • Page 2: Table Of Contents

    The manufacturer warrants the device only if it is powered by the supplied power adapter or an SensDesk.com approved power supply. PosDamIO and SDK If you have any problems with installing or operating the device, please contact technical support: Specifications HW group s. r. o. Damocles2 MINI dimensions http://www.hw-group.com Formanská 296 Damocles2 MINI specifications E-mail: support@HWg.cz...

  • Page 3: Damocles2 1208

    Damocles2 models Damocles2 1208 Damocles2 MINI Power Setup/Alarm OUT1 OUT2 Power 9 – 30V Ethernet Power 9-30V ETHERNET Activity Link Outputs Inputs Power Damocles2 Damocles2 Damocles2 models Damocles2 models Damocles2...
  • Page 4 Damocles2 2404 Feature comparison Damocles2 MINI Damocles2 1208 Damocles2 2404 DI (digital inputs) Pulse counter (SO) on DI Non-volatile counter memory DO (digital outputs) DO type 50 V / 1 A relay OC (open collector) 50 V / 1 A relay Pulse output VDO (virtual digital outputs) Power...

  • Page 5: Damocles2 2404

    Connectors First start Ethernet Ethernet 100Base-Tx (10/100Mbit). When connected, the green “Link” LED at the connector li- First steps ghts up to indicate proper connection. When communicating, the yellow „Activity“ LED flashes. 1. Connecting the cables Power • Turn the unit and note its MAC address that is printed on the label on the side. The green LED indicates that the device is powered.

  • Page 6: Configure The Network Parameters

    First steps First steps 3. Configure the network parameters 4. WWW interface of the device • IP address / HTTP port (80 by default) • To open the WWW interface of the device: • Network mask • Enter the device IP address in a web browser •...

  • Page 7: Web Interface Of The Device

    Web interface of the device General setup General: Overview of current readings General Setup: IP address, DNS Security: IP filter, security (username/password), HTTPS certificates SNMP: SNMP/SNMP Trap configuration (ports and alarm recipients) Modbus: Enabling Modbus/TCP communication E-mail: Configuration and test GSM: Configuration and test when working with a remote SMS-GW Log &...
  • Page 8 Security SNMP Changes SNMP 5 destinations protocol versions for SNMP Traps Note: For a detailed description, see the detailed web interface description (2nd half of the manual). Filters for IP addresses which Configuration of usernames and HTTPS may access the device passwords for accessing the device certificates Note:...
  • Page 9 We recommend to use HWg-SMS-GW3 for sending text messages. One central SMS gateway for of the e-mail subject line of alarm e-mails test result e-mail all HW group devices in a single LAN. Periodic Status Settings • Periodical Status – when enabled, sends an e-mail with device status at the specified intervals.
  • Page 10 Log & Time Portal Press the button to manually synchronize Interval for logging Expected size time with the specified server measured values of recorded data Message from Enable connection Click to connect AutoPush the portal to the remote portal to the portal configuration Configures the communication with the portal using the HWg-Push protocol.
  • Page 11 Digital Inputs (DI) Digital Outputs (DO) Pulse output timer [s]. Choose the output mode Enter a DO name Manual mode: Output controlled over the WEB or M2M protocols to show in e-mails, By default, Pulse Enter Digital Input Alarm contact status: Reaction to digital inputs: Local Condition mode: Controls the output according to the text messages...
  • Page 12 Virtual Outputs (VDO) System Restores factory Uploads new firmware defaults from the PC Configuration • Download – download the configuration from the device to the PC. Upload • – restore the configuration from the PC to the device. Note: Configuration changes must be confirmed by clicking the Apply Changes button. Virtual Outputs allow the use of outputs of other Poseidon2 or Damocles2 units (Box2Box).

  • Page 13: Common Features Of The Damocles2 Family

    Common features of the Damocles2 family Specifications: • Maximum wiring length: 50 m • Supported sensors: Any contact without external voltage (dry contact) Displayed readings • Alarm settings for each DI: • Damocles2 displays current values of all digital inputs (DI). •...

  • Page 14: User Interface

    • Device name, type, MAC address, IP address and communication port is displayed after a device is found +Ucc +Ucc • Compatible with all HW group products (Poseidon, Damocles, PortBox, PortStore, I/O Controller, IP relay and other product lines) +Vcc • Windows and Linux versions available...

  • Page 15: Web Interface

    Web interface Inputs This section displays current states of dry contact inputs, including alarm states and settings. Active alarm is indicated by a red background of the corresponding line. Main communication interface • Name – Textual name of the input, assigned by user at the Inputs tab. Damocles2 offers a simple and user-friendly graphical WWW interface.
  • Page 16 Other Settings and Information • Syslog IP Address – Syslog server address – only for HW group debugging purposes. HW Security Protection • – A DIP switch that prevents any changes in the device configuration.
  • Page 17 Security User Password IP Access filter SNMP Communities restrictions protection Read Read + Read & Security settings. Restrictions in individual modes are shown in the following table. Lines indi- HTTP SNMP Comun1 Comun2 (default) DIP = On only Outputs Write cate the method of accessing the device over IP , columns specify the restrictions resulting from Web index (General) filtered...
  • Page 18 SNMP User Passwords Two separate user accounts (username and password) can be set up for SNMP and HTTP The SNMP Setup tab allows you to configure the settings for communication with the device using access. the SNMP protocol. The page content is slightly different for SNMPv1 and SNMPv3. See below. •...
  • Page 19 SNMP Trap Destination General SNMP Settings Destinations for sending SNMP Traps. • SNMP port – Communication port to use for the SNMP protocol [161]. • Community – Textual name of the group for the SNMP trap being sent. • SNMP Port Listener –...
  • Page 20 Modbus E-mail • SMTP Server – Host name or IP address of the SMTP server. Note: The Modbus/TCP protocol is not secured in any way. We do not recommend using it outside of an • SMTP Port – Port for communication with the SMTP server (25 by default). isolated network.
  • Page 21 To send e-mail, check: Received e-mail example: 1. Correct Gateway IP address DATE TIME Device_NAME Device_IP 01.09.2016 13:42:19 Damocles2 1208 192.168.100.55 2. DNS server in the network settings Email initiated: Test 3. SMTP server and port ------------------------------------------------------------ 4. Authentication enabled, correct ID SENSOR_Name VALUE UNIT Safe_RANGE ALARM username and password ------------------------------------------------------------...
  • Page 22 GSM SMS interface GSM modem (local or remote) Configures the parameters for sending text messages. • GSM Function – Selects whether SMS are sent through a local modem (only available if the serial port is in GSM Modem mode). • SMS+Ring when Alarm –...
  • Page 23 Log & Time Time Synchronization SNTP server settings for time synchronization. If the time is not set (the date 1. 1. 1970 is Date, time, and data logger configuration. displayed), the device attempts to synchronize the time approximately once per hour until successful.
  • Page 24 Portal Portal Message section Information from the portal, such as links to graphs. Depends on the portal type. Portal • Portal enable – Turns this feature on or off. • Server address – Complete URL of the remote server. • IP Port –...
  • Page 25 MQTT Used to connect Damocles2 to an IoT network using the MQTT protocol. MQTT Settings section MQTT Enable • – Enables or disables data transfer using the MQTT protocol. • Server – IP address or domain name of the MQTT broker server. •...
  • Page 26 Digital Inputs (DI) • Name – Name of the input, up to 12 chars (e.g. “left door”, “smoke room 1”). – Unique ID of the input variable within the device [1 – 32]. • Parameters for DI (Dry Contact Inputs). Damocles inputs feature pulse counters; this can be •...
  • Page 27 Digital Outputs (DO) Output Control • Manual – Output controlled over the web or M2M protocols (XML, SNMP ...). Controls the outputs and configures their modes. • Change to On/Off – Change output state (after confirming with Apply Changes). • Local Condition –...
  • Page 28 Virtual Outputs (VDO) System Virtual Outputs allow the use of outputs of other Poseidon2 or Damocles2 units (Box2Box). The communication uses the TCP protocol and updates take place every 60 seconds. Communication monitor Monitors whether communication with Damocles2 over selected protocols takes place, and if it doesn‘t within the specified time, a virtual Comm monitor input is activated.

  • Page 29: Updating Firmware

    HWg-PDMS must be avoided during file transfer. If the update fails, upload the firmware over RS-232 as Windows application that logs data from all HW group devices into its internal database. The described above. application runs in the background (NTservice). Data is retrieved from the devices over http or Firmware in the .HWg format is available at the Damocles website, or on the supplied CD.

  • Page 30: Sensdesk.com

    SensDesk.com is free online portal for LAN and GSM sensors from HW group. Device unknown Senzor unknown HW group s. r. o. | Rumunská 26, 120 00 Prague | Phone: 222 511 918 | Fax: 222 513 833 HW group © 2014 Device invalid...

  • Page 31: Specifications

    Specifications Damocles2 MINI specifications Ethernet Damocles2 MINI dimensions Interface RJ45 (100BASE-Tx) – 10 / 100 Mbit ARP , ICMP , UDP / IP: SNMP , Supported protocols TCP / IP: HTTP , Modbus / TCP , SMTP , netGSM, HWg-PUSH, XML, IPv6, HTTPs, MQTT Power 9 –...

  • Page 32: Damocles2 1208 Dimensions

    Damocles2 1208 dimensions Damocles2 1208 specifications Ethernet Interface RJ45 (100BASE-Tx) – 10/100 Mbit ARP , ICMP , UDP / IP: SNMP , Supported protocols TCP / IP: HTTP , Modbus / TCP , SMTP , netGSM, HWg-PUSH, XML, IPv6, HTTPs, MQTT SNMP compatibility SNMPv1 + SNMPv3 compatible, partial support for v2.0 DI –...

  • Page 33: Damocles2 2404 Dimensions

    Damocles2 2404 dimensions Damocles2 2404 specifications 100 mm Ethernet Interface RJ45 (100BASE-Tx) – 10 / 100 Mbit ARP , ICMP , UDP / IP: SNMP , Supported protocols TCP / IP: HTTP , Modbus / TCP , SMTP , netGSM, HWg-PUSH, XML, IPv6, HTTPs, MQTT SNMP compatibility SNMPv1 + SNMPv3 compatible, partial support for v2.0 Serial port 1 DB9M –...

  • Page 34: Formats And Interfaces

    Modbus over TCP – Interface description Note: For details about Modbus/TCP, see our website – AN28: Damocles family & Modbus/TCP. HWg-netGSM – remote SMS gateway protocol for HW group products For a current protocol description, see: http://hw-group.us/cs/node/4648. Poseidon2 Poseidon2...
  • Page 35 HW group s. r. o. Formanská 296 Prague, 149 00 Czech Republic Phone: +420 222 511 918 Fax: +420 222 513 833 www.HW-group.com...

This manual is also suitable for:

Damocles2 miniDamocles2 2404Damocles2 1208
