I N S TA L L AT I O N A N D M A I N T E N A N C E

I N S T R U C T I O N S

T w i n f l e x P r o ² E x t e r n a l B a t t e r y b o x 5 0 5 - 0 0 2 0

General Description

The Fike External Battery box provides extended emergency short-term backup power for the

TwinflexPro² to enhance the usability and reliability of the systems.

The External Battery box safeguards operation during blackouts and other power interruptions providing

extended battery run time.

Only use the external battery box purchased from Fike Safety Technology which has been approved for

use with the TwinflexPro² panel. (will not fit a flush mounted panel)

This must be mounted beneath the TwinflexPro² panel. Conduit bushes, coupling and battery lead

harness are provided with the external battery box kit.

When using the external battery box the internal batteries within the panel are not used and must be

removed. The internal battery connection leads must also be removed and are replaced by the battery

connection leads provided with the external battery box.

The external battery box will require 2 x 12V 7.0Ah batteries (not provided).

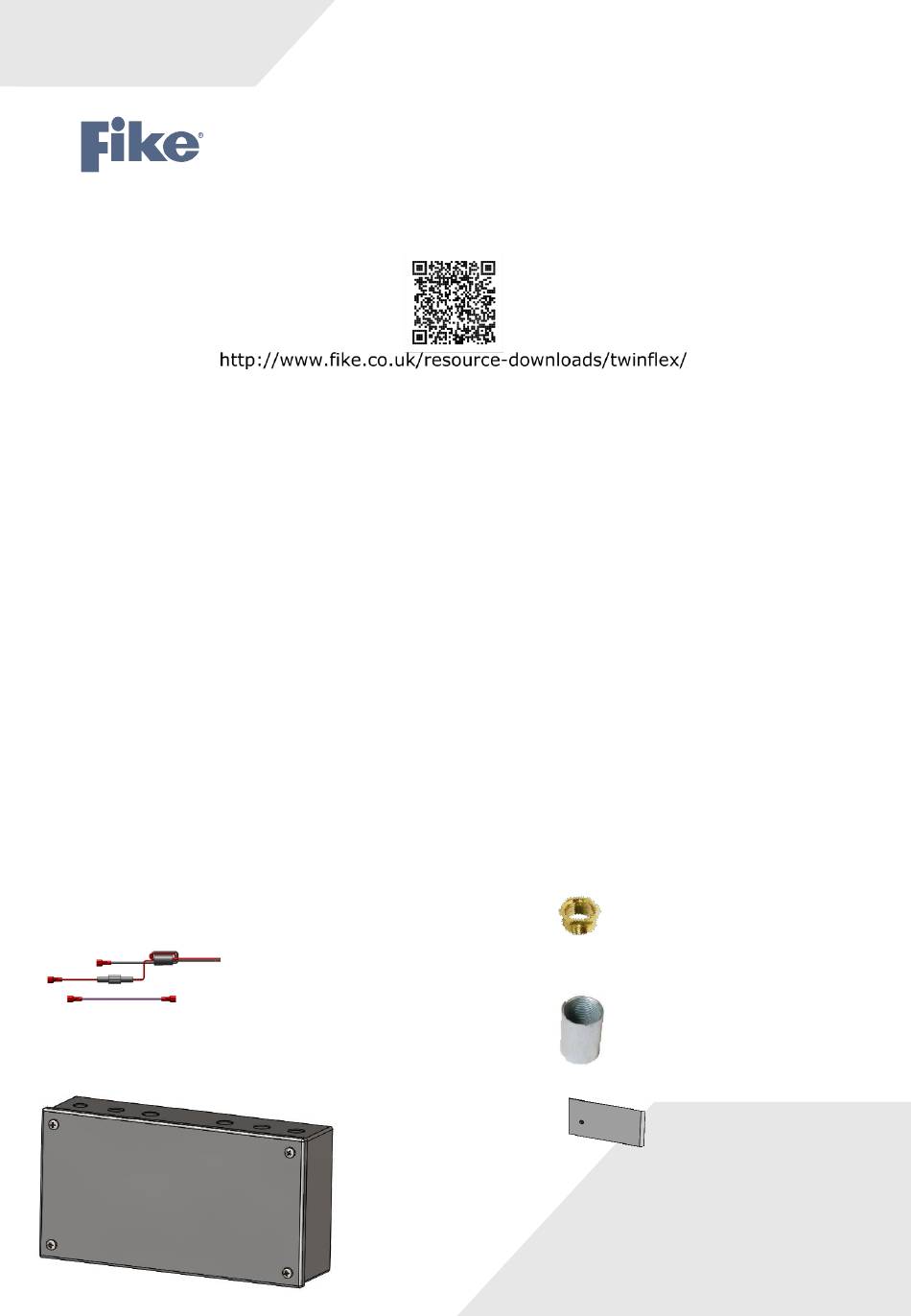

2 x 20mm conduit bush

1 x Battery lead harness

1 x 20mm coupling

1 x External Battery box

1 x Drill template

26-1538-01 Issue 1

Table of Contents

Do you have a question about the TwinflexPro2 External Battery box and is the answer not in the manual?

Page 1 The External Battery box safeguards operation during blackouts and other power interruptions providing extended battery run time. Only use the external battery box purchased from Fike Safety Technology which has been approved for use with the TwinflexPro² panel. (will not fit a flush mounted panel) This must be mounted beneath the TwinflexPro²...
Page 2 Installation 1. Place drill template on the bottom of the TwinflexPro², ensuring that it is flush to the front and side edge as shown below, using the drill template as a guide, mark and drill a 20mm hole 2. Using 1 x 20mm conduit bush, attach the 20mm coupling to TwinflexPro² back box 3.
Page 3 3. Mount battery box beneath the TwinflexPro² panel, securely fix to wall ensuring the box is level 4. Attach the battery box to the coupling Using 1 x 20mm conduit bush 5. A harness is provided that extends from the battery box to the control panel.
Page 4: Technical Data
Fike’s policy is one of continual improvement and the right to change a specification at any time without notice is reserved. Whilst every care has been taken to ensure that the contents of this document are correct at time of publication, Fike shall be under no liability whatsoever in respect of such contents.
