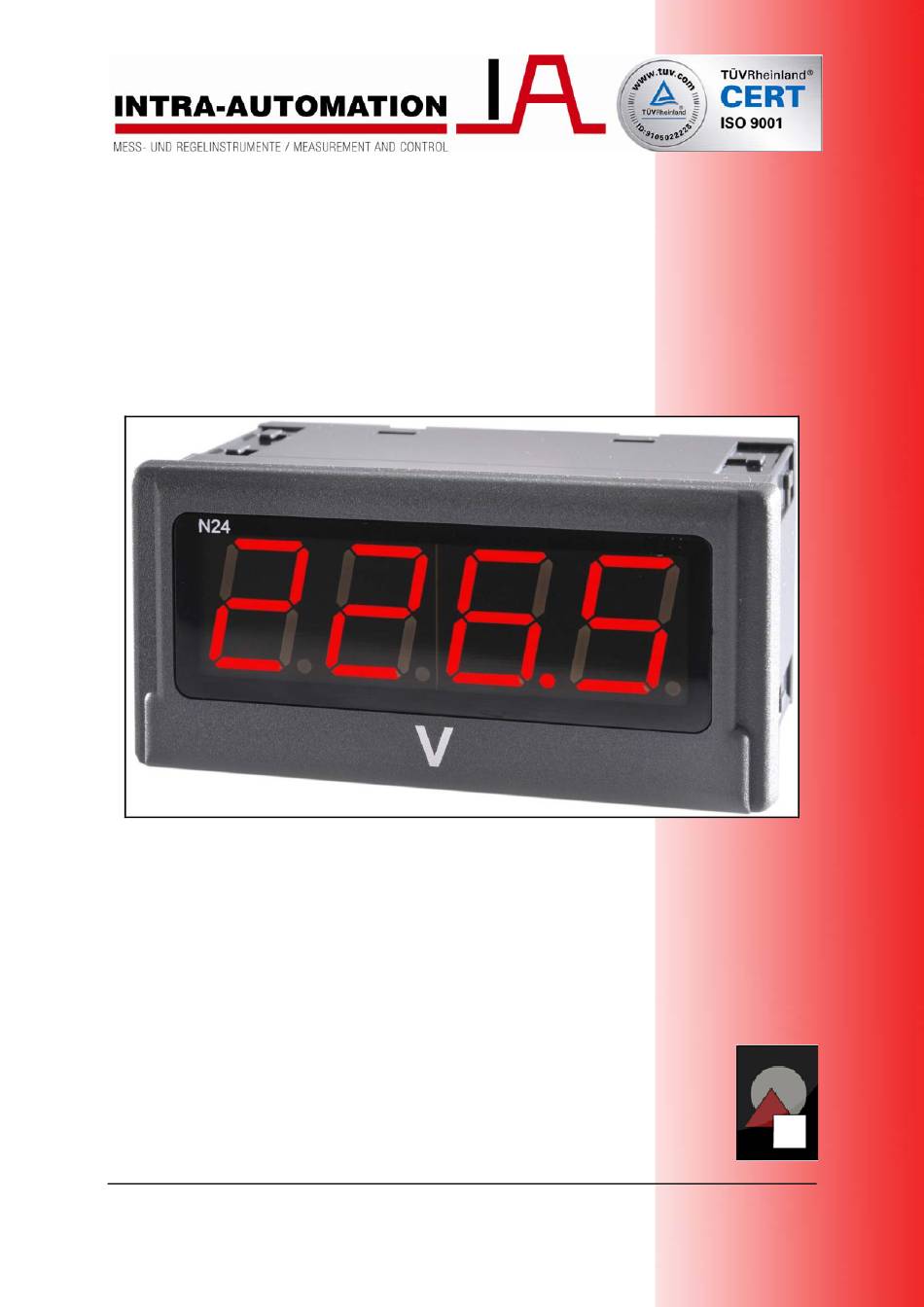

- Page 1 Digital Panel Meter IntraDigit Series IA-N24 Technical Information 02/2011 Accessories THE EXPERT IN LEVEL AND FLOW...
- Page 2 IA-N24 Technical Information Intra-Automation Intra-Automation Technical Information 02/2011 Technical details subject to be changed without notice. For comments regarding this brochure, please contact: info@intra-automation.de - 1 -...
- Page 3 Intra-Automation Technical Information IA-N24 IA-N24 IntraDigit Digital Panel Meter List of Contents: Chapt. Title Page Features Application Example Technical details Electrical Connection Ordering code - 2 -...
-
Page 4: Application Example
IA-N24 Technical Information Intra-Automation 1 Features Designed for measurement of DC voltage or DC current, temperature through Pt100 thermometers, J, K thermocouple, AC voltage and AC current. 4-digit LED display (20 mm digit height) Programmable parameters through the PD14 programmer... - Page 5 Intra-Automation Technical Information IA-N24 3 Technical details Inputs Type Measuring ranges Parameters Overloads Errors -11 mV…-10 mV…60 mV…66 mV Basic error: Short term overload (1s): 66 mV…-60 mV…60 mV…66 mV Input resistance: 1 M (0,2% of range + 1 digit) - voltage input: 10 Un -0,5V…0 V…10 V…11 V...
-
Page 6: Connecting Diagrams
IA-N24 Technical Information Intra-Automation 4 Connecting diagrams Electrical connection of the N24S meter Electrical connection of the N24T meter Electrical connection of the N24Z and N24H meters for voltage measurement (frequency: only N24Z) Electrical connection of the N24Z and N24H meters for current measurement... -
Page 7: Order Codes
Intra-Automation Technical Information IA-N24 5 Order codes Code Description IA-N24 Digital panel meter Kind of input: standard: voltage, current temperature: thermocouples, resistance thermometers AC signals DC signals: high voltage and high current Input see table 1 Power supply: 230 V AC... - Page 8 IA-N24 Technical Information Intra-Automation Order examples: Example 1: N24Z-2-1-04-00-E-0 means: N24Z meter for AC signals, input: 250 V AC, Power supply: 230 V AC, unit: V, 00- standard version, English language without extra certification requirements Example 2: N24S-1-4-02-NS-E-1 + description:...
-
Page 9: Flow Measurement
Intra-Automation Technical Information IA-N24 Besides the products covered by this brochure, Intra-Automation GmbH also manufactures other high- quality and high precision instruments for industrial measurement tasks. For more information, please contact us (contact details on the backside of this brochure). - Page 10 IA-N24 Technical Information Intra-Automation International Headquarters: Sales Office for the BENELUX: Intra-Automation GmbH B.V. Intra-Automation HTP Otto-Hahn-Str. 20 PO Box 10 41515 Grevenbroich 4730 AA Oudenbosch GERMANY THE NETHERLANDS +49 – (0) 21 81 / 7 56 65-0 +31 – (0)165 – 32 22 01 ...
