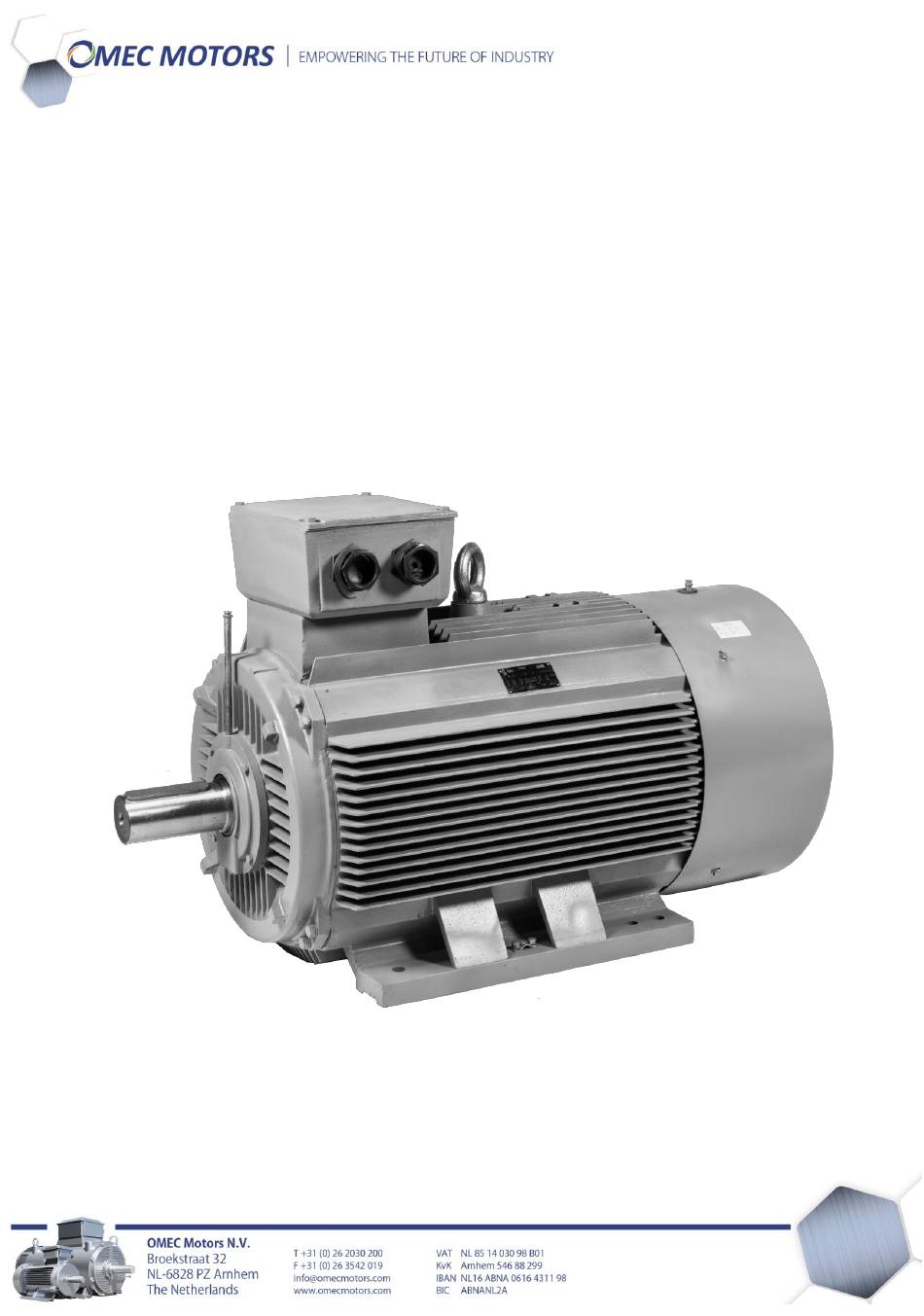

- Page 1 – Mounting & Maintenance Instructions – OMT1 & OMT2 Motors Seite 1 von 10...
-
Page 2: Table Of Contents
Inhalt Seite General information Delivery Mounting Coupling Direct coupling Indirect coupling 4.2.1 Flat belt or V-belt 4.2.2 Spur gear transmission Shaft couplings Electrical connections General information Circuit details Putting into service Maintenance Dust Moisture Wear & vibrations Greasing Replacement of ball or roller bearing Bearing types Regrasing interval of bearings 10 Disposal... -
Page 3: General Information
1 General information This manual concerns normal three phase induction motors with an output varying from small to middle size; they are externally cooled, totally enclosed, supplied in a cast iron or aluminium frame and provided with ball bearings or roller bearings, lubricated with grease. -
Page 4: Indirect Coupling
4.2 Indirect coupling 4.2.1 Flat belt or V-belt Mount the motor on slide rails in order to adjust belt tension. The belt pulley has to be fitted hard up the shoulder of the shaft. The pulley center line should be within the shaft center line. -
Page 5: Circuit Details
only suited for one direction of rotation, it is indicated with an arrow on the motor fan cowl. Connecting cables must comply with the IEC regulations. Line fuses only protect the cables in case of short–circuiting and do not constitute a safeguard against the overheating of the winding caused by overload. -
Page 6: Putting Into Service
If only one voltage is indicated on the nameplate together with the delta sign, the motor can be switched on directly at the indicated voltage or with a star/delta starter. Pole change motors (for two or more speeds) are connected according to a diagram sent together with the motor. -
Page 7: Wear & Vibrations
7.3 Wear & vibrations To prevent abnormal wear & vibration, one should: a. Take care that the tension of the belt or the chain is not too high; b. Check whether the mounting of directly coupled machines is correct; c. Check whether the foundation bolts to fasten the motor and the slide rails are tightly fixed. -
Page 8: Bearing Types
8 Bearing types Motortype Poles Drive-end Non-drive-end OMT2-56 6201 2RZ C3 6201 2RZ C3 OMT2-63 6201 2RZ C3 6201 2RZ C3 OMT2-71 2/4/6 6202 2RZ C3 6202 2RZ C3 OMT1/OMT2-80 2/4/6/8 6204 2RZ C3 6204 2RZ C3 OMT1/OMT2-90 2/4/6/8 6205 2RZ C3... -
Page 9: Disposal
Under normal load and environmental conditions the quality of the grease ensures proper operation of the motor for about 20000 service hours with 2-pole design and 40000 service hours with multi pole design. If not otherwise agreed upon the grease need not be refilled during this period. -
Page 10: Motor Spare Part List / Exploded View
11 Motor spare part list / exploded view Three-phase motor with squirrel-cage rotor V-ring, oil seal DE 22 Mounting screw adoption plate Mounting screw bearing cover DE 23 Lifting eye Outside bearing cover DE 24 Circlip bearing DE Grease-inlet for regrasing device DE 25 Bearing DE Grease-outlet for regreasing device DE 26 Inside bearing cover DE...
