Summary of Contents for Righton MLC-1100

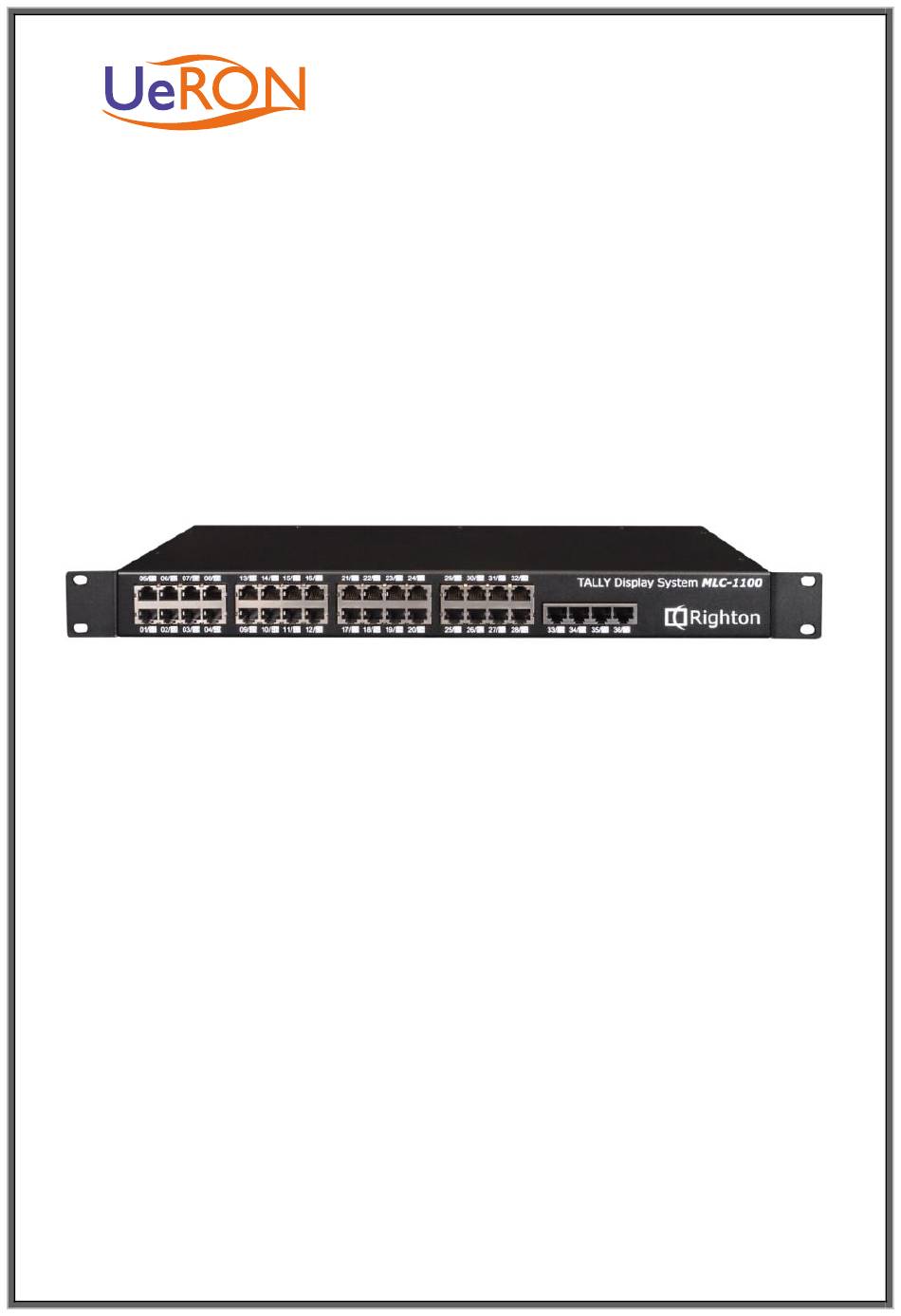

- Page 1 UeRON INTERNATIONAL COMPANY http://www.ueron.com.tw TALLY Display System MLC-1100 Master Control User Manual V2.000...
- Page 2 INDEX 1. Description of MLC-1100….………………. 01 2. Software Installation….…..………….……..03 3. Accessories…. ……………………….………08...
- Page 3 1.1 Description of MLC-1100 The MLC-1100 is the controller of RC-2000 RC-2100 RC2200 Display. II. Control Standby/On-Air on each Display Unit. III. Contain 3 ( 25 pin, female) TALLY IN ports. 2 RS232 ports and 36 RJ-45 ports. IV. Connects up to 72 Display Units (RC-2000) by 2 linked controller (MLC-1100).
- Page 4 System Configuration: Notice: It requires an USB to DUB 9 PIN cable between PC and MLC-1100 system. Please ensure you have already installed the USB driver. It’s a necessary step before you start. ․ Setting of DIP SWITCH When switches are ”ON ”, When switches are ”...
- Page 5 ․ Definition of D-SUB 25P TALLY IN Master Slave TALLY TALLY TALLY TALLY TALLY TALLY IN 1 IN 2 IN 3 IN 1 IN 2 IN 3 ID01 ID13 ID25 ID37 ID49 ID61 tally tally tally tally tally tally signal signal signal signal...
- Page 6 2.1 Description & Editing TALLY DISPLAY Provide WINDOWS XP & 7 drivers for user easy to set up and control the System. Through the RS 232 interface from PC。 2.2 Run 1. Start the Tally V2.0 driver, Run Tally_ver2.EXE。 2. If there are any errors or cannot be ran on this page，please loan or re-instal Microsoft .NET Framework 2.0 Service Pack 2 from Microsoft Web site。...
- Page 7 STEP 2: Select “ connect “ Press “ connect” in this screen 。 STEP 3: Select TALLY DISPLAY ID Click mouse ，select any numbers you want to edit in TALLY DISPLAY ( ID01~ID72 )。 STEP 4: Set the font of TALLY Select any types of font through WINDOW system，key in words into“...
- Page 8 STEP 5: Set the Display content 1. Show the content what you key in to the Input Text。 2. Change the position through the function keys (Left, Right, Up, Down)。 3. Changes any contents if user requires in this section 。 STEP 6: Send alone Press ”Send ”button，the system sends alone the content which you sho content which shows on the TALLY DISPLAY ID。...
- Page 9 STEP 9 : Set Rolling Message Sign : 1. Choose directions (Left, Right) and Speeds (speed:0~speed:2) of Rolling Message Sign 。 2. Press MarqueeOption button to ensure setting up ready。 Start Rolling Message Sign 3.In your TALLY ID what you choose, Select “Marquee” to starting RollingMessage Sign function。...
- Page 10 Accessories: -12V/4 Ampre power supply & power core x 1 each. -Installation Driver * 1.
