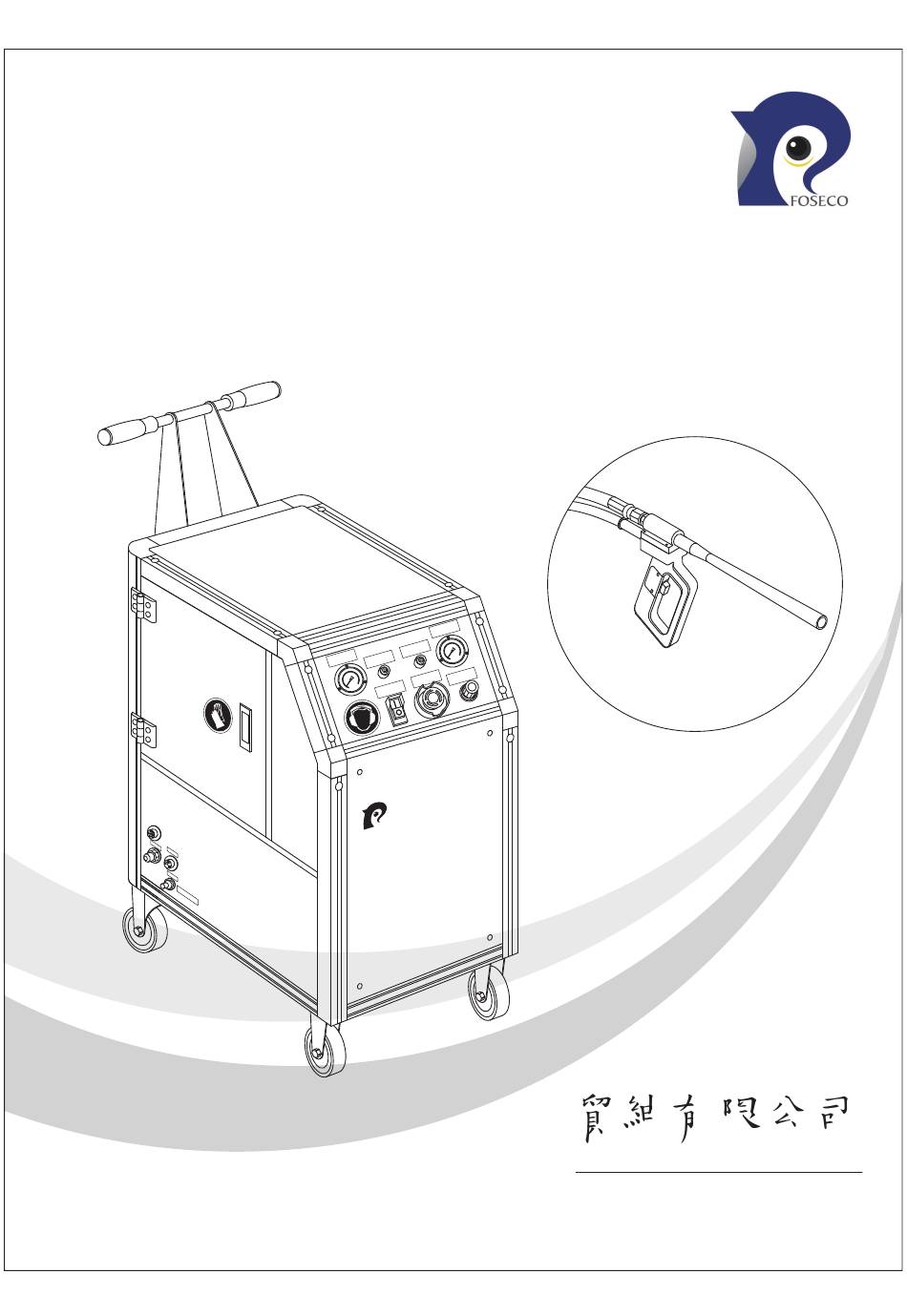

MDS-100

DRY ICE BLASTING

CLEANER

P .

C O R

E C O

F O S

F O S E C O C O R P .

NO. 118-10, YUNG HO RD., TA-YA,

TACHUNG CITY, TAIWAN, 428-77

TEL:04-2568-5609 FAX:04-2568-5480

Need help?

Do you have a question about the MDS-100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Foseco MDS-100

Page 1 MDS-100 DRY ICE BLASTING CLEANER C O R E C O F O S F O S E C O C O R P . NO. 118-10, YUNG HO RD., TA-YA, TACHUNG CITY, TAIWAN, 428-77 TEL:04-2568-5609 FAX:04-2568-5480...
Page 2 DRYICE BLASTING CLEANER OPERATION & MAINTENANCE HANDBOOK This product – Dry Ice Blasting Cleaner, manufactured by FOSECO company, has been through rigorous quality examination before shipment, the buyer (user) to use this product, should indeed read to the "Operation Manual” and this handbook, in order to ensure the product quality and maintain the use of the normal life of the product.
Page 3 貿紳有限公司 FOSECO CORP. No. 118-10, Yung Ho Rd., Ta Ya, TEL: +886 4 2568 5609 Taichung, Taiwan 428-77 FAX:+886 4 2568 5480 Due to we are not able to control the way and the environment of user's operation, we cannot guarantee the life of this product; only able to require the user to operate this product in accordance with the following recommendations.
Page 4  Check the power wire if damaged. Do not use the stacked dry ice. (for Do NOT put foreign objects on the top MDS-100 series, and MDS-520 use) cover or dry ice chamber of this  Use the whole dry ice block in size of machine.
Page 5 貿紳有限公司 FOSECO CORP. No. 118-10, Yung Ho Rd., Ta Ya, TEL: +886 4 2568 5609 Taichung, Taiwan 428-77 FAX:+886 4 2568 5480  How to Troubleshoot  CONDITIONS CHECK ITEMS TROUBLESHOOTING  Check the power wire is well  Well connect the power...
Page 6 貿紳有限公司 FOSECO CORP. No. 118-10, Yung Ho Rd., Ta Ya, TEL: +886 4 2568 5609 Taichung, Taiwan 428-77 FAX:+886 4 2568 5480 OTHER RECOMMENDATION  WORKSHOP ENVIRONMENT LIMIT 1. The operation (cleaning) area must be provided with sufficient lighting, with a minimum illumination above 300LUX, for carrying out the cleanliness check in much easier way.
Page 7 貿紳有限公司 FOSECO CORP. No. 118-10, Yung Ho Rd., Ta Ya, TEL: +886 4 2568 5609 Taichung, Taiwan 428-77 FAX:+886 4 2568 5480 RECOMMEND MAINTENANCE PERIOD Daily Check Item Visual Operate The machine wheels are running well. Check the  ...
Page 8 MDS-100 DRY ICE BLASTING CLEANER OPERATION MANUAL C O R E C O F O S F O S E C O C O R P . NO. 118-10, YUNG HO RD., TA-YA, TACHUNG CITY, TAIWAN, 428-77 TEL:04-2568-5609 FAX:04-2568-5480...
Page 9 MDS-100...
Page 10 MDS-100 F O S E C O C O R P.01...
Page 11 MDS-100 F O S E C O C O R EAR PROTECTORS Ground machine to a suitable ground before operation. DURING OPERATION EL ECT RICA L ROLLING KEEP HANDS AWAY V O LTAG E DRY ICE LOADING Elec t r ic Sh o c k...
Page 12 MDS-100 SPECIFICATION Spec. MDS-100 Dryice Storage 5 kg 4~10 kg/cm 2 ；45scfm Pressure Consumption rate 10 kg ~ 30 kg/hr Machine Dimension 850 x 560 x 1040 mm Power 110v/220v 60hz Air Inlet 1/2” Dryice Dimension 125 x 125 x 250 mm...
Page 13 MDS-100 CONTROL PANEL 1 AIR SUPPLY GAUGE: AIR SUPPLY MUST GREATER THAN 6 kg/cm 2 POWER INDICATOR: CHECK POWER ON/OFF. 3 ERROR INDICATOR: THE DRYICE CHAMBER MUST BE SURELY CLOSED. 4 AIR SUPPLY ADJUSTOR: INDICATE THE AIR PRESSURE WHILE OPERATING.
Page 14 MDS-100 C O R E C O F O S P.05...
Page 15 MDS-100 COUPLING SHAFT BEARINGS PNEUMATIC CYLINDER CUTTER FIX PLATE DRYICE GATHER GASKET DAMPER PLATE GREAT GEAR (LOWER) DRYICE CHAMBER SPEED REDUCER OUTLET HOUSE CUTTER FIX BASE FIX PLATE FIX PLATE CUTTER DRYICE GATHER GASKET DRYICE OUTLET CUTTER PLATE (UPPER) OUTLET BASE...
Page 16 MDS-100 BLASTING HOSE BLASTING SEAT BLASTING HANDLE BLASTING APPLICATOR BLASTING NOZZLE P.07...
Page 17 MDS-100 CIRCUIT DISPL AY < INTERLOCK 白 IN V CO M F W D R E V CO M U1 V1 W1 1.2mm POWER SUP PLY 1.2mm 1.2mm Blow Solenoid Push Solenoid P.08...
Page 18 MDS-100 SEL F H OL D IN G ( PR ESS 2 SEC ) C OM 0 P R E S S TO S TA RT BLOW SOLENOID S E L F- H OL D IN G TM 1 OFF D E LAY...
Page 19 MDS-100 P R E S S U R E GA U GE 5~10 kg/cm FILTE R GU ID E VA LV E G1-40015WP 2302-4L-R B LA S TIN G RC 1/2 P R E S S U R E GA U GE...
Page 20 MDS-100 1 MOTOR REGULATOR DC POWER SUPPLY POWER SWITCH PLC CONTROLLER RELAY TIMER P.11...
Page 21 MDS-100 1. Preparation MDS-100FA01 MDS-100FS01 MDS-100F005U MDS-100F005D Hex Wrench Needle-nose pliers Replace parts 2. Parts replacement Replace the gear chain by needle-nose pliers if need. Loosen screws by hex wrench; take out the back plate. Loosen the two screw Pull out the DRYICE GENERATOR for replacing of bottom for replacement.
Page 22 MDS-100 Take out the GENERATOR (MDS-100FA01/MDS-100FS01) by step 4, push up to replace the lower DRYICE GATHER GASKET (MDS-100F004). Caution: Right direction of installation Long side UPPER Gather Gasket (MDS-100F005U) LOWER Gather Gasket (MDS-100F005D) Dryice Gather Generator (MDS-100FA001/MDS-100FS01) After replacement,reinstall all parts counter-clockwise, and screw up the back plate.
Page 23 MDS-100 1. Preparation Hex Wrenh Needle-nose pilers Replace cutters 2. Replacement Loosen screws by hex wrench; Take out the gear chain. take out the back plate. Loosen screws (4pcs) for Loosen screws replacement. (8pcs). P.14...
Page 24 MDS-100 Pull out the cutter plate. Take out the dryice guide. (Total 2pcs) 3. Replace the cutters Take out the cutter place, replace cutters, and screw up tightly. 4. Re-assemble parts Re-place the cutter plate. First insert right dryice guide.
Page 25 MDS-100 Then insert the left dryice guide. Screwing back all screws to complete the replacement. P.16...
Page 26 (1) year from the delivery date. As per the clauses below, FOSECO will either repair or replace any part of the machine that is proved to be defective due to faulty materials or workmanship.
