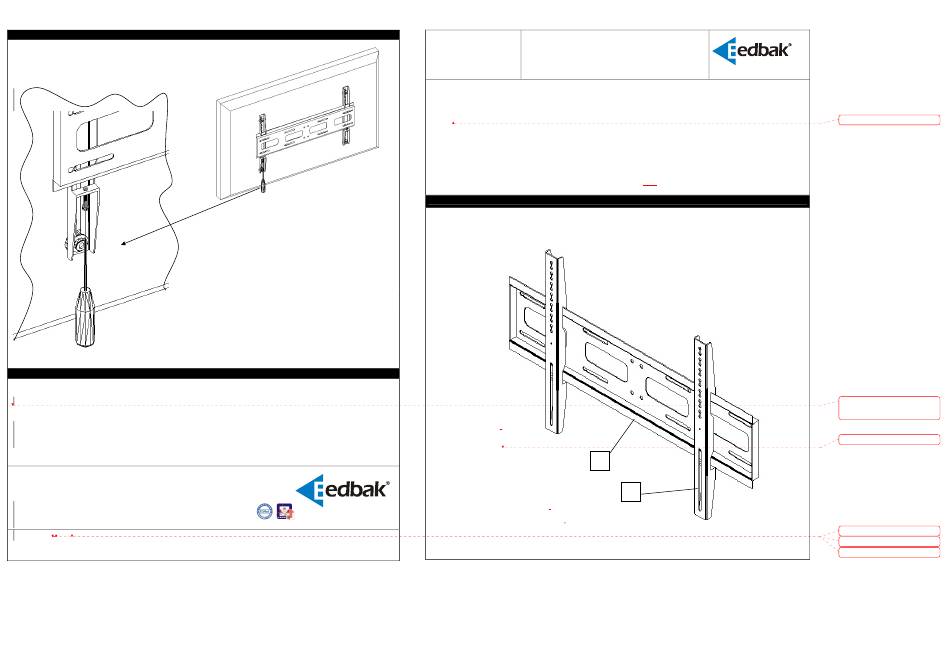

Edbak PWB1 Instruction Manual

4. Security screw
When the screen is hanging securely on the back plate,
tighten solidly two security screws situated in bottom
part of front panels using Phillips screw driver.
5. Maintenance
Before maintenance of wall mount it is necessary to turn off and unplug plasma/LCD screen.
Wipe the screen up with dry cloth. If the wall mount is very dirty, it is necessary to remove the dirt first with
neutral cleaner diluted with water, and than wipe the mount up with dry cloth. You can not use such cleaners
like solvent, furniture wax as it may cause peeling off of the powdercoated metal parts.
EDBAK Sp. z o.o.
Piotrowice 186, 23-107 Strzyżewice, Poland
www.edbak.com info@edbak.com
Rev. date: 31.07.2006
UNIVERSAL FIXED WALL MOUNT PWB1
PWB1
FOR 32-60" PLASMA /LCD SCREENS
Installation manual
SAFETY WARNING!
Remarks regarding safety and installation
INSTRUCTIONS MUST BE ALWAYS FOLLOWED PRECISELY
Before installation read carefully this installation manual and instruction manual of your
1.
plasma/LCD screen for proper installation.
Installation of this unit should be carried out by at least two qualified technicians.
2.
This unit is not adapted to direct installation on the ceiling surface. Mounting to the ceiling is
3.
only possible with CM1 adapter.
EDBAK is not liable for any damage or injury caused by mishandling or improper installation.
4.
Maximum capacity load: 80 kg
5.
Mounting interface: min. 100x100 mm, max
6.
Universal Fixed Wall Mount PWB1
List of components:
1. Back plate – 1 pcs.
2. Front plate – 2 pcs.
3. Fixings and fixtures - 1 bag
1
4. Instruction manual – 1 pcs.
Tools required for installation (not
included):
- Allen key nr 3,4,5, 6 – 1 pcs.
- Phillips PH2 screwdriver – 1 pcs.
750x460mm
2
