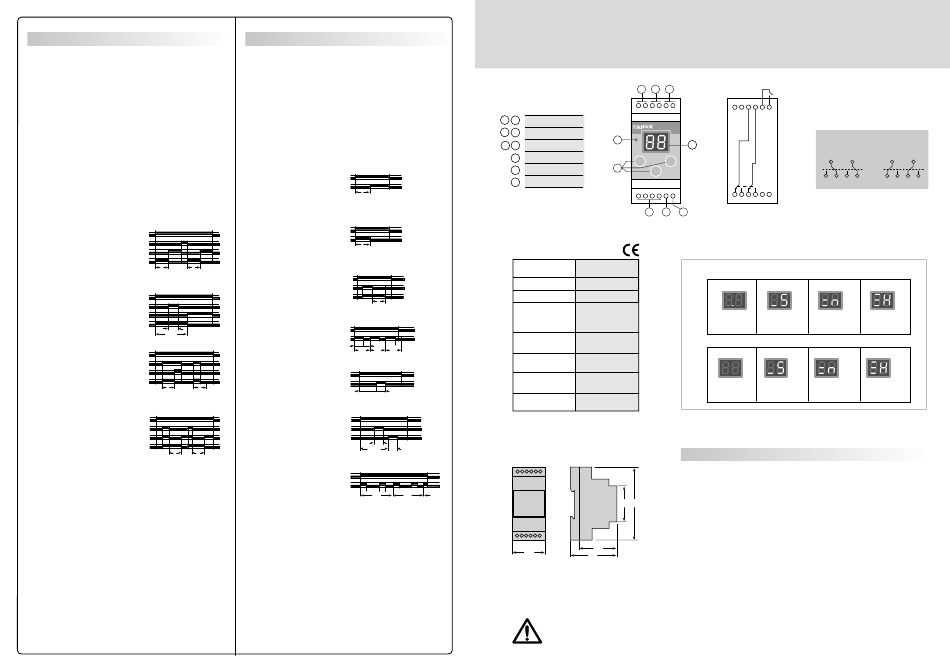

FANOX MTR 10 Quick Start Manual

Command contact
Can be switched in two ways:
• By closing an external voltage free contact between M and S.
• By connecting 5-35 Vac,dc between M(+) and R(-)
Each diagram represents the effet of the command contact for
the two initial states of the output relay: de-energized (1L) and
energized (1H).
U: power supply
cu Switched off contact. Its
function is blocked.
Su función está inhibida
cr Reset contact
U
When connected the output
cr
relay is de-energized upon
1L
disconnecting, the programmed
1H
timing starts.
T T
cl Lock contact
U
A partial shutdown of the timing
cl
takes place during its operation.
1L
1H
Tl
T+Tl
ci Delay on contact
U
When disconnected the output ci
relay is de-energized; when 1L
connected the programmed
1H
timings starts. T T
co
Delay off contact
U
When disconnected the output co
relay is de-energized. When 1L
connected, the relay is
1H
energized. When disconnected
T T
again, the programmed timings
starts.
Function examples diagrams
U: power supply
R: output relay
Output relay at start: 1L de-energized; 1H energized.
Work mode: CO non-cycle; C1 cycle.
Command contact: cu, cr, cl, ci, co.
U
Delay ON
R
1L - CO - cu
T
Timing ON U
R
1H - CO - cu
T
U
Delay OFF with
co
command contact
R
1H - CO - co
T
U
Double timing
R
1L - CO - cu
T1 T2
C1 C2 C3
Double timing cycle
U
work mode
R
T1 T2
1H - C1 - cu
U
Four timings cycle
cl
work mode
R
1H - C1 - cu
Tl
T1+Tl T2
Timing with
U
partial shutdown
R
by command contact
T1 T2 T3 T4
1L - CO - cl C1 C2
MULTIFUNCTION DIGITAL TIMER MTR 10
2 Auxiliary supply
1
3 4 Command contact
5 6 Output contact
Display
7
Red LED: energized output relay
8
Programmation push-button
9
Technical data
Auxiliary supply 230V 50/60 Hz / 8VA
+15-10% / Consumption 24V Vdc.ac / 1W
Accuracy 1% ± 10 ms
Repeat accuracy 0,5%
Output contacts: C300 - 125/250V I
th
1 relay with 2 timed AC15 - 250V - 2A
change over contacts DC13 - 30V - 2A
NO-NC DC13 - 115V - 2A
2
Terminals: max section / 2,5mm , No.22 - 12AWG/
screw torque 20 Ncm, 1,8 LB - IN
6
Mechanical / >20 x 10 OP /
5
electrical life 10 OP
Protection degree / IP40 front /
weight 0,15 kg
Storage / -30ºC +70ºC /
operation temperature -20°C +55°C
Dimensions
C3
53
35
58
• ATTENTION: To prevent electrical shock, disconnect from power source before installing or servicing.
• Check that the auxiliary voltage supply is correct.
1 5 3
A1 A3 15 25
S M
MTR 10
8
7
R
PROG
I II
9
OK
16 18 26 28 R A2
6 4 2
TIMES RANGES: THREE (seconds, minutes and hours)
= 5 A
0.1 ÷ 9.9 s
[s]
1 ÷ 99 s
PROGRAMMABLES PARAMETERS
1º Initial state of output relays:
energized (1H) or de-energized (1L).
2º Working mode: cycle (C1) or non-cycle (CO).
45 90
3º Number of different times per program: up to 8 in cycle mode
and up to 9 in non-cycle.
4º Time setting range: from 0,1 seconds to 99 hours.
5º Command contact.
With built-in battery which allows timer to be programmed
without connecting to auxiliary voltage.
A1 - A2: 230 Vac (+15-10%)
A2 - A3: 24 Vac, cc (+15-10%)
OUTPUT RELAY
ON OFF
15 25 15 25
16 18 26 28 16 18 26 28
[s] [m] [h]
0.1 ÷ 9.9 m 0.1 ÷ 9.9 h
[m] [h]
1 ÷ 99 m 1 ÷ 99 h
