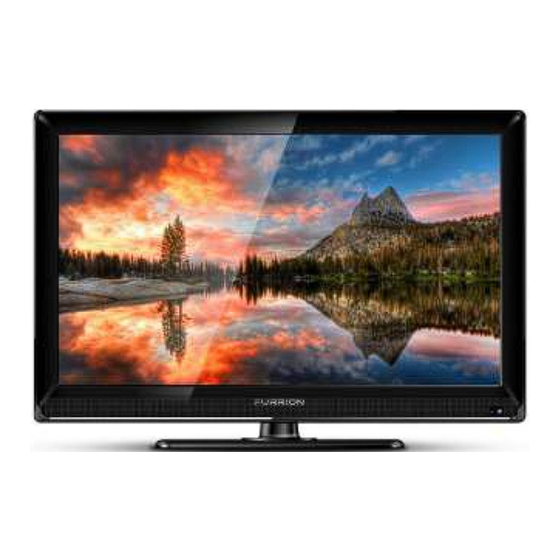

Furrion FEHD19S0N Instruction Manual

Hide thumbs Also See for FEHD19S0N:
Table of Contents

Advertisement

Quick Links

FEHD19S0N
FEFD22S0D
FEHD24S0D

Advertisement

Table of Contents
loading

Related Manuals for Furrion FEHD19S0N

Summary of Contents for Furrion FEHD19S0N

  • Page 1 FEHD19S0N FEFD22S0D FEHD24S0D...
  • Page 2 Welcome Thank you and congratulations for purchasing this Furrion® LED HD TV. Before placing your new appliance into operation, please read these operating instructions carefully. This instruction manual contains important information for safe use, installation and maintenance of the appliance.

  • Page 3: Table Of Contents

    Contents Welcome .....................1 Contents .....................2 Safety Warnings ..................3 Important Safety Instructions ......................3 Safety Precautions ...........................5 Function Overview ..................7 Control Panel ............................. Rear Panel ..............................8 Remote Control ............................9 About Your LED HD TV ................11 Features ...............................11 Power Source ............................1...
  • Page 4 Before Operation ..................12 What’s in the Box .............................12 Preparation of your Remote Control ....................12 Getting Started ..................13 Change Settings ..................15 Picture Menu ............................. Sound menu .............................. Channel menu ............................17 Feature menu ............................1 Setup menu ............................... USB Operation ...................23...
  • Page 5 Operation...................27 DVD Player Setup .............................27 DVD Player Controls ..........................28 Loading a Disc ............................2 DVD/VCD/SVCD Playback ........................29 Video/Audio/Picture Playback ......................29 Trouble Shooting ..................31 Specifi cations .....................32...

  • Page 6: Safety Warnings

    Safety Warnings 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifi ers) that produce CAUTION heat. 9. Protect the power cord from being walked on RISK OF ELECTRIC SHOCK or pinched, particularly at plugs, convenience DO NOT OPEN receptacles, and the point where they exit CAUTION: TO REDUCE THE RISK OF ELECTRIC...
  • Page 7 Safety Warnings 17. Never push objects of any kind into this When this happens, unit’s performance will be impaired. To prevent this, let the unit product through openings as they may touch stand in its new surroundings for about an dangerous voltage points or short-out parts hour before switching it on, or make sure that could result in a fi re or electric shock.

  • Page 8: Safety Precautions

    (10 cm) free space around the entire unit. Adjust only those controls that are covered in the instructions, as improper changes or modifi cations not expressly approved by Furrion could void the user’s warranty. Safety Precautions Notes when mounting the LED TV on...
  • Page 9 Also, this would damage the product seriously. Accordingly, Furrion accepts no responsibility or liability for any injuries or property damage resulting from the improper installation.

  • Page 10: Function Overview

    Function Overview Control Panel Control Panel Ejects DVD/ CD Press to directly enter the channel search mode Press to start or pause the playback VOL+ Press to increase the volume VOL- Press to decrease the volume Press to skip to the next channel Press to skip to the previous channel MENU Press to enter the main menu...
  • Page 11 DVD Player, Games Console, Cable Box or other HDMI device. CEC Consumer Electronics Control When connected to the CEC compatible Furrion Entertainment Systems or HDMI 3 other CEC Compatible devices, the TV links with the system to give extra functionality. Please see page13.

  • Page 12: Rear Panel

    Function Overview Rear Panel Connect to the COMPONENT VIDEO OUT ports of a DVD Player, Cable Box or other compatible device...
  • Page 13 Function Overview * The confi guration of the connection ports may vary from model to model.
  • Page 14 Function Overview Button Function Switches to TV mode Selects Furrion Fireplace remote control functions. * Please refer to your Furrion FIREPLACE Fireplace manual for more information. Press to turn the TV/Entertainment System on/off NUMBER Enters numbers or select channels BUTTONS Toggles between single &...
  • Page 15 Function Overview DVD/USB Selects TDVD/USB AM/FM Selects AM/FM/WB Radio SLEEP/ Sets the sleep timer CLOCK...

  • Page 16: Remote Control

    Function Overview Remote Control...
  • Page 17 Function Overview...
  • Page 18 Function Overview...
  • Page 19 Button Function Button Function NICAM / Cycles through NICAM sound Press to scan radio stations: A brief press searches through each stored AUDIO modes station. Press & hold to scan and Toggles random playback mode on store the 6 strongest stations. End / APS &...
  • Page 20 Toggles between the current and SUBT Select subtitle language (DVD) previous channel FREEZE To freeze current picture STEREO Switches to Stereo mode Selects AV Mode AUX/ARC Selects AUX/ ARC Mode...

  • Page 21: About Your Led Hd Tv

    About Your LED HD TV Features Integrated Digital Tuner - You can view digital broadcasts without using a Digital TV Set-Top Box. Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the screen for hearing impaired viewers.

  • Page 22: Before Operation

    2. Install two AAA batteries. Before Operation What’s in the Box Thanks for purchasing this Furrion LED HD TV. This manual will help you set up and begin using 3. Close the cover of the battery compartment. your TV. Please read this manual thoroughly and keep this manual in a safe place for future NOTE: Use two “AAA”...
  • Page 23 terminal in the remote control remains in batteries as they can become very hot and contact with a side of a damaged battery it are dangerous. can cause a short circuit. Never use damaged...
  • Page 24 to previous page or press REPEAT button...
  • Page 25 (green button) to skip to next page.

  • Page 26: Getting Started

    Getting Started 6. Use key to select the screen auto shut off time, then press OK to confi rm your selection. Or press MENU or DVD SETUP (red button) on the remote control to return to previous page or press REPEAT button (green button) to skip to next page, select your desired auto power off setting, then press OK to confi rm your selection and skip to the next setting.
  • Page 27 8. The TV will start to search channels under current selected mode. Or press EXIT on the remote control to exit channel scan.

  • Page 28: Change Settings

    Change Settings button to display the main menu. key to highlight Picture Press to show the list, then use to select Dynamic, Standard, Mild or User. Picture Mode * You can press P.MODE button on the remote control to change the picture mode directly. Use or to adjust the visual perception output of the entire picture.

  • Page 29: Picture Menu

    Change Settings button to display the main menu. key to highlight Noise Reduction Press key to show the list, then use to select Off , Low, Middle or High Picture Menu...

  • Page 30: Sound Menu

    Change Settings button to display the main menu. key to highlight Sound menu 1. Press MENU Sound 2. Use Sound mode, Standard then press or OK to enter the Sound menu Sound Mode Bass settings. Picture Treble 3. Use key to highlight the option you Balance Sound Surround...
  • Page 31 Change Settings button to display the main menu. key to highlight 5. Press , OK or MENU button to confi rm your selection. 6. Press or MENU button to return to the previous menu or press EXIT at any time to exit the setting.

  • Page 32: Channel Menu

    Change Settings button to display the main menu. key to highlight Channel menu 1. Press MENU 2. Use Channel mode, then press or OK to enter the Channel menu settings. Channel Press RED button to sign the channels you want to delete, it will hint you when you exit.
  • Page 33 Change Settings button to display the main menu. key to highlight Press key to select the Channel, Frequency(KHz) or BandWidth(MHz). Press OK or key to confi rm your selection. DTV Manual key to select Start mode. Press OK or key to enter the auto Search Use OK or key to enter Start.

  • Page 34: Feature Menu

    Change Settings Feature menu 1. Press MENU button to display the main menu. Feature 2. Use key to highlight Feature mode, then press or OK to enter the Feature menu ENTER Lock settings. ENTER Picture LanguageClock 3. Use key to highlight the option you ENTEROff Sound Sleep Timer...
  • Page 35 Change Settings certain channels be locked. Use or key to enter fi rst enter the current code then enter your new code and confi rm your new code. When you enter the system Change (*Only adjustable under Lock Channel mode is On condition) lock menu you will be asked Pin Code for a password.
  • Page 36 Change Settings Press OK or key to Start Recorder, and a new window will pop up. Use or key to select OK to enter the submenu or select Cancel to return. You may Recorder Start select to record directly by pressing the EPG button on remote control, see “Recording Directly by Using EPG”...
  • Page 37 Change Settings Scheduled Recording using the Press OK or key to edit the Start Time, then use 0~9 button to edit Start Time setting. Press OK or key to enter the Start Time Start Time setting. Press the EPG button on the remote control, navigate to the program you wish to record then press the Press OK or key to edit the Duration, then green button on the remote control 2 times only.

  • Page 38: Setup Menu

    Change Settings Feature - HDMI Link Setup key to highlight key to adjust Enable HDMILink, press MENU or the amount of time the On Screen Menu OSD Timer Enable HDMI Link set as Off or On. Press OK or stays on the screen before disappearing. to confi rm your selection.
  • Page 39 Change Settings ENTER Reset TV Setting ENTER Channel Software Upgrade Feature Setup Move Enter Exit Exit Menu Retum...

  • Page 40: Usb Operation

    USB Operation Media Operation Photo disk 1 Make sure a fl ash drive is inserted into the USB 001/001 port before entering the USB mode. 1. Press SOURCE button on the remote control to display the input source menu. Use or key to highlight Media source, and press OK Move...
  • Page 41 USB Operation Photo Play/Pause the photo playing· Stop and exit the full screen program. Play the previous fi le directly Play the next fi le directly Rotate the picture (0, 90, 180, 270) Zoom in/out the picture you could move the picture by Cursor left/right/up/down button in Zoom mode.
  • Page 42 USB Operation Movie 1. Use key to select Movie Press OK to enter. 2. Use or key to navigate the fi les or folders saved in the fl ash drive, press OK to enter. NOTE: When a fi le is selected, the fi le information will appear on the right.
  • Page 43 USB Operation Movie 4. Note: Use key to select the option on the table, and press OK button to Play/Pause the Move playing. change Stop and exit the Move playing. 5. Note: You could press OK button display the option table when it disappear. Press to play backward.
  • Page 44 USB Operation 4. Note: Use key to select the option on the table, and press OK button to change 5. Note: You could press OK button display the option table when it disappear. e-Book 8 ,121 have 35 match(es)for robin hobb in listfile: MAJECKI_MAIN . Type @majeckibiglist to obtain the whole list Imajecki Robin Hobb - [The Tawny Man 01] - Fool’s Errand(v0.9)[rtf].rar ------------409.53 KB...

  • Page 45: Dvd Operation

    DVD Operation DVD Player Setup 1. During disc playback, press SETUP to go to Preference Page. 2. Use keys to switch among General Page, Audio Setup Page and Preference Page. 3. Use to highlight the item you would like to reset. 4.
  • Page 46 Restores the DVD player settings to it’s original Default Press to select Reset settings...

  • Page 47: Dvd Player Controls

    DVD Player Controls...
  • Page 48 Button Function Press to eject DVD/CD TAUUNTOE Press to select the previous track/ chapter during playback HOLD Press to start, pause or restart the playback Press to play the previous fi le directly STEP REVEAL Press to play the next fi le directly SIZE Pres to select the next track/ chapter during playback...
  • Page 49 Repeat Press to enlarge the screen images Used to start the programmed playback function...

  • Page 50: Loading A Disc

    DVD/VCD/SVCD Playback DVD Operation When playing a DVD/ VCD/ SVCD/ CD Loading a Disc ● Press to eject the disc. ● Press to Start, Pause or restart the playback. ● Press to stop the playback. Before loading a disc into the disc compartment: ●...
  • Page 51 00:00 00:00 DVD Operation 001 / 001 Disc 00:00 00:00 001 / 001 Disc _ _MP3 - 165 Movie Select Exit Menu Move Select Exit Menu Move 00:08 03:55 / 018 Disc Album\ Artist \ Artist - Track 1 Artist - Track 2 Artist - Track 3 Artist - Track 4 Artist - Track 5...

  • Page 52: Trouble Shooting

    Trouble Shooting Problem Solution/Issue ● Make sure the power cord is plugged in. ● Try another AC outlet. ● Power is off , check fuse or circuit breaker. TV does not operate ● Unplug unit for an hour, then plug it back in. ●...

  • Page 53: Specifications

    Dimension with Stand (L*H*W) TV Model Max Resolution 18” x 115/8” x 17/8” 18” x 1215/16” x 57/8” FEHD19S0N 1366 x 768 @ 60Hz HD (456 x 295 x 47mm) (456 x 329 x 149mm) 211/16” x 131/2” x 2”...
  • Page 54 1 x Right (Red) 1 x Right (Red) 1 (Mini - use 1 x Left (White) FEHD24S0D 1 x Left inclusive 1 x Video (White) adapter) (Yellow)
