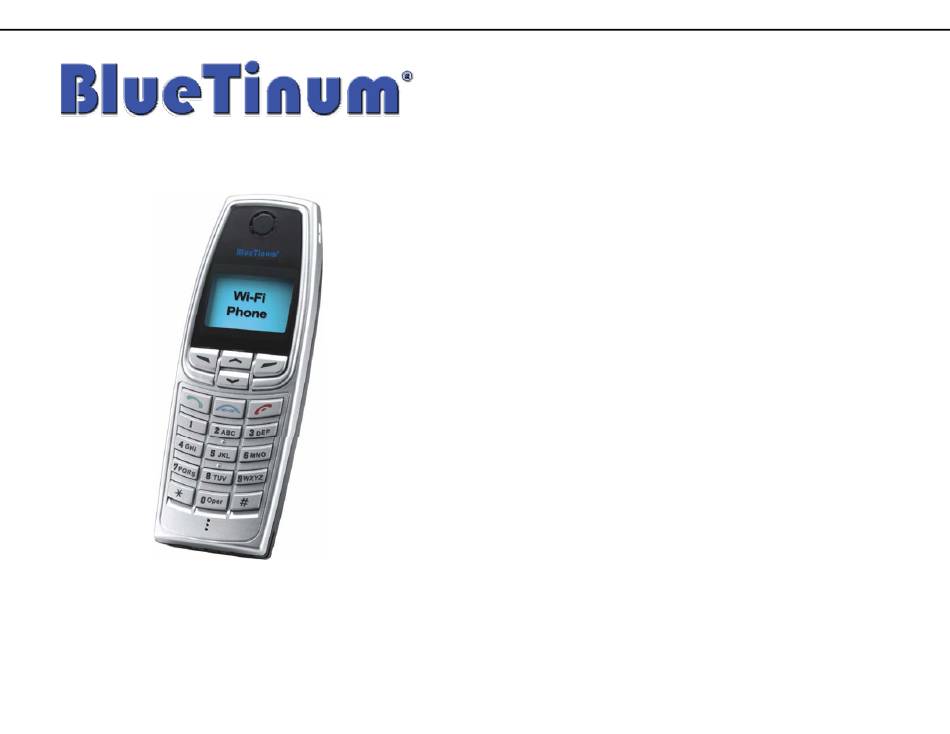

Wireless VoIP Phone
Model: BT-WFP1000
User's Manual

Table of Contents

Chapter 1 Overview the WiFi Phone ........................ 6
1.1 Front Panel and Keypad ............................................ 6
1.2 Removing and Installing the Battery .......................... 8
1.4 Powering the WiFi Phone On and Off ........................ 9
1.5 Main Screen ............................................................. 10
1.6 Entering and Editing text .......................................... 10
1.7 Making a Phone Call ................................................ 11
1.7.1 Enter the phone number manually..............................11
1.7.2 Using the Phonebook..................................................11
1.7.3 Using the Call History..................................................11
1.7.4 Redial a number ..........................................................11
1.8 Answering a Call ...................................................... 11
1.9 Holding a Call........................................................... 12
Chapter 2 Menu Architecture.................................. 13
Chapter 3 Phonebook.............................................. 15
3.1 Browse the Phonebook ............................................ 16
3.2 Create a new record................................................. 16
3.3 Review ..................................................................... 16
Chapter 4 Call History ............................................. 17
4.1 Missed Calls............................................................. 17
4.2 Incoming Calls.......................................................... 18
4.3 Outgoing Calls.......................................................... 18
4.4 Erase Records ......................................................... 18
Chapter 5 Message .................................................. 20
5.1 Read Message ......................................................... 20
5.2 Send Message ......................................................... 21
5.2.1 Send...................................................................... 21
5.2.2 Previous Line ........................................................ 21
5.2.3 Next Line ............................................................... 22
5.2.4 Use Template........................................................ 22
5.2.5 Insert Time ............................................................ 22
5.2.6 Insert Time ............................................................ 23
5.2.7 Clear Input Text..................................................... 23
Chapter 6 Phone Settings ....................................... 24
