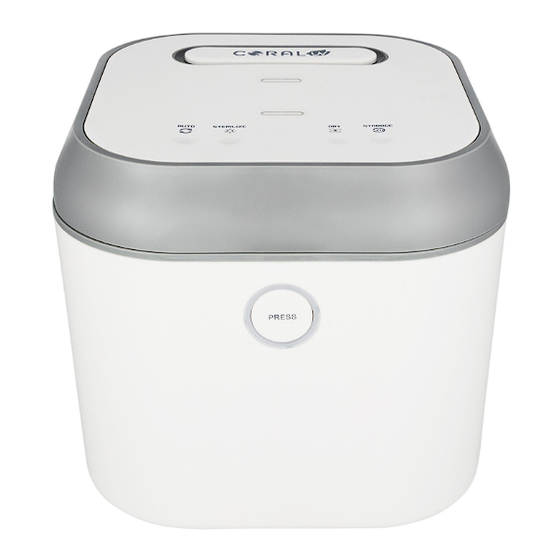

Coral UV Sanitizer and Dryer
Model # UVCGY1
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UVCGY1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Coral UVCGY1

  • Page 1 Coral UV Sanitizer and Dryer Model # UVCGY1 Owner’s Manual...
  • Page 2 Coral UV Sanitizer and Dryer General Precautions Read this document thoroughly before you operate or maintain your Coral UV™ Sanitizer and Dryer. This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety.

  • Page 3: Table Of Contents

    Specifications Contact Warranty Overview The Coral UV™ Sanitizer and Dryer is an easy-to-use product which uses UV-C light to sanitize your your items, and is combined with a dryer to dry items. This product features one-touch push button control with cycle indicators and an auto-shut off mechanism when the cycle is complete. There is no hot water or steam, which minimizes the risk of burns.

  • Page 4: Component Identification

    Coral UV Sanitizer and Dryer Component Identification AUTO SANITIZE STORAGE PRESS FRONT VIEW UV Bulbs Protective Cover Basket Chamber Opening Mechanism REAR VIEW Drying Fan HEPA Filter...

  • Page 5: Before First Use

    The Coral UV Sanitizer and Dryer is cleaned with alcohol wipes before packaging and might have an alcohol smell when first opened. Before using your Coral UV Sanitizer and Dryer for the first time, we recommend that you first run the product as described below.

  • Page 6: Quick Start

    Coral UV Sanitizer and Dryer Quick Start This section outlines the basic instruction on how to use the Coral UV Sanitizer and Dryer. Please see the subsequent sections for specific details on how to load, operate, maintain, and troubleshoot the product.

  • Page 7: Operation

    Basket Alignment The Coral UV Sanitizer and Dryer comes with a basket for smaller items. If you wish to use this basket, ensure it is properly aligned in the chamber as shown below.
  • Page 8 Coral UV Sanitizer and Dryer Inserting Items in the Chamber How items are placed in the product is critical into getting maximum exposure to the UV-C light. Do NOT overload items and do NOT stack items in the chamber. The height of all items placed in the IMPORTANT container shall not exceed 7.1 inches (18 cm).
  • Page 9 In all modes of operation, the Coral UV Sanitizer and Dryer will beep when the cycle is complete. If at any time during operation the Press button on the front of the product is pushed, the top lid will IMPORTANT open and operation will immediately stop.

  • Page 10: Maintenance

    It is recommended to use gloves when handling any of the components inside the chamber. Fingerprints can affect the reflection of the UV light and can hinder the sanitization process. Follow these steps to clean the Coral UV Sanitizer and Dryer. 1. Unplug the product.
  • Page 11 Coral UV Sanitizer and Dryer Replace the HEPA Filter Follow these steps to replace the HEPA filter on the Coral UV Sanitizer and Dryer. ATTENTION: Do NOT attempt to clean or reuse the HEPA filters. Only insert approved HEPA filters from Coral UV.
  • Page 12 Coral UV Sanitizer and Dryer Replace the UV Bulbs The Coral UV Sanitizer and Dryer comes equipped with two Philips UV-C bulbs. These bulbs should be replaced at least once a year, however their life may be extended depending on usage. The average lifespan of these bulbs is 6000 hours.
  • Page 13 Coral UV Sanitizer and Dryer 6. To remove the old bulb, hold the ends of the bulb and gently twist clockwise. You will feel the bulb loosen. IMPORTANT Do NOT grasp the middle of the bulb when you remove it.
  • Page 14 In the event a bulb or lamp should break: 1. If the Coral UV Sanitizer and Dryer is on, turn it off and unplug immediately. 2. Move all pets and children away from the broken bulb.

  • Page 15: Troubleshooting

    Troubleshooting This is a general troubleshooting section which covers questions you may have. For up-to-date FAQs or for anything not covered here, please contact Coral UV or visit www.coraluv.ca. • Ensure the product is plugged in to an outlet. There is no power to the product.
  • Page 16 Retailers. Liability for consequential damages is expressly excluded. Proof of purchase is required. Warranty Period We provide one (1) year for Coral UV Sanitizer and Dryer. The Warranty Period starts at the date of retail and/or online purchase of the product by the original end-user purchaser from an authorized retailer.
  • Page 17 Coral UV Sanitizer and Dryer Disclaimer of Other Warranties The Express Warranties in the preceding section are exclusive and in lieu of all other warranties. However, to the extent applicable law does not permit disclaimers of certain implied warranties, such warranties are limited to the warranty period identified above.
  • Page 18 Innosense International Inc reserves the right to modify the product, design, specifications, hardware, component, and/or user manual without any restriction or obligation to notify users. Coral UV is distributed in Canada by Innosense International Inc. Coral UV is distributed in the United States by Too Inc. www.coraluv.co...
