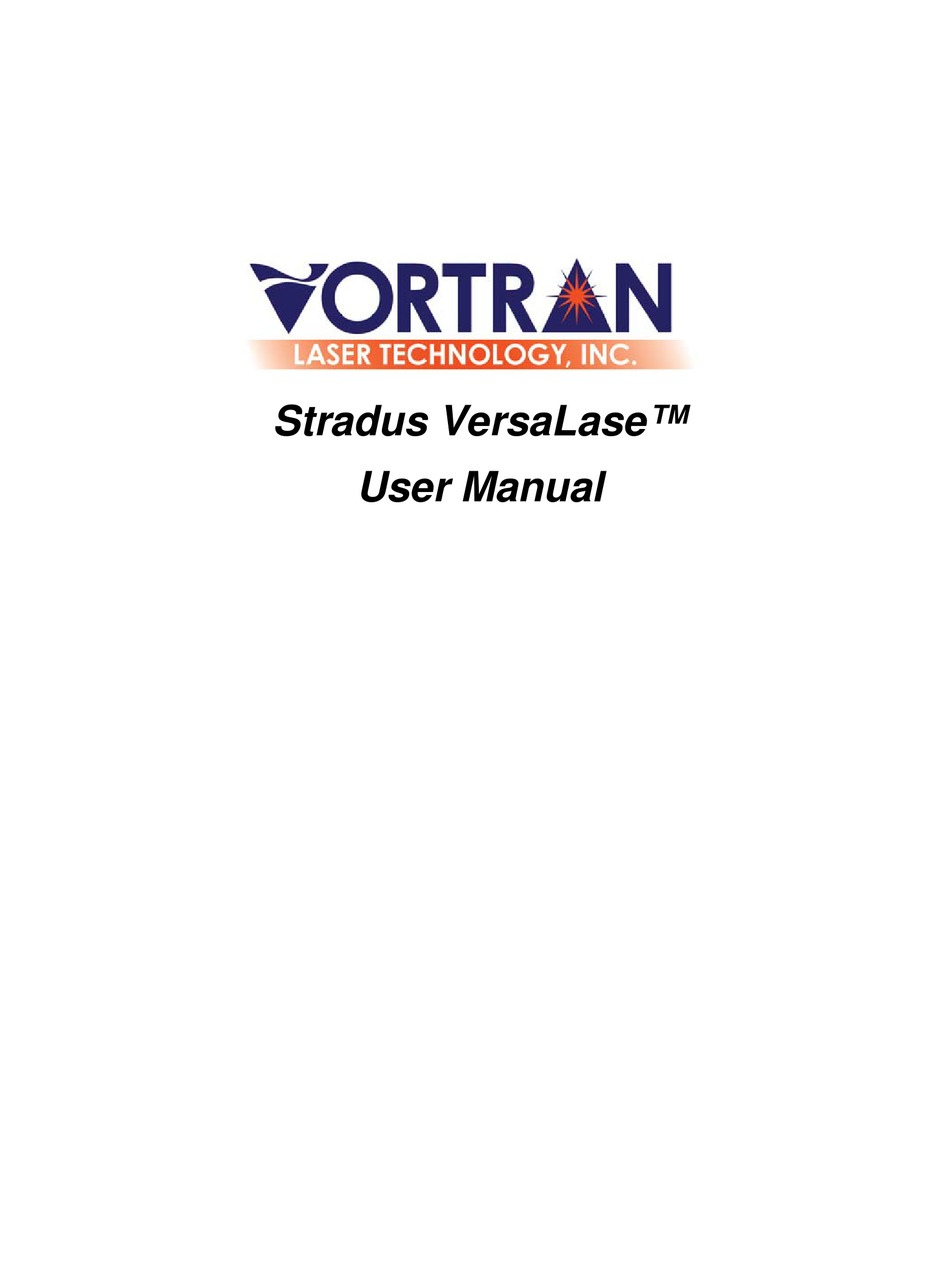

  • Page 1               Stradus VersaLase™ User Manual              ...
  • Page 2  ...

  • Page 3: Table Of Contents

    Symbols Laser Safety A Note Regarding Compliance Laser Classification Observations Laser Safety Labels Electrical Safety Optical Safety Vortran Laser Safety Features 4.7.1 Protective Housing 4.7.2 Power Indicator 4.7.3 Interlock 4.7.4 Laser Emission Indicators 4.7.5 Computer Control System Information System Features...
  • Page 4 Command and Query Summary 9.3.1 Global Commands 9.3.2 Global Queries 9.3.3 Laser-Specific Commands 9.3.4 Laser-Specific Queries Command Detail Query Detail Fault Codes 10.0 Stradus VersaLase™ Control Software 10.1 Supported Operating Systems 10.2 CD Contents 10.3 Software Installation 10.4 USB Driver Installation 10.5...
  • Page 5 External Laser Power Control 11.2 Laser Enable Modulation 11.3 Digital Modulation (Optional) 12.0 Troubleshooting Guide 12.1 Resolving Faults 12.2 Temperature Faults 12.3 Laser at Half Power 13.0 Glossary 14.0 Warranty 15.0 Returning Systems for Service 16.0 Contact Vortran Laser Technology www.vortranlaser.com...
  • Page 6 1.0 List of Tables Table Description Page Packing List RS-232 Protocol DE-25 Pin Connections I/O Connector Pin Descriptions RS-232 System Connection Digital Modulation Specifications RS-232 Pin Descriptions and Protocol Command and Query Summary Command Detail Query Detail Fault Codes RS-232 Connections and Communication Protocol Fault Code Resolution www.vortranlaser.com...

  • Page 7: List Of Figures

    2.0 List of Figures Figure Description Page Laser Safety Label Location Power Indicator Interlock Diagram Laser Emission Indicators System Block Diagram System Dimensions System Torque Pattern System Power Connector DE-25 Pin Diagram System Dimensions System Mounting Dimensions System Mounting Torque Pattern System Power Connector I/O Connector DE-25 Pin Diagram Near-Field Beam Image...
  • Page 8 Diode/Module Temperature Terminal Screen Script Mode Execute Script Load Script File Clear Window/ Save Session Log Tool Bar Status Bar External Control Setting Laser Enable and Signal Ground DE-25 Pins Digital Modulation Control Fault Indicator and Signal Ground DE-25 Pins www.vortranlaser.com...

  • Page 9: Symbols

    3.0 Symbols ESD – This symbol is used to alert the user of hazards associated with Electro-static Discharge. Laser Radiation – This symbol is used to alert the user of hazards associated with optical radiation emitted from the laser. CE Mark – This symbol represents the European Directive Conformite Europeenne"...
  • Page 10 No Text on This Page www.vortranlaser.com...

  • Page 11: Laser Safety

    4.0 Laser Safety A Note Regarding Compliance The Vortran Stradus VersaLase™ OEM System has features which allow it to be easily integrated a system which meets CDRH safety requirements, based on EN60825-1. These features include the interlock, emission LEDs, 5 second emission delay.

  • Page 12: Electrical Safety

    Electrical Safety No hazardous voltages are contained in the Stradus VersaLase™ laser head. The system does not contain any user accessible components within the system enclosure. The warranty will void if the enclosure is disassembled. Vortran Laser Technology recommends that proper ESD precautions are taken when handling the laser head.

  • Page 13: Interlock

    Section 6 or 7 of this manual. Figure 3 Interlock Diagram 4.7.4 Laser Emission Indicators – The Stradus VersaLase™ module includes emission indicators to indicate emission from each laser module enclosed in the chassis. The wavelength of the indicators allows them to be viewed when using laser safety eyewear.

  • Page 14: Computer Control

    Figure 4 Laser Emission Indicators 4.7.5 Computer Control – The Stradus VersaLase™ may be controlled by a computer via USB or RS-232 connections. The status of safety features such as the electronic laser emission interlock may be monitored by firmware terminal commands and queries or by using the Stradus VersaLase™...

  • Page 15: System Information

    Power Supply Requirements and Protection 12V +/- 10% (10.5V to 13.5V) at 9 amps It is recommended that the Stradus VersaLase™ ground is connected to a power supply which has a connection to Earth ground. Many “brick” style power supplies do not provide this connection.

  • Page 16: Block Diagram

    Block Diagram Stradus VersaLase™ Block Diagram Figure 5 System Block Diagram www.vortranlaser.com...

  • Page 17: System Installation

     Connect USB or RS-232 connections if Computer Control is Desired  Connect DE-25 I/O connector to access all I/O signals  If Computer Control is Desired, Install Vortran Stradus VersaLase™ User Interface Software  Proceed to Operation Section for Additional Information...

  • Page 18: Unpacking And Inspection

    Unpacking and Inspection Upon receipt of your new Vortran product, inspect the contents of the shipping box for potential damage from mishandling during shipment. Immediately report any damage to Vortran Laser Technology. ™ The VersaLase System is designed for custom OEM integration. The contents of the box are based on specific customer needs.

  • Page 19: Laser System Mounting

    Figure 6 System Dimensions 6.3.2 Heat Sink Requirements The Stradus VersaLase™ system is conduction-cooled and requires a heat sink for operation.  Failure to use a heat sink will overheat the module  Heat sink compound is not required or recommended for mounting.

  • Page 20: Torque Specification

    6.3.4 Torque Specifications Normal mounting can be accomplished by using the provided hex key to secure the laser head to the heat sink, by tightening the screws gradually in a progressing cross pattern. This method should provide stable thermal and pointing performance. Optimum thermal and pointing performance is accomplished by securing the laser head to the heat sink, with a precision torque driver.

  • Page 21: Electrical Connections

    Electrical Connections: 6.4.1 Power Supply Connection A standard Stradus VersaLase™ Laser System does not include a power cable. Power connector diagrams are shown below: ® Plug P/N: Molex 39-01-2060 ® Solder Pins P/N: Molex 45750-3112 Figure 8 System Power Connector...

  • Page 22: Rs-232 Connection

    6.4.3 RS-232 Connection The DE-25 connector on the rear panel of the system provides access to the RS-232 input and output. Refer to sections 10 and 11 for computer controlled operation. See “I/O Connection” below for connection information. Communication Protocol Baud Rate 19200 Parity...

  • Page 23: I/O Connection

    6.4.4 I/O Connections Access the system Input /Output functions on the rear panel of the Stradus VersaLase™. The connections are available at the DE-25 connector and allow the user to build an interface cable which can access some or all I/O pin functions. Solder pin connection information is...

  • Page 24: Pin Diagram

    A 2 volt signal represents full laser power. Intermediate voltage levels are scaled in a linear fashion. 5 Volt Reference – The Vortran provides a 5 volt output reference signal, which can be used for a variety of laser control functions such as closing the interlock.
  • Page 25 Modulation Ground (Channel A,B,C,D) – These signals are required as a ground reference for the respective Modulation Input. Do not use the Signal or Chassis Ground with the Modulation Inputs. Auto-Start – The Auto-Start feature is currently disabled. Interlock – The Interlock is an input, allowing laser interlock control. A TTL high signal level represents “INTERLOCK CLOSED.”, which is a condition required for laser emission.

  • Page 26: Oem Laser Installation

    7.0 OEM Installation 7.1 OEM Installation Checklist  Unpack and Inspect Stradus VersaLase™ Laser System  Secure Unit to Heat Sink  Torque Laser Head to Heat Sink at 20 in-lbs, Using a Progressively Increasing Cross Torque Pattern  Configure Laser Control Cable with Desired Operational Connections ...

  • Page 27: Heat Sink Requirements

    Figure 11 System Mounting Dimensions Heat Sink Requirements The Stradus VersaLase™ system is conduction cooled and requires a heat sink for operation.  Failure to use a heat sink will overheat the laser system  Heat sink compound is not required or recommended for system mounting.

  • Page 28: Power Supply Requirements

    System Mounting Torque Pattern Power Supply Requirements The Stradus VersaLase™ system requires a 12V +/- 10% or 10.5V to 13.5V at 9 amps. A standard Stradus VersaLase™ Laser System does not include a power cable. Power connector diagrams are shown below: ®...

  • Page 29: System I/O Connector

    Stradus VersaLase™ I/O Connector The Stradus VersaLase™ Laser System input connector is a standard DE-25 connector. The solder-type connector allows for connections to only the pins required for the specific application. Figure 14: I/O Connector DE-25 Pin Diagram Function Pin Direction Description...
  • Page 30 A 2 volt signal represents full laser power. Intermediate voltage levels are scaled in a linear fashion. 5 Volt Reference – The Vortran provides a 5 volt output reference signal, which can be used for a variety of laser control functions such as closing the interlock.

  • Page 31: Usb Connection

    50 KHz is available with this pin. USB Connection The Vortran Stradus VersaLase™ Laser Head includes a standard Mini B USB connector for computer controlled operation. The Stradus VersaLase™ is a self- powered USB device and does not draw significant currents from the USB bus.

  • Page 32: System Operation

    Close electrical Interlock by connecting I/O Connector DE-25 Pin 8 to Pin 21  Allow Thermal and Power Stabilization (Warm-up)  If Computer Control Is Desired, Launch Vortran Stradus VersaLase™ Control Software Laser Warm-up and Standby When power is first applied to the system, the temperature and power must stabilize before the CDRH delay 5 second countdown, followed by laser emission.

  • Page 33: Far-Field Beam Quality

    Near-Field Beam Image 8.3.2 Far-field Beam Quality The typical Rayleigh range for a Vortran Stradus™ Laser is greater than 2 meters. When measuring beam quality with a camera, the image should be collected at a distance of 4 meters or greater. A true representation of beam quality occurs in the Far-field and directly relates to a focused beam application.

  • Page 34: External Power Control

    VersaLase™. The Stradus VersaLase™ provides the capability to control the laser power at a maximum bandwidth of 500 kHz. Some configurations of the Stradus VersaLase™ contain non-diode type lasers which may have a different bandwidth for External Power Control. A dedicated Modulation Ground is available for each channel and is required to meet specified performance.

  • Page 35: Digital Modulation (Optional)

    By inputting standard TTL voltage levels into the SMB connector, the laser output can be modulated from DC to 200MHz (for diode lasers only). Some configurations of the Stradus VersaLase™ contain non-diode type lasers which may have a reduced bandwidth for Digital Modulation. Computer control is required to set the laser in “Pulse Mode”.

  • Page 36: Operation

    8.4.3 Operation To operate the Stradus VersaLase™ lasers in pulse mode, install the Vortran Stradus VersaLase™ software and USB drivers. If RS-232 operation is required, refer to Section 9. Activate “Digital Modulation” by clicking the “On” button in the “Digital Modulation” section of the “Home Screen”. Enter the desired power level in mW, to represent the Peak Power of the laser output.

  • Page 37: Computer Controlled Operation

    9.0 Computer Controlled Operation USB Connection The Vortran Stradus VersaLase™ System provides capability for remote USB communication. A Mini-B USB connector is located on the rear panel. Figure 19 USB Connector Location RS-232 Connection and Setup The Vortran Stradus VersaLase™ System provides the capability for remote RS-232 communication.

  • Page 38: Command And Query Summary

    Command and Query Summary Stradus VersaLase™ commands and queries are classified as Global or Laser-Specific. Laser-Specific commands/queries require a prefix of “A”, “B”, “C”, or “D” to indicate the laser in the system for which the command/query is intended. Depending on the particular types of lasers in the system, not all commands/queries are available for every laser in the system.

  • Page 39: Laser-Specific Commands

        9.3.3    Laser-Specific Commands       Command Function  Range Description C  Laser Drive Control Mode  0/1  Sets Power or Current Control (1 = Current Control)  DELAY  5 Sec. Delay On/Off  0/1  Toggle 5 Second Laser Emission Delay On and Off  Enables External Power Control (1= External  EPC  External Power Control  0/1  Control)  LC  Laser Current Control  0 ‐ Max  Sets Laser Diode Current directly  LE  Toggle Laser Emission  0/1  Toggles Laser Emission On and Off (1 = On)  LP  Laser Power  0 ‐ Max  Sets Laser Power   PP  Pulse Power  0 ‐ Max  Sets Pulse Power  PUL ...

  • Page 40: Laser-Specific Queries

        9.3.4    Laser-Specific Queries        Query Function  Range Description ?C  Request Laser Drive Control Mode  0/1  Returns Present Laser Drive Control Mode  Returns Present State of Computer Control  ?CC  Request Computer Control  0/1  Pin, 1=AUTOSTART, 0=MANUAL START  ?CT  Request Controller Temperature  0‐55 (°C)  Returns Controller Electronics Temperature  Request 5 Second Emission Delay  ?DELAY  Status  0/1  Returns Present Emission Delay Status  Request External Power Control  Returns Present External Power Control  ?EPC  Status  0/1  Status  Request Fault Code (BINARY) &  ?FC  Status  0 ‐ 32   Returns Laser Status and Fault Codes  ?FD ...

  • Page 41: Command Detail

    Command Detail C    Function  Laser Drive Control Mode  As a command it is used to toggle the laser diode drive control  mode between regulated power OR regulated diode current. (0 =  Description  Power Control, 1 = Current Control)     As a query, it returns the present laser diode drive control mode.    Command/Query Both    Syntax:      Command C=0, C=1     Query ?C    Example:      Normal Operation:   Laser is running normally in power control mode.  User enters C=1.  Laser switches to current control mode, using the stored laser      current value.        Return value C=1    Not Allowed: Fault condition exists.  User enters C=1.  The laser will not change to current control mode when fault ...
  • Page 42 DELAY    Function  5 sec. Delay On/Off Description    Toggles 5 second laser emission delay on and off   Command/Query Both   Syntax:     Command DELAY=0, DELAY=1   Query  ?DELAY   Range   Resolution   Stored on Set   Default The command function will write a new value only when a no fault    Dependencies condition exists.      Conditional Information The query is available any time.   www.vortranlaser.com...
  • Page 43 EPC    Function  External Power Control Enables External Power Control Input Port (1= External  Description  Control)        Command/Query Both   Syntax:     Command EPC=0, EPC=1   Query ?EPC   Example:   Laser emission 100mW in power control mode (C=0).  2.5 volts on    Normal Operation:   laser connector pin 10.  User enters EPC=1.  Laser power drops to 50mW.  Return value      EPC=1.  Fault condition is present.  User enters EPC=1.  Return Value    Not Allowed: EPC=0.    Range   Resolution  ...
  • Page 44 LC    Function  Laser Current Control Description  Sets Laser Diode Current Directly        Command/Query Both   Syntax:     Command LC=###.#  ( ma.)   Query  ?LC   Example:   Laser Emission is active, with laser running at 50mA.  User    Normal Operation:   enters LC=100.   Laser Emission remains active and the measured value is      returned LC=99.8 Laser Emission is active, with laser running at 50mA.  User  enters LC=10000, No change in laser power is made for the        excessive value.  The value returned is 49.9mA     Fault condition exists or laser emission is not active.  User   ...
  • Page 45 LE    Function  Toggle Laser Emission On/Off Description    Toggles Laser Emission On and Off (1 = On, 0 = Off)        Command/Query Both   Syntax:     Command LE=0, LE=1   Query   Example:     Normal Operation:   LE=1 Response LE=1         Not Allowed: Fault Condition LE=1 Response LE=0   Range   Resolution   Stored on Set   Dependencies No fault 32 or greater www.vortranlaser.com...
  • Page 46 LP     Function  Laser Power  As a command, it sets laser power through USB and RS‐232  interfaces.  As a query, it will return the laser power measured  Description  by the power regulation circuitry.        Command/Query  Both  Syntax:     Command  LP=###.#  (mW)  Query  ?LP  Example:     Laser Emission is active, with laser running at 50mW.  User  Normal Operation:    enters LP=100.    Laser Emission remains active and the measured value is     returned LP=99.8.  Laser Emission is active, with laser running at 50mW.  User  enters LP=10000.  No change in laser power is made for the  Not Allowed:  excessive value.  The measured return value is LP=49.9.  Fault condition exists or laser emission is not active.  User     enters LP=100.  The new value is not written.  The measured returned value is     LP=0.00.  Range  Zero to the maximum power the laser system is calibrated to.  Resolution  ###.#  Stored on Set ...
  • Page 47 PROMPT     Function  Prompt ON‐OFF  Description  Turns RS‐232 Prompt ON‐OFF (Prompt=1 is Prompt on)  Command/Query  Command Only  Syntax  PROMPT=0, PROMPT=1  Range  0,1  Resolution  N/A  Store on Set  Yes  Dependencies  None  Default  1  www.vortranlaser.com...
  • Page 48 PP     Function  Pulse Power  As a command, it sets pulse laser power through USB and RS‐ 232 interface.  As a query, it will return the pulse laser power  Description  setting.        Command/Query  Both  Syntax:     Command  PP=###.#  (mW)  Query  ?PP  Example:     Laser Emission is active, with laser running at 50mW.  User  Normal Operation:    enters PP=100.    Laser Emission remains active and the measured value is     returned PP=99.8.  Laser Emission is active, with laser running at 50mW.  User  enters PP=10000.  No change in laser power is made for the  Not Allowed:  excessive value.  The measured return value is PP=49.9.  Fault condition exists or laser emission is not active.  User     enters PP=100.  The new value is not written.  The measured returned value is     PP=0.00.  Range  Zero to the maximum power the laser system is calibrated to.  Resolution  ###.#  Stored on Set ...

  • Page 49: Command Detail

    PUL     Function  Digital Modulation Mode  As a command it is used to toggle the laser diode drive control  mode between CW and Digital Modulation. (0 = CW, 1 = Digital  Description  Modulation)     As a query, it returns the present laser diode drive control mode.  Command/Query  Both  Syntax:     Command  PUL=0, PUL=1   Query  ?PUL  Example:     Normal Operation:    Laser is running normally in CW mode.  User enters PUL=1.     Laser switches to current Digital Modulation mode.      Return value PUL=1  Not Allowed:  Fault condition exists.  User enters PUL=1.  The laser will not change to Digital Modulation mode when fault     condition is cleared.     Return value PUL=0  Range  0,1  Resolution  N/A  Stored on Set  No  Default  0 ...

  • Page 50: Query Detail

    Query Detail ?BPT      Function  Request Base Plate Temp.    Description  Returns Present Base Plate Temperature    Command/Query  Query    Syntax  ?BPT    Example  ?BPT  Response ?BPT=35    Range  0‐55°C    Resolution  Whole Numbers    Dependencies  Base Plate Temperature is valid even in a fault conditon.    Conditional Information      ?CC     Function  Request Computer Control  Returns Present State of Computer Control Input Pin. 0 =  Description  Computer Control Only , 1 = Internal Control   Command/Query  Query ...
  • Page 51 ?FC        Request Fault Code  ** The displayed value represents  Function  a sum of all active faults.   Returns Fault Code as a  Description  Whole Number     Command/Query  Query     Syntax  ?FC     Example  ?FC Response ?FC=0  Range  32 Error Codes Maximum  Resolution  Binary Values  Dependencies  None              Note  Value  Description  LASER EMISSION  Laser State  0  ACTIVE  Laser State  1  STANDBY  Laser State  2  WARMUP ...
  • Page 52 ?FD     Function  Request Fault Description  Description  Returns Fault as descriptive text  Command/Query  Query  Syntax  ?FD  Example  ?FD Response FD=LASER EMISSION ACTIVE  Range  35 Characters Maximum  Resolution  N/A  Dependencies     Conditional Information  Values greater than 32 will stop laser emission and Set I/O  Fault Pin (DE‐25 Pin 3) High for Values of 16 or Greater  Value  Description        0  LASER EMISSION ACTIVE  1  STANDBY  2  WARMUP  4  VALUE OUT OF RANGE  8  INVALID COMMAND  16  INTERLOCK OPEN  32  TEC OFF  64  DIODE OVER CURRENT ...
  • Page 53 ?FP     Function  Request Firmware Protocol  Description  Returns Firmware Protocol Version  Command/Query  Query  Syntax  ?FP  Example  ?FP Response ?FP=1.01.01  Range  N/A  Resolution  #.##.##  Dependencies  None  ?FV     Function  Request Firmware Version  Description  Returns the Loaded Firmware Version  Command/Query  Query  Syntax  ?FV  Example  ?FV Response ?FV=1.01.01  Range  N/A  Resolution  #.##.##  Dependencies  None  ?H    Function  Display Help File  Description ...
  • Page 54 ?LH     Function  Request Laser Operating Hours  Returns Present Laser Diode Hours (Clock only runs when  Description  laser emission is active)  Command/Query  Query  Syntax  ?LH  Example  ?LH  Response ?LH=1423.2  Range  0 – 100,000  Resolution  12 Minutes (.2Hrs)  Dependencies  None  ?LI     Function  Request Laser Identification  Returns Unique Information (S/N, Part Number,  Nom. λ,  Description  Nom. Power, C/E for circular or elliptical)   Command/Query  Query  Syntax  ?LI  Example  ?LI Response ?LI= VL1008025, 10010, 405nm, 100mW, C  Range  VLmmyy####, #####, ###nm, ###mW, C  Resolution  N/A  Dependencies  None  ?LPS    ...
  • Page 55 ?LW     Function  Request Laser Wavelength  Description  Returns Actual Measured Laser Wavelength   Command/Query  Query  Syntax  ?LW  Example  ?LW Response ?LW=406  Range  N/A  Resolution  ###  Dependencies  None  ?MAXP     Function  Request Maximum Laser Power  Description  Returns Maximum Output Power Available from the Laser  Command/Query  Query  Syntax  ?MAXP  Example  ?MAXP Response ?MAXP=106.5  Range  0‐1000mW  Resolution  ###.#  Dependencies  None  ?OBT     Function  Optical Block Temperature  Description ...

  • Page 56: Query Detail

    ?RP     Function  Request Rated Laser Power  Description  Returns Standard Laser Power Rating  Command/Query  Query  Syntax  ?RP  Example  ?RP Response ?RP=100  Range  0‐1000mW  Resolution  ###  Dependencies  None  Table 10 Query Detail www.vortranlaser.com...

  • Page 57: Fault Codes

    Fault Codes Note  Value  Description  Laser State  0  LASER EMISSION ACTIVE  Laser State  1  STANDBY  Laser State  2  WARMUP  Syntax Error  4  VALUE OUT OF RANGE  Syntax Error  8  INVALID COMMAND  Fault Condition  16  INTERLOCK OPEN  TEC Status  32  TEC OFF  Fault Condition  64  DIODE OVER CURRENT  Fault Condition  128  DIODE TEMPERATURE FAULT  Fault Condition  256  BASE PLATE TEMPERATURE FAULT  Fault Condition  512  POWER LOCK LOST  Fault Condition  1024  EEPROM ERROR ...

  • Page 58: Stradus Versalase™ Control Software

    The Vortran Stradus VersaLase™ software installation will “Autorun”, if permitted. For security reasons, Windows possibly may not permit this. If the Vortran Stradus VersaLase™ software CD is installed into the CD drive and the installation process does not initiate, manually select the computer CD drive and double-click on the Vortran Logo icon.

  • Page 59: Software Installation Welcome Screen

    Figure 20 Software Installation Welcome Screen The “Welcome” screen provides a preview of the software installation process. This screen also provides warnings associated with copyright protection. Click “Next” to continue the installation process. Figure 21 Software Installation Location Screen www.vortranlaser.com...

  • Page 60: Software Installation Confirmation Screen

    The default software installation location will be displayed. An alternate installation location can be selected by clicking on the “Browse” button and navigating to a desired installation location. Click “Next” to continue the installation process. Figure 22 Software Installation Confirmation Screen Click “Next”...

  • Page 61: Usb Driver Installation

    Click “Close” to complete the software installation process. 10.4 USB Driver Installation The Stradus VersaLase™ requires installation of a USB driver. It is recommended that the Stradus VersaLase™ Software be installed prior to plugging in the USB cable so that the USB driver may be pre-installed. The USB driver is installed by following the Stradus VersaLase™...

  • Page 62: Installing Usb Driver Progress Message

    USB Driver Installation Complete Message When the driver file installation is complete, the screen above will be displayed. Click Finish to begin using the USB capability of the Vortran Stradus VersaLase™ System. The Stradus VersaLase™ Software will now detect the system when the USB cable is connected and power is applied to the system.

  • Page 63: Menu Items

    10.5.1 File Menu The file menu provides the Print Screen selection which allows direct printing of the Stradus VersaLase™ software screen. Exit closes USB and RS-232 connections and exits the application. Figure 28 File Menu 10.5.2 View Menu The view menu provides the capability to navigate between...

  • Page 64: Connect Menu

    10.5.4 Help Menu Figure 31 Help Menu The Help Menu provides a variety of information to assist with the Vortran Stradus VersaLase™ Software. Use the Help menu to launch interactive Help with a variety of tools to access Stradus VersaLase™ Software information contained in the user manual.

  • Page 65: Home Screen

    10.6 Home Screen Figure 32 Home Screen When the Vortran Stradus VersaLase™ Software is started and a USB or RS-232 connection is established, the Stradus VersaLase™ Software will display available controls and indicators for each laser in the system. www.vortranlaser.com...

  • Page 66: Status

    10.6.1 Status The Status indicator shows the present laser operating condition. When laser emission is active, a green “ACTIVE” indicator is shown. When the laser is operating normally and emission is stopped, the “STANDBY” indicator will be shown. When power is first applied to the laser and the optical block temperature and/or power has yet to stabilize, the “WARMUP”...

  • Page 67: Digital Modulation

    10.6.3 Digital Modulation Certain types of lasers in the Vortran Stradus VersaLase™ system are able to operate in Digital Modulation mode. This mode is selectable with the “Digital Modulation” Button. When “On” is selected the laser output is modulated as a function of the TTL voltage level input at the SMB connector.

  • Page 68: External Control

    10.6.4 External Control The External Control function provides the ability to control the laser power directly with an analog voltage. When “OFF” is selected, the laser operates in a constant power mode, based on the present power setting. When “ON” is selected, the laser power is directly controlled by the voltage applied to the external control input.

  • Page 69: Emission

    10.6.5 Emission The Emission indicator provides the capability to start and stop laser emission. When “ON” is selected, laser emission will be established following the 5 second CDRH delay. If the interlock is open or a fault condition exists, laser emission is not possible. Under these conditions, if “ON”...

  • Page 70: Base Plate Temperature

    10.6.7 Base Plate Temperature The base plate temperature gauge displays the present measured base plate temperature. The base plate temperature is measured by the microprocessor and is updated continuously. Once again, green represents the normal and safe operating range. Yellow indicates a level of temperature that will allow the laser to operate, but is not recommended for long-term operation.

  • Page 71: Diode Temperature Or Module Temperature

    10.6.8 Diode Temperature or Module Temperature The present diode temperature or module temperature is displayed as a numerical value with no associated scale. This diode temperature is set at the factory to ensure long-term reliability and maintain the specified optical propagation parameters. The module temperature is the temperature of the laser device for other than diode lasers.

  • Page 72: Terminal Screen

    10.7 Terminal Screen The terminal screen allows the user to communicate directly with the Vortran Stradus VersaLase™ System. This screen provides flexibility to set controller parameters or query specific controller parameters using the list of commands and queries. As a secondary function, the user can test custom laser applications, by using a script containing a series of parameters.

  • Page 73: Script Mode

    Select the desired script file and click “Open.” The contents of the file will be loaded into the script window. The file name will also be displayed. The default script file location is C:\Program Files\Vortran Laser Technology, Inc\Script...

  • Page 74: Clear Window And Save Session File Log

    Script files are saved as .txt This will allow the user to view them with a standard text editor. Figure 44 Load Script File 10.7.4 Clear Window and Save Session File Log The “Clear Window” button will clear the contents of the script window when clicked.

  • Page 75: Status Bar

    10.9 Status Bar Each displayed laser window contains a status bar at the bottom of the window, to display important laser parameters. The emission status is shown on the left side of the status bar. If a fault condition exists, the “Active” display will display as red with “Fault”...

  • Page 76: Tutorials

    11.0 Tutorials 11.1 External Laser Power Control The Vortran Stradus VersaLase™ has the capability of external power control with a voltage source independently for each channel A-B-C-D. A 0V to 5V input signal will provide a corresponding laser output from 0% to 100%.

  • Page 77: External Control Setting

    Once computer communication is established with the laser system, the “EPC=1” command will enable External Laser Power Control. External Laser Power Control can also be enabled with Vortran Stradus VersaLase™ software. The External Power Control button is located on the software Home Screen.

  • Page 78: Laser Enable Modulation

    50KHz. Due to the nature of some types of non-diode laser technologies, certain lasers in the Stradus VersaLase™ will not be able to achieve a 50kHz modulation rate using the Laser Enable Modulation method. The Digital Modulation or External Power Control Methods may instead be used.

  • Page 79: Digital Modulation (Optional)

    11.3 Digital Modulation The output of the Stradus VersaLase™ Laser System can operate in a Continuous Wave or Digital Modulation mode. Prior to setting the laser into Digital Modulation mode, the voltage levels of the input to the SMB connector should be verified using an oscilloscope terminated at 50 ohms.

  • Page 80: Troubleshooting Guide

    12.0 Troubleshooting Guide 12.1 Resolving Faults If a fault occurs, the Vortran Stradus VersaLase™ will set the Fault Pin on the I/O connector to a TTL high level. The fault pin is accessed with the I/O connector DE-25 Pin 3. The associated ground reference is found on the I/O connector DE-25 Pin 11.

  • Page 81: Fault Code Resolution

        TEC or restart laser. TEC OFF Fault Condition, Laser Over Current, Contact   Vortran Laser Technology for Repair. DIODE OVER CURRENT Fault Condition, If environment is excessively cold or hot, adjust environment temperature to normal room conditions. (20-30 degrees   DIODE TEMPERATURE FAULT C) System will recover automatically.

  • Page 82: Temperature Faults

    Rapid changes in temperature may cause laser emission to be interrupted until the diode temperature stabilizes. The Vortran Stradus VersaLase™ provides temperature protection for the contained lasers. If a temperature fault occurs, laser emission will be interrupted until the temperature returns to a safe range.

  • Page 83: Glossary

    13.0 Glossary ºC Degrees Celsius µm Micrometers (10 Meters) µrad Microradians (10 Radians) Alternating Current Bayonet Neill Concelman Connector CDRH Center for Devices and Radiological Health Electrostatic Discharge Kilohertz (10 Cycles per Second) Light Emitting Diode Milliamps (10 Amps) Millimeter (10 Meters) mrad Milliradian (10...

  • Page 84: Warranty

    14.0 Warranty Vortran Laser Technology, Inc. provides a warranty for a period of 12 months from the original shipment date. This warranty applies only to the original purchaser and covers material defects, workmanship and adherence to published specifications. If a replacement unit is provided, the warranty is based on the shipment date of the original unit.

  • Page 85: Returning Systems For Service

    Return Material Authorization (RMA) Instructions The Vortran Stradus VersaLase™ system does not require interval calibration or factory maintenance. If service is required, contact Vortran Laser Technology. Be ready with the system part number, serial number and problem description when contacting the factory. The factory will provide an RMA number and shipping instructions.

  • Page 86: Contact Vortran Laser Technology

    16.0 Contact Vortran Laser Technology Vortran Laser Technology, Inc. 21 Goldenland Court, #200 Sacramento, California 95834 Phone (916) 283-8208 (916) 648-9751 E-mail Sales sales@vortranlaser.com Service service@vortranlaser.com Web Site www.vortranlaser.com Part Number 10822 Rev B1 www.vortranlaser.com...
