Summary of Contents for Coral Electronic HA 440

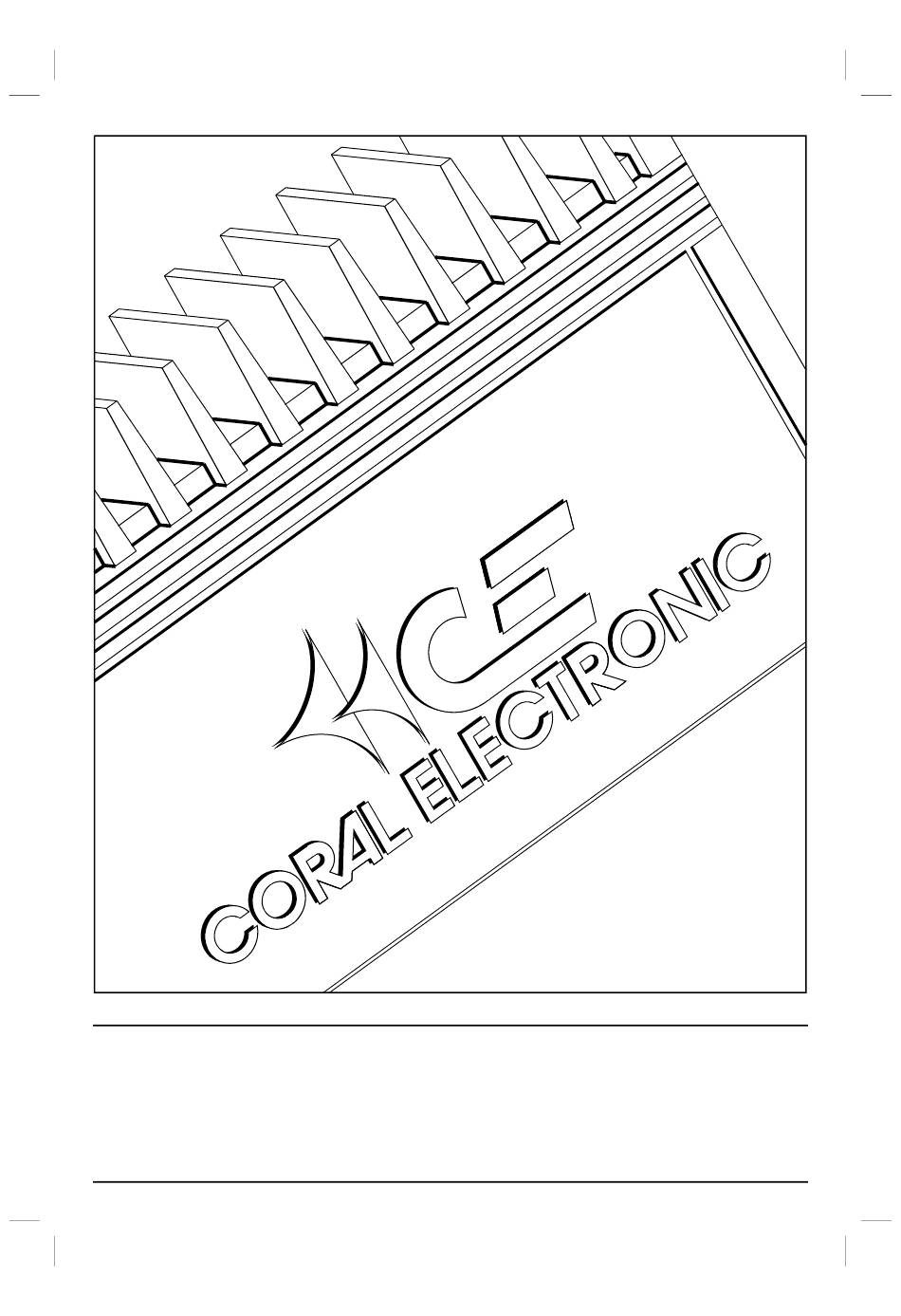

  • Page 1 HA 440 3 / 4 - c h a n n e l p o w e r a m p l i f i e r...
  • Page 2 [ 2 ] [ 3 ] [ 4 ] [ 5 ] [ 6 ] [ 7 ] [ 8 ] [ 9 ] [ 10 ] HA 440 1 - RCA INPUTS Regolano i livelli delle uscite A e B. Connettori d'ingresso RCA, Adjust the A/B output levels.
  • Page 3 4-SPEAKER SYSTEM USE INPUT ONE CABLE FROM RADIO INPUT X-OVER WOOFER TWEETER TWO CABLES FROM RADIO MSC SYSTEM HERTZ MSC : BI-POWERED 3-WAY SYSTEM INPUT A A+B VOLT MSC SYSTEM X-OVER MIDRANGE TWEETER HERTZ MSC SYSTEM WOOFER HERTZ MSC : 2-WAY SYSTEM / ACTIVE SUBWOOFER INPUT A A+B VOLT...
  • Page 4 MOUNTING Per un funzionamento sicuro, posizionate l'amplificatore in un luogo ben aerato e protetto da polvere ed umidità. Ricordate che tutti gli amplificatori producono calore durante il funzionamento e forniscono le migliori prestazioni solo se correttamente raffreddati. Non installate l'amplificatore in un vano troppo piccolo per assicurare una buona aereazione.
  • Page 5 INPUT SENSITIVITY Consultate il manuale d'istruzioni dell'autoradio e verificate la tensione d'uscita del segnale (0,4 ÷ 4 Volt). Regolate la sensibilità d'ingresso agendo sul controllo [2]. Consult the car radio instruction manual and check the signal output voltage (0,4 ÷ 4 Volt). INPUT Adjust the input sensitivity by the control [2].
  • Page 6 FM 101.5 - RDS Connect the car radio remote output to the amplifier connector [10], by a small electrical cable (1 mm REMOTE OUT HA 440 POWER SUPPLY Collegate i morsetti d'alimentazione [9] direttamente alla batteria, rispettando le polarità. Utilizzate cavi di adeguata sezione (6 mm Inserite un fusibile da 40 A, vicino alla batteria, sul cavo positivo, per proteggere la vettura.
  • Page 7 MSC SYSTEM SWITCH Scegliete la posizione del deviatore MSC [5]. A sinistra il circuito è disattivato. L'amplificatore è un normale quattro canali. I controlli level [6] agiscono sul bilanciamento fronte/retro. A destra (ON) il circuito è attivato. MSC SYSTEM LEVEL Il deviatore d'ingresso [3] deve essere su "A".
  • Page 8: Technical Data

    It has to be sent with the defective unit, in case of service, in caso di intervento. together with the sales receipt. Coral Electronic srl - 10090 Rivoli - Torino - Italy - corso Allamano 74 tel (+39) 011 959 44 55 - fax (+39) 011 957 23 55...
