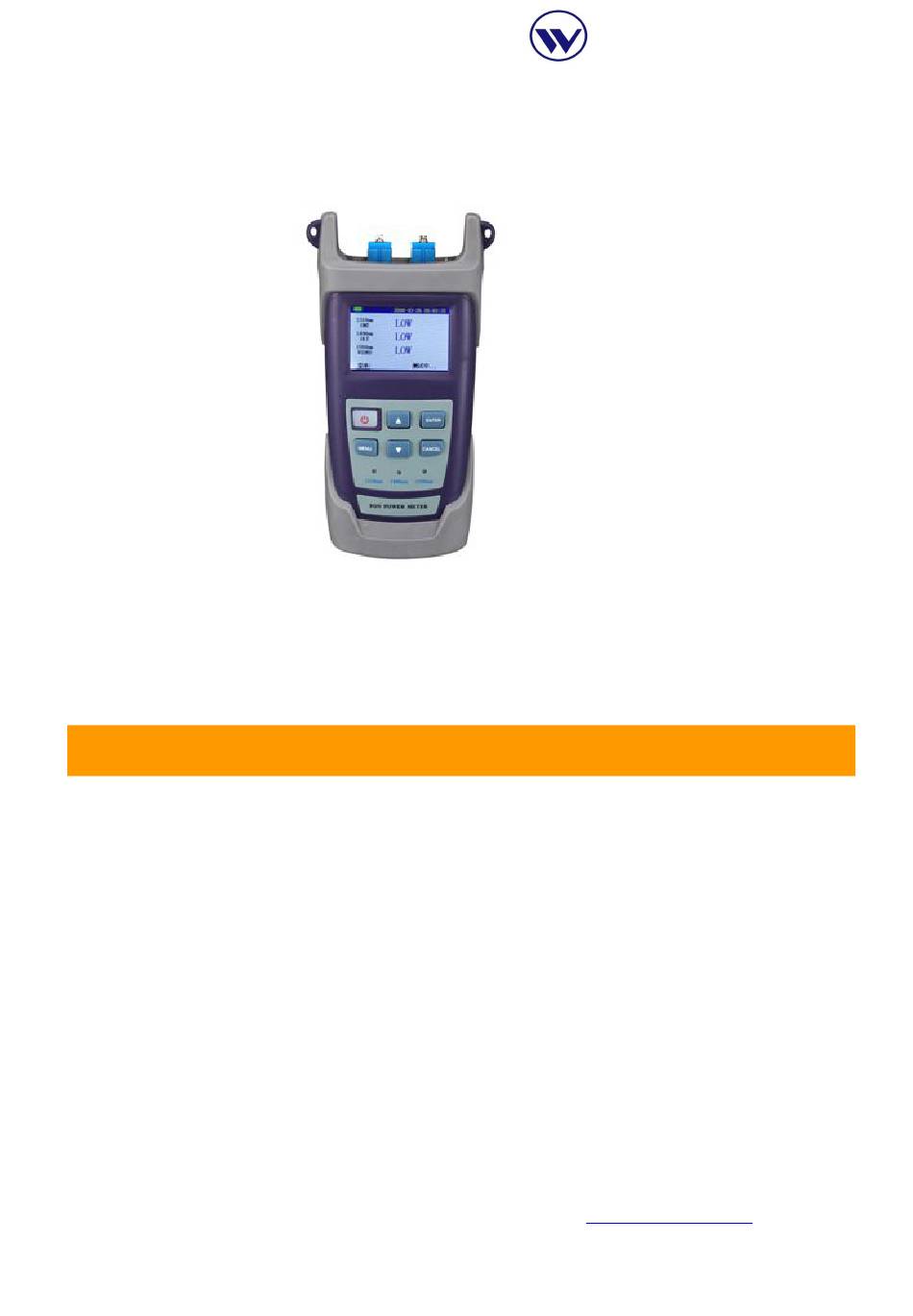

GW3201 PON Optical Power Meter aims at the FTTx application and maintenance which not only
can be used to test and estimate the PON signals at the same time, but also the normal power
measurement and fault identification. It is a useful, essential and ideal tool for the construction and
maintenance of the PON projects.
1.Features
Providing simultaneous measurement at all three wavelengths
(1490nm, 1550nm&1310nm )
Burst mode measurement at 1310nm wavelength
Large LCD screen with backlight function
10 minutes Auto-off function
Six calibration wavelength available when tested as Normal OPM
(850,1300,1310,1490,1550&1625nm)
Added VFL Function for quick and efficient fault identification
Data upload via USB cable
1000 storage test records
10 different threshold sets;
3 Colors LED light Green, Yellow or Red represent 3 types of signal conditions Pass, Warn or
Fail.
Added User self-calibration function in software which used to calibrate the PON module or set
the threshold value.
Contact :Ms Veronica Zhao
Company Address: Room 616,North Building,Fortune 108 Square, 1839# Qixin Road, Shanghai, 201101,China
Website: www.gwfiber.com MOBILE:(86)13788913267 TEL:86-21-60712325-807
GW3201 PON Optical Power Meter
(1310nm 1490nm1550nm)
Skype ID:govochina
Shanghai Govo Telecom Co.,Ltd
E-MAIL:
veronica@govochina.cn
FAX:86-21-60712315
1
Advertisement
Summary of Contents for Govo Telecom GW3201
- Page 1 GW3201 PON Optical Power Meter (1310nm 1490nm1550nm) GW3201 PON Optical Power Meter aims at the FTTx application and maintenance which not only can be used to test and estimate the PON signals at the same time, but also the normal power measurement and fault identification.
- Page 2 Shanghai Govo Telecom Co.,Ltd Added Factory Default function in software which enable all the customers setting back to the factory setting 2. Specifications PON module: Model GW3201 1310 upstream measurement Pass Zone(nm) 1260~1360 Isolation 1490/1550(dB) >40 Measurement Range(dBm) -40~+10...
- Page 3 Shanghai Govo Telecom Co.,Ltd Linearity(dB) Measurement Range(dBm) -70~++6 or -50~+26 General Information Measurement Unit dB/dBm Resolution (dB) 0.01 Calibration Wavelength(nm) 850,1300,1310,1490,1550,1625 Detector Type InGaAs Optical Connector FC/SC/ST Interchangeable Fiber Type 9/125um Working Hours (hr) 100 without backlight 2.3 VFL Module Output Power(mW) 3.
-
Page 4: Operation Procedures
Shanghai Govo Telecom Co.,Ltd 4.1Function description Icons Functions POWER ON/OFF or set AUTO POWER OFF Access menu and select function Enter menu or select current operation Exit current operation without saving Select functions, + Select functions, - 5．Operation procedures 5.1 Power on... - Page 5 Shanghai Govo Telecom Co.,Ltd the results are displayed. To conclude, “green” represents “Pass”, “yellow” represents “warning”, “red” and “dark” represent "Error". So does 1490nm or 1550nm test. (1) While in main interface, press , a menu as below will pop up:...
-
Page 6: Maintenance
Shanghai Govo Telecom Co.,Ltd 6．Applications FTTx/PON opening: it is used to measure all PON signals during opening stage, in order to verify and ensure network standards are satisfied; FTTx/PON maintenance: it is used to solve various transfer problems, e.g.: dirty connector ends, bending, broken optical fibre, any of such problems may produce signal loss or decrease transfer performance.
