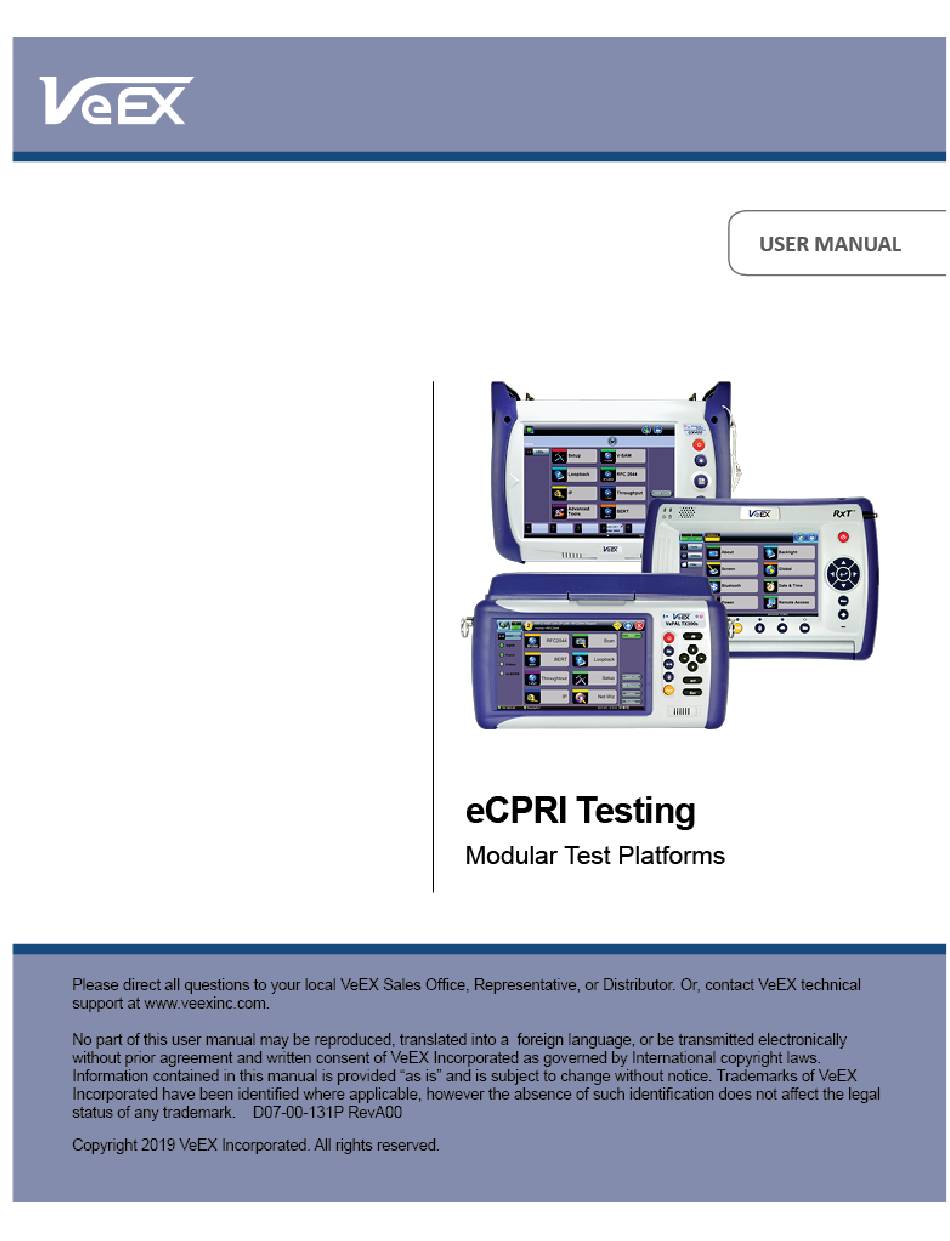

VeEX eCPRI User Manual

Modular test platforms
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eCPRI and is the answer not in the manual?

Questions and answers

Summary of Contents for VeEX eCPRI

  • Page 2: Table Of Contents

    Table of Contents 1.0 About This User Manual 2.0 Introduction to eCPRI Testing for 10G/25G with RS-FEC 3.0 Safety Information 4.0 Basic Operations 5.0 Utilities 6.0 eCPRI 6.1 eCPRI Testing Overview 6.2 Interface Specifications 6.2.1 Protocol Stack 6.2.2 Key Features 6.2.3 Data Framing...
  • Page 3 6.4.3 Saving Throughput Results 6.5 Packet Capture 6.5.1 Packet Capture Setup 6.5.2 Packet Capture Results 7.0 Warranty and Software 8.0 Product Specifications 9.0 Certification and Declarations 10.0 About VeEX Go back to top eCPRI Testing User Manual D07-00-131P RevA00 Page 3 of 53...

  • Page 4: About This User Manual

    VeEX Inc. This device uses software either developed by VeEX Inc. or licensed by VeEX Inc. from third parties. The software is confidential and proprietary of VeEX Inc. The software is protected by copyright and contains trade secrets of VeEX Inc. or VeEX's licensors.
  • Page 5 Flexibility in functional split options between Remote Unit (RU) and Centralized Unit (CU) Note: eCPRI testing availability depends on the test platform and module. Options and features described in this manual may not be available on all software versions and platforms. Refer to the latest specification sheet on www.veexinc.com...

  • Page 6: Safety Information

    Do not operate the instrument in the presence of flammable gases or fumes or any other combustible environment. VeEX Inc. assumes no liability for the customer's failure to comply with safety precautions and requirements.
  • Page 7 Inserting, extracting, or handling test modules. Inserting or removing SFPs, XFPs, QSFPs, or CFPs from the platform. Connecting or disconnecting cables from modules or platform. Go back to top Go back to TOC eCPRI Testing User Manual D07-00-131P RevA00 Page 7 of 53...

  • Page 8: Basic Operations

    4.0 Basic Operations For more information about Basic Operations, Home menu, Launching Test Applications etc., see the test unit's Platform User Manual on www.veexinc.com. Go back to top Go back to TOC eCPRI Testing User Manual D07-00-131P RevA00 Page 8 of 53...

  • Page 9: Utilities

    5.0 Utilities For more information on Utilities and Tools available, see the test unit's Platform User Manual on www.veexinc.com. Go back to top Go back to TOC eCPRI Testing User Manual D07-00-131P RevA00 Page 9 of 53...

  • Page 10: Ecpri

    To ensure that 5G network's strict requirements are met in the fronthaul, the eCPRI Transport Network requirement document establishes classes of service for data and C&M traffic. With full line rate eCPRI traffic generation capabilities and high accuracy one-way latency measurements, the eCPRI test application provides the tools necessary to ensure that the eCPRI transport network is ready for 5G deployments.

  • Page 11: Interface Specifications

    CPRI Specification was written with the goal to be generic enough to support scalable rates, physical access medium type, and air interface technologies. eCPRI relies on existing standards for Ethernet/IP networking, synchronization, and security. Go back to top Go back to TOC...

  • Page 12: Protocol Stack

    PRBS pattern: 231-1, 223-1, 215-1, 211-1 PRBS normal and inverted patterns All 0s, All 1s, and User Defined High accuracy One-Way-Delay latency measurement Line rate packet capture Go back to top Go back to TOC eCPRI Testing User Manual D07-00-131P RevA00 Page 12 of 53...

  • Page 13: Data Framing

    6.2.3 eCPRI Data Framing eCPRI Data Framing Go back to top Go back to TOC eCPRI Testing User Manual D07-00-131P RevA00 Page 13 of 53...

  • Page 14: One Way Latency Measurement

    6.2.4 eCPRI One Way Latency Measurement The diagram below shows how eCPRI works with RXT-6000e and RXT-6200 test modules. eCPRI One Way Latency Measurement Go back to top Go back to TOC eCPRI Testing User Manual D07-00-131P RevA00 Page 14 of 53...

  • Page 15: Test Port Selection

    This menu is accessed via the Test Port button located at the top left hand side of the screen. To select the eCPRI test: 1. Click the SFP28/SFP+ Test Port, and then select the eCPRI test mode. 2. Select the test interface type (10G, 25G, or 25G with RS-FEC), and then click OK.
  • Page 16 Clock Offset (ppm): The clock for the transmitter is derived from the internal clock generator. Frequency offset: +/- 150 ppm with 0.1 ppm resolution. Link Fault Response: Enable/Disable Go back to top Go back to TOC eCPRI Testing User Manual D07-00-131P RevA00 Page 16 of 53...

  • Page 17: Measurement Settings

    Results Auto Save: ON/OFF. When ON is selected, results are saved automatically. Maximum Number of Saved Events: 128, 256, 512, 1024. Maximum number of error and alarm events recorded during a test. Go back to top Go back to TOC eCPRI Testing User Manual D07-00-131P RevA00 Page 17 of 53...

  • Page 18: Ecpri Tests

    After setting up test ports and configuring the measurements, tests are available from the Throughput and Packet Capture options on the Home page. Note: Actual screens my differ depending on the installed module. eCPRI Home page Go back to top Go back to TOC eCPRI Testing User Manual D07-00-131P RevA00 Page 18 of 53...

  • Page 19: Setup

    Throughput testing at Layer 2 and 4 is supported. Throughput can be configured to use either stress patterns or user defined test patterns to simulate various conditions. The test layer, frame header, traffic profile, error injection, and control settings of the far- end device (if applicable) must be configured prior to testing.

  • Page 20: Header Settings

    MPLS (Layer 4 only): Off, 1 tag, 2 tags, 3 tags Protocol (Layer 4 only): UDP eCPRI, DATA, and CRC are selected automatically for Layers 2 and 4. IP is selected automatically for Layer 4 only. eCPRI Testing User Manual D07-00-131P RevA00...
  • Page 21 Go back to top Go back to TOC MAC, VLAN, MPLS, IP, UDP, eCPRI, DATA, and RX Filter Test Pattern Configurations: To configure the MAC addresses, IP addresses, VLAN tag(s), and test pattern, tap on the frame image displayed on the screen.
  • Page 22 Drop Eligible: If enabled, a drop eligibility flag will be set. IEEE 802.1Q VLAN Tag in an Ethernet Frame Throughput Setup - VLAN Tag configuration (Layer 4) Go back to top Go back to TOC eCPRI Testing User Manual D07-00-131P RevA00 Page 22 of 53...
  • Page 23 0010 - Maximize Reliability 001 - Minimize Monetary Cost 0000 - Normal Service DSCP (Differentiated Services Code Point): The first six bits of the IP TOS can be edited to provide eCPRI Testing User Manual D07-00-131P RevA00 Page 23 of 53...
  • Page 24 Hop Limit: 8-bit field to designate the maximum number of hops from source to destination. Packet is discarded once number is decremented to zero. Throughput Setup - IP Address Settings Layer 4 (IPv6) eCPRI Testing User Manual D07-00-131P RevA00 Page 24 of 53...
  • Page 25 Source Port: 16-bit fields used to identify the transmitter's and receiver's ports. Field has limit of 65,535. Throughput Setup - UDP Settings Layer 4 Go back to top Go back to TOC eCPRI Testing User Manual D07-00-131P RevA00 Page 25 of 53...
  • Page 26 0 = indicates last message 1 = indicates another eCPRI message follows Message Type: The following types of messages are allowable in eCPRI specifications ver. 1. The default is set to 5 for One-way latency measurements. 0 = IQ Data...
  • Page 27 Destination Port (Layer 4 only) Source Port (Layer 4 only) VLAN Eligible (Layer 4 only) Throughput Setup - RX Filter Header Setup Settings Layer 4 Go back to top Go back to TOC eCPRI Testing User Manual D07-00-131P RevA00 Page 27 of 53...

  • Page 28: Traffic Settings (Per Stream Configuration)

    Single Burst: Single Burst Bandwidth Note: The bandwidth allocation per stream is already configured in the General Settings tab, but can be modified in this screen as well. Throughput Traffic Settings eCPRI Testing User Manual D07-00-131P RevA00 Page 28 of 53...

  • Page 29: General Throughput Settings (Global Configuration)

    SDT measurement. This is useful if a known threshold is expected from a given network under test. For example, if the known switchover time is 50ms, the trigger can be set to a value slightly below 50ms to assure that the SDT is measured. eCPRI Testing User Manual D07-00-131P RevA00 Page 29 of 53...

  • Page 30: Error/Alarm Injection Settings (Per Stream Configuration)

    Type: Type of alarm: Local Fault, Remote Fault, or Optical LOS. Alarm Inj. Button is pressed. Behavior: How the alarms will be injected: Continuous or Single Burst Optical LOS Lane Selection: Checkbox appears when Type is set to Optical LOS. eCPRI Testing User Manual D07-00-131P RevA00 Page 30 of 53...

  • Page 31: Summary

    The summary screen lists the MAC source, MAC destination and VLAN information of each stream. Tap the appropriate box of each tab to reconfigure the source, destination, or VLAN information. Throughput Summary MAC List - Level 4 eCPRI Testing User Manual D07-00-131P RevA00 Page 31 of 53...
  • Page 32 Throughput Summary IP List - Level 4 Throughput Summary VLAN List - Level 4 Throughput Summary MPLS List - Level 4 eCPRI Testing User Manual D07-00-131P RevA00 Page 32 of 53...

  • Page 33: Starting/Stopping A Throughput Test

    Note: If testing on the fiber ports, make sure the LASER is turned On before starting the test. End-to-End Testing Connect the test set to another unit that supports eCPRI testing. After configuring test settings on both units, start the tests.
  • Page 34 Data Rate: Payload / (Payload + Total Overhead) * Line Rate %. Total # of frames, bad frames, and pause frames. Throughput Results - Global Aggregate Go back to top Go back to TOC eCPRI Testing User Manual D07-00-131P RevA00 Page 34 of 53...
  • Page 35 The Global Signal screen (fiber ports only) displays the optical level measured by the CFP2 or QSFP+ transceiver. Throughput Results - Global Signal Page 1 Throughput Results - Global Signal Page 2 eCPRI Testing User Manual D07-00-131P RevA00 Page 35 of 53...
  • Page 36 Runt frames: Number of received frames smaller than 64 bytes containing an invalid FCS Giant frames (Advanced Monitoring - Pass Through Results only): Number of received frames larger than 1518 bytes eCPRI Testing User Manual D07-00-131P RevA00 Page 36 of 53...
  • Page 37 SDT alarm measurements Throughput Results - Global Alarms Go back to top Go back to TOC The Global Events screen displays the Time, Event Type, Number of Events, and Test Type. eCPRI Testing User Manual D07-00-131P RevA00 Page 37 of 53...
  • Page 38 VLAN tagged frames Q-in-Q VLAN stacked frames Non-test frames Transmitted (TX) frames: Total frame - Total # frames transmitted Pause frames: Total number of transmitted and received Ethernet pause flow-control frames eCPRI Testing User Manual D07-00-131P RevA00 Page 38 of 53...
  • Page 39 The Global Delay tab: Delay measures the interpacket gap, start of the frame, and preamble duration. Frame arrival statistics are displayed in tabular format: Frame Arrival Time Current, minimum, average, and maximum frame arrival time Frame Delay Variation Average eCPRI Testing User Manual D07-00-131P RevA00 Page 39 of 53...

  • Page 40: Global/Aggregate Results

    Traffic: Traffic statistics associated with each stream. Delay: Delay associated with each stream. Note: One Way Delay measurements are only available in the per-stream results screen. Rates: Rate information associated with each stream. eCPRI Testing User Manual D07-00-131P RevA00 Page 40 of 53...
  • Page 41 Frame Loss %: Percentage of total frames that were lost OOS: Out of Service errors Duplicate Sequence Throughput Results - Per Stream Errors Page 1 Go back to top Go back to TOC eCPRI Testing User Manual D07-00-131P RevA00 Page 41 of 53...
  • Page 42 The Per Stream Events screen displays a Date and Time stamped record of bit errors, alarms and other anomalies pertaining to each stream. Throughput Results - Per Stream Events Go back to top Go back to TOC eCPRI Testing User Manual D07-00-131P RevA00 Page 42 of 53...
  • Page 43 Go back to top Go back to TOC The Per Stream Delay screen displays the frame delay information pertaining to each stream. The Histogram shows the sampling points for the delay. Throughput Results - Per Stream Delay eCPRI Testing User Manual D07-00-131P RevA00 Page 43 of 53...
  • Page 44 The Per Stream Rates screen displays the frame rate and data rate pertaining to each stream. Tap on either dial to see rate details. Throughput Results - Per Stream Rates eCPRI Testing User Manual D07-00-131P RevA00 Page 44 of 53...

  • Page 45: Saving Throughput Results

    A window will open giving the option of naming the results file. Enter the desired name for the file and tap apply. The results will be saved. For more information on retrieving saved test results, refer to test unit's platform manual for more information. Throughput Results Save Go back to top Go back to TOC eCPRI Testing User Manual D07-00-131P RevA00 Page 45 of 53...

  • Page 46: Packet Capture

    6.5 Packet Capture 6.5.1 Packet Capture Setup The packet capture function can be used to capture packets to eCPRI test ports. The packet capture format is compatible with Wireshark and can be viewed on the unit or on a PC.

  • Page 47: Packet Capture Results

    To finish packet capture and manage packet capture results, press Stop. A message appears showing the number of packets captured and the filename to which the results were saved on the test unit. Results are saved in PCAP format and are automatically named. eCPRI Testing User Manual D07-00-131P RevA00 Page 47 of 53...
  • Page 48 The Packet Capture results screen is divided into three parts with all details of the capture. The size of each part can be manually adjusted. Packet Capture Results on Wireshark Top section: Time Source Destination Protocol Length Info eCPRI Testing User Manual D07-00-131P RevA00 Page 48 of 53...
  • Page 49 Middle and Lower Sections: Frame details Ethernet frame details Go back to top Go back to TOC eCPRI Testing User Manual D07-00-131P RevA00 Page 49 of 53...

  • Page 50: Warranty And Software

    Replace hardware which proves to be defective provided that the products that the customer elects to replace is returned to VeEX Inc. by the customer along with proof of purchase within thirty (30) days of the request by the customer, freight prepaid.

  • Page 51: Product Specifications

    8.0 Product Specifications The most recent product specifications for test units can be found on the VeEX web site at www.veexinc.com. Go back to TOC eCPRI Testing User Manual D07-00-131P RevA00 Page 51 of 53...

  • Page 52: Certification And Declarations

    All applicable products imported into the EU market after July 1, 2006 must pass RoHS compliance. For more information about RoHS as it relates to VeEX Inc., go to the VeEX web site at www.veexinc.com/ROHS. Go back to TOC...

  • Page 53: About Veex

    With a blend of advanced technologies and vast technical expertise, VeEX's products diligently address all stages of network deployment, maintenance, field service turn-up, and integrate service verification features across DSL, Fiber Optics, CATV/DOCSIS, Mobile backhaul and fronthaul (CPRI/OBSAI), next generation Transport Network, Fibre Channel, Carrier &...
