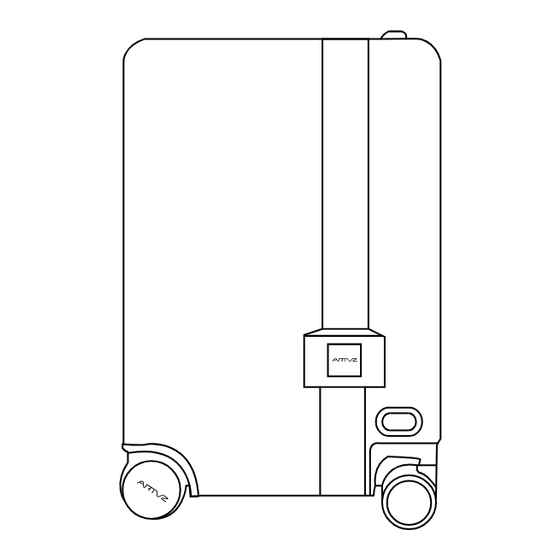

Thank you for purchasing AE20C-02 Follow and ride smart suitcase.
Please read this product manual carefully before use and follow all instructions,
cautions and warnings contained in this manual.
Failure to do so may result in product damage and will not be covered by the warranty.
Please keep the product manual in a safe place.
WeChat official public number

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AE20C-02 and is the answer not in the manual?

Questions and answers

Summary of Contents for ARTVZ AE20C-02

  • Page 1 Thank you for purchasing AE20C-02 Follow and ride smart suitcase. Please read this product manual carefully before use and follow all instructions, cautions and warnings contained in this manual. Failure to do so may result in product damage and will not be covered by the warranty.

  • Page 2: Table Of Contents

    一 Quick start -------------------------------------------------------------------------------------------------- 二 Products and accessories ------------------------------------------------------------------------------ 三 product manual ------------------------------------------------------------------------------------------- 四 Meet ARTVZ smart follow suitcase -------------------------------------------------------------------- 五 Product parameters ------------------------------------------------------------------------------------- 六 TSA fingerprint lock setting instructions ------------------------------------------------------------ 七 Remote control instructions --------------------------------------------------------------------------- 八 APP instructions ------------------------------------------------------------------------------------------ 九...

  • Page 3: 一 Quick Start

    Quick start The first step. Scan code to pay attention to the official WeChat public number, you can get the APP download link WeChat official public number WeChat Official subscription number APP scan code download button Step 2. Download and install the app Step 3.

  • Page 4: 二 Products And Accessories

    Products and accessories battery Power Adapter Follow and ride smart suitcase 跟随骑行智能行李箱 使用说明书 Follow and ride smart suitcase User’ s Manual Remote control Instruction manual Charging Cable When taking the battery, turn the cover to the vertical position to prevent the battery from bouncing against the cover.

  • Page 5: 三 Product Manual

    Qroduct manual Product Description: The lower side of the lever is the power of the love luggage smart phone, the power can be removed as a charging treasure. 1) Start the machine: press the power switch, the power display screen lights up, it is turned on. 2) Turn off...

  • Page 6: 四 Meet Artvz Smart Follow Suitcase

    Understand ARTVZ smart follow suitcase 1. Main box 2. ‘ARTVZ’ Logo 3. Telescopic pedal 4. Fingerprint lock 5. USB charging port 6. Battery display screen 7. On/Off button If the power supply is about 30%, the luggage may not work. This is normal. It is not a product...

  • Page 7: 五 Product Parameters

    Product parameters Luggage parameters: size 355X235X525mm weight 5.5KG Volume Basic Information Bayer PC Box material Fabric material Box material Quantity power 150W Motor specifications 2.0N·m Torque Maximum speed 7Km/h Smart follow One-click riding APP manipulation Three-in-one fingerprint lock Automatic recall Intelligent function Lost reminder Externally disassembled battery...

  • Page 8: 六 Tsa Fingerprint Lock Setting Instructions

    TSA fingerprint lock description 1)Fingerprint entry: First touch the fingerprint module,Press the setting button (SET) on the back to enter the fingerprint entry status. At this time, the LED blue light flashes quickly. Please press the finger fingerprint that needs to be entered. Each time the fingerprint is successfully captured, the blue light will be extinguished once and then continue to flash quickly.
  • Page 9 TSA fingerprint lock description Smart lock lighting system: colour Flashing frequency status blue Fingerprint status Gradually brightening blue Boot After gradually getting darker, it flashes twice immediately blue Electronic lock unlock After flashing twice quickly, fade in and fade out once blue Electronic lock normally closed Gradual lightening...

  • Page 10: 七 Remote Control Instructions

    Remote control instructions The remote control has been paired successfully at the factory and does not need to be paired again: Remote control pairing: Press the main button and the ride button at the same time, press and hold 1S until the buzzer emits a drop, drop, ..
  • Page 11 Remote control instructions 2） Cycling mode: start the trunk power switch and the remote control power switch, press the pedals on both sides, ride the trunk, gently step on the pedal, focus on the front, click on the villain pattern on the remote control, you can ride Row, slow start during riding, control the rocker to support front left and right operation, slide backwards to brake operation, slowly accelerate during riding, do not push the rocker directly to the upper end, turn left to right should be The rocker slides to the left or right and should be decelerated and turned when turning.

  • Page 12: 八 App Instructions

    4. Open the ARTVZ smart follow box and open the phone Bluetooth. 5. Click the Bluetooth icon in the upper left corner of the app page. (figure 2) 6.
  • Page 13 APP instructions 7. Enter the Bluetooth initial password (888888), and the “✓” symbol on the rear of TRUNK means the connection is successful. 8. Return to the main page and click on the remote control below to enter the remote control interface. 9.
  • Page 14 APP instructions 9. Click on the map on the home page to see your current speed, current trip, time, and battery level. (picture 5) 10. Click on the home page settings to change the suitcase name, Bluetooth password, and restore the default. It is possible to switch units between kilometers and miles, turn on anti-lost mode, and switch locks.

  • Page 15: 九 Precautions

    Precautions Precautions for use: 1. Please do not use the lever handle to lift the trunk.The suitcase can only be pushed along, not sideways. 2. When you step over the steps or steps, lift the suitcase. Pulling the suitcase over the steps or steps may cause the luggage to fall over and be damaged.

  • Page 16: 十 Legal Notice

    Legal Notice Legal Notice: This manual contains as much functionality as possible when printing. However, due to continuous improvement of product functions and design changes, the functions in the manual may still be inconsistent with the products you purchased, please understand. To the extent permitted by law, the company shall not be liable for any direct or indirect or other forms of personal injury, property damage or legal dispute arising out of the user's failure to comply with the instructions or precautions of this manual.

  • Page 17: 十一 After Sales Service

    Warranty Policy: ・ Each of ARTVZ's products is rigorously tested at the factory to ensure that our products meet stringent quality standards. Therefore, if the product has any defects and malfunctions caused by materials and manufacturing processes during the free warranty period, this warranty is based on this warranty.
  • Page 18 After sales service Free warranty content and deadline： Warranty content Types 保修期限 Case, aluminum frame, wheel base, lever, handle 2 years Battery and charger External charger, rechargeable lithium battery 1 year Electronic locks Master lock 1 year Motherboard Main control board and other electronic circuit boards 1 year Motor wheel Motor wheel and corresponding electronic circuit board...
  • Page 19 FCC Warning Statement  Changes or modifications not expressly approved by the party responsible for compliance  could void the user’s authority to operate the equipment. This equipment has been tested  and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC  Rules. These limits are designed to provide reasonable protection against harmful  interference in a residential installation. This equipment generates uses and can radiate radio  frequency energy and, if not installed and used in accordance with the instructions, may  cause harmful interference to radio communications. However, there is no guarantee that  interference will not occur in a particular installation. If this equipment does cause harmful  interference to radio or television reception, which can be determined by turning the  equipment off and on, the user is encouraged to try to correct the interference by one or  more of the following measures:  ‐‐  Reorient or relocate the receiving antenna.  ‐‐  Increase the separation between the equipment and receiver.  ‐‐ Connect the equipment into an outlet on a circuit different from that to which the  receiver is connected. ‐‐  Consult the dealer or an experienced radio/ TV technician for help.  This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
