Summary of Contents for PlayAlive SoundSystem One

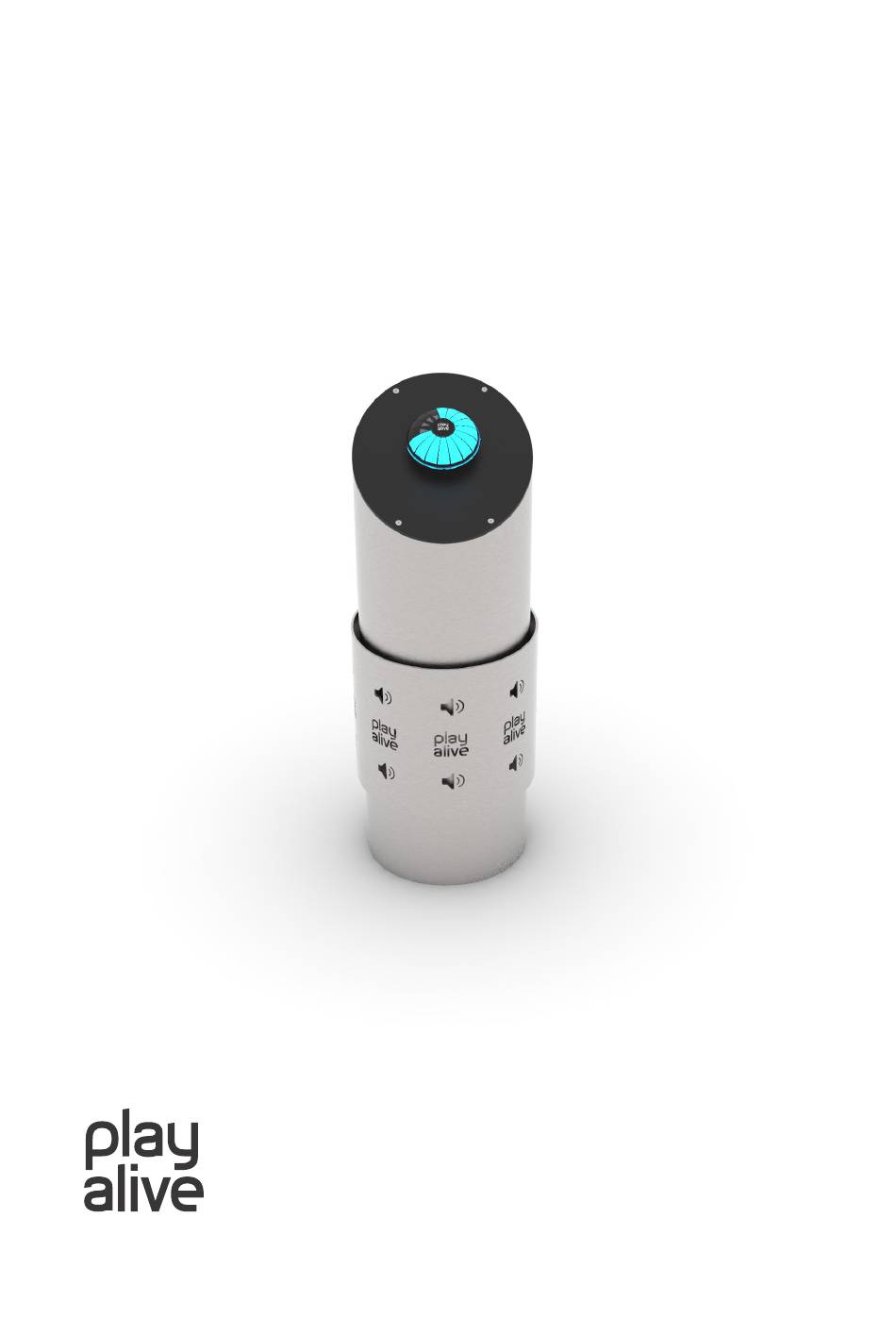

- Page 1 Installation manual SoundSystem One ®...
-
Page 2: Table Of Contents
Content 1. Content 2. Component overview 2.1 Electronics 2.2 Steel components 2.3 Other 3. Inside components & sign mounting 3.1 Sound console components 4. Sound console 4.1 Installation 5. Power supply 5.1 230V power supply for sound console 6. Start up 6.1 Start up the sound console 6.2 Connect the sound console to a mobile device 6.3 Adjust volume... -
Page 3: Component Overview
1 x Sign Installation manual 3 x Dual adhesive tape for console (this copy) or male/female velcro (either sourced locally or (for Sign) ordered by PlayAlive) 1 x Bit TX 25 x 25 MB 4 x M5 Countersunk 16 mm A2... -
Page 4: Inside Components & Sign Mounting
Inside components & sign mounting Overview of individual console components Sensor LOGO Sign info www Dual adhersive tape Top cover Holes for fastening the sensor Speaker 90W SoundSystem control box (230V AC / 24V DC) Conduit pipe with cable to power supply... -
Page 5: Sound Console
Installation Installing the sound console Sound console Seperate the console from its casting legs by remov- ing the 4 screws at the bottom of the console. (The top cover is reinstalled after casting and cable pulling.) Use pull wire in the conduit pipe to draw power cable. In order to avoid moisture from the ground, please seal Seal off the connection to... -
Page 6: Power Supply
Power supply 230V power supply for sound console The system runs on 230V AC. A 24V DC power supply is installed in the SoundSystem control box. 230V Connect the power cable to a power outlet in nearby building. Sound Console Power outlet (230V) 50 cm under ground... -
Page 7: Start Up
Once the installation has been completed and the power has been switched on, the sensor unit will light up in blue. When the sensor is touched a voice command will follow: “Connect to the PlayAlive SoundSystem by Bluetooth”. Connect the sound console to a mobile device Connect the sound console to a mobile device by opening Bluetooth settings on the mobile device and find “PlayAlive Sound System”.
