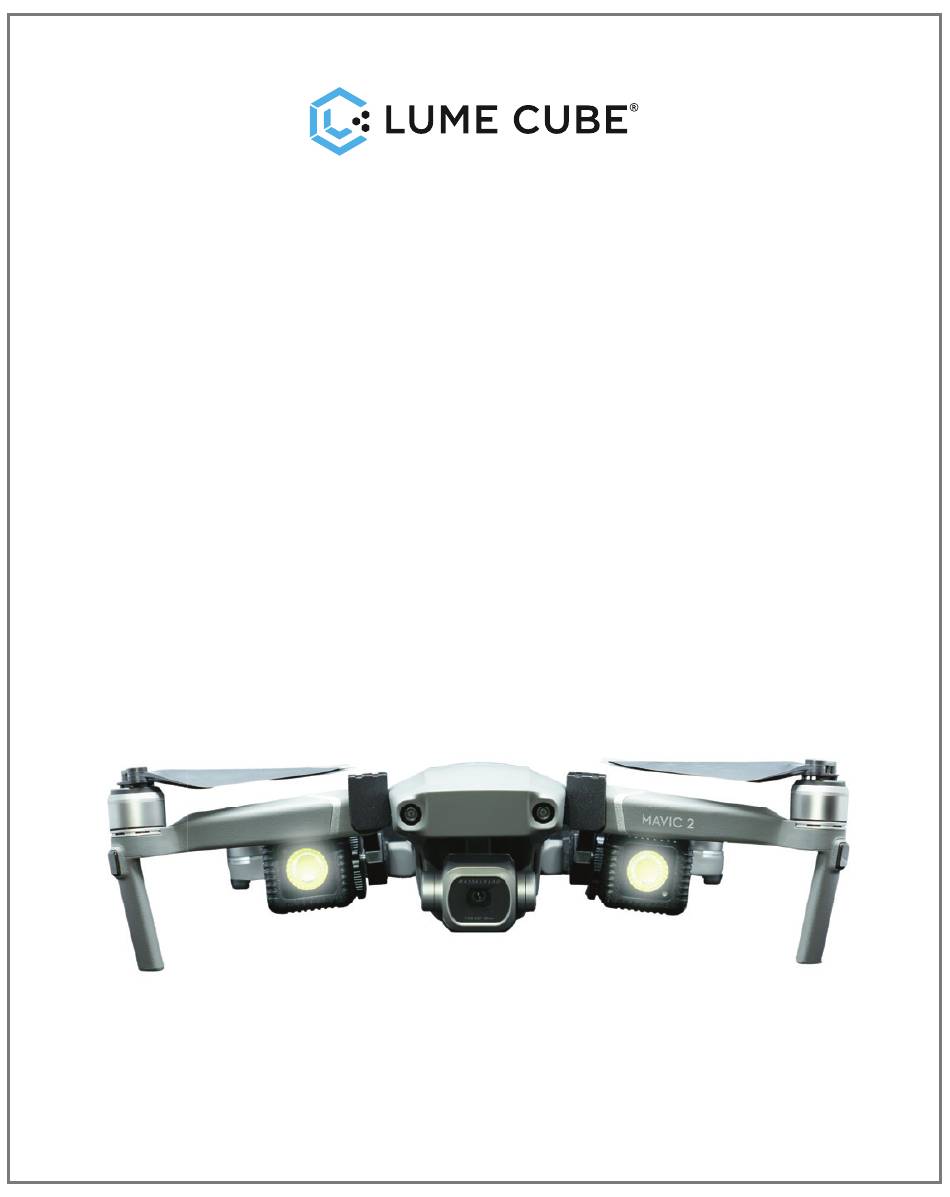

MAVIC
2 MOUNT
™
INSTALLATION
Read installation instructions to ensure mounting is
secure. Incorrect installation can lead to drone
operation error. Lume Cube cannot be held liable for
drone damage.
REVERSE SIDE FOR INSTRUCTIONS
Liability Disclaimer: Lume Cube is not liable for any damage to
drone caused by operator error or incorrect mounting to drone.
Advertisement
Table of Contents
Summary of Contents for Lume Cube MAVIC 2 MOUNT
- Page 1 Incorrect installation can lead to drone operation error. Lume Cube cannot be held liable for drone damage. REVERSE SIDE FOR INSTRUCTIONS Liability Disclaimer: Lume Cube is not liable for any damage to drone caused by operator error or incorrect mounting to drone.
- Page 2 Make sure the tension disk is screwed onto the ¼” 20 screw on the mounts (figure 1). You will use this to angle your Lume Cube in the desired direction. (figure 1) Mount your Lume Cubes to your Mavic 2 Mounts prior to mounting them on the drone.
- Page 3 Prior to mounting your lighting kit to the drone, make sure each mount is on the correct side by ensuring the buttons on your Lume Cubes are facing away from the drone, and the Lume Cube logos on the drone mounts are facing the body of the drone.
- Page 4 PUSH DOWN Back Leg Scan me for video instruction Happy flying! For Video Instructions visit: www.lumecube.com/mavic2installation *Liability Disclaimer: Lume Cube is not liable for any damage to drone caused by operator error or incorrect mounting to drone.
