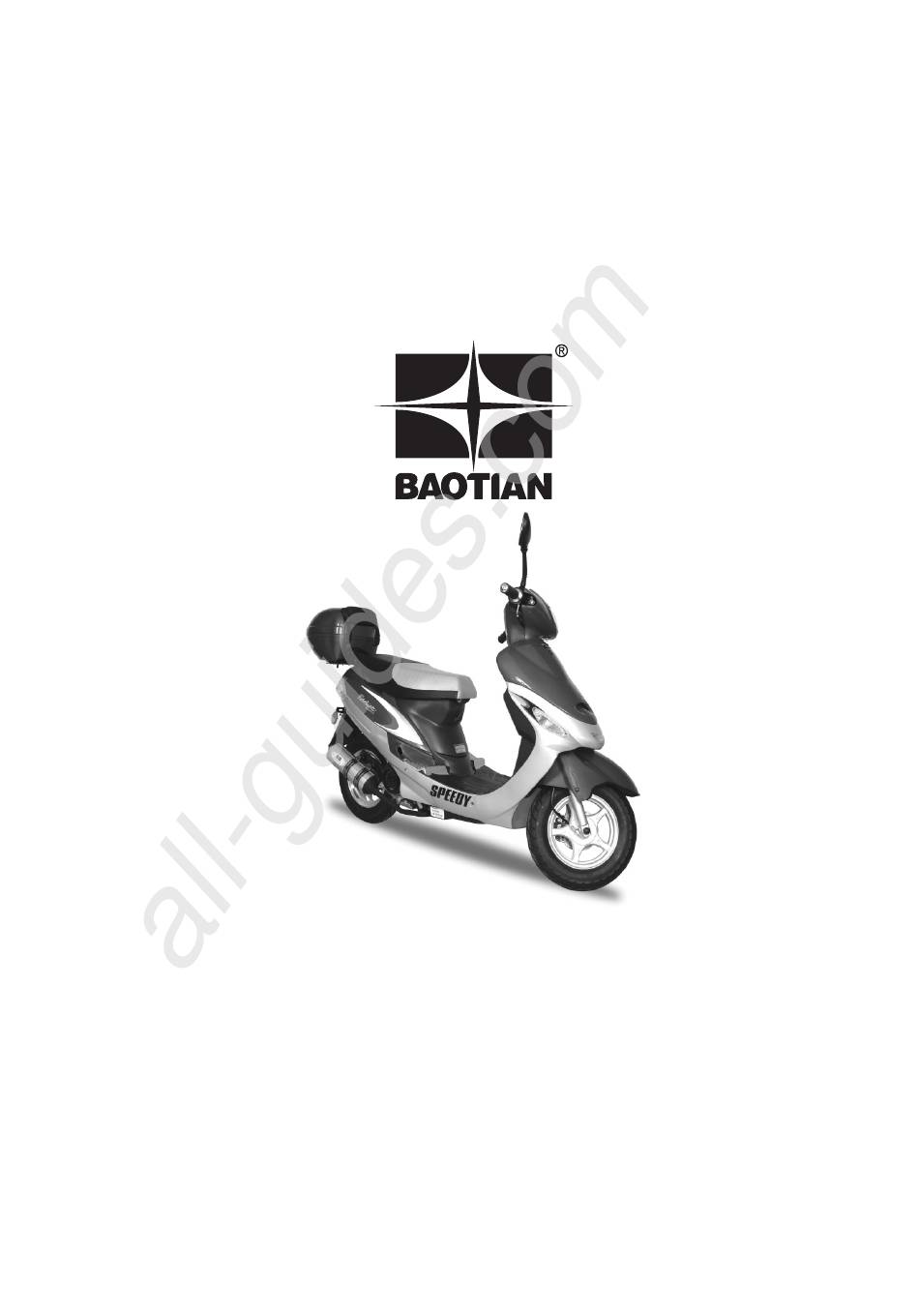

  • Page 1 All manuals and user guides at all-guides.com BT49QT-9 – User Manual, Service Schedule & History...
  • Page 2 INDUSTRIAL CO. LTD. We hope you enjoy your new Baotian BT49QT-9. This owner’s handbook contains information necessary: • to enable you to get to know your Baotian BT49QT-9, to use it to the best advantage and to benefit from all the latest developments which it incorporates.

  • Page 3: Table Of Contents

    All manuals and user guides at all-guides.com CONTENTS Guidance................................1 Names of parts..............................4 Controlling parts..............................5 Starting lever..............................6 Fuel tank ................................6 Fuel and oil ...............................6 Pre-riding inspection ............................7 Engine starting ..............................8 Running-in................................9 Regular maintenance............................10 Technical Parameters .............................15 Electrical Circuit Chart .............................17...

  • Page 4: Guidance

    All manuals and user guides at all-guides.com Guidance Please keep safety in mind and observe the regulations of transportation while enjoying your ride. Pay attention to the following rules: 1. Pre-riding inspection IMPORTANT Please read the details in the relevant chapter for your safety.
  • Page 5 5. Positions of the numbers Frame When your motorcycle needs to be inspected, number repaired or undertake any service, these numbers will assist your Baotian Dealer when servicing your motorcycle. Please note down your numbers here: The frame number: ..........The engine number: ..........
  • Page 6 All manuals and user guides at all-guides.com 1 2 3 4 5 6 drum brake/1 seat) (Disk brake/2 seat) (1) Front signal light (7) Seat lock (13 Rear signal light) (2) Left front turning light (8) Left rear turning light (14) Stand (3) Head light (9) Starting pedal...

  • Page 7: Names Of Parts

    All manuals and user guides at all-guides.com 1. Rear brake lever A. Horn button Hold it tight and the rear brake functions B. Turning signal switch Left turning light Right turning light ¶ C. Switch for high/low beam lights 3 Instruments and indicating lights 2.

  • Page 8: Controlling Parts

    All manuals and user guides at all-guides.com 4. Front brake lever 6. Ignition switch Press it tightly and the front brake functions. 5. Switches on the right handle The whole circuit is cut. Engine and lights cannot be operated and the key can be withdrawn.

  • Page 9: Starting Lever

    All manuals and user guides at all-guides.com Warning: Starting lever Starting lever is for kick starting the engine. ◆ Turn off the engine when refilling the tank. ◆ Turn off the cap slowly. ◆ Align the mark “△” on the cap to the , mark“ ” the fuel tank.

  • Page 10: Pre-Riding Inspection

    All manuals and user guides at all-guides.com Pre-riding inspection Please check the following parts before you drive. Items Inspection content Handle bar 1.Easy movement. 2. No loose appearance Brake system 1.Check for fraying of cables. 2. Easy function Tyres 1. Correct pressure. 2. No splits in rubber Fuel Sufficient fuel Engine oil...

  • Page 11: Engine Starting

    All manuals and user guides at all-guides.com Engine starting 1. Please check the volume of engine oil and fuel 3. Engine Starting before starting. The main stand should be stood Push the starter button and then the engine up while starting the engine. starts.

  • Page 12: Running-In

    All manuals and user guides at all-guides.com Warning: Warning: ◆ 5 seconds is the maximum limit for each ◆ After the engine has started, the kick start starting and 10 seconds is the minimum pedal should be taken back to its original interval.
  • Page 13 All manuals and user guides at all-guides.com 1. Battery 3. Air cleaner • 12V/4Ah battery • When the voltage is less than 11.5V, please use kicking start in stead of electric starting. • Place the ignition switch to OFF position before battery replacement.
  • Page 14 All manuals and user guides at all-guides.com 4. Spark plug 6. Engine oil • Clean the carbon deposit on the spark plug with a Replace the engine oil with engine warmed up. piece of hard wire or steel needle. • Adjust the gap to 0.6-0.7mm with a feeler gauge. •...
  • Page 15 Disk brake Grip the brake lever and check the wear and tear indicator. If the indicator nearly touched the brake disc, please ask your Baotian Dealer to change the brake pads. • Check the following items of brake system before driving the motorcycle: 2.

  • Page 16: Regular Maintenance

    All manuals and user guides at all-guides.com 8. Tyres Brake fluid level • It has been filled with the special brake fluid Insufficient tyre pressure increases wear to them before the motorcycle leaves the factory. Fluid and affects the riding stability. Please check the tyre should only ever be replace or filled with DOT4 pressure and tread depth when carrying out regular brake fluid.
  • Page 17 All manuals and user guides at all-guides.com 9. Starter motor How to change gear oil Check the fastening bolts and the contact • Stand up the main stand. brushes, and replace them if necessary. • Take off the oil plug for refill. 10.

  • Page 18: Technical Parameters

    All manuals and user guides at all-guides.com Technical Parameters Size Length 1660mm Width 680mm Height 1070mm Wheel base 1195mm Min. distance above ground 80mm Weight Unloaded weight 85kg Loaded weight 75km / 150kg (1 seat / 2 seats) Mass weight 165kg / 235kg (1 seat / 2 seats) Capacity Max.
  • Page 19 All manuals and user guides at all-guides.com Regular maintenance Volume of the fuel tank 6.5L Volume of the engine oil tank Engine Model BT139QMB Type 4 stroke Cylinder Bore and stroke 39 x 41.5mm Cylinder volume 49.5ml Compression ratio 10.5:1 Max.

  • Page 20: Electrical Circuit Chart

    All manuals and user guides at all-guides.com Electrical Circuit Chart Lights switch Electric starting button Starting Motor relay Clutch switch Ignition switch Fuel oil Carbueretor Rectifter Br Y L/W G Y/R B Battery Starting Motor R/W Y/W Decorative light Front right turning signallight Right turning signal light Meter light Hight beam light...
  • Page 21 This cover is extended to the registered owner. In the event of change of ownership, 2. No liability will be accepted for damage caused by: please send written advice within 14 days of change to Baotian UK, Casino Industrial Estate, Canterbury Road, Wingham, Kent CT3 1NL. Please enclose copies of service a.
  • Page 22 All manuals and user guides at all-guides.com INITIAL INSPECTION SERVICE 2 Mileage: Mileage: Date: Date: Dealer stamp: Dealer stamp: SERVICE 1 SERVICE 3 Mileage: Mileage: Date: Date: Dealer stamp: Dealer stamp:...
  • Page 23 All manuals and user guides at all-guides.com SERVICE 4 SERVICE 6 Mileage: Mileage: Date: Date: Dealer stamp: Dealer stamp: SERVICE 5 SERVICE 7 Mileage: Mileage: Date: Date: Dealer stamp: Dealer stamp:...
  • Page 24 All manuals and user guides at all-guides.com SERVICE 8 SERVICE 10 Mileage: Mileage: Date: Date: Dealer stamp: Dealer stamp: SERVICE 9 SERVICE 11 Mileage: Mileage: Date: Date: Dealer stamp: Dealer stamp:...
  • Page 25 All manuals and user guides at all-guides.com SERVICE 12 SERVICE 14 Mileage: Mileage: Date: Date: Dealer stamp: Dealer stamp: SERVICE 13 SERVICE 15 Mileage: Mileage: Date: Date: Dealer stamp: Dealer stamp:...
  • Page 26 All manuals and user guides at all-guides.com Maintenance Schedule Every 2 300 KM 1,000 KM 3,000 KM 6,000 KM 9,000 KM 12,000 KM Years Engine Oil Replace Replace Replace Replace Replace Replace Gear Oil Replace Replace Replace Oil Strainer Clean Clean Clean Replace...
