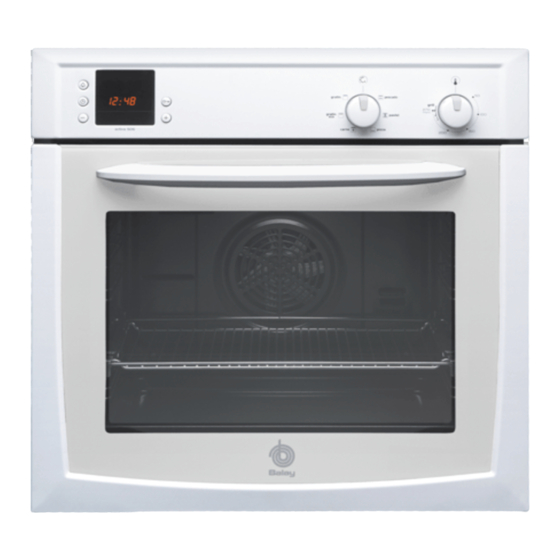

BALAY 3HF506B Manual

Hide thumbs Also See for 3HF506B:
Table of Contents

Advertisement

Quick Links

12 00
Hornos Empotrables
ES /
Fornos Encastraveis
PT /
All manuals and user guides at all-guides.com
(página 3)
(pagina 30)
Instrucciones de uso
Instruções de uso

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3HF506B and is the answer not in the manual?

Questions and answers

Related Manuals for BALAY 3HF506B

Summary of Contents for BALAY 3HF506B

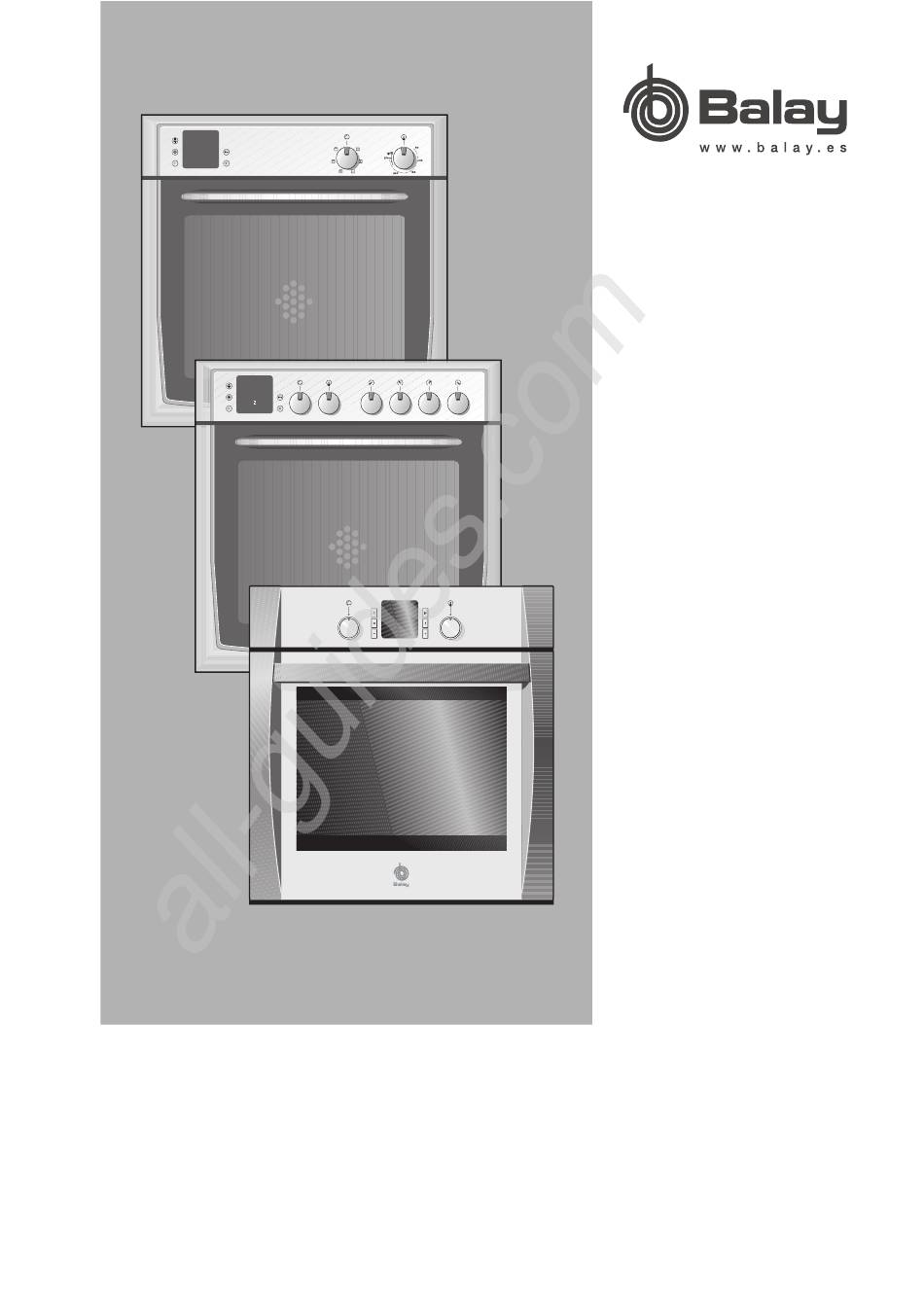

  • Page 1 All manuals and user guides at all-guides.com 12 00 Hornos Empotrables Instrucciones de uso ES / (página 3) Fornos Encastraveis Instruções de uso PT / (pagina 30)

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com Table of contents Important information ..... . . Before installation ......Safety information .
  • Page 3 All manuals and user guides at all-guides.com Table of contents Care and cleaning ......Oven exterior .

  • Page 4: Important Information

    All manuals and user guides at all-guides.com Important information Read this instruction manual carefully. Only then will you be able to operate your cooker safely and correctly.The manufacturer does not accept any re sponsibility if the instruction manual is not followed. Please keep the instruction and installation manual in a safe place.

  • Page 5: Safety Information

    All manuals and user guides at all-guides.com Safety information This appliance is intended for domestic use only. Only use the cooker for food preparation. Open the oven door carefully. Hot steam may escape. Hot oven Never touch the internal surfaces of the oven or the heating elements.

  • Page 6: Your New Cooker

    All manuals and user guides at all-guides.com Cooling with the oven door Only leave the oven to cool with the door closed. Do open not allow anything to become trapped in the oven door. Even if you only leave the oven door open slightly, the fronts of adjacent units may become damaged over time.

  • Page 7: Function Control Knob (Depending On Model)

    All manuals and user guides at all-guides.com Temperature Display panel and Function selector control buttons selector Function control knob (depending on Use the function selector to select the type of heating model) for the oven. Your appliance is equipped with some or all of the following types of heating: Top/ bottom heating Hot air...

  • Page 8: Temperature Control Knob (Depending On Model)

    All manuals and user guides at all-guides.com Temperature control knob (depending on Use the temperature control knob to set the temperature or grill setting: model) Temperature 50 270 Márgenes de temperatura en ºC Grill Low grill Medium grill High grill On the temperature control knob on certain models there is a recommendation, alongside each temperature level (fk, bkk, bfk, ckk, chk), for a food...

  • Page 9: Suggestions For Use (Depending On The Model)

    All manuals and user guides at all-guides.com Suggestions for use (depending on the model) The oven has different types of heating. Using these, you can always select the preparation method most suited to each food. Top and bottom heating. The heat comes from above and below the food. This type of heating is ideal for preparing any type of baked fish dish.
  • Page 10 All manuals and user guides at all-guides.com Infra red grilling with circulating air The grill and the fan are switched on and off alternately. While the grill is temporarily off, the fan circulates the heat produced by the grill around the food.

  • Page 11: The Oven And Its Accessories (Depending On The Model)

    All manuals and user guides at all-guides.com The oven and its accessories (depending on the The accessories can be placed at 5 different levels in model) the oven. Of these 5 levels, two are equipped with telescopic guides (see figure). These guides may be inserted into, or removed from, the oven by gently pushing or pulling them.

  • Page 12: Cooling Fan

    All manuals and user guides at all-guides.com Cooling fan The oven is fitted with a cooling fan. It switches itself on and off as necessary. The warm air escapes above the door. Before first use Check whether the * symbol and three zeros are flashing on the oven's display panel.

  • Page 13: Setting The Oven

    All manuals and user guides at all-guides.com Setting the oven You have various options for setting the oven. Switching off the oven When your meal is ready, switch off the oven yourself. manually The oven switches off You can leave the kitchen for a long period. automatically The oven switches on and You can put your meal in the oven in the morning, for...

  • Page 14: Have The Oven Switch Off Automatically

    All manuals and user guides at all-guides.com Use the temperature control knob to select the temperature or the grilling level. (i.e.: 190ºC) Switching off When the food is ready, turn the function knob to position 0. Changing the temperature The temperature or the grilling level can be changed at any time.
  • Page 15 All manuals and user guides at all-guides.com Select the cooking time required using the + or - buttons. + button suggested value= 10 minutes. - button suggested value=5 minutes. After a few seconds, the oven will start. The ? symbol will light up in the indicator panel and will remain on.

  • Page 16: Have The Oven Switch On And Off Automatically

    All manuals and user guides at all-guides.com Have the oven switch on and off automatically Example: The time is 11:15 h. The dish takes 45:00 Carry out steps 1 to 4. minutes and should be ready at 12:45 Press the * button several times until the ! symbol flashes You will be able to see from the indicator...

  • Page 17: Fast Heat (Depending On The Model)

    All manuals and user guides at all-guides.com The time has elapsed You will hear a high pitched sound. The oven switches itself off automatically. Press the * button twice and turn the function control knob to position 0. Note Modifications can be made while the symbols are flashing.

  • Page 18: How To Program

    All manuals and user guides at all-guides.com How to program Depending on your oven model, you will have to follow the steps shown in point A or in point B. Point A: if your oven has the ! button you should carry out the following steps: Example: 20 minutes Press the * button several times so that the Q...
  • Page 19 All manuals and user guides at all-guides.com Point B: if your oven has the Q button you should carry out the following steps: Example: 20 minutes Press the Q button. The ¦ symbol will flash in the indicator panel. Select the time for the timer alert using the + or - button.

  • Page 20: Childproof Lock

    All manuals and user guides at all-guides.com Childproof lock A locking system is available so that children cannot switch the oven on accidentally. The oven does not need to be switched off to activate Locking the oven this. Press the [ button until the [ symbol appears in the indicator panel.

  • Page 21: Oven

    All manuals and user guides at all-guides.com Use stainless steel care products. Follow the manufacturer's instructions. Try out the product on a small area first, before using on the whole surface. Appliances with aluminium Use a mild window cleaning detergent. Wipe the area fronts with a soft window cloth or a fluff free micro fibre cloth, using a horizontal action without applying...
  • Page 22 All manuals and user guides at all-guides.com Folding down the Fold down the grill element to facilitate cleaning of the grill element oven cover. Warning: the oven must be cold. There is a risk of burning. Pull the handle on the folding grill towards the front and push it upwards until you hear it click into place.

  • Page 23: The Clean Function (Depending On Model)

    All manuals and user guides at all-guides.com Replacing the oven The oven interior's side walls can be replaced by new interior's side walls ones if required. They are supplied by our After Sales Service, if you provide the E-Nr and FD numbers. These details can be found on the ratings label, which is located on the lower right hand side of the oven.

  • Page 24: Cleaning The Glass Panels

    All manuals and user guides at all-guides.com How to program Select the heating type 3 using the function control knob. Use the temperature control knob to set the temperature level to 270 ºC Press the ! button. The symbol will light up in the indicator panel. The Clean function has been activated.

  • Page 25: Cleaning The Rails

    All manuals and user guides at all-guides.com Slide out the panel. (Fig. B) Clean the glass panel with glass cleaner and a soft cloth. Push the panel back in. Make sure that the smooth surface is facing outwards. Replace the cover and screw it back on. Refit the oven door.

  • Page 26: Troubleshooting

    All manuals and user guides at all-guides.com Troubleshooting Should a malfunction occur, it is often only due to a minor fault. Please read the following instructions before calling the after-sales service: Problem Possible cause Comments/remedy The oven does not work. Blown fuse.

  • Page 27: Packaging And Old Appliances

    All manuals and user guides at all-guides.com Replacing the glass cover The glass cover on the oven light must be replaced if it is damaged. Replacement glass covers may be obtained from the after sales service. To this end, please specify the E number and FD number of your appliance.
  • Page 28 Para a protecção do meio ambiente: utilizamos papel reciclado. 5430003412 (1W00P4) 01 8503 BSH Electrodomésticos España, S.A. Balay en Internet Consulte el catálogo completo CIF. A 28 893 550 de productos en: www.balay.es C/ Itaroa 1 • 31620 Huarte-Pamplona (Navarra) • ESPAÑA...
