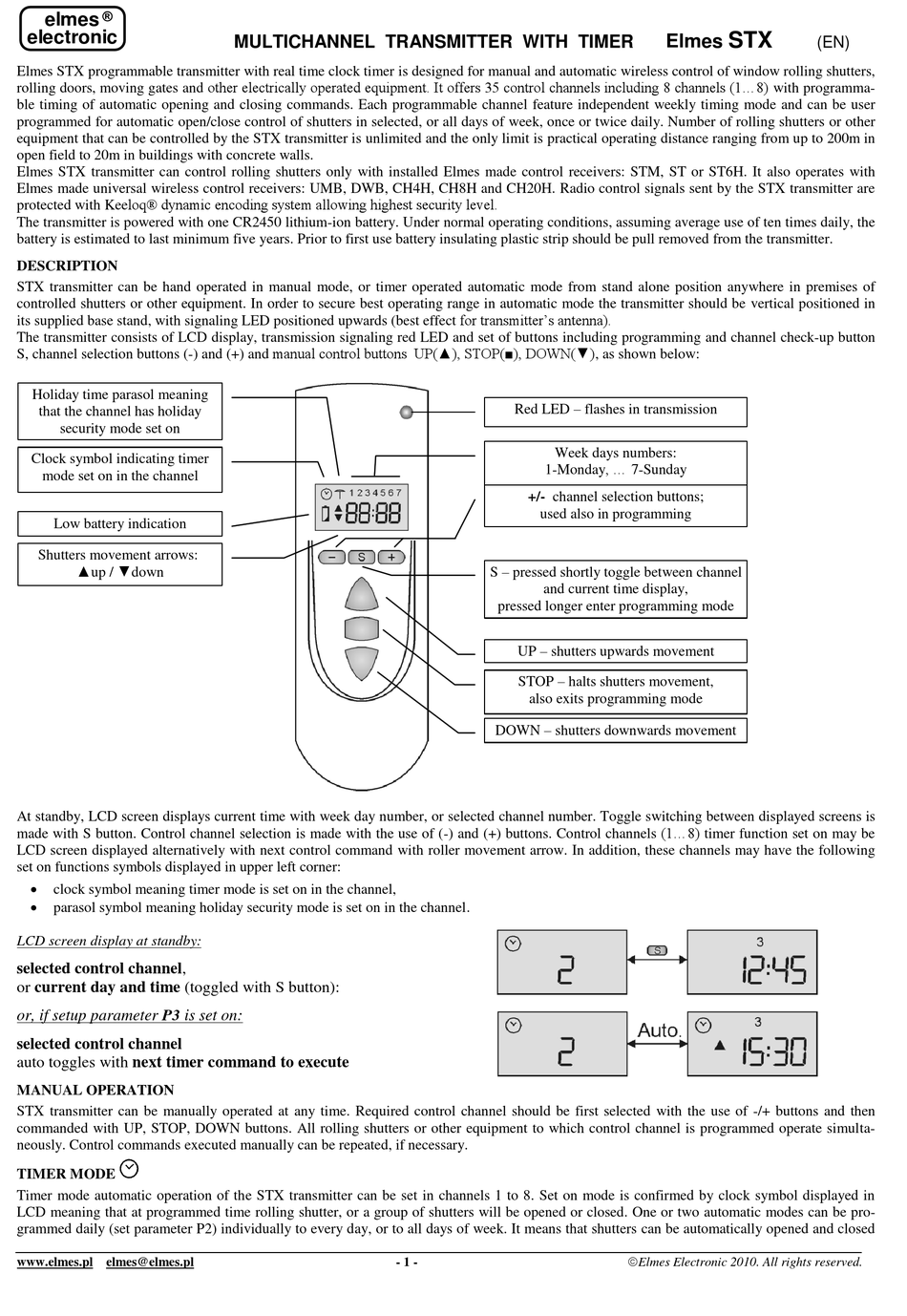

Elmes Electronic STX Manual

elmes
electronic
Elmes STX programmable transmitter with real time clock timer is designed for manual and automatic wireless control of window rolling shutters,
rolling doors, moving gates and other electrically operated equipment. It offers 35 control channels including 8 channels (1...8) with programma-
ble timing of automatic opening and closing commands. Each programmable channel feature independent weekly timing mode and can be user
programmed for automatic open/close control of shutters in selected, or all days of week, once or twice daily. Number of rolling shutters or other
equipment that can be controlled by the STX transmitter is unlimited and the only limit is practical operating distance ranging from up to 200m in
open field to 20m in buildings with concrete walls.
Elmes STX transmitter can control rolling shutters only with installed Elmes made control receivers: STM, ST or ST6H. It also operates with
Elmes made universal wireless control receivers: UMB, DWB, CH4H, CH8H and CH20H. Radio control signals sent by the STX transmitter are
protected with Keeloq® dynamic encoding system allowing highest security level.
The transmitter is powered with one CR2450 lithium-ion battery. Under normal operating conditions, assuming average use of ten times daily, the
battery is estimated to last minimum five years. Prior to first use battery insulating plastic strip should be pull removed from the transmitter.

DESCRIPTION

STX transmitter can be hand operated in manual mode, or timer operated automatic mode from stand alone position anywhere in premises of
controlled shutters or other equipment. In order to secure best operating range in automatic mode the transmitter should be vertical positioned in
its supplied base stand, with signaling LED positioned upwards (best effect for transmitter's antenna).
The transmitter consists of LCD display, transmission signaling red LED and set of buttons including programming and channel check-up button
S, channel selection buttons (-) and (+) and manual control buttons UP(▲), STOP(■), DOWN(▼), as shown below:
Holiday time parasol meaning
that the channel has holiday
security mode set on
Clock symbol indicating timer
mode set on in the channel
Low battery indication
Shutters movement arrows:
▲up / ▼down
At standby, LCD screen displays current time with week day number, or selected channel number. Toggle switching between displayed screens is
made with S button. Control channel selection is made with the use of (-) and (+) buttons. Control channels (1...8) timer function set on may be
LCD screen displayed alternatively with next control command with roller movement arrow. In addition, these channels may have the following
set on functions symbols displayed in upper left corner:

clock symbol meaning timer mode is set on in the channel,

parasol symbol meaning holiday security mode is set on in the channel.
LCD screen display at standby:
selected control channel,
or current day and time (toggled with S button):
or, if setup parameter P3 is set on:
selected control channel
auto toggles with next timer command to execute

MANUAL OPERATION

STX transmitter can be manually operated at any time. Required control channel should be first selected with the use of -/+ buttons and then
commanded with UP, STOP, DOWN buttons. All rolling shutters or other equipment to which control channel is programmed operate simulta-
neously. Control commands executed manually can be repeated, if necessary.

TIMER MODE

Timer mode automatic operation of the STX transmitter can be set in channels 1 to 8. Set on mode is confirmed by clock symbol displayed in
LCD meaning that at programmed time rolling shutter, or a group of shutters will be opened or closed. One or two automatic modes can be pro-
grammed daily (set parameter P2) individually to every day, or to all days of week. It means that shutters can be automatically opened and closed
www.elmes.pl elmes@elmes.pl
MULTICHANNEL TRANSMITTER WITH TIMER
- 1 -
Red LED – flashes in transmission
Week days numbers:
1-Monday, ... 7-Sunday
+/- channel selection buttons;
used also in programming
S – pressed shortly toggle between channel
and current time display,
pressed longer enter programming mode
UP – shutters upwards movement
STOP – halts shutters movement,
also exits programming mode
DOWN – shutters downwards movement
