Summary of Contents for Witeg WBA Series

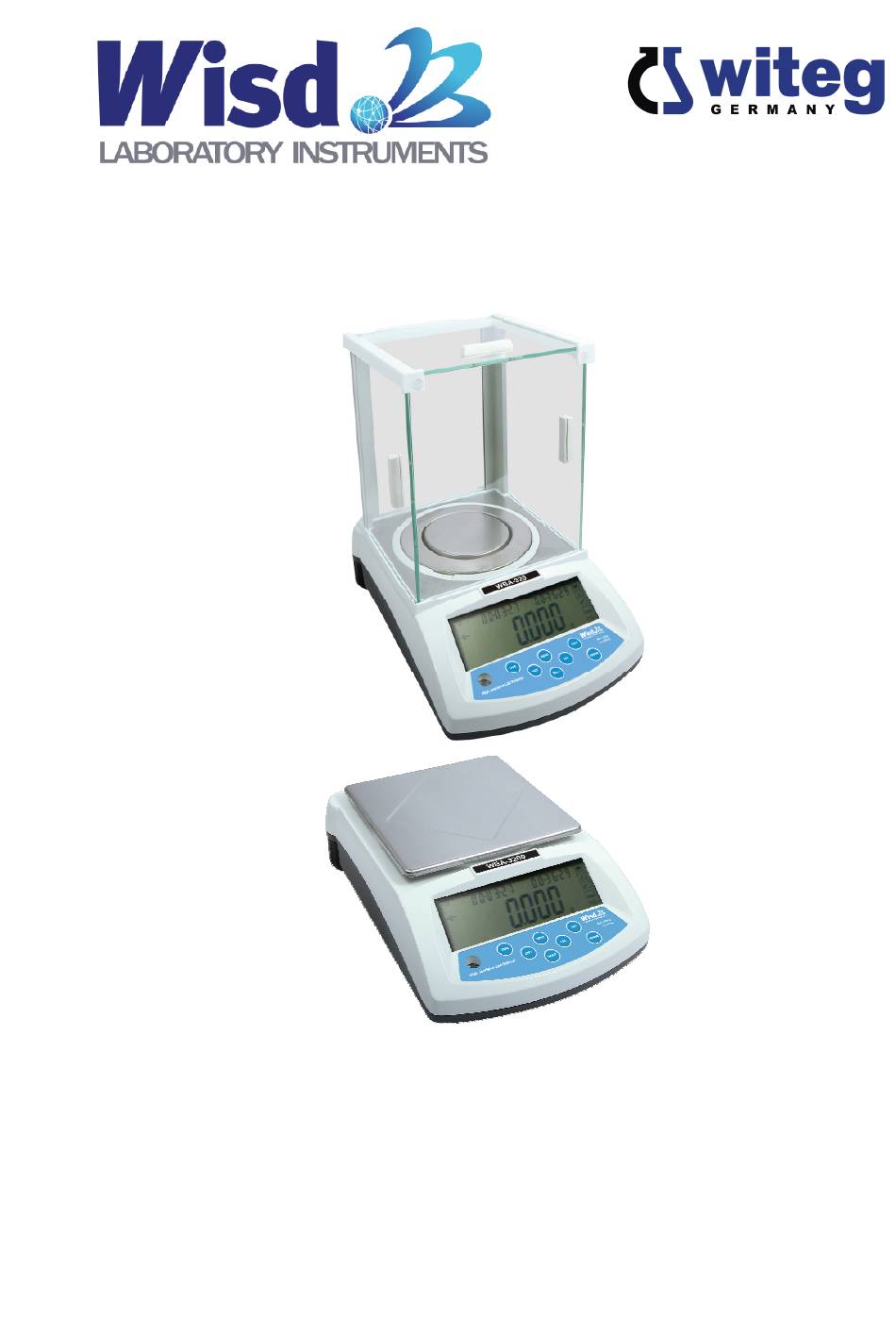

- Page 1 Standard Analytical Balance Operating Manual written for WBA -320/ -620/ -3200/ -6200 witeg Labortechnik GmbH...
-
Page 2: Table Of Contents
6.4.5 Comparative measurement ......................17 6.4.6 Setting and releasing of metering unit..................18 6.5 Unit of Balance......................19 7 Maintenance and cleaning..................20 8 Troubleshooting Guide .................... 20 9 Technical data......................21 10 Certificate........................ 22 witeg Labortechnik GmbH, WBA Standard Analytical Balance... -
Page 3: General
Check the power supply cord before you stick it into the electrical outlet. Do not use power bars to extend the power supply cord. Only use extension cables with sufficient cable cross section. witeg Labortechnik GmbH, WBA Standard Analytical Balance... - Page 4 You have to keep the device clean if you want to get a longer life of it. Wear corresponding protective work clothing during the usage. Pull out the power cable if you didn’t want to use the device for a longer time. witeg Labortechnik GmbH, WBA Standard Analytical Balance...
-
Page 5: Product Introduction
5. Please, do not put the scale in the place where there is severe moisture for a long time. If you put a cold scale in the warm environment, moisture can be condensed on the surface of the balance. In this case, the balance should be used after adapting in the room temperature. witeg Labortechnik GmbH, WBA Standard Analytical Balance... -
Page 6: Accessoires
2 hours. 4 Accessoires 4.1 Standard scope of delivery Component Photo Component Name No. of Configuration Standard 1 unit Analytical Balance Calibration Weight (WBA-6200 - none) Weighing Plate AC Power Supply Operating manual witeg Labortechnik GmbH, WBA Standard Analytical Balance... -
Page 7: Optional Accessories
Thermal Label Paper Package, DH.WBA0771 5XLabel Paper Roll, for "WBA-770" Glass Draft Shield, 3 Slide Doors DH.WBA0003 (Left, Right, Top), 175 X 195 X h230 mm 5 Product description 5.1 General survey WBA-320/ -3200/ -6200 WBA-620 witeg Labortechnik GmbH, WBA Standard Analytical Balance... -
Page 8: Controller
Press to manually print or to send a communication. PRINT Press to move the parameters. Press when you want to adjust the weight. Press to select the value of the variable. POWER Power On/Off witeg Labortechnik GmbH, WBA Standard Analytical Balance... -
Page 9: Product Usage
Figure. The water drop located in the center means the equilibrium condition. Please check this condition before use. witeg Labortechnik GmbH, WBA Standard Analytical Balance... -
Page 10: Basic Functions
- - - - - - - screen, and the value to be calibrated is 2000.00g blinking. (WBA-3200 model) 3. Put the Calibration Weight of the 2000.00g components of the product on the (WBA-3200 model) balance. witeg Labortechnik GmbH, WBA Standard Analytical Balance... - Page 11 8. 1000.00g will be blinking on the LCD 1000.00g screen. (WBA-3200 model) 9. Put the Calibration Weight of 1,000g 1000.00g on the balance. (WBA-3200 model) 10. To put down the balance weight from 0.00g the balance, the calibration is completed. witeg Labortechnik GmbH, WBA Standard Analytical Balance...
-
Page 12: Date Set-Up
11. Once you have set the current date, press the CAL button to return to the previous menu. 12. To press the TARE button twice, return TARE X 2 to the initial menu. witeg Labortechnik GmbH, WBA Standard Analytical Balance... -
Page 13: Time Set-Up
11. To return to the previous menu by pressing CAL button on the screen to be set, the setting is completed. 12. To press the TARE button twice, return TARE to the initial menu. witeg Labortechnik GmbH, WBA Standard Analytical Balance... -
Page 14: Display Back-Light On/Off
2. Briefly press the MENU (MAIN) button MENU again. Check the change of the display screen. (MAIN) 3. Briefly press the CAL button again. MENU X 6 4. Briefly press six times the MENU(MAIN) button. (MAIN X 6) witeg Labortechnik GmbH, WBA Standard Analytical Balance... -
Page 15: Application Functions
10 pcs 7. The sample quantities of the same 0 pcs mass can be understood. 8. To change to the initial menu, TARE 0.00g press and hold the TARE button. witeg Labortechnik GmbH, WBA Standard Analytical Balance... -
Page 16: Density Measurement Of Solid Sample
10. To briefly press the CAL button, the measured value is saved and the density measurement value is automatically displayed. 11. To change to the initial menu, press TARE and hold the TARE button. witeg Labortechnik GmbH, WBA Standard Analytical Balance... -
Page 17: Density Measurement Of Liquid Sample
11. To briefly press the CAL button, the measured value is saved and the density measurement value is automatically displayed. 12. To change to the initial menu, press TARE and hold the TARE button. witeg Labortechnik GmbH, WBA Standard Analytical Balance... -
Page 18: Dynamic Measurement
9. If the measured value is initialized by pressing the TARE button and press the CAL button, the dynamic weight can be measured again. 10. To change to the initial menu, press TARE and hold the TARE button. witeg Labortechnik GmbH, WBA Standard Analytical Balance... -
Page 19: Comparative Measurement
2. Briefly press the CAL button. Check the change of the display screen. 3. Enter into the dynamic weight measurement mode by briefly MENU X 3 (MAIN X 3) pressing three times the MENU(MAIN) button. witeg Labortechnik GmbH, WBA Standard Analytical Balance... -
Page 20: Setting And Releasing Of Metering Unit
Enter into the unit change mode. (MAIN) 5. To briefly the CAL button, unit and the unit ON/OFF selection will appear. 6. The change of ON/OFF is possible PRINT by the PRINT button. witeg Labortechnik GmbH, WBA Standard Analytical Balance... -
Page 21: Unit Of Balance
0.56438222222 taiwan Tel 0.02666666000 Singapore Tel 0.02645544638 Hong Kong Tel 0.02671725000 tola 0.08573532418 T/A/R Tola/Ana/ rati T.A.R /A/R Tola/Mna/ rati T.M.R Mesghal 0.21700000000 0.06578947437 momme 0.26670000000 Parts per pound 1.12876677120 Kilogram 0.00100000000 witeg Labortechnik GmbH, WBA Standard Analytical Balance... -
Page 22: Maintenance And Cleaning
If other problems arise, or one of the above not solves problems, please contact your official agent or the manufacturer. Reparations and amendments should only made by witeg authorized people. Contraventions exclude the warranty. witeg Labortechnik GmbH, WBA Standard Analytical Balance... -
Page 23: Technical Data
Digital Super Size LCD with Back - Light Function Dimension (wxdxh) & Net 195 x 295 x 90 mm / 2,6 kg Weight Power supply DC 12 V, with AC 220V Adapter, 60Hz witeg Labortechnik GmbH, WBA Standard Analytical Balance... -
Page 24: Certificate
This certificate excludes damages by natural disasters or incorrect usages by the costumer. Please look on your account and complete following table: Article Standard Analytical Balance Serialno. Date witeg Labortechnik GmbH Am Bildacker 16 D-97877 Wertheim TEL: +49-9342-9301-0 FAX: +49-9342-9301-77 Email: info@witeg.de www.witeg.de witeg Labortechnik GmbH, WBA Standard Analytical Balance...
