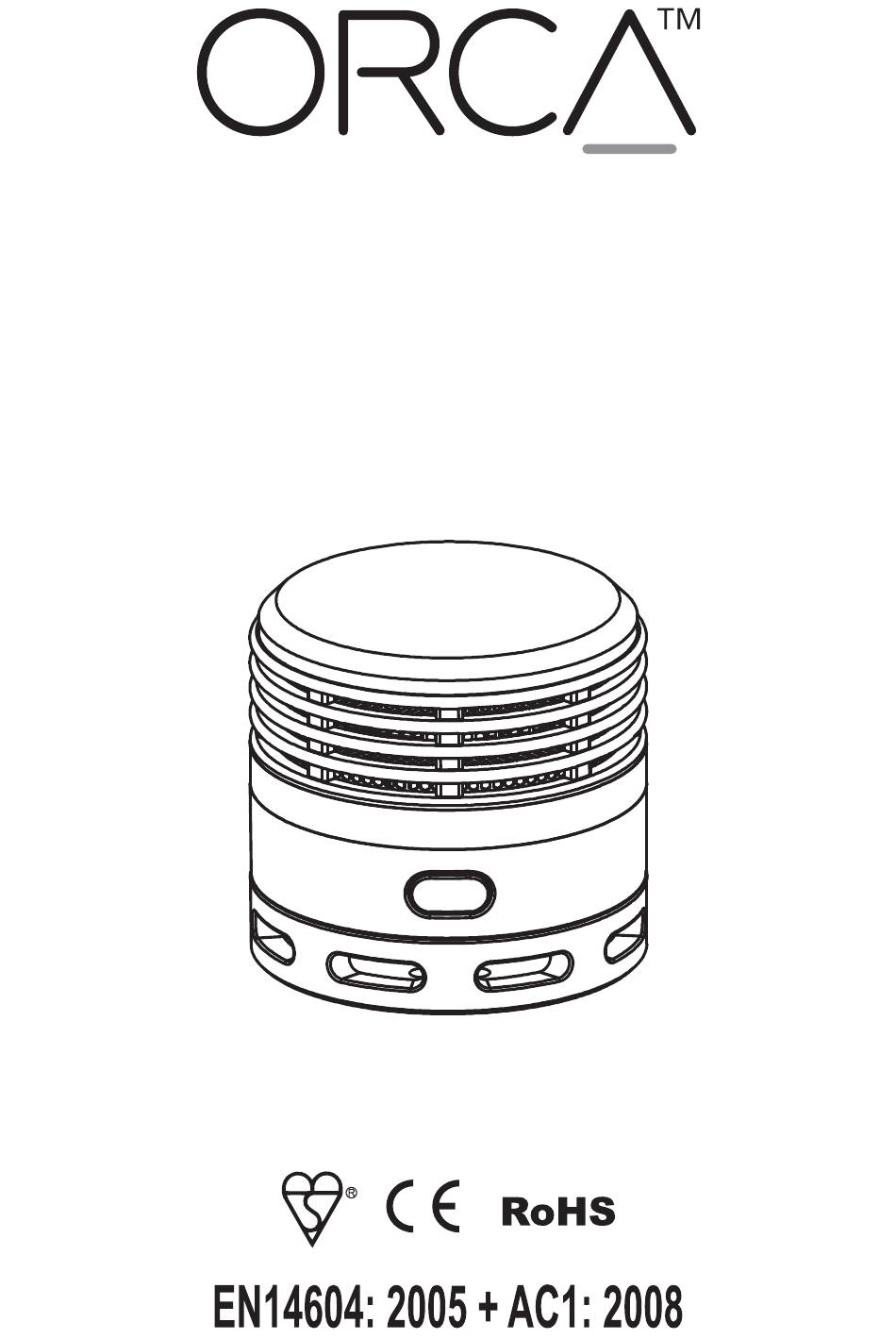

OM509-LS User Manual
10-YEAR BATTERY
MICRO SMOKE ALARM
Read the instruction manual before usage.
0086-CPR-550646

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OM509-LS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Orca OM509-LS

  • Page 1 OM509-LS User Manual 10-YEAR BATTERY MICRO SMOKE ALARM Read the instruction manual before usage. 0086-CPR-550646...
  • Page 2: Table Of Contents

    CONTENTS 6. Mounting the Alarm ..5 1. Alarm Specifications..2 7. Alarm Operation ..9 2. General Information..2 8. Maintenance ....13 3. Package Contents ..3 9. Troubleshooting ..16 4. Alarm Features ....3 5. How to Power On ..4 1. Alarm Specifications Φ45x42 mm Dimension:...
  • Page 3: Package Contents

    3. Package Contents 1-Smoke Alarm 2-Mounting Bracket 3-Screws and Anchor Plugs 4-User Manual OM509-LS User Manual 10-YEAR BATTERY MICRO SMOKE ALARM Read the instruction manual before usage. 0086-CPR-550646 Fig.1 4. Alarm Features Smoke inlet LED indicator Test/Hush button Mounting Fig.2...
  • Page 4: How To Power On

    5. How to Power On Remove mounting plate Magnet Fig.3 Unscrew the mounting plate, remove the small magnet, the power is automatically switched on (Fig.3). Note: Do not dispose of the small magnet - see page 8. CAUTION: built-in Lithium battery cannot be replaced.
  • Page 5: Mounting The Alarm

    6. Mounting the Alarm Smoke alarms should be situated in the following places: • at least one in each room • at least one on each floor level • in the hallway, in the staircase (if the hallway is too long, there should be two or more smoke alarms mounted) •...
  • Page 6 Bedroom Bedroom Staircase Bedroom Livingroom Kitchen Entrance Hobby area Guest bathroom 10. Bathroom 11. Storage 12. Garage Fig.4 Fig.5 Smoke alarm for minimal protection Smoke alarm for extra protection...
  • Page 7 Do not install at the apex of a 30-50cm sloping ceiling as smoke will not collect in these areas. If the ceiling angle is over 30° and has a total height of up to 6m, a Fig.6 30° distance of 30-50cm from the apex is to be observed.
  • Page 8 To mount the smoke alarm, proceed as follows: • Position mounting plate on the ceiling and mark screw positions with pencil. Pay attention to Fig.4 to Fig.8 for correct alarm locations. • Drill holes at the marked positions with a 5mm drill. •...
  • Page 9: Alarm Operation

    7. Alarm Operation 7.1 This alarm is designed to self-calibrate its photoelectric chamber to ensure long-term stability. 7.2 Standby Mode Fig.10 The alarm goes into Standby Mode once powered on, with the LED blinking every 5-6 minutes. 7.3 Test Fig.11 Beep Beep Beep Beep ...
  • Page 10 To check operation, the “Test/Hush” button should be depressed until the alarm siren sounds and the red strobe light ashes. When the “Test/Hush” button is released, the audible and visible alarm stops, and the alarm goes into Hush Mode. Repeat the above steps to exit Hush Mode.
  • Page 11 Attention: 1. Whether the alarm is in Standby or Alarm Mode, if the “Test/Hush” button is depressed, the alarm enters Hush Mode. LED indicator light ashes once every 10 seconds. Hold the “Test/Hush” button until acoustic alarm signal sounds, the alarm then exits the Hush Mode.
  • Page 12 7.5 Low Battery BEEP Fig.13 When the alarm is in low-battery condition (2.4v±0.1v), it sounds one “beep” every 43 seconds. 7.6 Malfunction or End-of-Life BEEP BEEP BEEP Fig.14 When the alarm malfunctions or has reached End-of-Life status, it sounds a regular “beep” every 43 seconds.
  • Page 13: Maintenance

    Please replace the alarm if it malfunctions or reaches the end of its life. 8. Maintenance • Test the alarm weekly. • Detach the alarm monthly and clean with a vacuum cleaner brush attachment, particularly underneath the alarm and around the grill (see Fig.15) Fig.15 •...
  • Page 14 • Smoke alarms may not alert every household member every time. The alarm siren is loud in order to alert individuals to a potential danger. However, there may be limiting circumstances where a household member may not hear the alarm (i.e., outdoor or indoor noise, sound sleepers, drug or alcohol usage, the hard of hearing, etc.).
  • Page 15 THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO A PERIOD OF SEVEN YEARS FOR THE SMOKE ALARM FROM PURCHASE DATE. IN NO CASE SHALL WE BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER, EVEN IF THE LOSS OR DAMAGE IS CAUSED BY ITS NEGLIGENCE OR FAULT.
  • Page 16: Troubleshooting

    9. Troubleshooting Guide PROBLEM SOLUTION Smoke alarm does not Check that small magnet on back respond when Test of alarm has been removed (see button depressed. page 3 & 4). Red LED flashes and the Battery is low - REPLACE ALARM alarm sounds one beep IMMEDIATELY! every 43 seconds.
