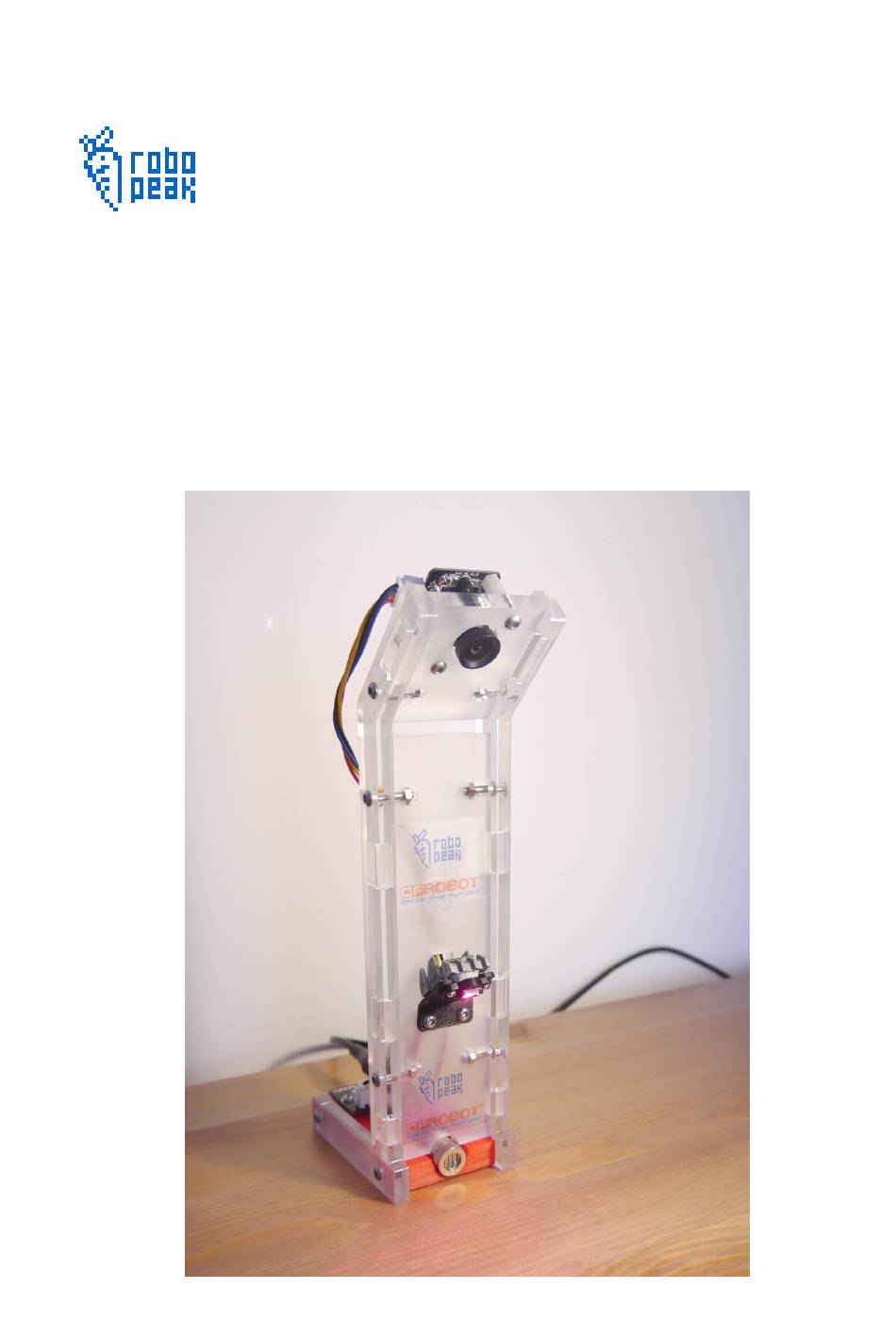

Laser Projection Keyboard Kit
Quick Assembly Manual
RoboPeak Team
2013-4
Revision: 0
Your laser projection keyboard kit needs to be assembled before you can use it. This
manual will provide you the instructions to assemble the RoboPeak laser project
keyboard kit quickly and easily.
1 / 10
Advertisement
Summary of Contents for RoboPeak Laser Projection Keyboard Kit
- Page 1 RoboPeak Team 2013-4 Revision: 0 Your laser projection keyboard kit needs to be assembled before you can use it. This manual will provide you the instructions to assemble the RoboPeak laser project keyboard kit quickly and easily. 1 / 10...
- Page 2 Parts List in the kit <需要图片：套件包装盒打开效果照> The following parts are included in the laser projection keyboard kit. Please pay attention to the Item No. in the list. The item No. will be used to identify which part will be used in the following assembly instructions.
- Page 3 Power & Sockets Camera Signal PCB x1 Cable x1 Self-tapping Screw Cap x8 Screw x2 Screw pad x4 5mm Screw x4 10mm Screwx4 12mm Screw x7 16mm Screw x6 3 / 10...
-
Page 4: Step#1 Base Frame Assembly
STEP#1 Base Frame Assembly Please prepare the base frame units with the item No. ○ and the screws with No. ○ ,○ ,○ and the screw cap ○ . Please assemble them based on the following figures. Pay attention to the side of the camera dock ○ 13+19 13+19 4 / 10... - Page 5 STEP#2 Bottom Base Installations Place the bottom base ○ in the bottom of the assembled frame and use the screw ○ to fix it. 5 / 10...
- Page 6 STEP#3 Mounting the Keyboard Pattern Projector Mount the keyboard pattern projector ○ to the dock ○ and use the self-tapping screw ○ fix them. Place the assembled projector parts to the base frame as depicted in the following figure. Use the screw ○...
- Page 7 STEP#4 Mounting the Infrared Light Camera Fix the Nylon column ○ on the camera ○ with the screws ○ Mount the camera to the base frame using screw ○ 7 / 10...
- Page 8 STEP#5 Linear Laser Installations Install the linear laser ○ to the bottom base as shown in the following figures. Place the locker ○ on the laser and use the screws ○ to fix them. Insert the screw ○ on the top of the locker ○...
- Page 9 STEP#6 PCB Installations and connecting the cables Place the screw pads ○ on the screw holes of the bottom base: Place the PCB ○ on the bottom base and use the screws ○ to fix them. Connect all the cables. Don’t forget to connect the camera ○...
- Page 10 Finished！ Now your laser projector kit is ready to work. Before the first use, please follow the instructions of the calibration manual. 10 / 10...
