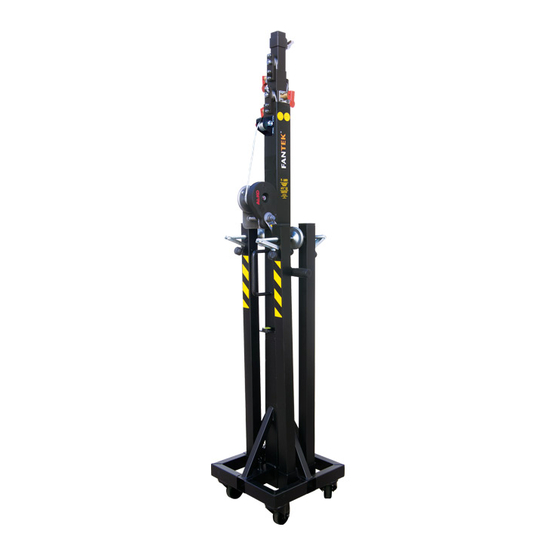

- Page 8 In these cases we need the model type, year of manufacture, and serial number. 2.- Technical Information. Lifting tower T-103. This tower is designed to lift loads vertically up to different heights as a support of lighting sets. 2.1.- Max. load: 150 kg.
- Page 9 2.17.- Wheels for the vertical transport of the tower to it’s working location when folded. 3.- Safety precautions. 3.1.- Place the tower only on solid and levelled surfaces. 3.2.- Verify that the legs are correctly inserted and fastened. 3.3.- Verify that the tower is in a vertical position by means of the bubble level (F) placed in the base profil.
- Page 10 The brake discs have been pregreased with an special warmth and pressure resistant grease. Do not use other greases or this will affect to the winch brake performance. 5.3.- The lifting tower T-103 must be inspected by specialized technicians annually at least.
- Page 11 5.4.- In order to maintain this guarantee of function and safety, only spare parts of the manufacturer’s design must be used. The user forfeits all rights to claim if parts other than those of the manufacturer are used or modifies the product in any other way. 5.5.- When any spare part is required, it is necessary to indicate its reference number included in the spare parts of this manual.
- Page 12 Plástico / Plastic T-103/027 Tapón pata plástico / Plastic cap Plástico / Plastic T-103/028 Pomo ajustador / handle to fit Plástico / Plastic T-103 /029 Tapon nylon ajustar/Nylon cap Plástico / Plastic ACC/6 Contera pequeña / Squared platen Acero / Steel ACC/4...
