TOOLS YOU WILL NEED:
Level
Jig Saw
Tape Measure
Pencil
Power Drill
Safety Glasses
IMPORTANT
• Read installation instructions carefully before starting project.
• Peel back protective film to verify color before installation.
• Allow bathtub to reach room temperature before installation.
• Do not use plumber's putty. Will cause product failure and void warranty.
Use a high grade silicone caulk for all necessary locations.
• Keep instructions for warranty information.
61 ⁄ "
51 ⁄ "
13 ⁄ "
31 ⁄ "
DO NOT RETURN PRODUCT!
FOR QUESTIONS OR CONCERNS
please call or e-mail our customer support team
8:00am-4:30pm EST. Monday - Friday
1-800-458-9036
lyonssupport@lyonsindustries.com
Elite™ Bathtub (ETLxx663219)
Above Floor Rough-in
Subject to manufacturing tolerance of [+] or [-] 1/8"
1"
26 ⁄ "
19" 20"
65 ⁄ "
(Additional models on next page)
Page 1
SUPPLIES YOU WILL NEED:
Screws, 1-5/8" Flathead
Shims
Construction Adhesive
Mortar Compound (Optional)
Drain & Overflow Assembly with Extension
Silicone Caulk for Drain
15 ⁄ "
11"
6"
33½"
8¾"
Drain C L
= Stud location

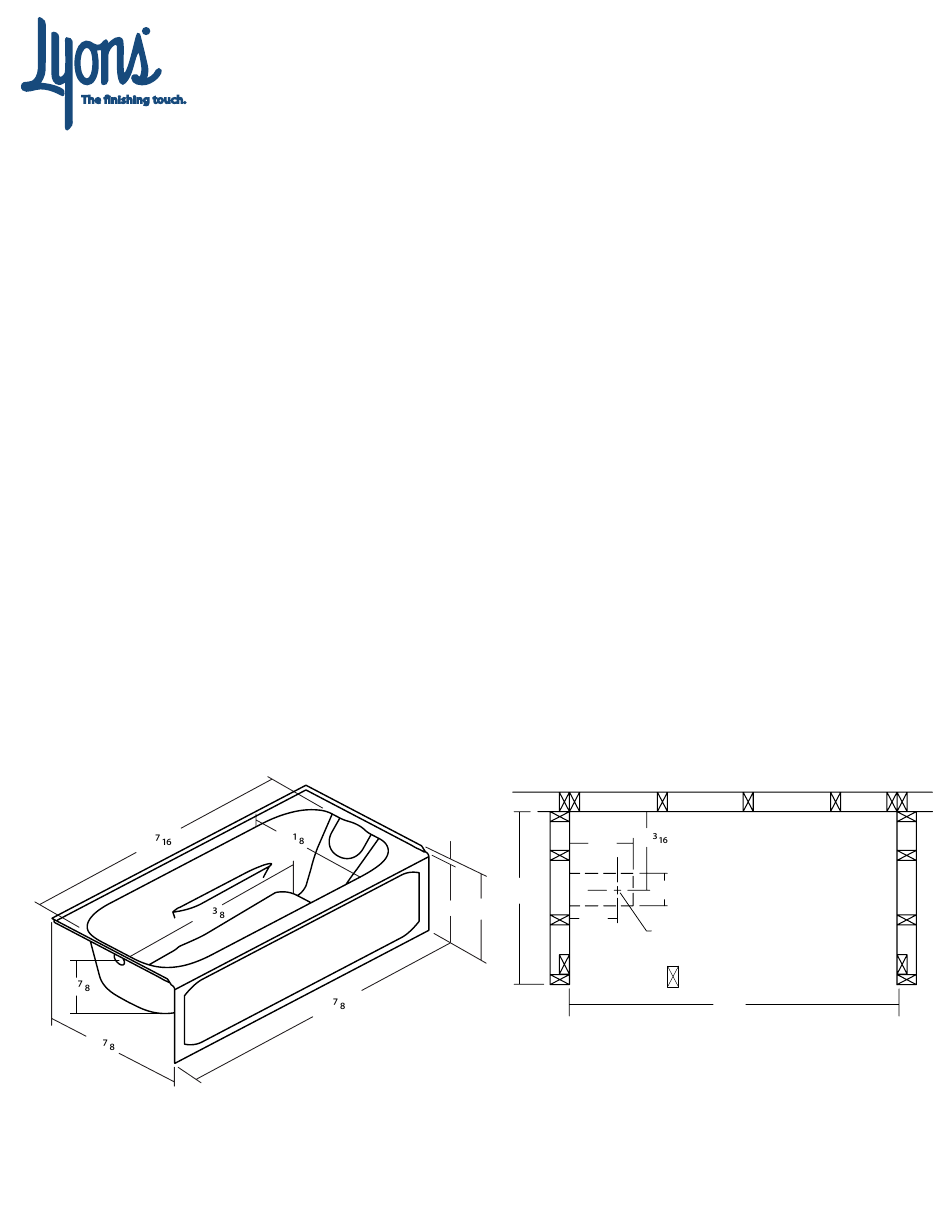

6632 STUD LAYOUT. Lyons Elite™ 6632 Bathtub will fit most
standard 32" x 66" bathtub walls.
Left-hand drain shown—reverse layout for right-hand drain.
Floor Cut Out (6" x 11")
66"
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Lyons Elite ETLxx663219 Series
- Page 1 13 ⁄ ” 65 ⁄ ” 66" 31 ⁄ ” 6632 STUD LAYOUT. Lyons Elite™ 6632 Bathtub will fit most standard 32" x 66" bathtub walls. Left-hand drain shown—reverse layout for right-hand drain. (Additional models on next page) Page 1...
- Page 2 = stud location 14½” 59 ⁄ ” 60" 31 ⁄ ” 6032 STUD LAYOUT. Lyons Elite™ 6032 Bathtub will fit most standard 32" x 60" bathtub walls. Left-hand drain shown—reverse layout for right-hand drain. Elite™ Bathtub (ETLxx603019) Elite™ Bathtub (ETxx543019)
- Page 3 INSTALLATION INSTRUCTIONS STEP 1. PREPARING ALCOVE a. Strip alcove to bare studs. b. Stud pocket should be constructed as shown above. Studs should be plumb and square to sub-floor. c. Floor must be clean, smooth, and level (check with level). Sub floor must be installed in the stud layout.
- Page 4 Lyons be liable for any amount in excess of the original purchase price of the fixture. Lyons reserves the right to require the return, at purchaser’s expense, of the damaged fixture for repair or exchange before providing services under this Limited...
