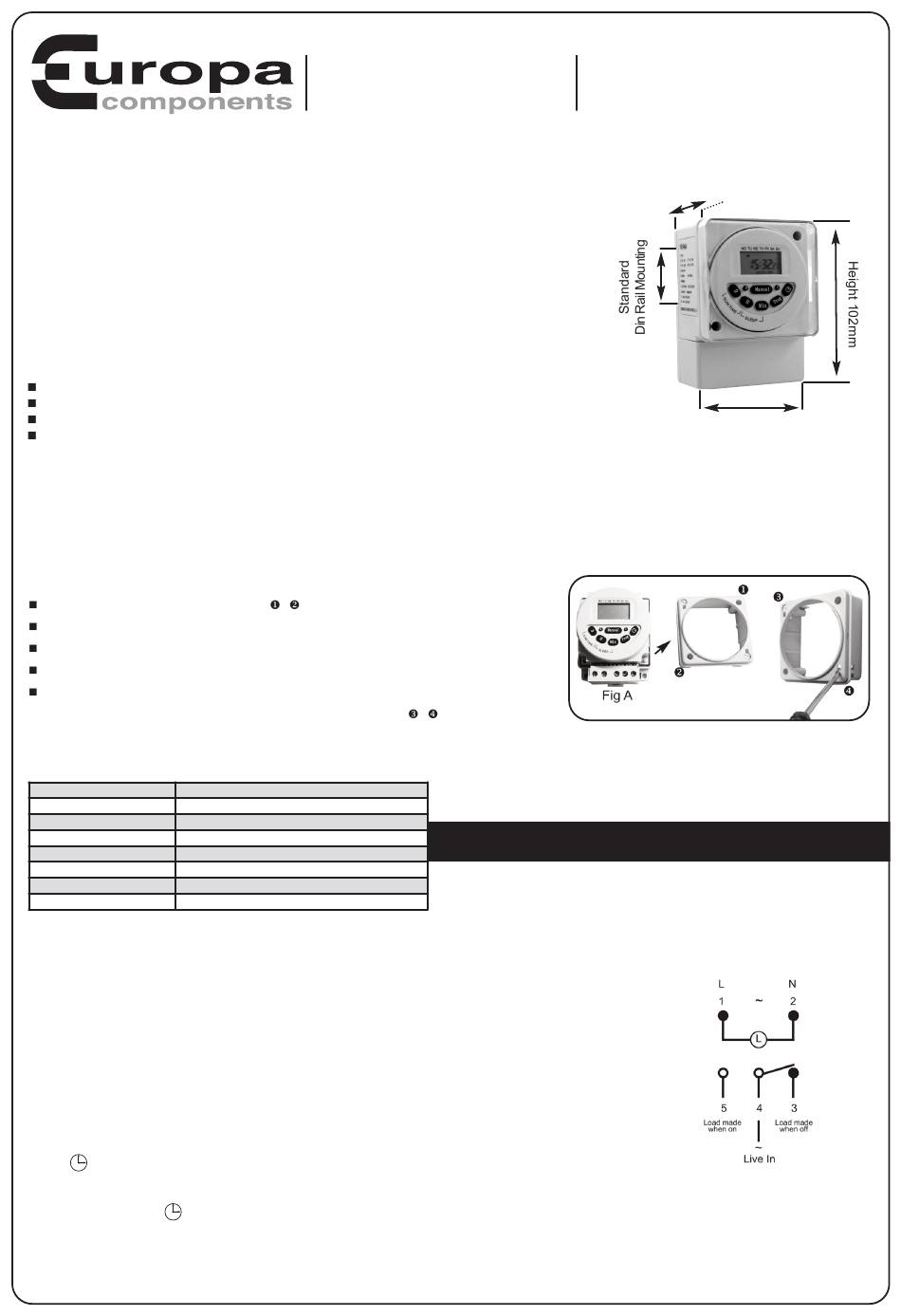

Europa components ET1624PM Operating Instructions

Important notice to installers!
Before installation work starts the operating instructions should be read and understood. If you need technical assistance please contact the
manufacturer at the address shown on this leaflet.
Installation of this unit should only be undertaken by a skilled electrician working to the
standards set by the latest edition of the IEE wiring regulations.
The unit is designed to withstand reasonable levels of interference from external sources
such as voltage peaks in the electricity supply. If however the supply is known to be subject to
unusual level of interference then measures to protect the device from this need to be taken by
the installer. Similarly the output relay is designed to switch a resistive load. If inductive or
capacitive loads need to be switched it is suggested that a suitably specified slave device
such as a contactor or relay be used to carry out the switch duty.

Electrical connections

240V mains supply to terminals 1 & 2
Switched, volt free, output is across terminals 3, 4 & 5 where terminal 3 is common.
The switch across terminal 3 & 4 is made when the timer is ON
The switch across terminal 3 & 5 is made when the timer is OFF

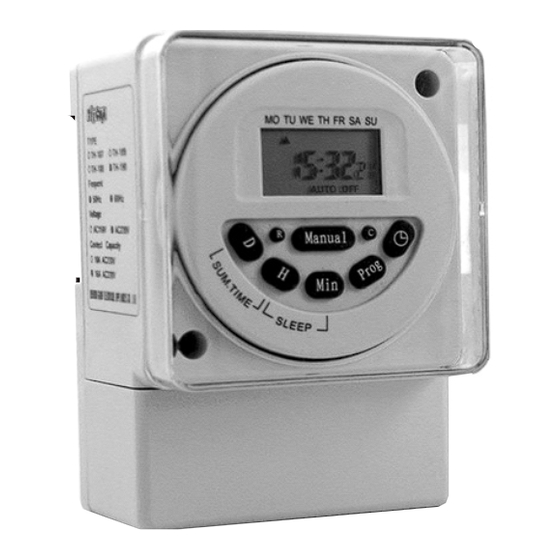

Mounting the ET1624HD Din Rail Mounting Unit

The device is rated at IP 20 and as such provides finger protection but no immunity to fluids. It is designed to be fitted on a Din rail within a
suitably IP rated enclosure. Visit www.europacomponents.com to select an enclosure from the broad range on offer.
Efforts should be made to ensure that the device is not subjected to undue vibration. Methods such as resilient mounting of the enclosure
should be employed to keep levels to a minimum.
Mounting the ET1624HDPM Panel Mounting Unit
Remove lid by undoing the fixing screws
Cut panel hole: 67 x 67 x 67 x 67mm
Locate the main body of the timer (Fig A) under the panel
Connect the terminals as required beneath the panel (before re-attaching the lid)
Secure in position be re-attaching the lid, sandwiching the panel between the lid and the body
of the timer. Using a screw driver turn out the secure holding tags

Technical Data

Supply Voltage 230Volts 50/60Hz AC
Output relay rating 16Amps AC1 resistive
Output relay type Single pole changeover (volt free)
Power consumption <2VA
Set Period of relay 1 min to 168 Hours
Time Error <±0.5 Seconds per Day
Ambient temp range -25°C to +60°C
Operating Humidity <95%

Initial setup

In order to programme the unit the internal battery will need to be charged. To do this you will need to connect a live feed to the unit for about
ten minutes. The set up procedure can then be done with the power disconnected.
Please Note: The product may arrive in "sleep mode". To wake up the timer press the R button once.

Guide to the Programming Keys

Button 'D' Sets the Day
Button 'H' Sets the Hour
Button 'Min' Set the number of minutes
Button 'Prog' Enables Programming
Button 'R' Resets the device / wakes the timer from "sleep mode".
Button 'C' Cancels the last function
Button 'Manual' Sets the device to ON-AUTO-OFF
Button ' ' Master clock
Setting the master clock
Press the clock button and hold down whilst also pressing the following buttons.
Press the 'D' button until the triangle on the top of the screen moves to the correct day as shown at the top of the picture frame.
Press the 'H' button until the correct hour is shown on the 24 hour clock
Press the 'Min' button until the correct number is displayed
Note the clock display is 24 Hour only
ET1624HD / PM
Operating Instructions
&
&
Tel: 01582 692 440 / Fax: 01582 692 450
e-mail: sales@europacomponents.com
website: http://www.europacomponents.com
Depth 56mm
Width 72mm
ET1624HD / PM
Europa House
Airport Way
Luton, Beds, LU2 9NH
