Summary of Contents for X1 Bike X1 Electron
- Page 1 Journey Onward User Manual 2019...
-
Page 3: Introduction & Disclaimer

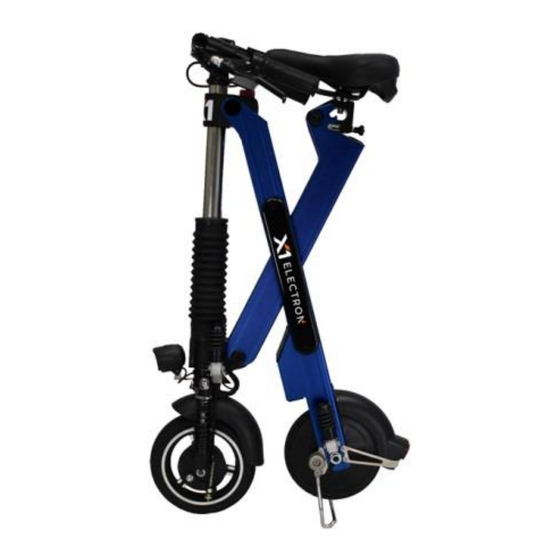

X1 Electron has a fashionable style, a convenient folding feature, and is very easy to operate and ride. X1 Electron is an economical and practical form of portable, alternative transport, that is environmentally friendly. - Page 4 3. For riding comfort and safety, ensure that your feet can touch the ground. 4. When using your X1 Electron for the first time, please ride a short distance to make sure you can handle the eBike. Only attempt to ride longer distances, in the road, bike lane, sidewalk, or across roads AFTER you have learned to control the eBike.
- Page 5 1. Handlebar 2. LCD Multi Display & Gear Selector 3. Folding Joints 4. Brake Lever 5. Push to Fold / Unfold the Bike 6. Full Body Damper Spring 7. LED Headlight 8a. Front Foot Pegs 8b. Rear Foot Pegs 9. Front Wheel Damper Springs 10.
- Page 6 An Anti-Theft device is fitted as standard Function of The Anti-Theft Alarm equipment on your X1 Electron. ACTIVATE To prevent the theft of your EV, we DISARM ALARM ALARM & TURN-OFF AUTO-START recommend using the alarm system at all times.
- Page 7 Backlit Multi Display Dashboard Speedometer MPH or KMH Remaining Battery Meter Gear selector Odometer/Tripometer Display ...
- Page 8 1. Pull the lever to release the seat, then clip into the desired position 2.Push this button 3. To fold or unfold, simply squeeze the bike into the open or folded position after you have positioned the seat correctly 4. Fold the handlebar by gently pulling the 2 spring-loaded clasps apart, using a gentle pulling force to release, then fold the 2 handles...
- Page 9 Finished eBike Battery Wheel base 776mm Voltage 36-48V 20 mile = 9.6AH / 36V L x W x H (unfolded) 37*33*8 inches Capacity 25 mile =9.6AH / 48V 55 mile =17.5AH / 48V L x W x H (folded) 37*20*8 inches Battery core Panasonic 18650-2900PF Maximum speed...
- Page 10 System structure general set...
- Page 11 Wiring diagram controller (general set)
-
Page 12: Using The Charger
IMPORTANT Battery description The battery is located in the frame of the eBike Fully-charged underneath the charging port area. Do not attempt to 41.5v voltage disassemble the battery compartment, or try to connect positive to negative. Please charge the eBike every 15-30 Undervoltage days (even if not being used) in order to keep the battery protection... -
Page 13: Battery Cannot Be Charged
If one of the following occurs, use this checklist to address the issue. MOTOR DOES NOT ROTATE BATTERY CANNOT BE CHARGED 1. Motor joint became loose. 1. Charger connector is loose. 2. Battery may be too low. 2. Charger is damaged. 3. - Page 14 1.We implement a standard guarantee / warranty system for our products. We provide free maintenance, replacement/installation of parts, and replacement services for those products which comply with warranty conditions (USA, Canada and Mexico only). Excluding insurance, post/delivery and transport charges, we provide free warranty service for 1 year.
- Page 15 • Your X1 Electron • 1 Charger Unit (110/240v) • GPS tracking device* requires SIM card and contract • 2 Remote Keyfobs • Instruction Manual • 1 Year Limited Warranty * manual installation required. There may be a GPS tracking device in your box.
- Page 16 This X1 Electron was hand made and hand tested prior to packing, and has passed quality inspection. It was approved to leave the factory. Proof of purchase is required to activate your warranty. The VIN number is allocated to you and your X1 Electron at the time of registration (warranty is transferrable).To register your warranty, please visit https://x1bike.com/register-your-warranty/...
- Page 17 It’s like a franchise, without the limiting restrictions, and without the ongoing fees! This means you could become part of the X1 Bike adventure, represent our brand in your place of business, and make money alongside us! We even advertise for you, and put a pin on our dealer locator page so people can...
- Page 18 Ⓡ Ⓡ...
