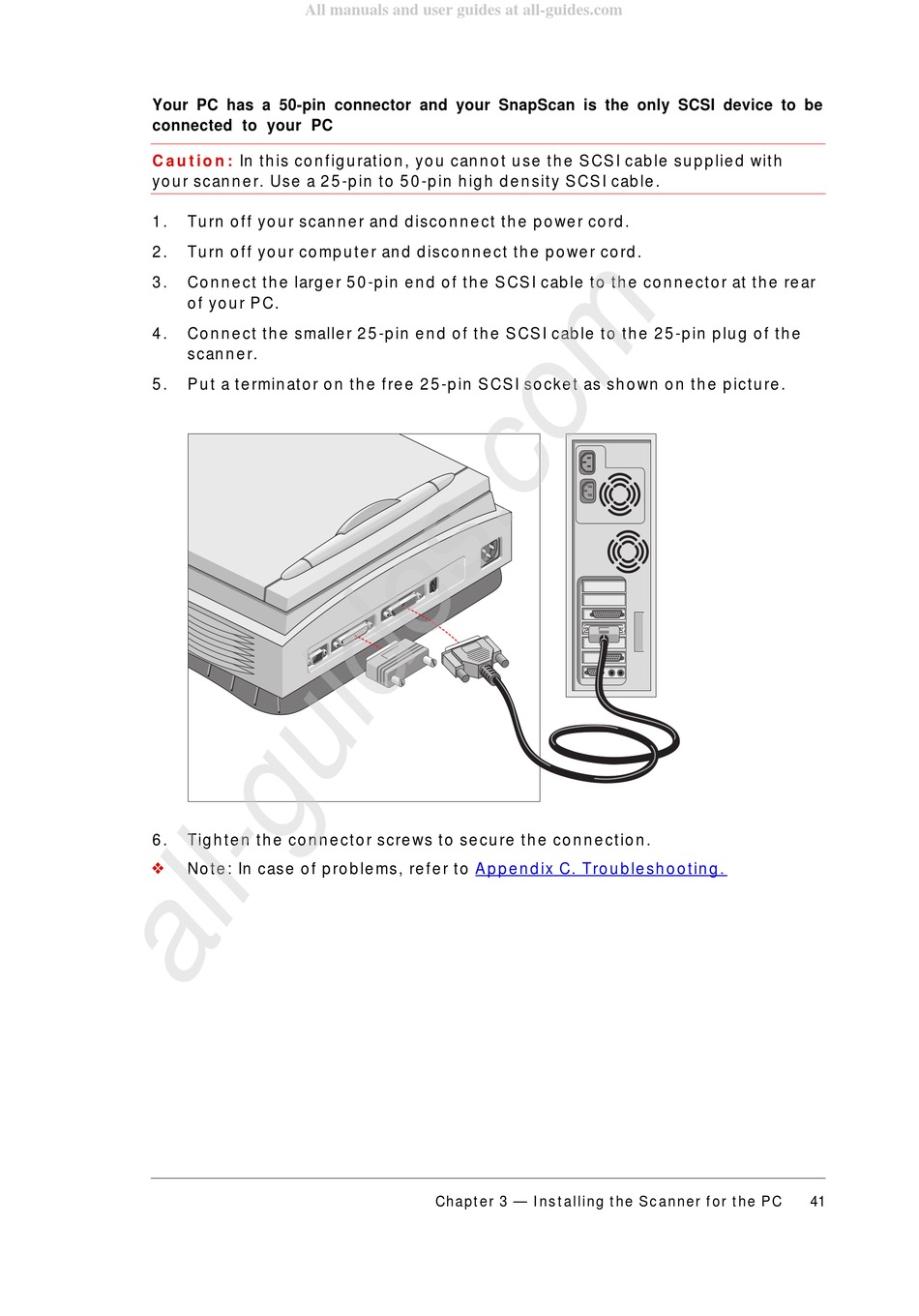

Your PC has a 50-pin connector and your SnapScan is the only SCSI device to be
connected to your PC
C a u t i o n :
I n t h i s c o n f i g u r a t i o n , y o u c a n n o t u s e t h e S C S I c a b l e s u p p l i e d w i t h
y o u r s c a n n e r . U s e a 2 5 - p i n t o 5 0 - p i n h i g h d e n s i t y S C S I c a b l e .
1 .
T u r n o f f y o u r s c a n n e r a n d d i s c o n n e c t t h e p o w e r c o r d .
2 .
T u r n o f f y o u r c o m p u t e r a n d d i s c o n n e c t t h e p o w e r c o r d .
3 .
C o n n e c t t h e l a r g e r 5 0 - p i n e n d o f t h e S C S I c a b l e t o t h e c o n n e c t o r a t t h e r e a r
o f y o u r P C .
4 .
C o n n e c t t h e s m a l l e r 2 5 - p i n e n d o f t h e S C S I c a b l e t o t h e 2 5 - p i n p l u g o f t h e
s c a n n e r .
5 .
P u t a t e r m i n a t o r o n t h e f r e e 2 5 - p i n S C S I s o c k e t a s s h o w n o n t h e p i c t u r e .
6 .
T i g h t e n t h e c o n n e c t o r s c r e w s t o s e c u r e t h e c o n n e c t i o n .
v
N o t e : I n c a s e o f p r o b l e m s , r e f e r t o
A p p e n d i x C . T r o u b l e s h o o t i n g .
C h a p t e r 3 — I n s t a l l i n g t h e S c a n n e r f o r t h e P C
41
