Williams AV BluePOD Solo User Manual

Bluetooth integration hub

Advertisement

Quick Links

BluePOD Solo
Bluetooth Integration Hub
USER MANUAL
MAN 240A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BluePOD Solo and is the answer not in the manual?

Questions and answers

Summary of Contents for Williams AV BluePOD Solo

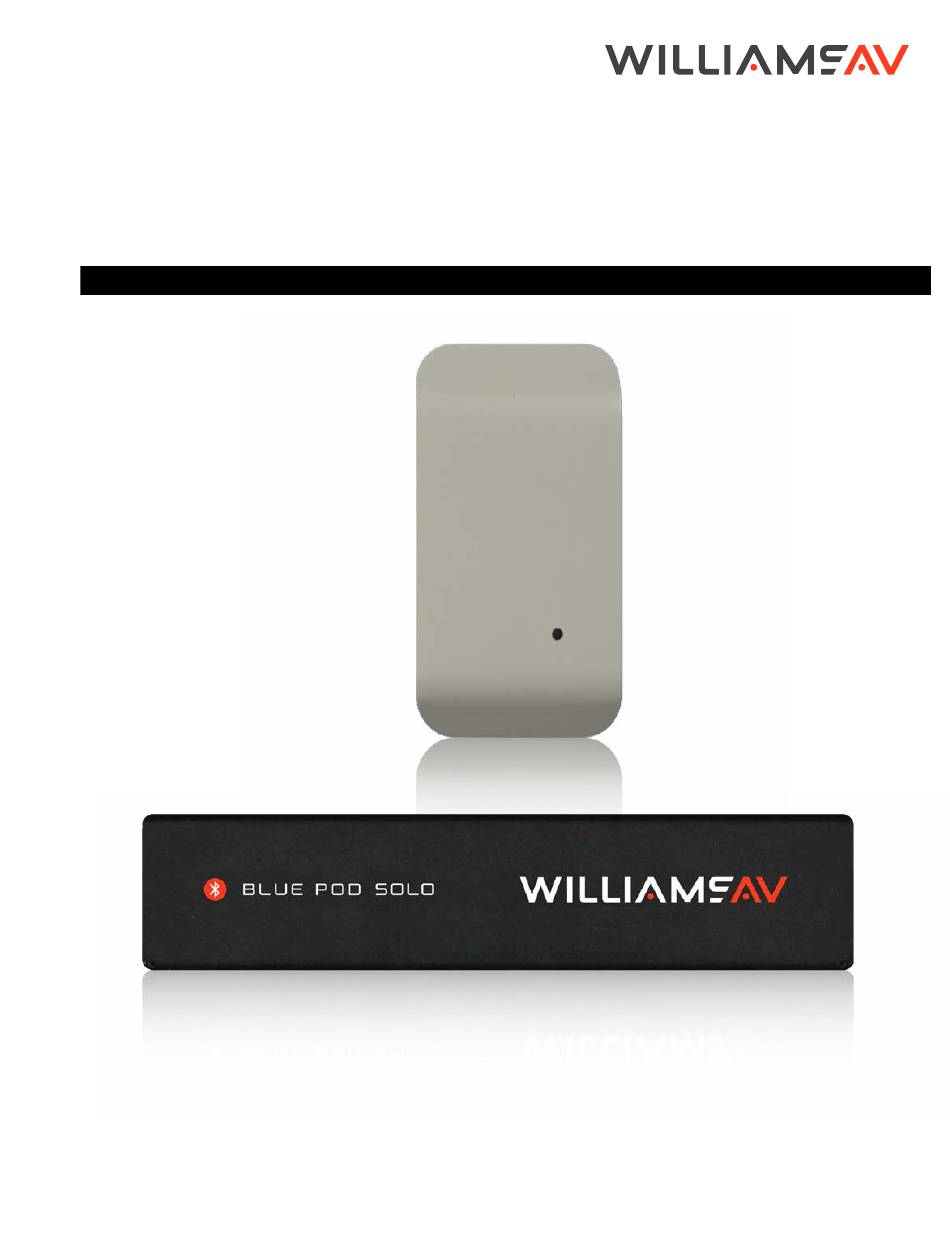

  • Page 1 BluePOD Solo Bluetooth Integration Hub USER MANUAL MAN 240A...
  • Page 2: Table Of Contents

    BluePOD Solo Table of Contents Safety Warnings and Instructions   �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������3 Recycling Instructions   ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������4 System Includes   ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������4 System Overview   ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������5 Example: Conference Phone Calls   �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������5 Installation Procedures   �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������6 Physical Installation   �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������6 Dante (Optional)   �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������6 Line Level Source (Phoenix style connectors)   ������������������������������������������������������������������������������������������������������������������������������������������������������������� 7 Connecting your Personal Device  ...
  • Page 3: Safety Warnings And Instructions

    DC 24VDC. Note: use the Williams AV TFP 062 power supply for this unit. 3. Do Not Touch any part of the BluePOD Solo system with wet hands. Do not handle any part of BluePOD Solo system, including the power cord, when your hands are wet or damp.
  • Page 4: Recycling Instructions

    4. Place all components of the BluePOD Solo system in a well, ventilated location. Take special care to provide plenty of ventilation on all sides of the BluePOD Solo system components, especially when it is placed in a small location, such as a rack. If ventilation is blocked, the BluePOD Solo system may over heat and malfunction.
  • Page 5: System Overview

    Although the BluePOD Solo can be used in many ways, a common use will be for phone calls in a conference room. The BluePOD Solo can broadcast audio from a room to a remote caller. If the phone with a Bluetooth connection to the B-WAP calls another person, the person called will hear the line in audio (such as a microphone).
  • Page 6: Installation Procedures

    Controller The BluePOD Solo Controller will need to be installed in a safe location near the speakers and microphones that will be used with the device. This is often in an entertainment cabinet or equipment rack. The controller will need to be placed within 100 feet (30.5 m) of the B-WAP.
  • Page 7: Dante (Optional)

    Dante (Optional) BluePOD Solo’s that are Dante equipped may be linked to a Dante audio system via a cable into the Dante port on the back of the device. Further configuration of the audio can be done through the Dante system. Not all BluePOD Solos have a Dante port.
  • Page 8: Line Level Source (Phoenix Style Connectors)

    Line Level Source (Phoenix style connectors) BLUEPOD Solo Note: The BluePOD Solo is designed to work with professional audio sources (+4 dBu line level)� When using consumer grade sources (-10 dBV line level), a pre-amplifier may be necessary� SHIELD BLACK...
  • Page 9: Connecting Your Personal Device

    Bluetooth connection. These instructions will differ per device. Only one Bluetooth device can be connected to the BluePOD Solo system at a time. When a device is connected to the B-WAP, a blue LED will illuminate.
  • Page 10: Disconnecting Your Personal Device

    RS-232 Controls RS-232 controls are available for the BluePOD Solo, and can be used to set various settings such as the Bluetooth connection name. A full documentation of RS-232 controls is available in the BluePOD Solo RS-232 Programmer’s Guide, available on the BluePOD Solo product page on the Williams AV website.
  • Page 11: Specifications

    BluePOD Solo Specifications BluePOD Solo Controller and Bluetooth Wireless Access Point Dimensions: 7”W x 3.75”D x 1.5”H (178 cm x 95 cm x 38 cm) Power Supply: Input: AC Power Socket; TFP 062; 100-240 VAC, 50-60 Hz International Desktop Power Supply with IEC Line Cords Output: 24VDC @ 0.75A DC 2.5 mm ID barrel plug...
  • Page 12: Year Warranty

    Williams AV has no control over the conditions under which this product is used. Williams AV, therefore, disclaims all warranties not set forth above, both express and implied, with respect to the BluePOD Solo system, including but not limited to, any implied warranty of merchantability or fitness of use of such equipment including, without limitation, any warranty that the use of such equipment for any purpose will comply with applicable laws and regulations.
